Connecting Rod Journal Code Location

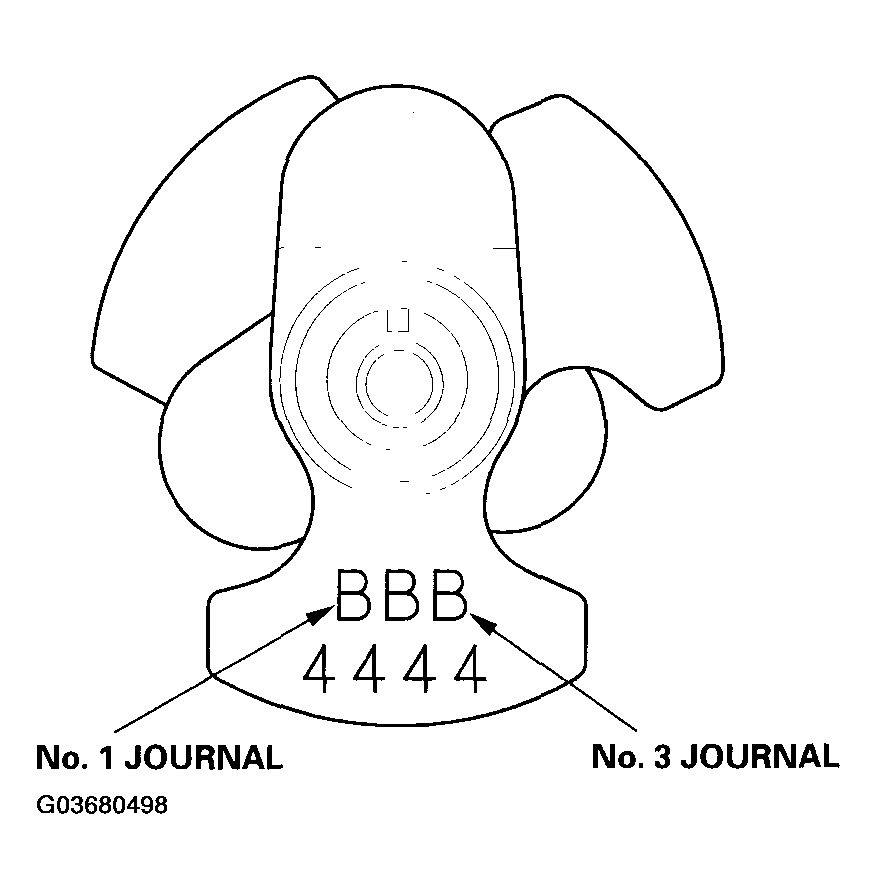

  1. 3. The connecting rod journal codes are stamped on the No. 1 web.
    Fig 1: Identifying Connecting Rod Journal Code Location
    G03680498Courtesy of AMERICAN HONDA MOTOR CO., INC.

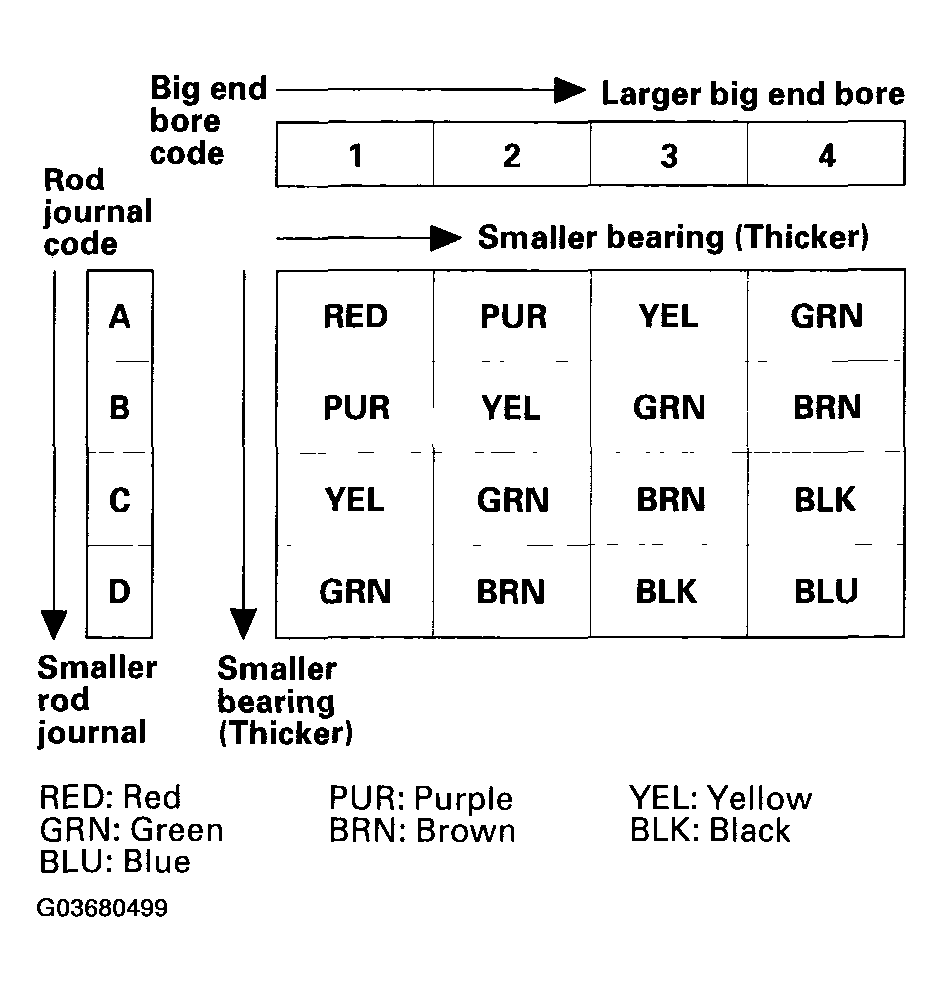

  2. 4. Use the big end bore codes and rod journal codes to select appropriate replacement bearings from the following table.
    NOTE: Color code is on the edge of the bearing.
    Fig 2: Color Code Table
    G03680499Courtesy of AMERICAN HONDA MOTOR CO., INC.
