Fuel Gauge Sending Unit Test
Special Tools Required
Fuel sender wrench 07AAA-S0XA100
NOTE:
For the fuel gauge system circuit diagram, refer to the Gauges Circuit Diagram (see CIRCUIT DIAGRAM
).
- Check the No. 6 fuse in the under-dash fuse/relay box before testing.
- Remove the middle floor panel (see MIDDLE FLOOR PANEL REPLACEMENT ).
- Remove the access panel from the floor.
- Turn the ignition switch OFF, then disconnect the fuel pump 5P connector.

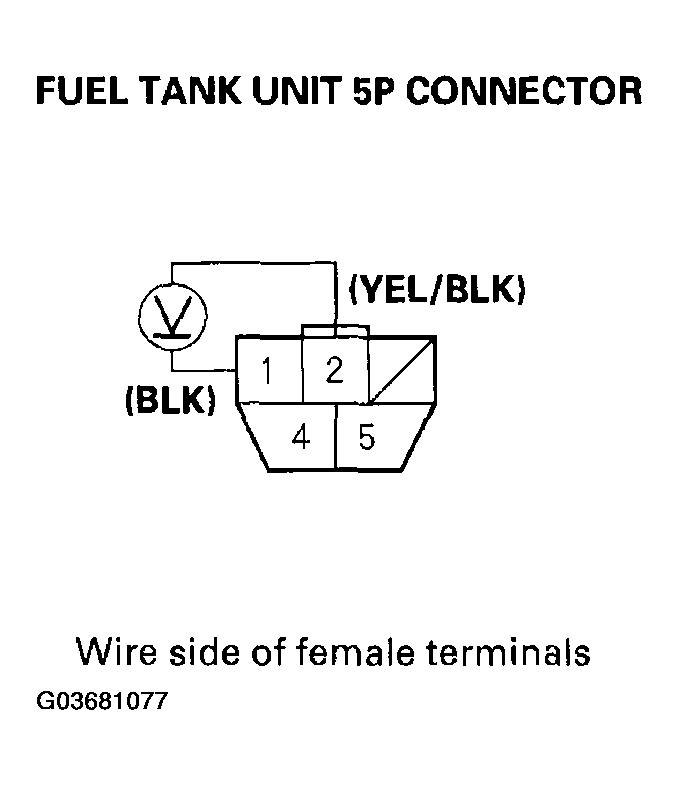

- Measure voltage between fuel tank unit 5P connector terminals No. 1 and No. 2 with the ignition switch ON (II). There should be battery voltage.
- If the voltage is OK, go to step 6.
- If the voltage is not OK, check for:
- an open in the YEL/BLK or BLK wire.
- poor ground (G 502).
- Turn the ignition switch OFF. Remove the No. 18 (7.5 A) fuse from the under-dash fuse/relay box for at least 10 seconds, then reinstall it.

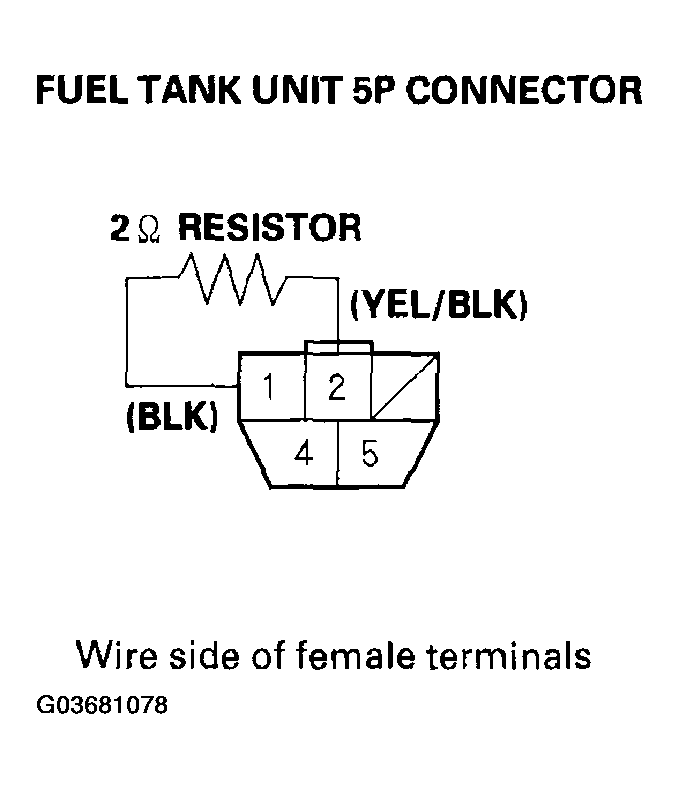

- Install a 2 ohm, resistor between fuel tank unit 5P connector terminals No. 1 and No. 2, then turn the ignition switch ON (II).
- Check that the pointer of the fuel gauge starts moving toward the "F" mark.
- If the pointer does not move, replace the gauge.
- If the gauge is OK, inspect the fuel gauge sending unit.
NOTE:- Turn the ignition switch OFF before the pointer reaches "F" on the gauge dial. Failure to do so may damage the fuel gauge.
- The fuel gauge is a bobbin (cross-coil) type; the fuel level is continuously indicated even when the ignition switch is OFF, and the pointer moves more slowly than on other gauges.
- Turn the ignition switch OFF.
- Remove the fuel tank; 2000-2005 models (see 2000-2005 MODELS ), 2006 model (see 2006 MODEL ),
- Disconnect the quick-connect fittings from the fuel tank unit.

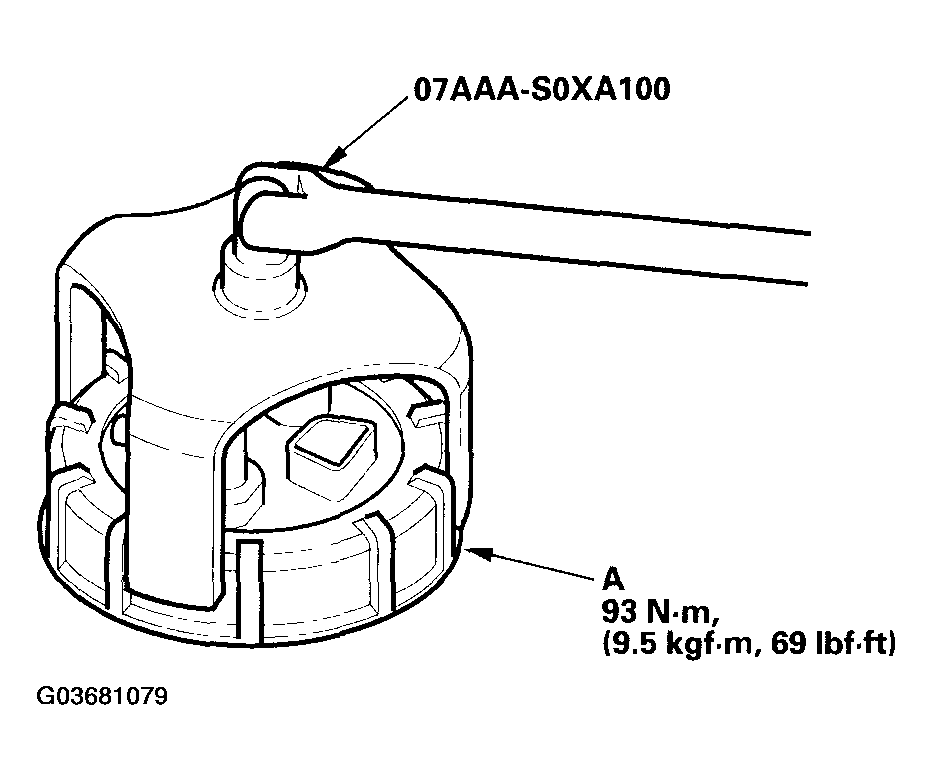

- Using the special tool, loosen the locknut (A), and remove the fuel tank unit from the fuel tank.

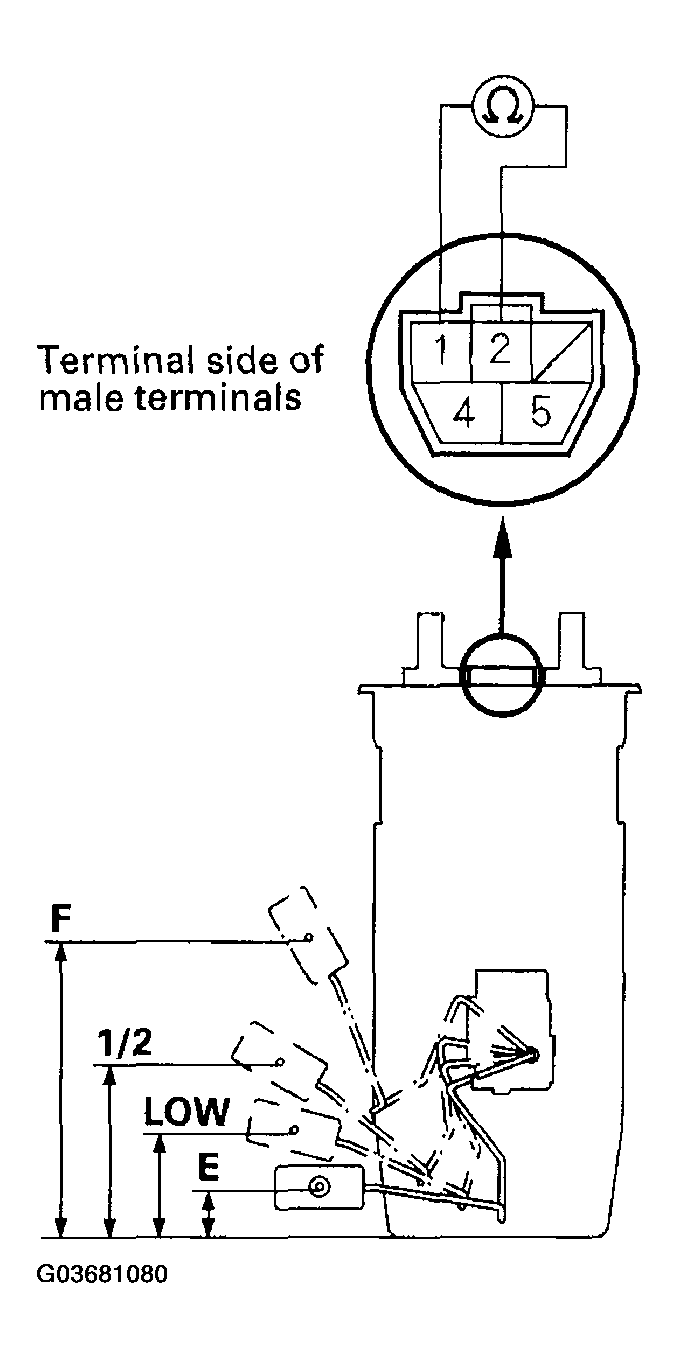

- Measure resistance between fuel tank unit 5P connector terminals No. land No. 2 with the float at E (EMPTY), LOW (LOW FUEL INDICATOR), 1/2 (HALF FULL), and F (FULL) positions.
If you do not get the following readings, replace the fuel gauge sending unit; 2000-2005 M/T models (see 2000-2005 M/T MODELS ), CVT model, 2006 M/T model (see CVT MODEL, 2006 M/T MODEL ).
TERMINALS RESISTANCEFloat Position E 1/2 LOW F Resistance ohm 130 to 132 65 to 71 118 to 124 11 to 13
