System Diagram

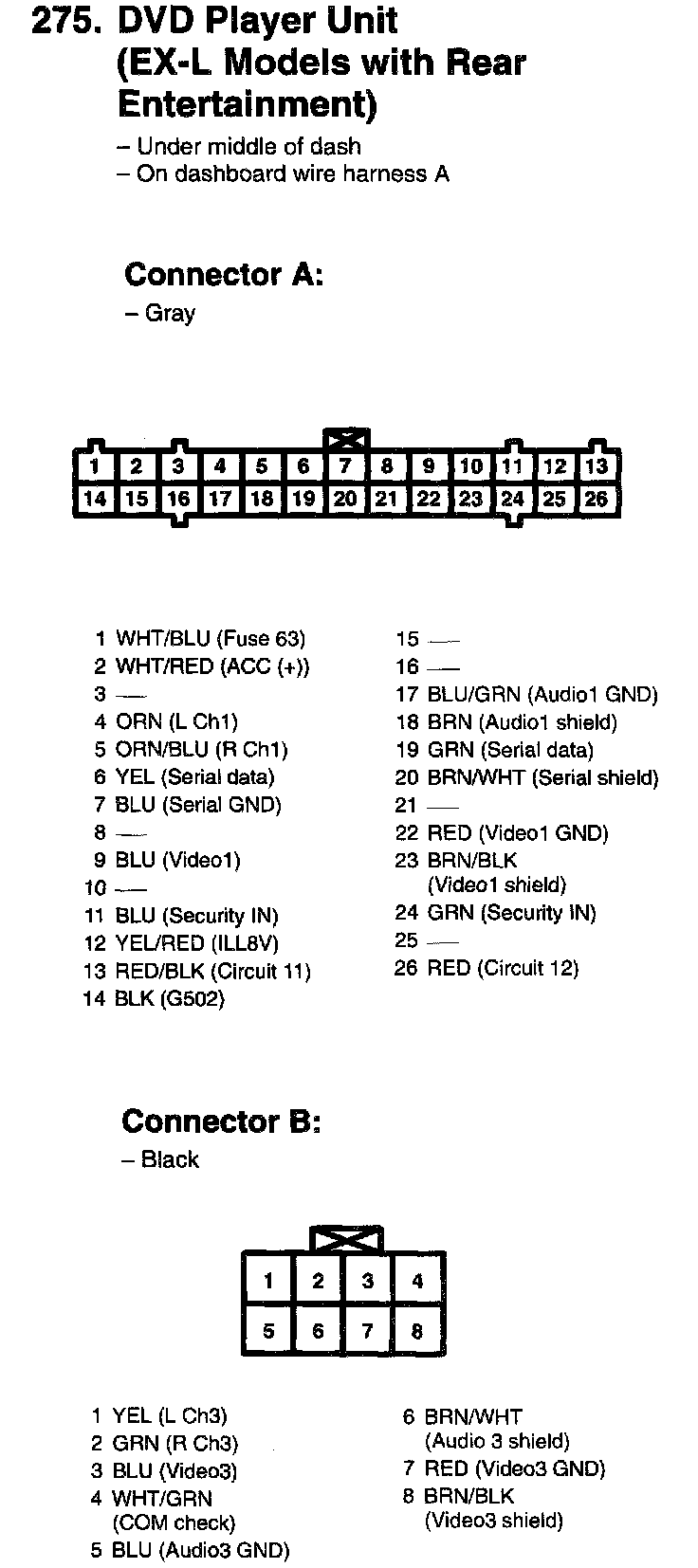

275. DVD Player Unit (EX-L Models With Rear Entertianment) Connector A, B:

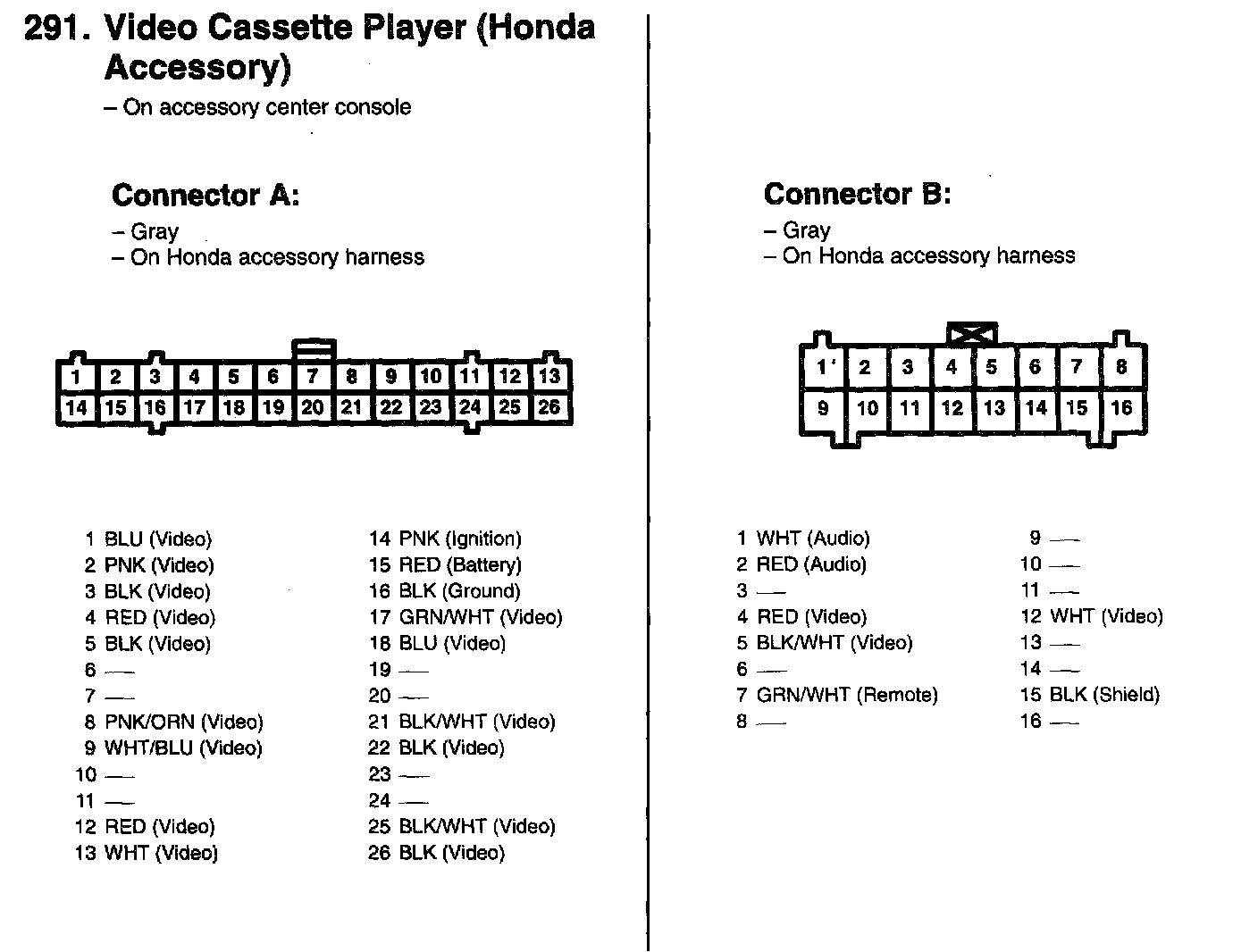

291. Video Cassette Player (Honda Accessory) Connector A, B:
