BRN Wire Communication Line Test
- Remove the driver's multiplex control unit from the driver's under-dash fuse/relay box.
- Carefully pry off the driver's door switch trim (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
- Disconnect door multiplex connector A (20P).

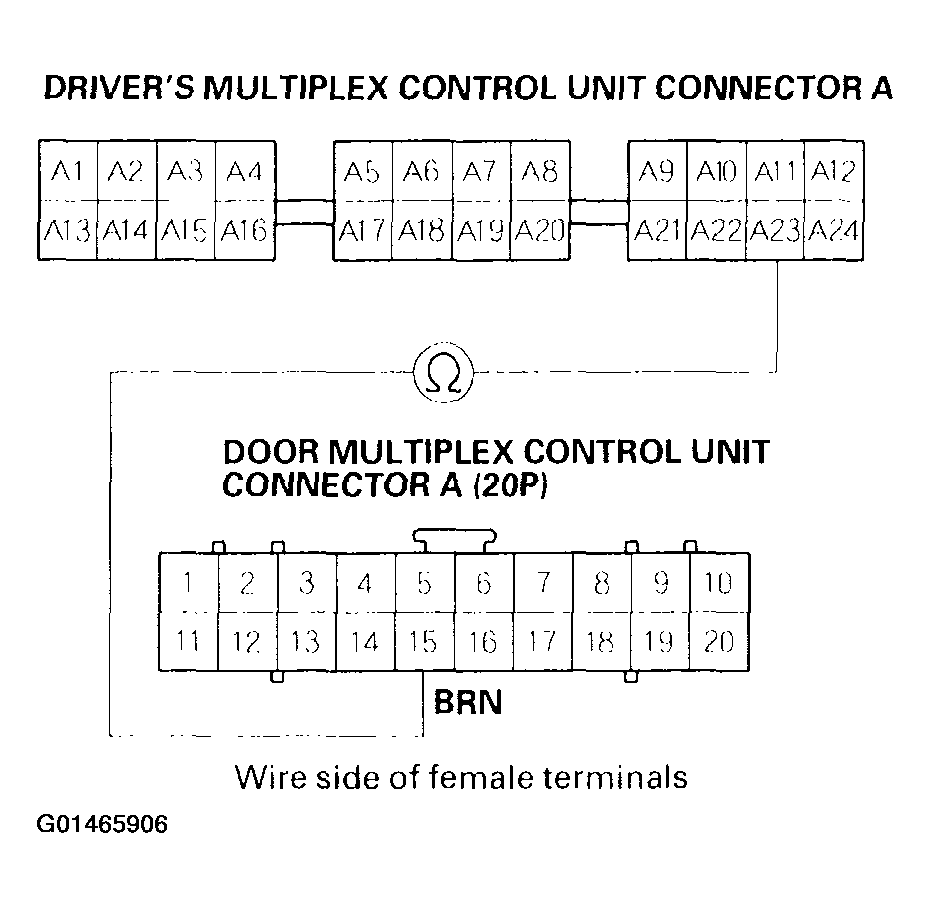

- Check for continuity between A23 terminal of the driver's under-dash fuse/relay box socket and No. 15 terminal of the door multiplex control unit connector A (20P).Fig 1: Checking For Continuity Between A23 Terminal Of Driver's Under-Dash Fuse/Relay Box Socket & No. 15 Terminal Of Door Multiplex Control Unit Connector A (20P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
- YES -Replace the multiplex control unit most closely related to the failure.
- NO -Repair an open in the wire between the door multiplex connector and the driver's under-dash fuse/relay box. If the wire is OK, replace the driver's under-dash fuse/relay box.
