Front Door Outer Handle Replacement

NOTE: Put on gloves to protect your hands.

Remove these items:
- Door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION )
- Plastic cover, as necessary (see COMPONENT LOCATION INDEX - FRONT DOOR )
Raise the glass fully.

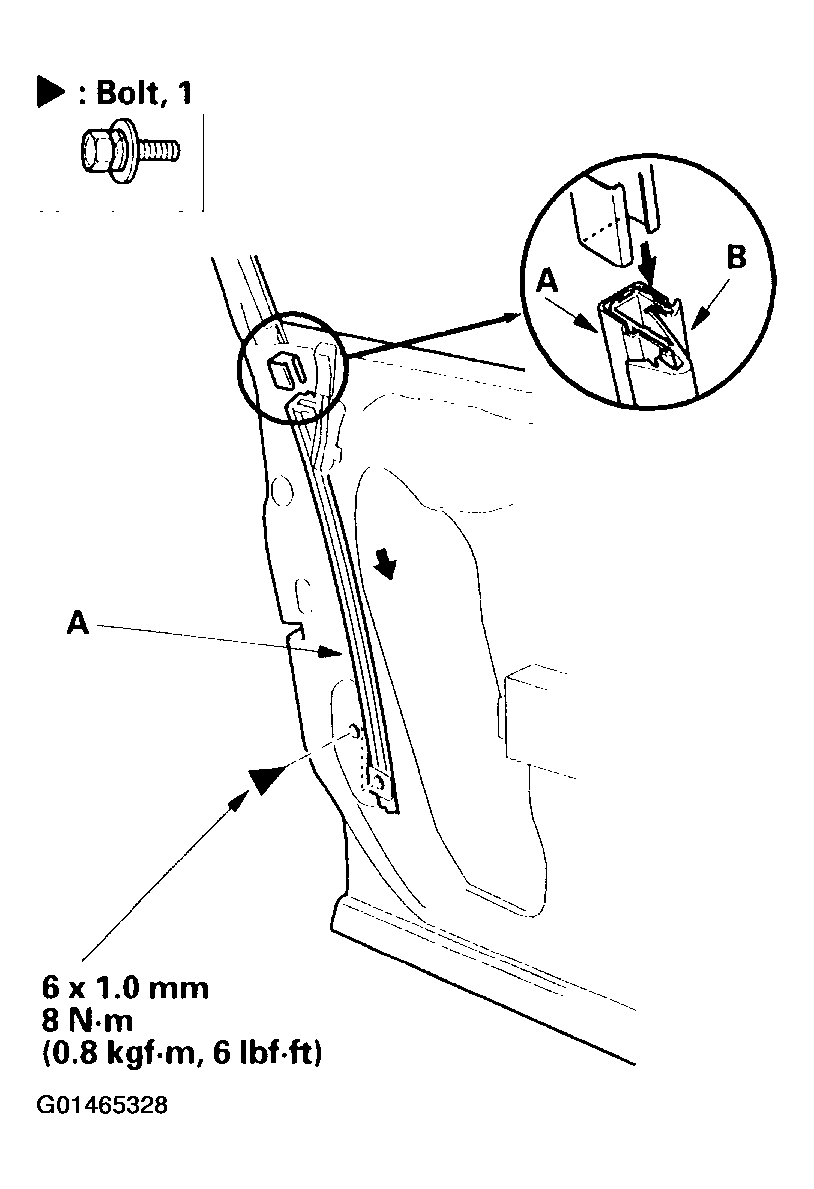

Remove the bolt, then remove the center lower channel (A) with the center lower glass run channel (B) by pulling it downward.

Fig 1: Removing The Center Lower Channel With The Center Lower Glass Run Channel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

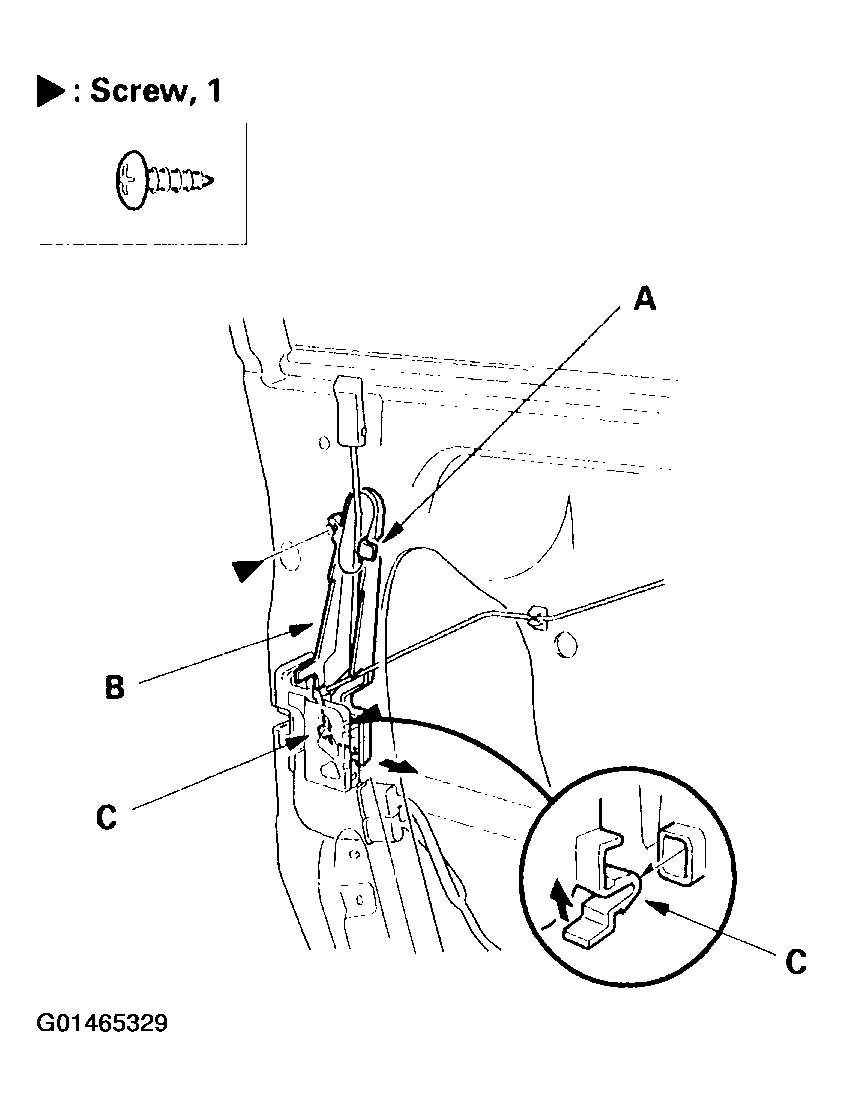

Remove the screw, and release the hook (A), then remove the lock rod protector (B) by detaching the clip (C).

Fig 2: Removing The Lock Rod Protector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the outer handle rod (A) and cylinder rod (B).

Fig 3: Disconnecting The Outer Handle Rod & Cylinder Rod
Courtesy of AMERICAN HONDA MOTOR CO., INC.

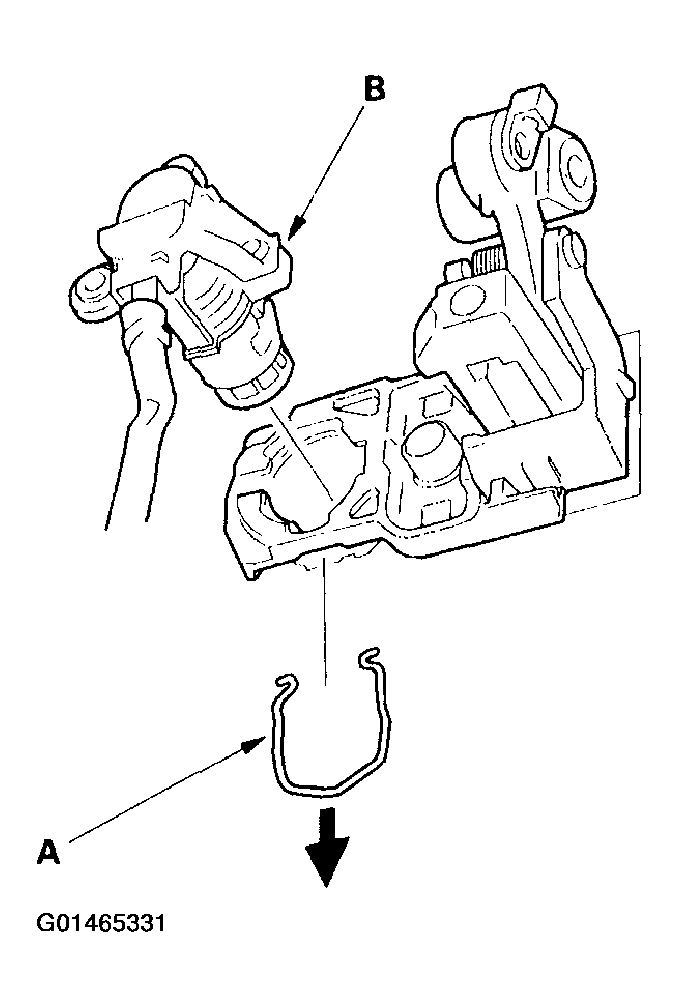

Release the retainer clip (A) with a hook-shaped tool. Remove the lock cylinder (B).

Fig 4: Removing The Lock Cylinder
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screw, then separate the lock cylinder (A) and cylinder switch (B).

Fig 5: Separating The Lock Cylinder & Cylinder Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.

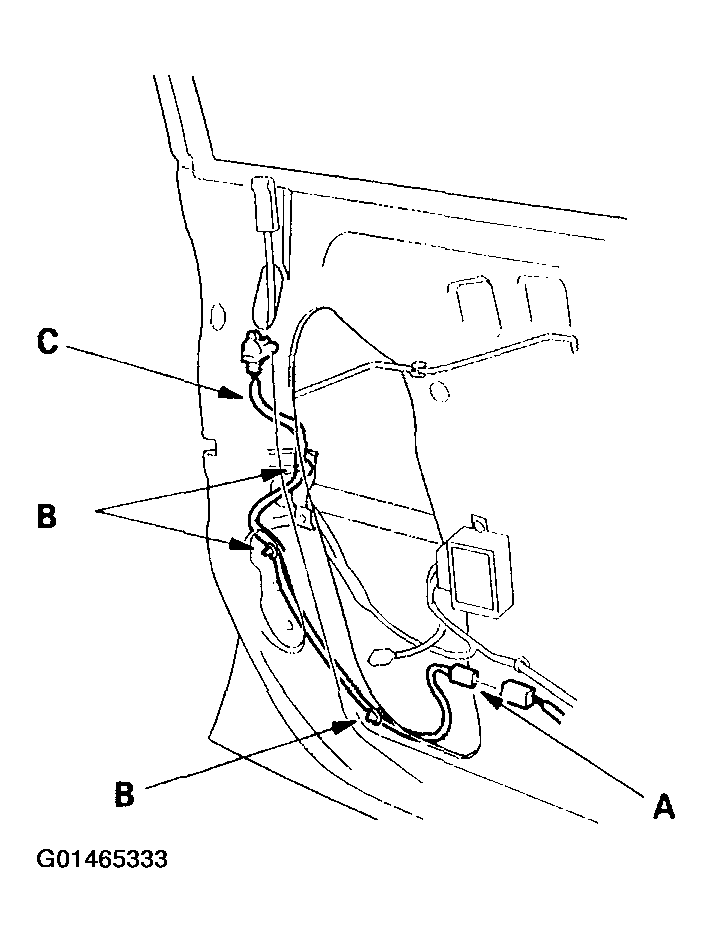

Disconnect the cylinder switch connector (A), and detach the harness clips (B), and remove the cylinder switch harness (C).

Fig 6: Removing The Cylinder Switch Harness
Courtesy of AMERICAN HONDA MOTOR CO., INC.

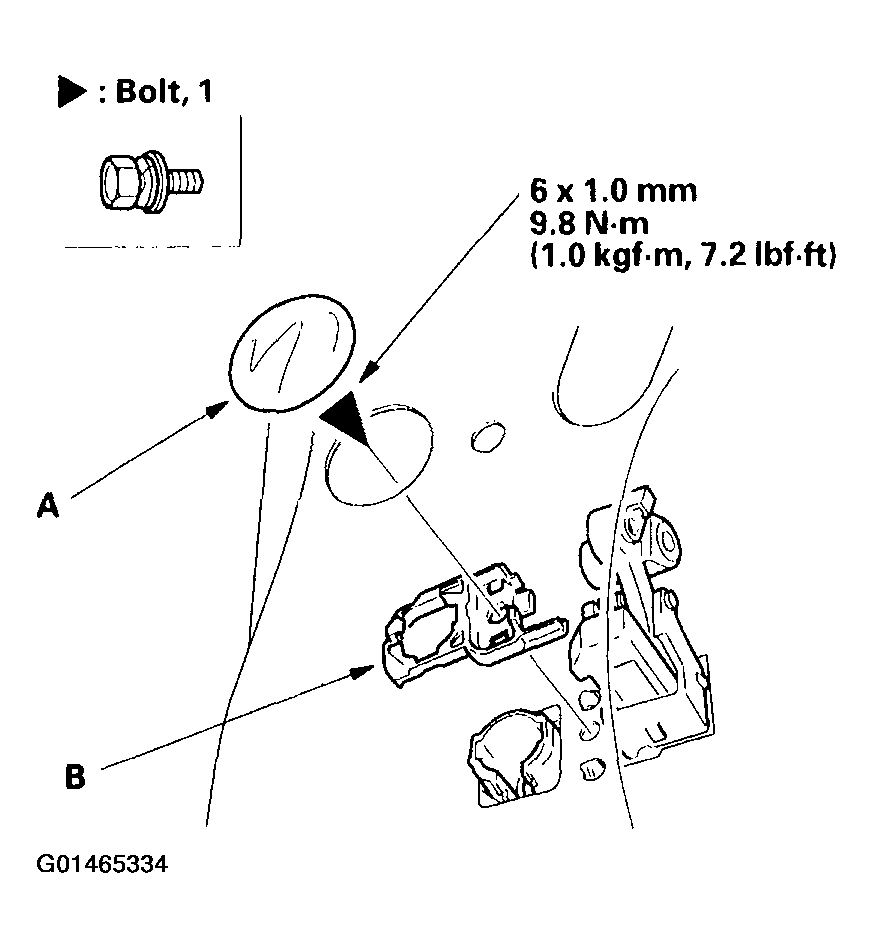

Remove the maintenance seal (A), and remove the bolt, then remove the cylinder protector (B).

Fig 7: Removing The Cylinder Protector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolt, then remove the spacer (A).

Fig 8: Removing The Spacer
Courtesy of AMERICAN HONDA MOTOR CO., INC.
While pulling the outer handle (A), remove the handle from the holes in the door panel. Take care not to scratch the door.

Fig 9: Removing The Handle
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the handle in the reverse order of removal, and note these items:
- Make sure the cylinder switch harness is routed properly.
- Make sure the connector is plugged in properly, and each rod is connected securely.
- Make sure the door locks and opens properly.
- When installing the lock cylinder, leave the outer door handle bolts loose so the inner protector does not interfere with the lock cylinder installation, then tighten the handle bolts.
- Install the lock cylinder retaining clip on the handle, then install the lock cylinder. Be sure the clip is fully seated in the slot on the lock cylinder.
- When reinstalling the door panel, make sure the plastic cover is installed properly and sealed around its perimeter.
- Do the power window control unit reset procedure (see RESETTING THE POWER WINDOW CONTROL UNIT ).
