Passenger's Window Motor Test

Remove the passenger's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 2P connector from the window motor.

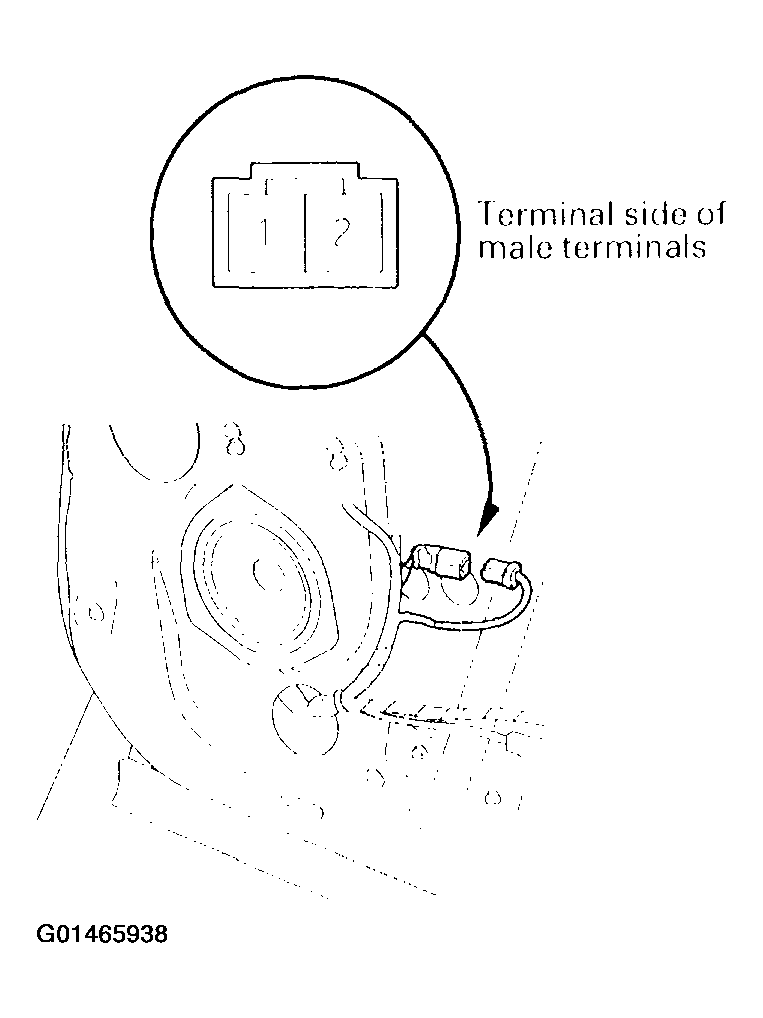

Fig 1: Disconnecting The 2P Connector From The Window Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test the motor by connecting battery power and ground according to the table. When the motor stops running, disconnect one lead immediately.

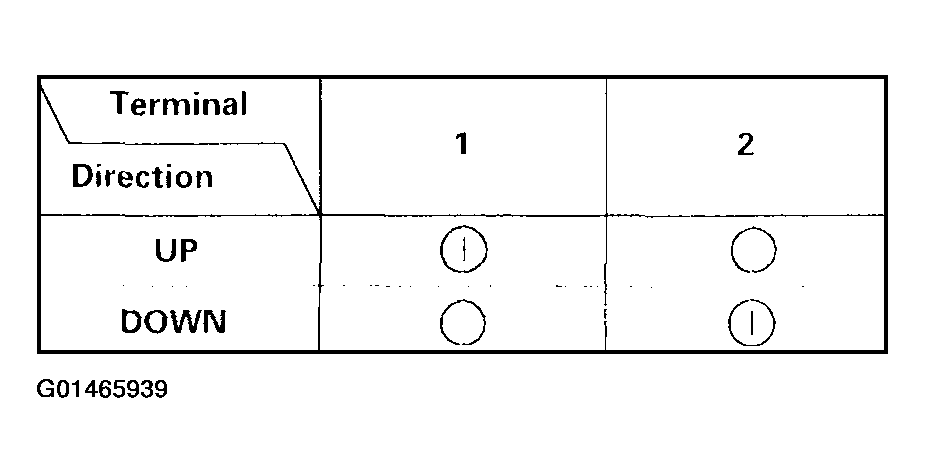

Fig 2: Passenger's Motor Test Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, replace it.
