Passenger's Window Switch Test/Replacement

  1. Carefully pry off the door switch trim (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Disconnect the 6P connector (A) from the power window switch (B), then remove the three mounting screws and the power window switch from the switch trim (C).

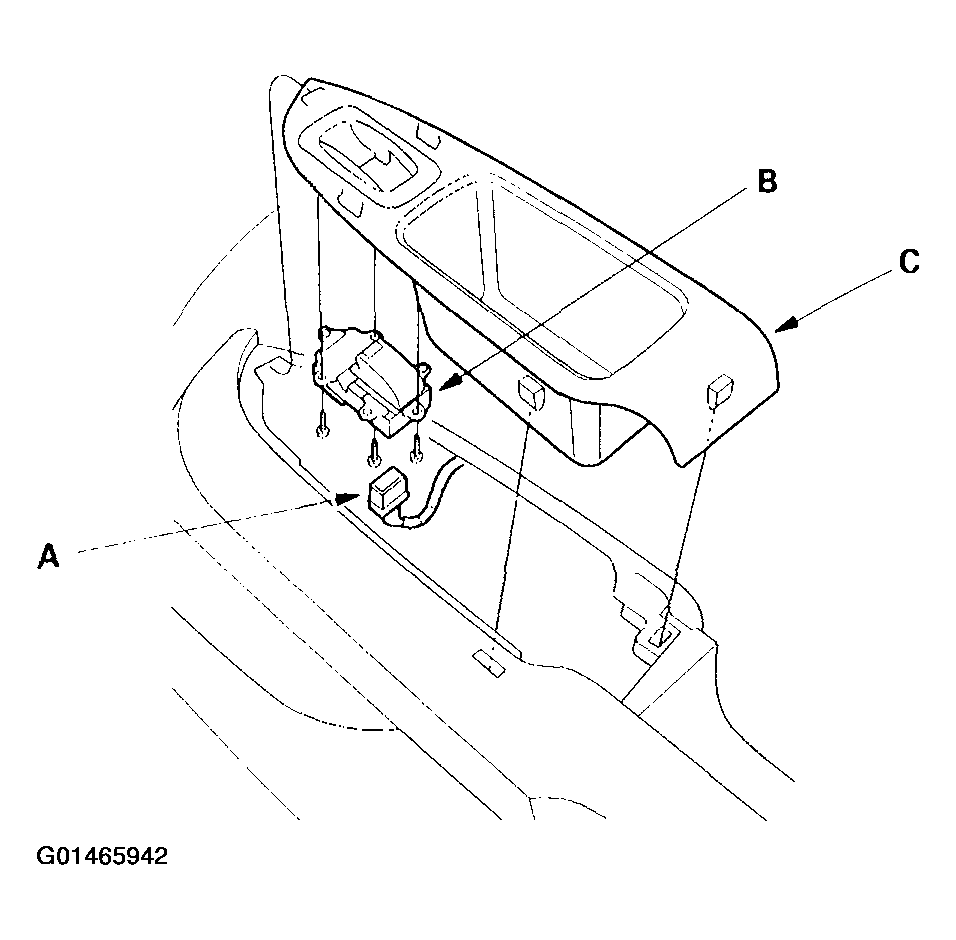

    Fig 1: Removing Front Passenger's Window Switch
    G01465942Courtesy of AMERICAN HONDA MOTOR CO., INC.

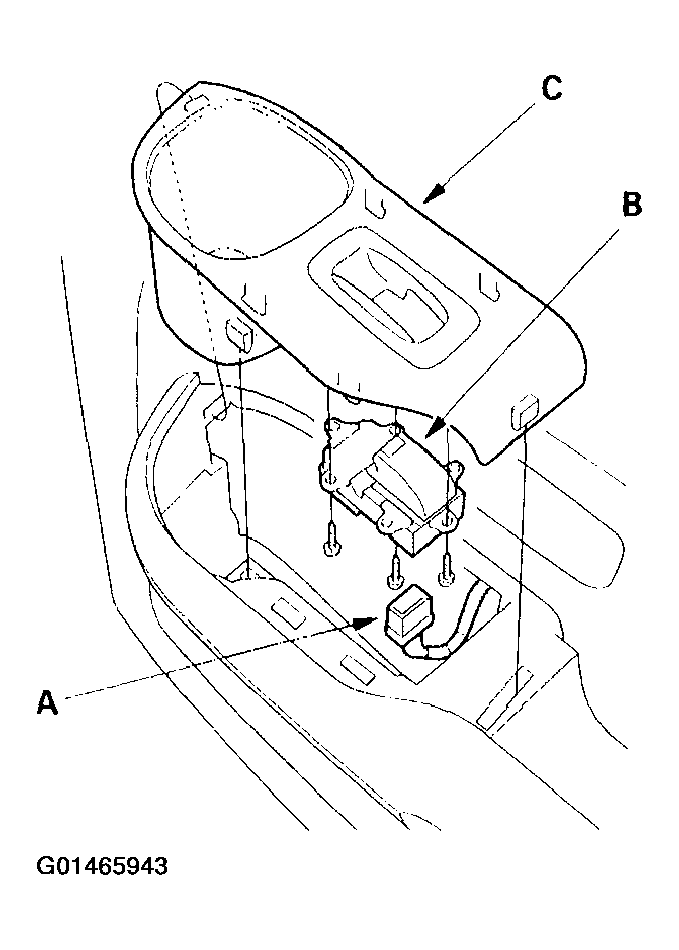

    Fig 2: Removing Rear Passenger's Window Switch
    G01465943Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Swap the window switch with another known-good switch and test. If the original window switch is faulty, replace it.
