Pin Voltage Tests

For pin voltage charts and connector identification, see Fig 1 and Fig 2 .

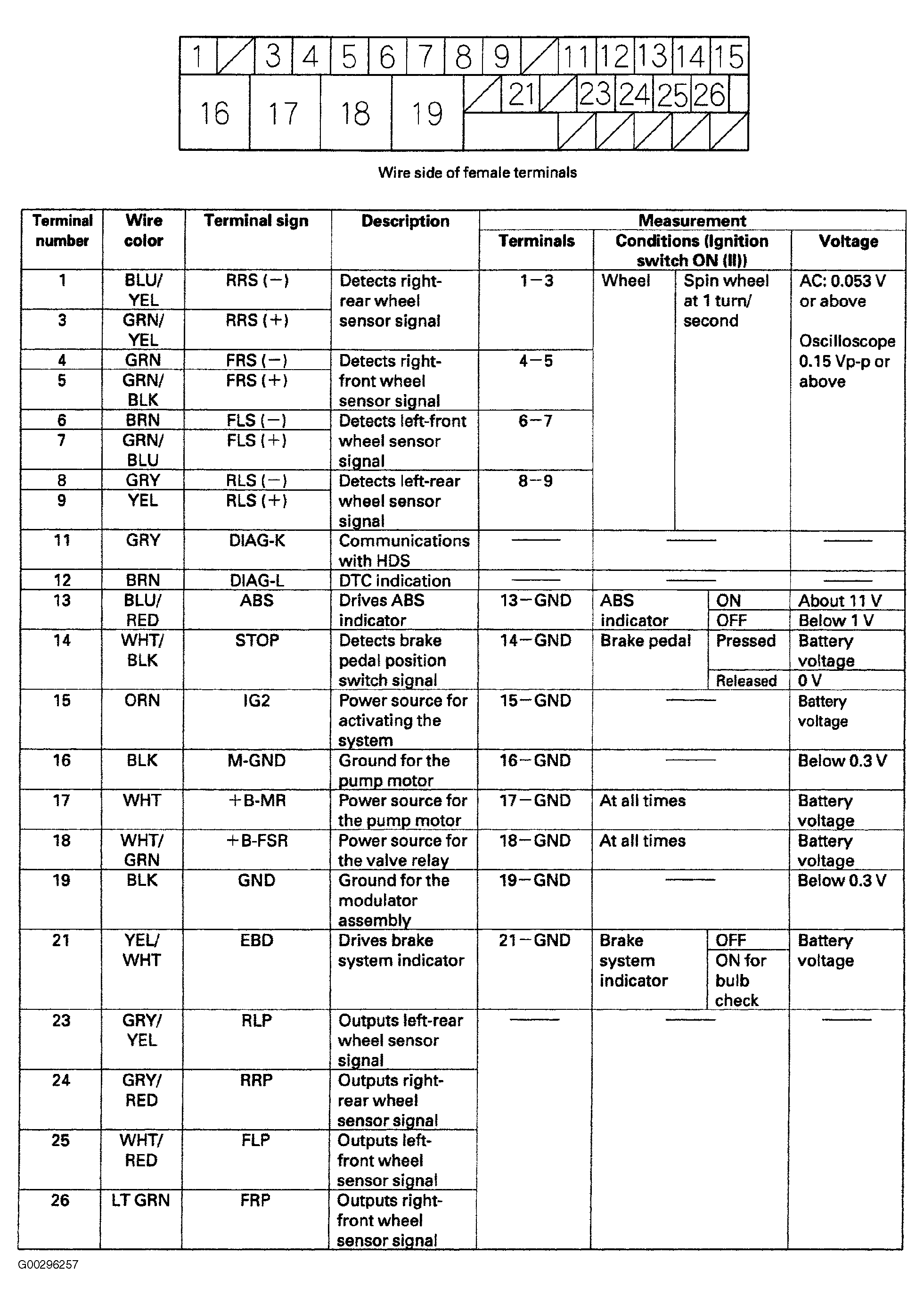

Fig 1: ABS Control Unit Pin Voltage Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.

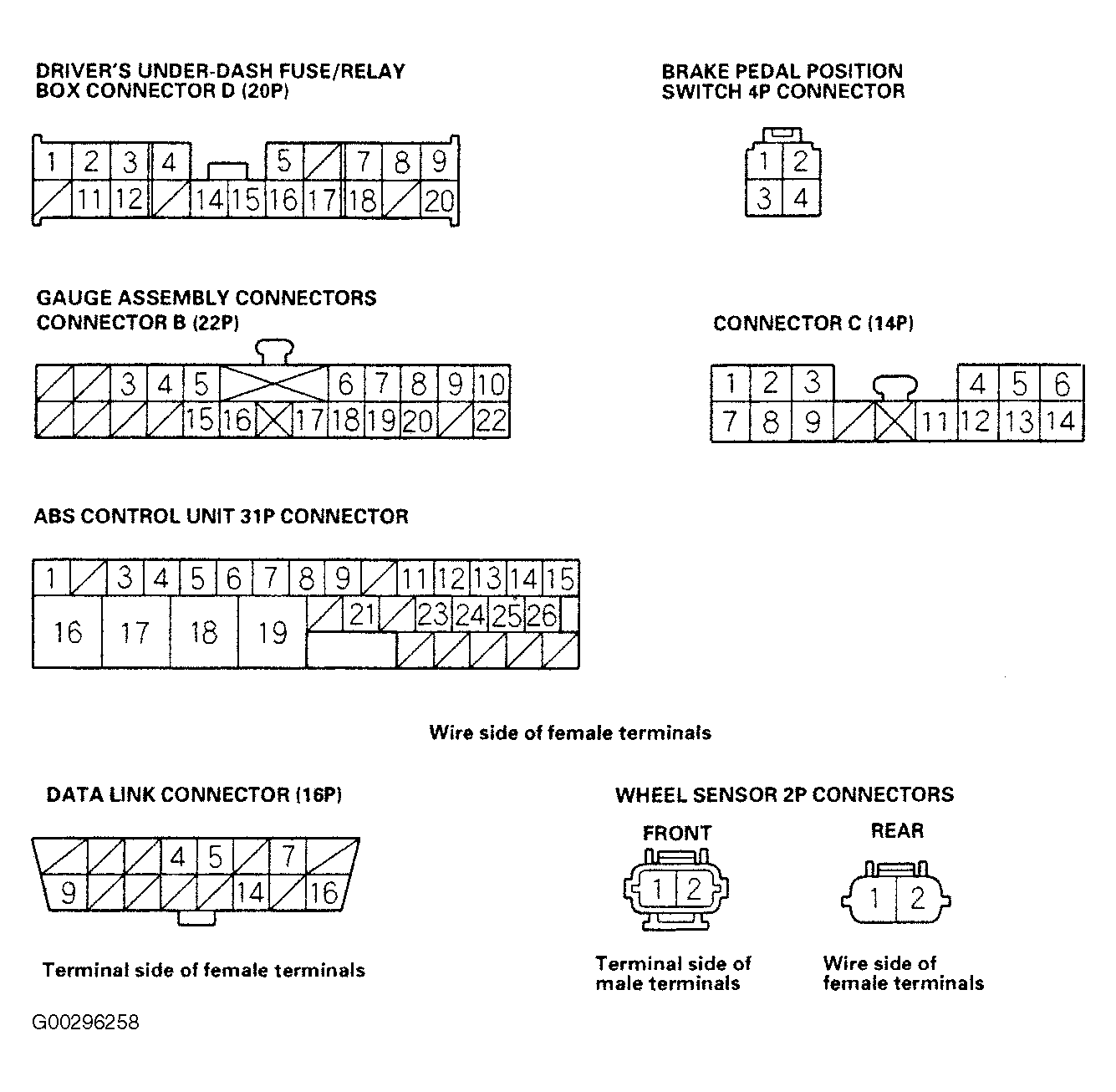

Fig 2: Identifying ABS Connector Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
