Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

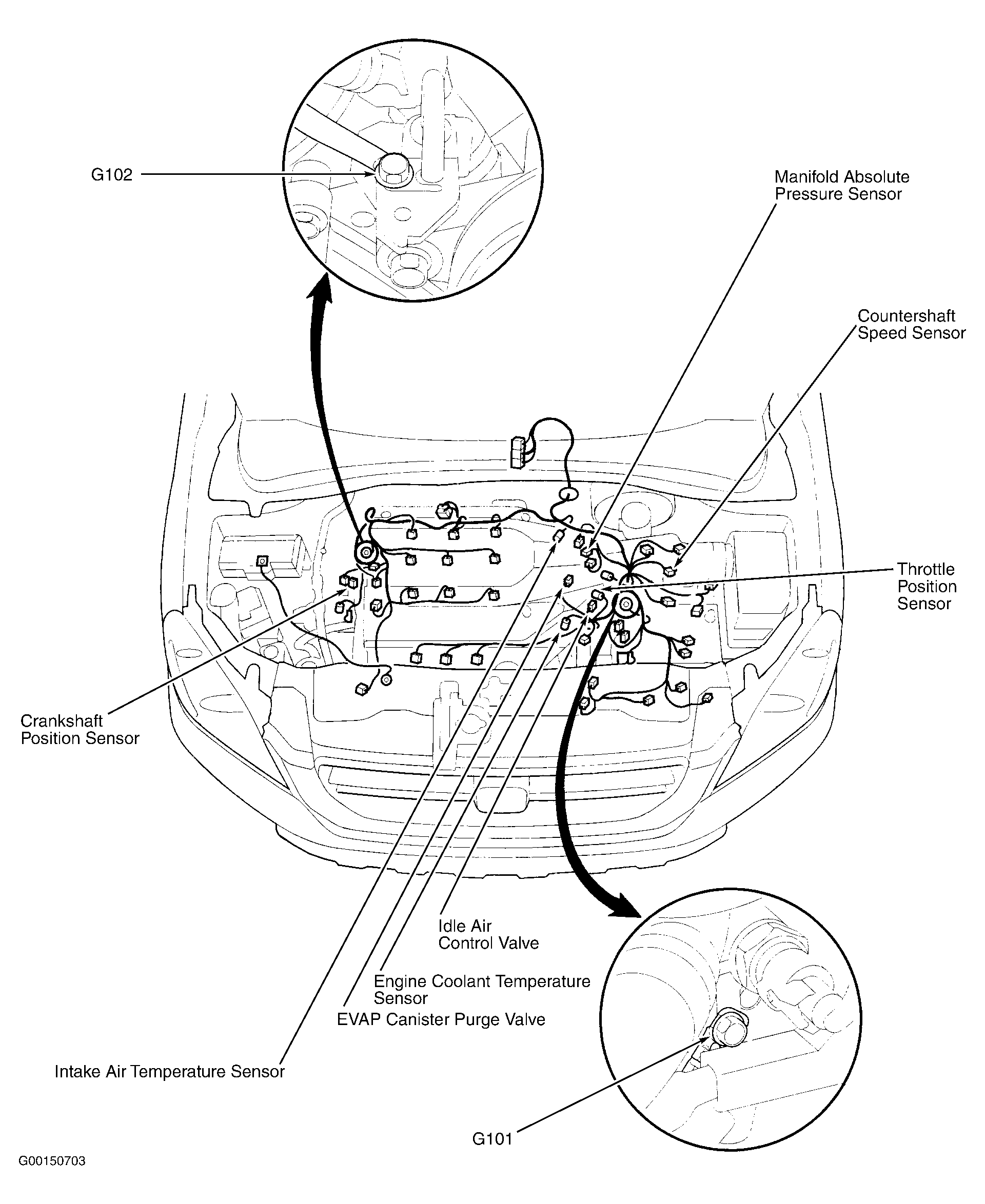

Fig 1: Engine Compartment

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Engine Compartment

Courtesy of AMERICAN HONDA MOTOR CO., INC.

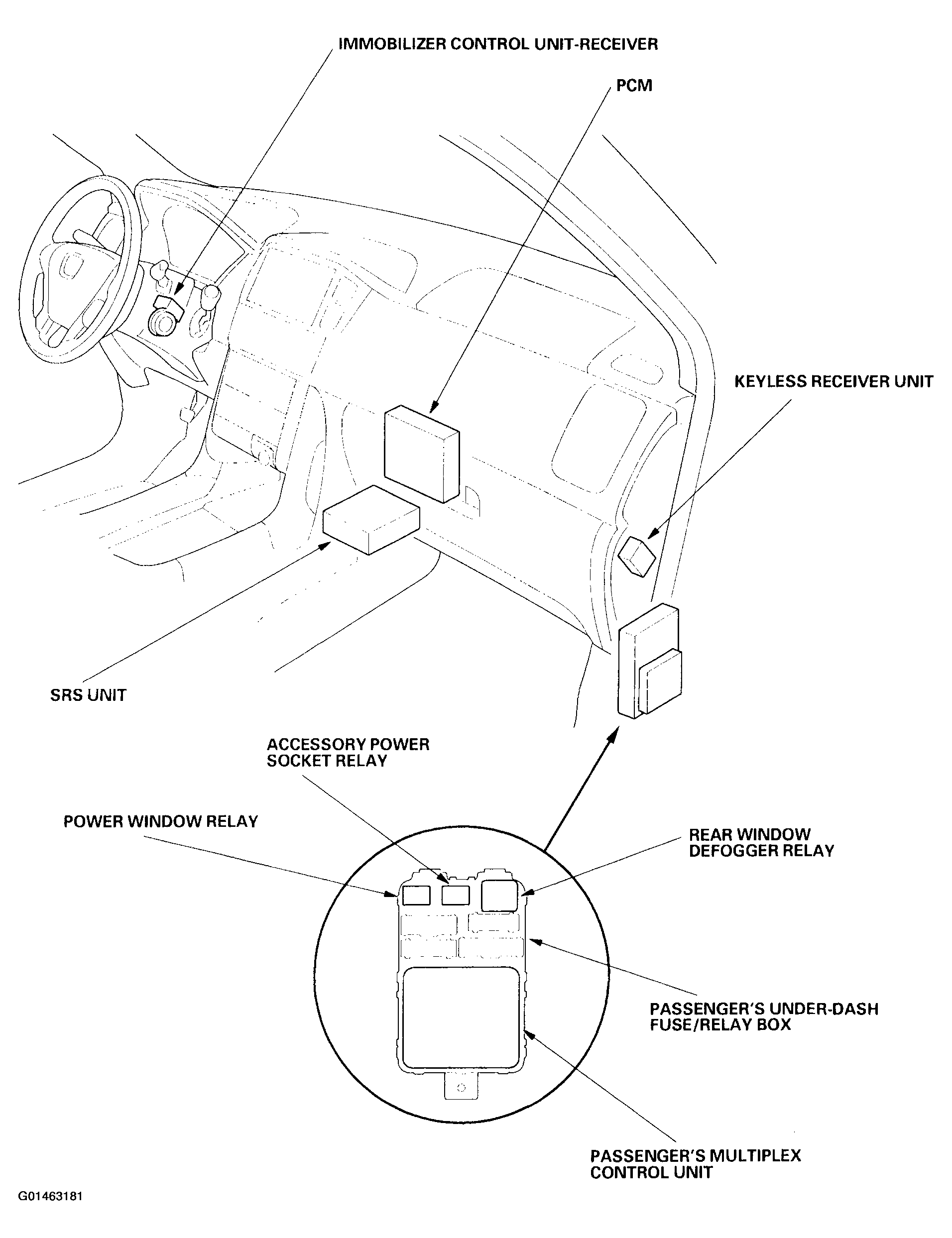

Fig 3: Dash

Courtesy of AMERICAN HONDA MOTOR CO., INC.

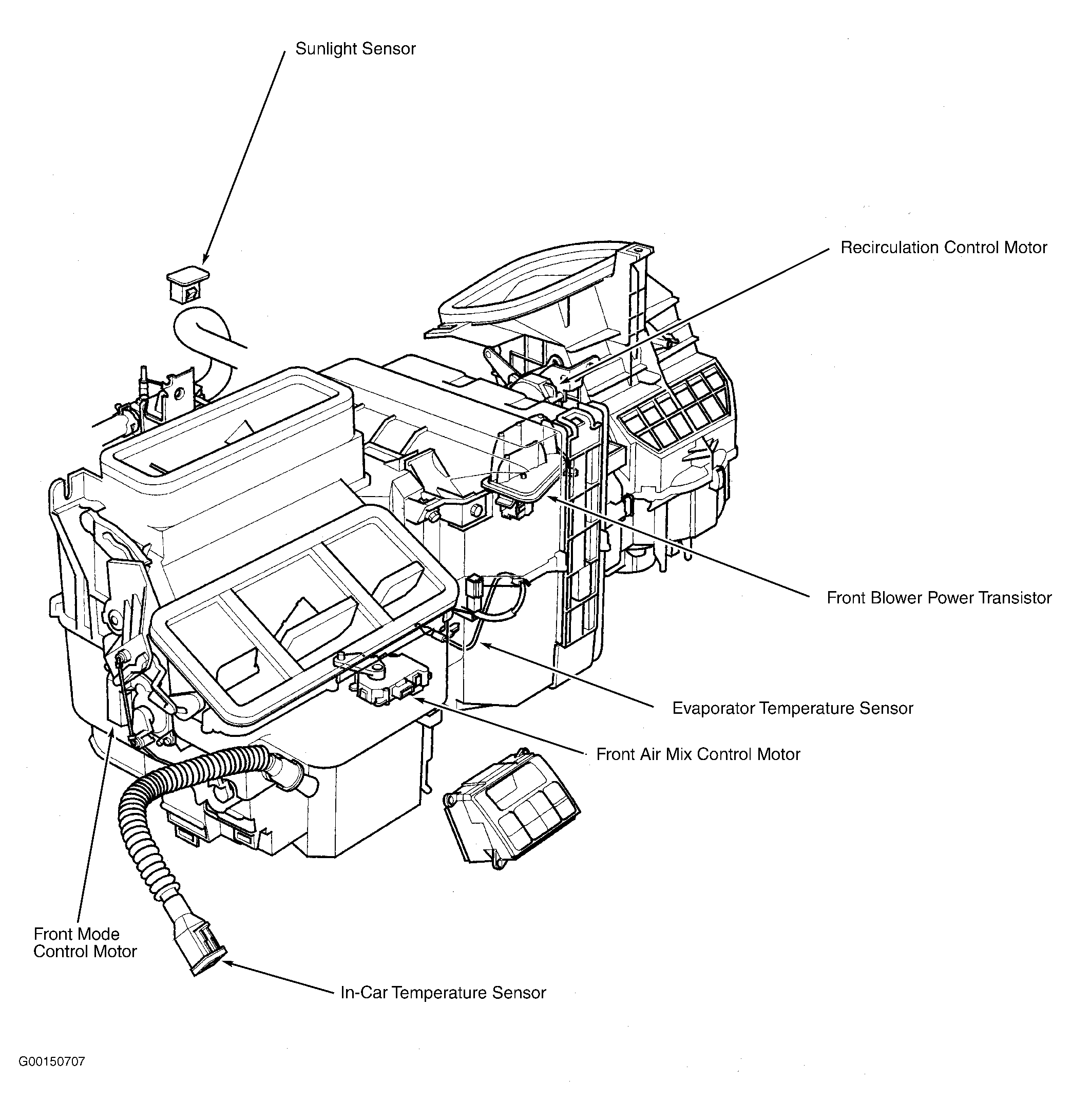

Fig 4: HVAC Assembly

Courtesy of AMERICAN HONDA MOTOR CO., INC.

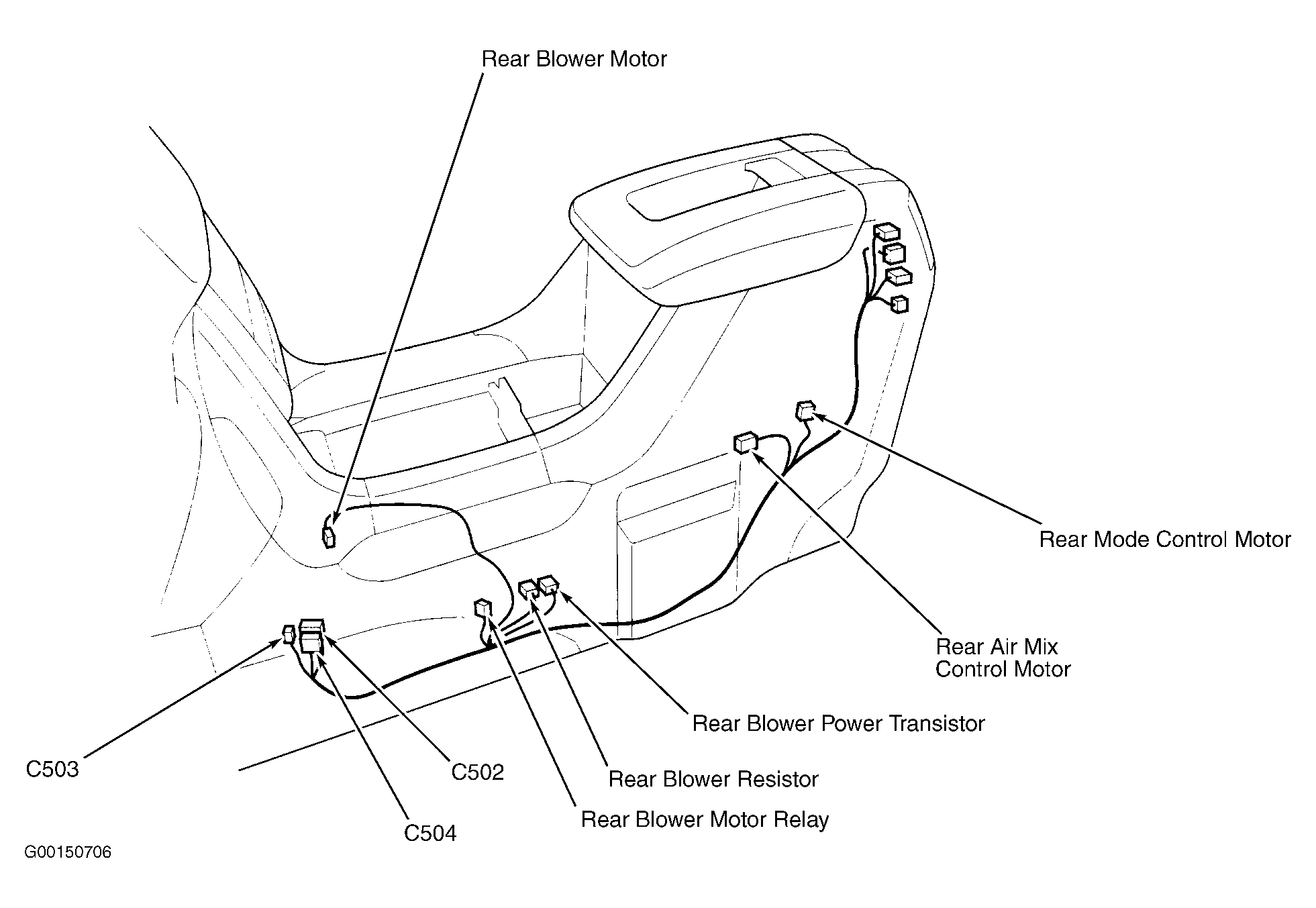

Fig 5: Center Console

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Under-Dash Fuse/Relay Box (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 7: Under-Dash Fuse/Relay Box (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

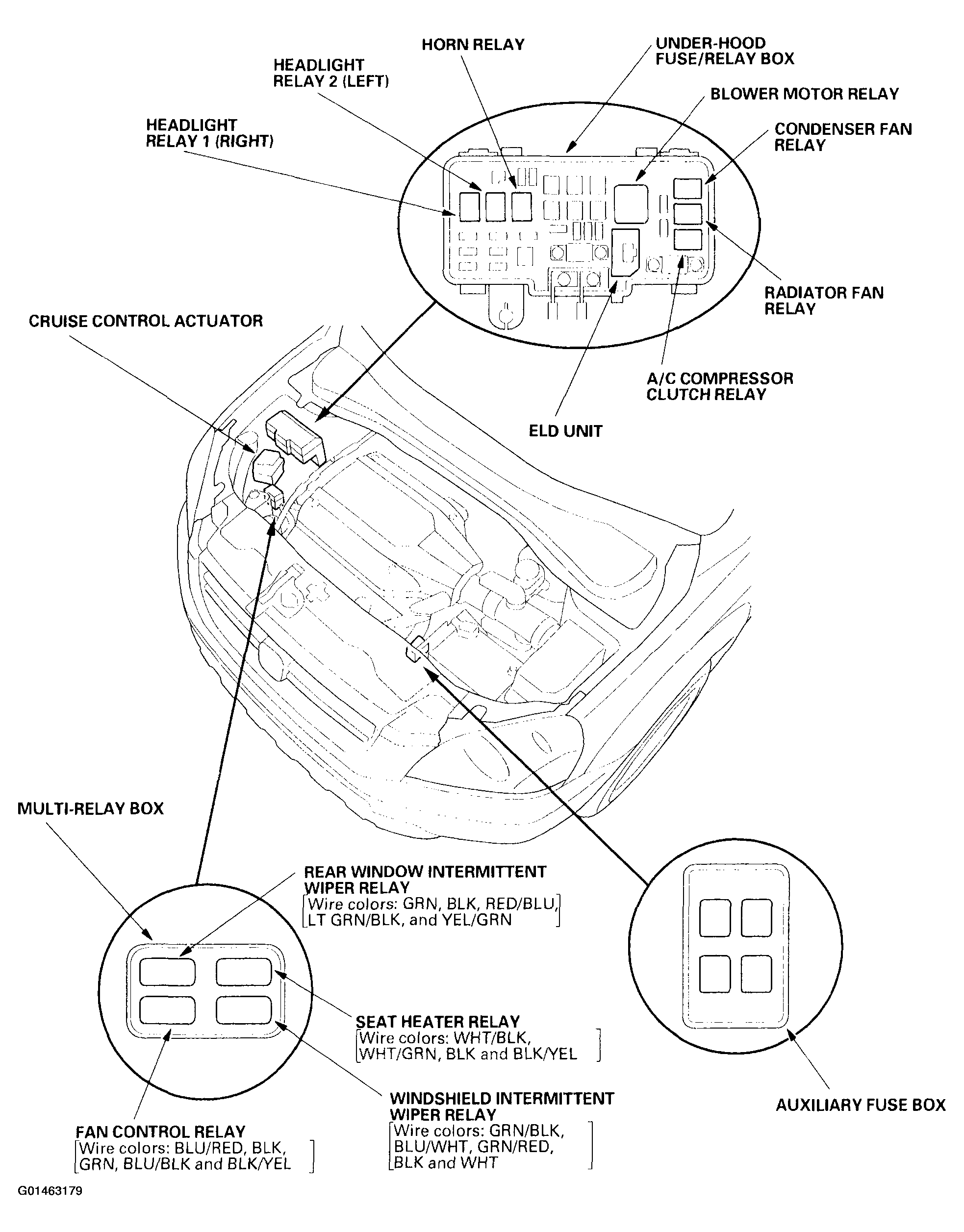

Fig 8: Under-Hood Fuse/Relay Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.
