Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Modulator Control Unit | At left side of engine compartment. |
| Antenna Amplifier | In left rear of roof. |

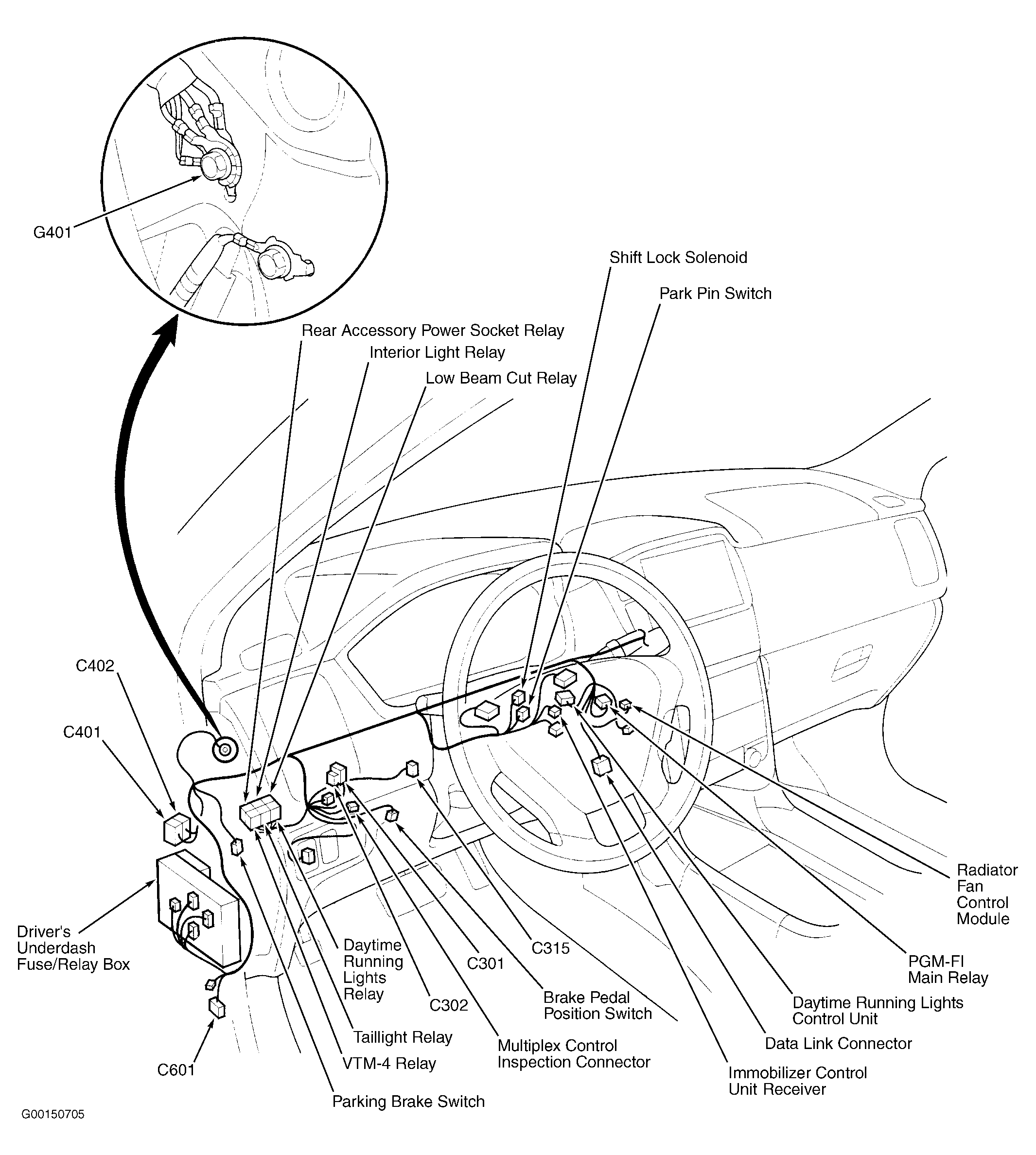

| Daytime Running Lights Control Unit | Behind left side of dash. See Figure. |
| Door Multiplex Control Unit | In driver door. |
| Driver's Multiplex Control Unit | Behind left end of dash. |

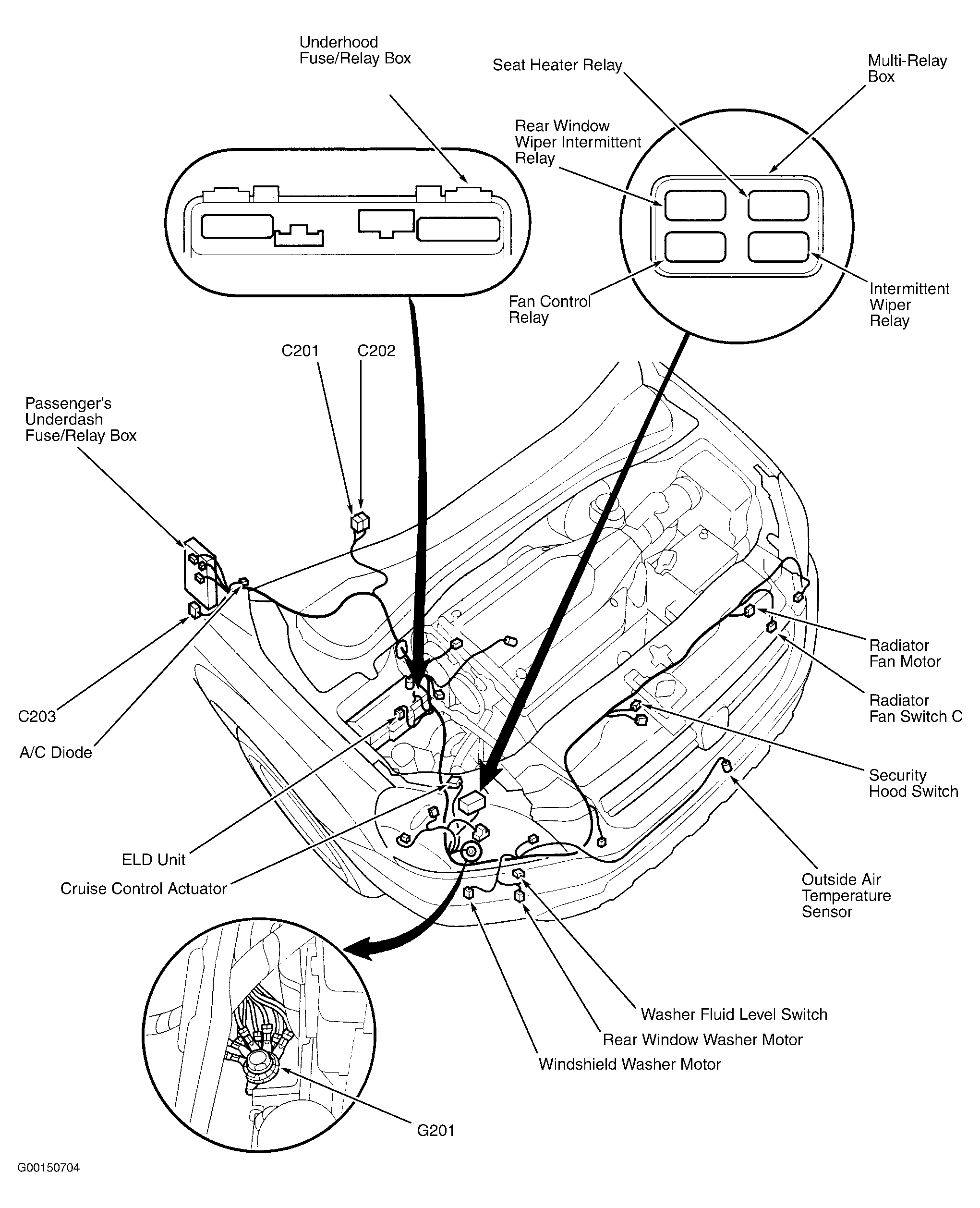

| ELD Unit | In underhood fuse/relay box. See Figure. |
| Immobilizer Control Unit Receiver | In steering column, on ignition key cylinder. See Figure. |
| Keyless Receiver Unit | Behind right side of glove box. |
| Navigation Unit | Under right front seat. |
| OPDS Unit | In right front seat. |
| Passenger's Multiplex Control Unit | Behind right kick panel. |
| Powertrain Control Module | Behind center of dash. |
| Power Window Control Unit | Inside driver door. |
| Radiator Fan Control Module | Behind left center of dash. See Figure. |
| Rearview Camera Control Unit | Under right front seat. |
| Security Control Unit (LX) | Behind left side of dash. |
| SRS Unit | Behind lower center of dash. |
| VTM-4 Control Unit | At left side of cargo area, behind rear side trim panel. |
