PNK Wire Communication Line Test
- Disconnect driver's multiplex control unit connector B (22P).
- Disconnect passenger's multiplex control unit connector B (22P).

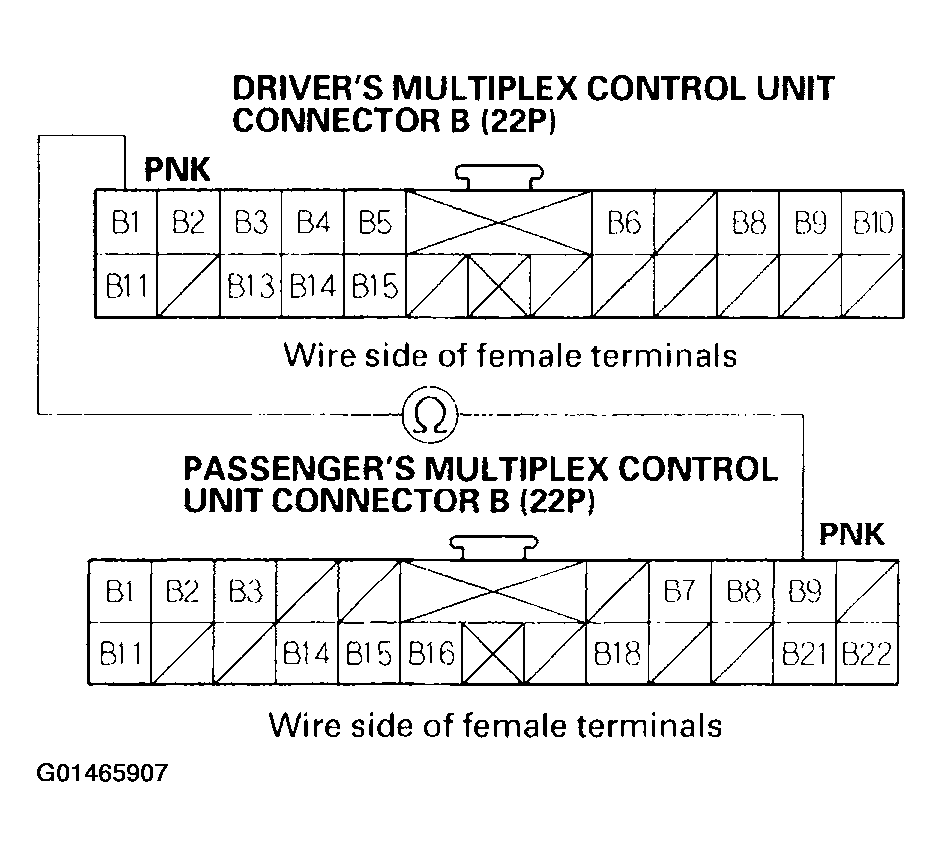

- Check for continuity between B1 terminal of the driver's multiplex connector B (22P) and B9 terminal of the passenger's multiplex connector B (22P).Fig 1: Checking For Continuity Between B1 Terminal Of Driver's Multiplex Connector B (22P) & B9 Terminal Of Passenger's Multiplex Connector B (22P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
- YES -Replace the multiplex control unit most closely related to the failure.
- NO -Repair an open in the wire between the driver's multiplex control unit connector B (22P) and the passenger's multiplex control unit connector B (22P).
