Engine Oil Replacement

  1. Warm up the engine.
  2. Remove the drain bolt (A), and drain the engine oil.

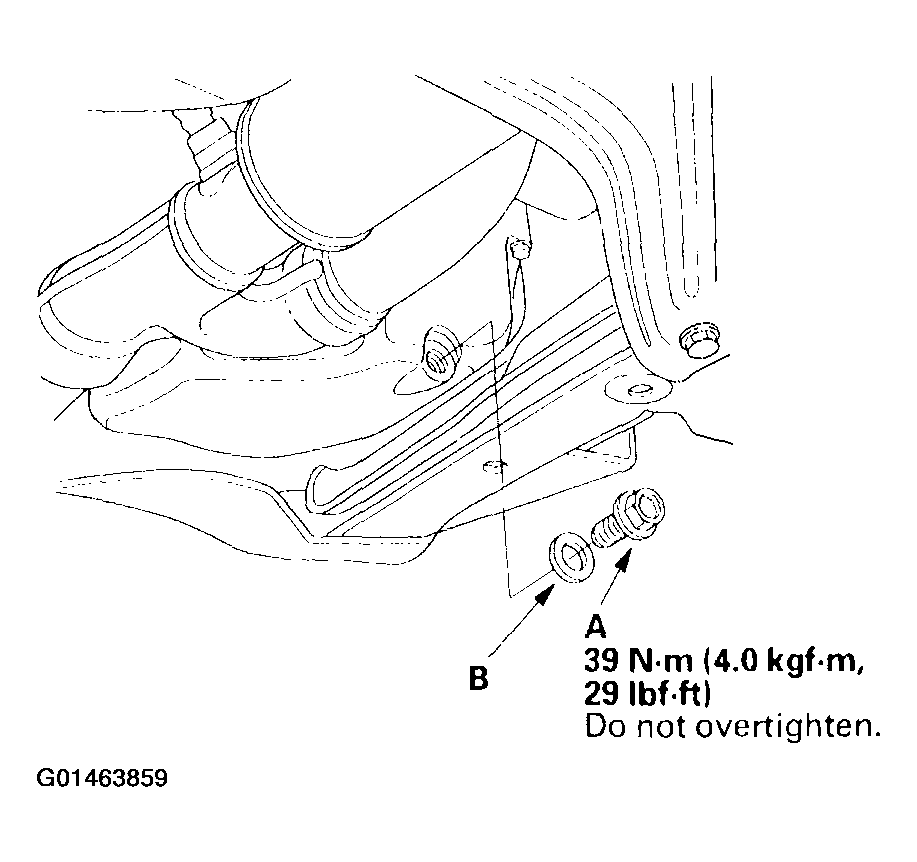

    Fig 1: Removing The Drain Bolt
    G01463859Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Reinstall the drain bolt with a new washer (B).
  4. Refill with the recommended oil .
  5. Capacity
    1. At Oil Change:  4.4 l (4.6 US qt)
    2. At Oil Change Including Filter:  4.8 l (5.1 US qt)
    3. After Engine Overhaul:  5.4 l (5.7 US qt)
  6. Run the engine for more than 3 minutes, then check for oil leakage.
