Lubrication System
>>
Engine Lubrication System
>>
Oil Pump Overhaul
>>
Exploded View
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View: Notes

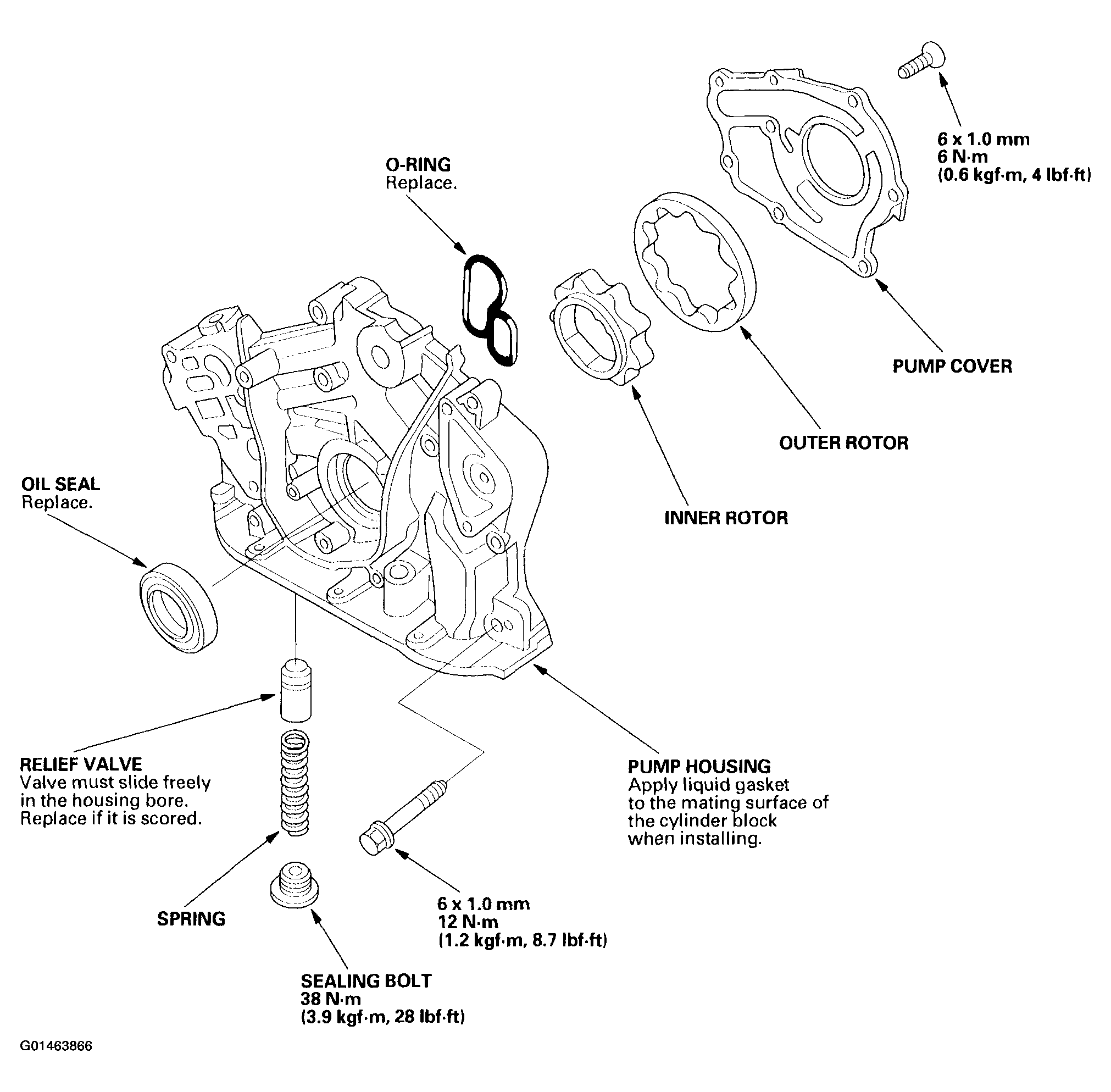

Fig 1: Exploded View Of Oil Pump
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
