Fuel Tank Vapor Control Valve Replacement

  1. Remove the fuel tank (see FUEL TANK REPLACEMENT ).
  2. Remove the fuel tank vapor control valve (A) from the fuel tank (B).

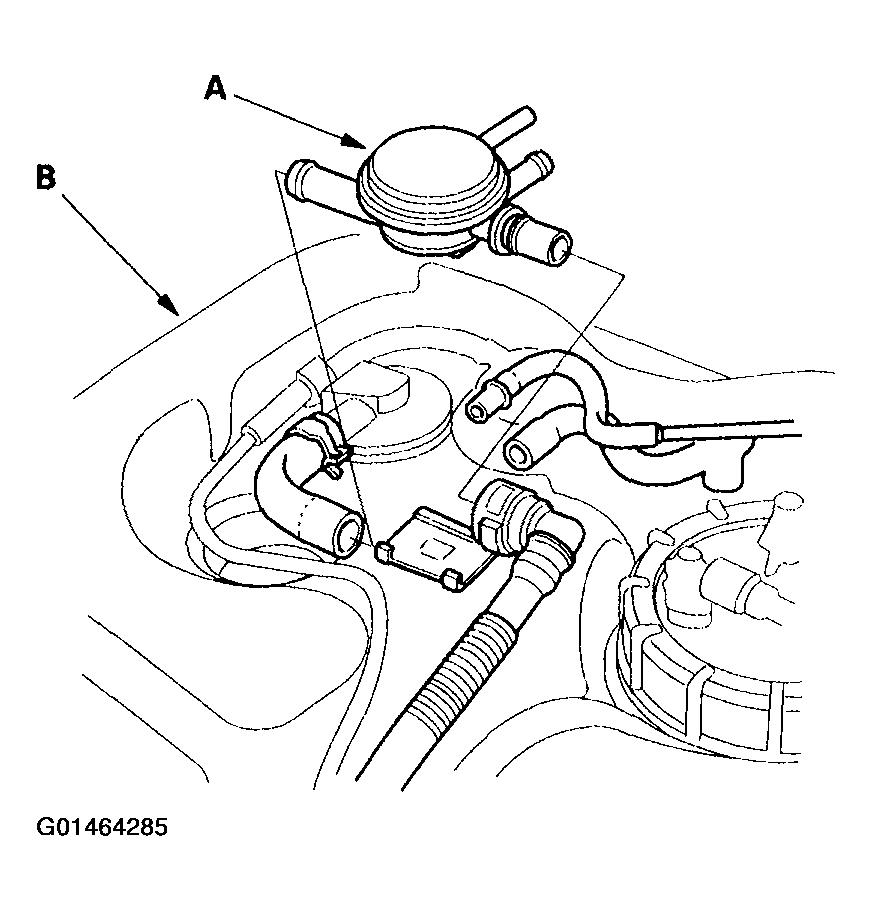

    Fig 1: Removing The Fuel Tank Vapor Control Valve From The Fuel Tank
    G01464285Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the fuel tank vapor control valve.
  4. Install the fuel tank (see FUEL TANK REPLACEMENT ).
