How To Remove The PCM For Testing

If the inspection for a trouble code requires voltage or resistance checks at the PCM connectors, remove the PCM and test it:

1. Remove the passenger's center console side trim (A).

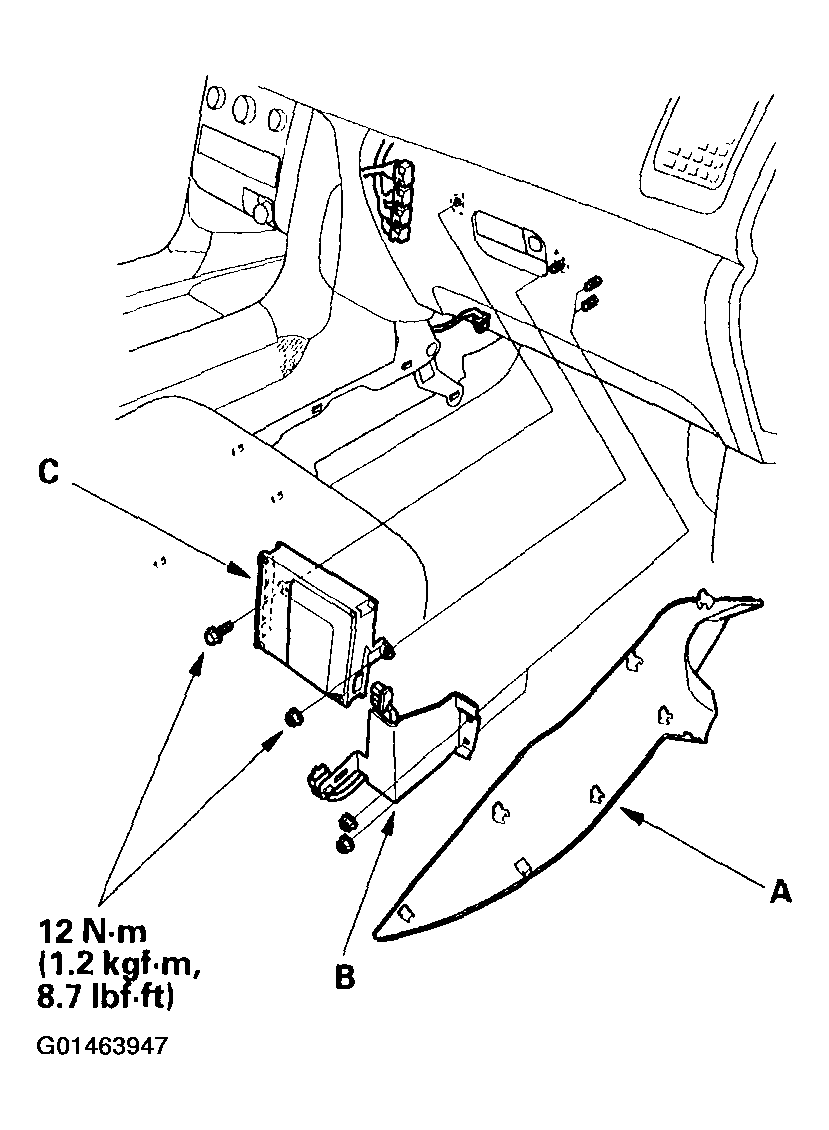

   Fig 1: Removing The Passenger's Center Console Side Trim

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Remove the two nuts from the bracket (B).
3. Remove the bolt and the nut from the PCM (C).
