Symptom Troubleshooting Index

These symptoms DO NOT trigger diagnostic trouble codes (DTCs) and cause the malfunction indicator lamp (MIL) to come on. If the MIL is reported on, check for DTCs. If the vehicle has one of these symptoms, do the diagnostic procedure for it, in the sequence listed, until you find the cause.

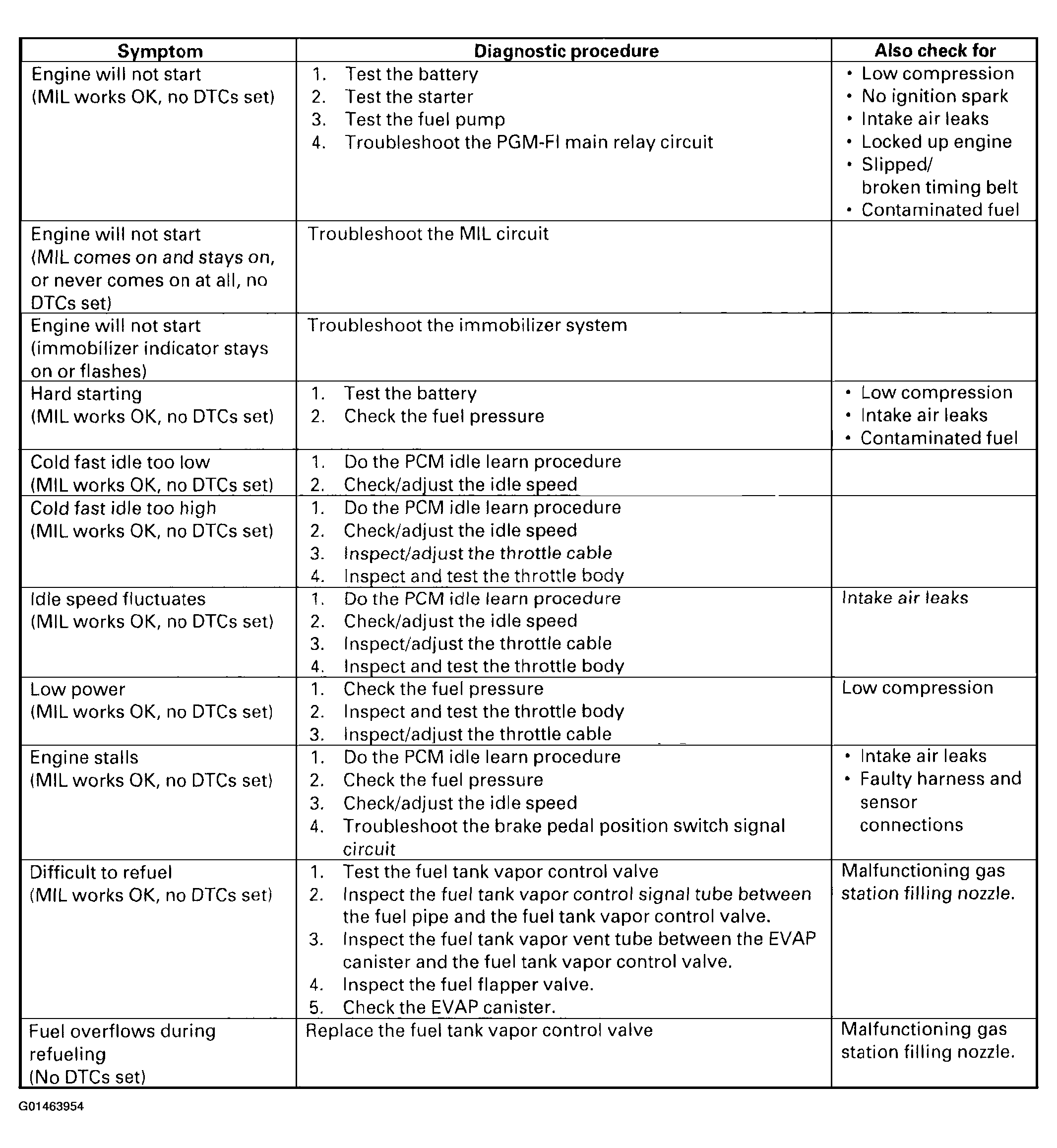

Fig 1: Symptom Troubleshooting Index
G01463954Courtesy of AMERICAN HONDA MOTOR CO., INC.
