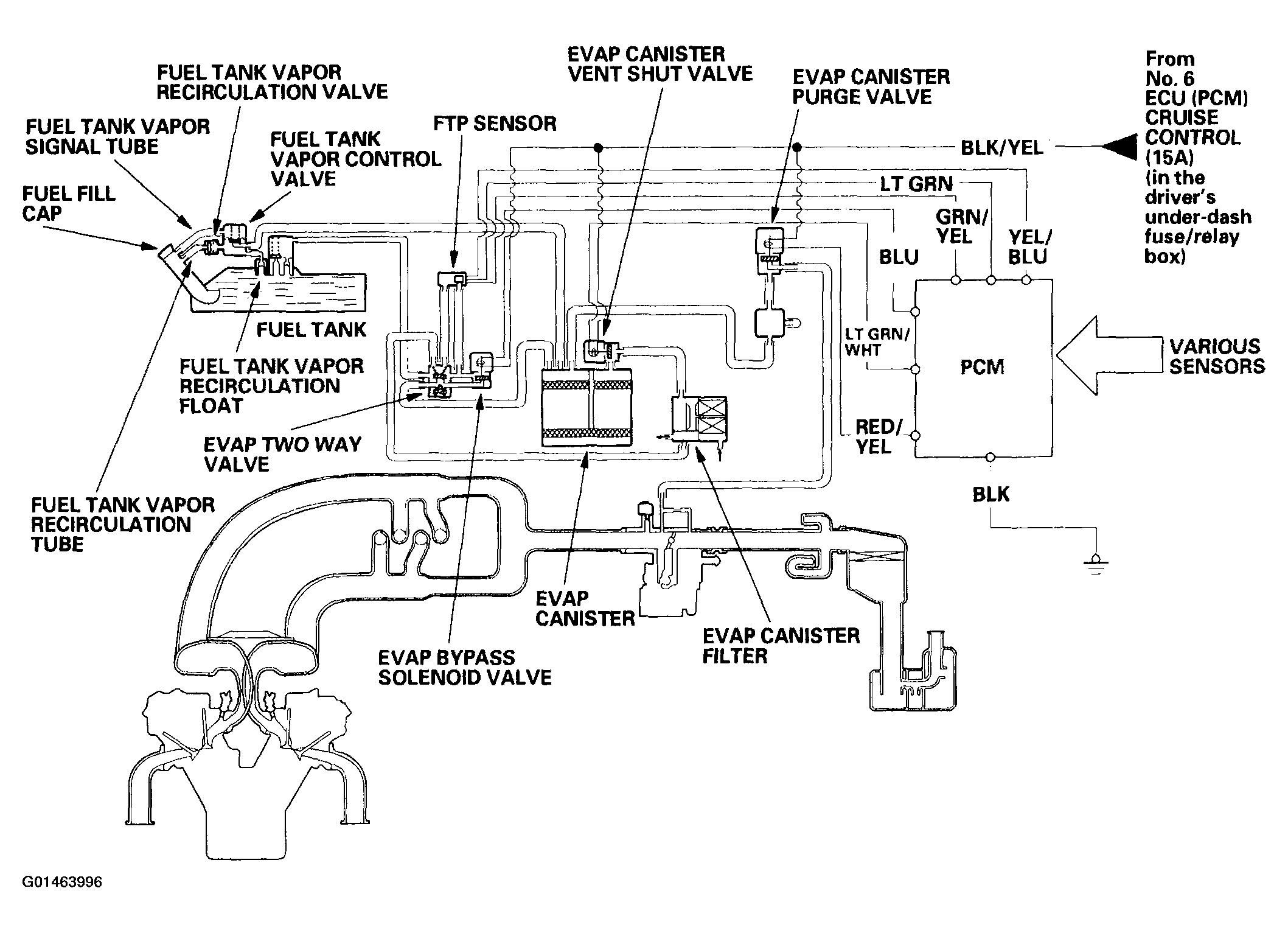

Evaporative Emission (EVAP) Control Diagram: Notes
The EVAP controls minimize the amount of fuel vapor escaping to the atmosphere. Vapor from the fuel tank is temporarily stored in the EVAP canister until it can be purged from the canister into the engine and burned.
- The EVAP canister is purged by drawing fresh air through it and into a port on the throttle body. The purging vacuum is controlled by the EVAP canister purge valve, which is open whenever engine coolant temperature is above 147°F (64°C).
- When vapor pressure in the fuel tank is higher than the set valve of the EVAP two way valve, the valve opens and regulates the flow of fuel vapor to the EVAP canister.
- During refueling, the fuel tank vapor control valve opens with the pressure in the fuel tank, and feeds the vapor to the EVAP canister.
