Fuel Line Inspection

Check the fuel system lines, hoses, and fuel filter for damage, leaks, and deterioration. Replace any damaged parts.

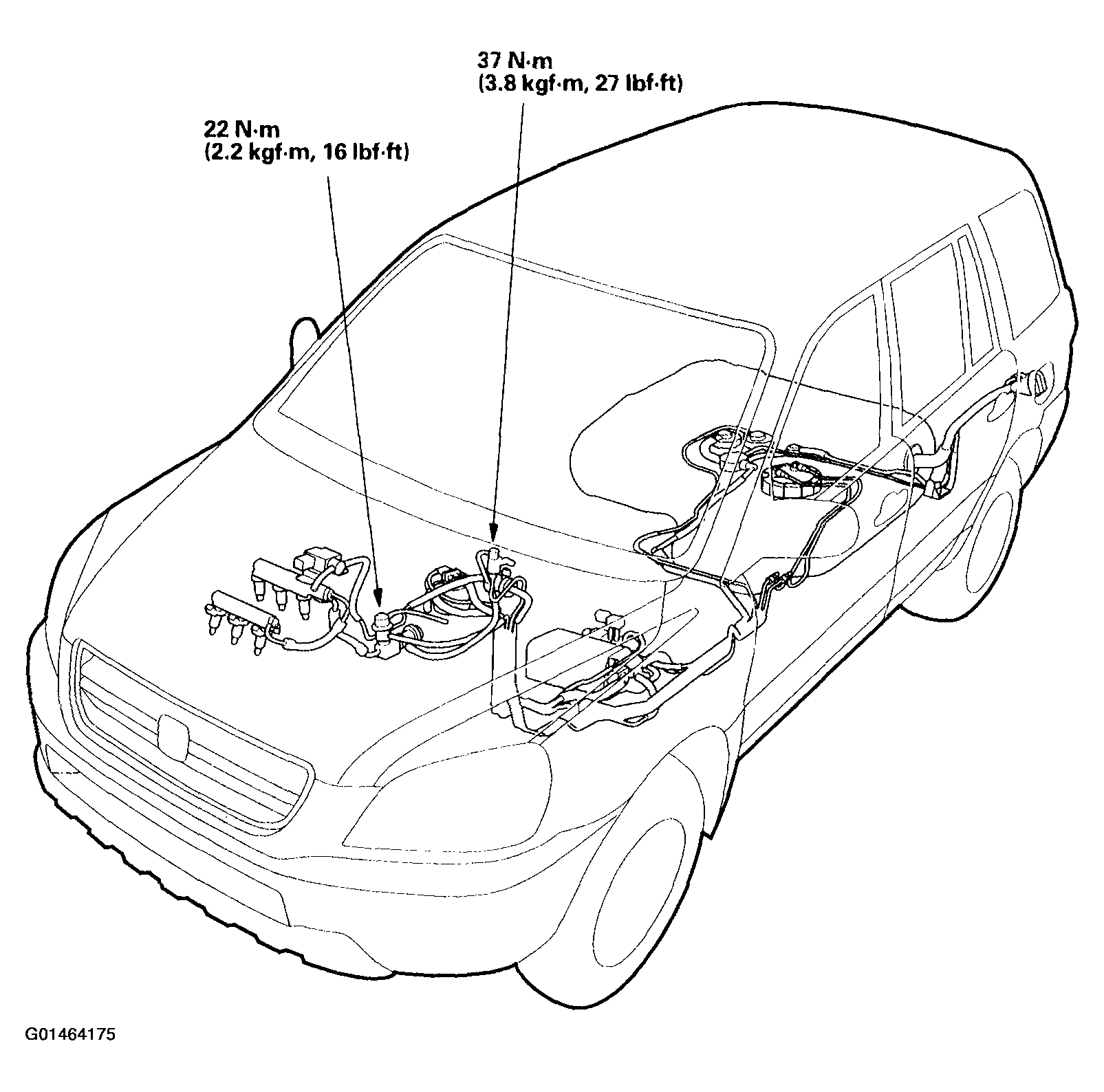

Fig 1: Checking The Fuel System Lines, Hoses, & Fuel Filter For Damage, Leaks & Deterioration

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check all clamps and retighten if necessary.

Do not disconnect the hose from the line at these joints.

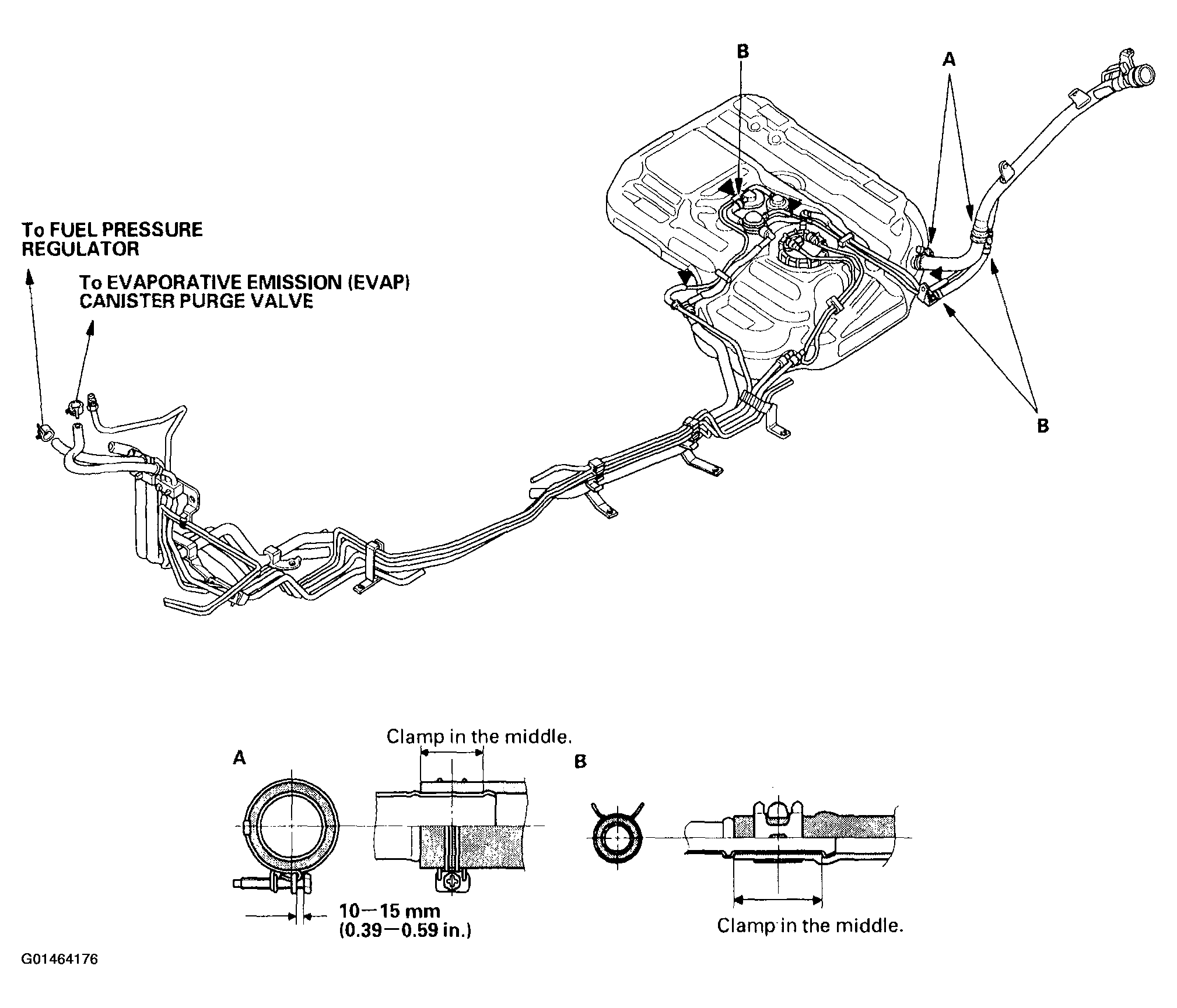

Fig 2: Checking Clamps

Courtesy of AMERICAN HONDA MOTOR CO., INC.
