CKP Sensor Replacement

  1. Remove the alternator-compressor belt (see ALTERNATOR BELT ).
  2. Loosen the adjusting nut, locknut, and mounting bolt, then remove the power steering (P/S) pump belt (see step 6 on TIMING BELT REMOVAL ).
  3. Remove the dipstick and tube (see step 9 on TIMING BELT REMOVAL ).
  4. Remove the crankshaft pulley (see CRANKSHAFT PULLEY REMOVAL & INSTALLATION ).
  5. Remove the upper and lower cover (see step 11 on TIMING BELT REMOVAL ).
  6. Remove the CKP sensor (A) from the oil pump.

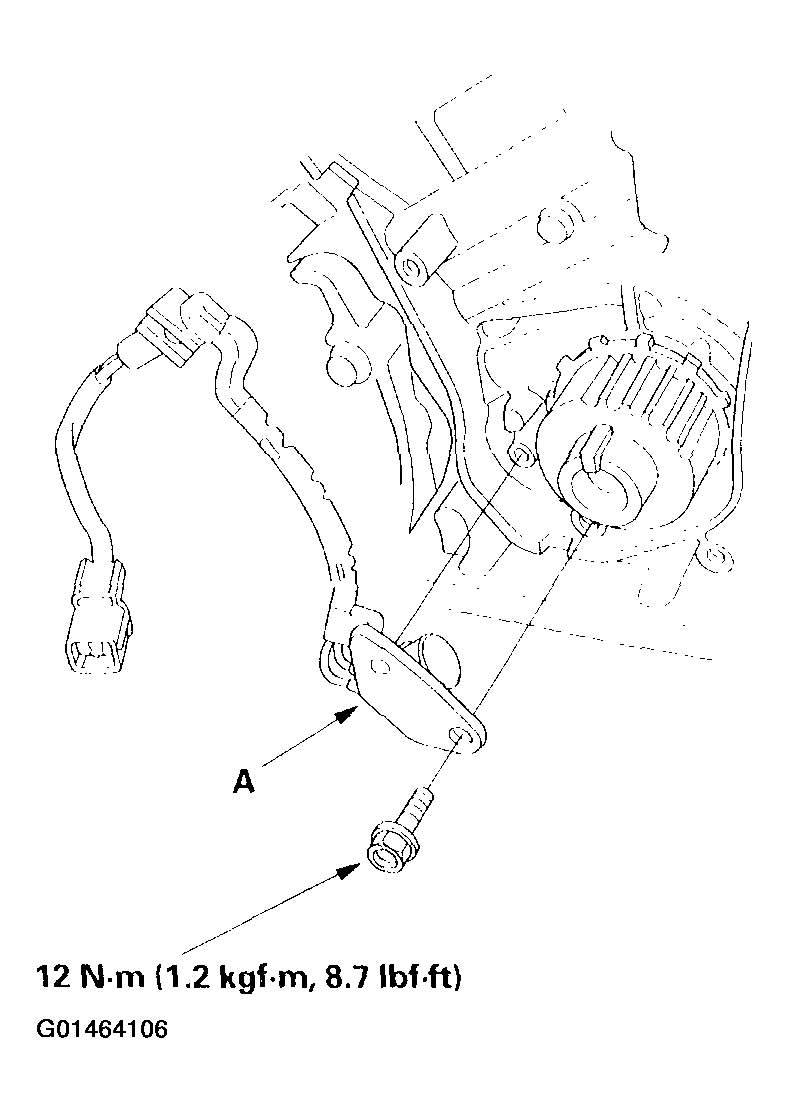

    Fig 1: Removing The CKP Sensor From The Oil Pump
    G01464106Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install the sensor in the reverse order of removal.
