Toe-In Adjustment: Rear
- Ensure parking brake is released to avoid an incorrect measurement. Check toe-in. See WHEEL ALIGNMENT SPECIFICATIONS
. If no adjustment is required, remove alignment equipment. If adjustment is required, go to next step.

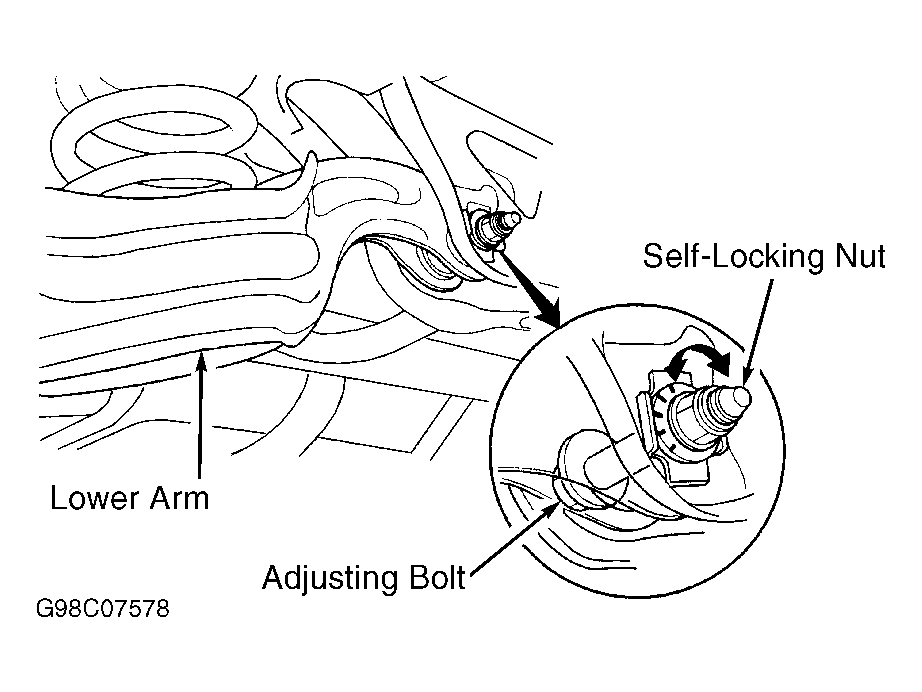

- Hold adjusting bolt on rear lower control arm and loosen lock nut. Adjust rear toe-in by turning adjusting bolt until toe-in is correct. See WHEEL ALIGNMENT SPECIFICATIONS
. Install NEW lock nut, and tighten it while holding adjusting bolt. See Fig 1
and TORQUE SPECIFICATIONS
. Recheck toe-in.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
