Park Pin Switch Test

SRS components are located in this area. Review the SRS components locations, precautions and procedures in 2003 AIR BAG RESTRAINT SYSTEMS or 2004 AIR BAG RESTRAINT SYSTEMS before performing repairs or service.

1. Remove the steering column covers (see STEERING COLUMN REMOVAL & INSTALLATION ).
2. Disconnect the park pin switch connector.
3. Shift the shift lever into the P position, then check for continuity between the No. 1 and No. 3 terminals. There should be no continuity.

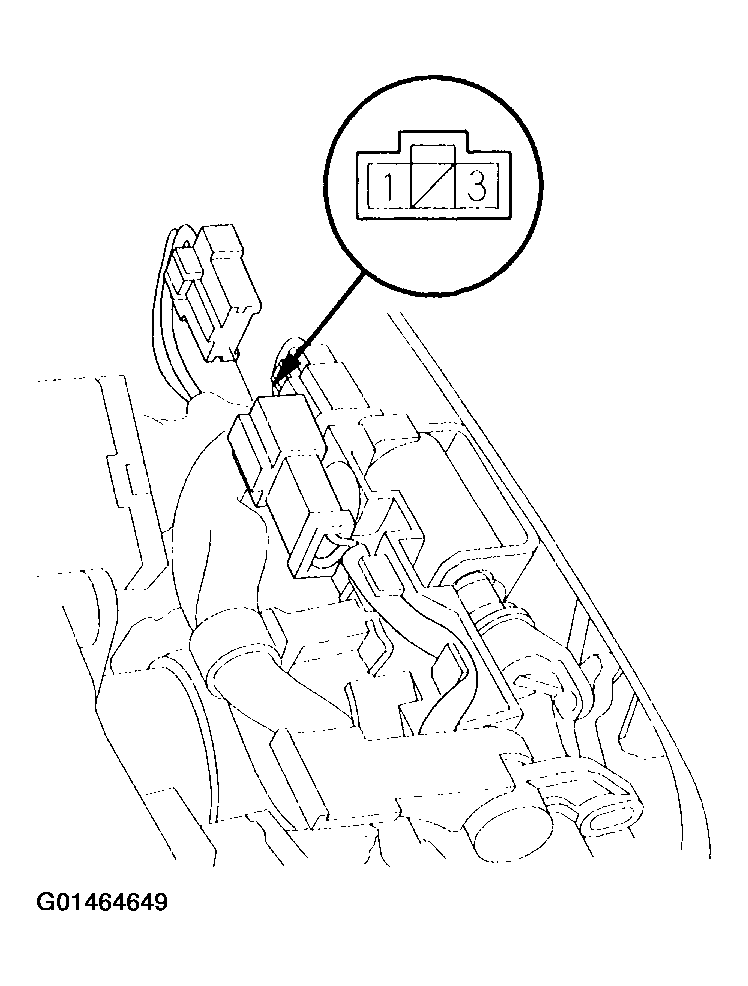

   Fig 1: Checking For Continuity Between The Park Pin Switch 3P Connector No. 1 & No. 3 Terminals

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Move the shift lever out of the P position, and check for continuity the terminals. There should be continuity.
5. If the park pin switch is faulty, replace the shift lever assembly. The park pin switch is not available separately.
