DTC Troubleshooting Index

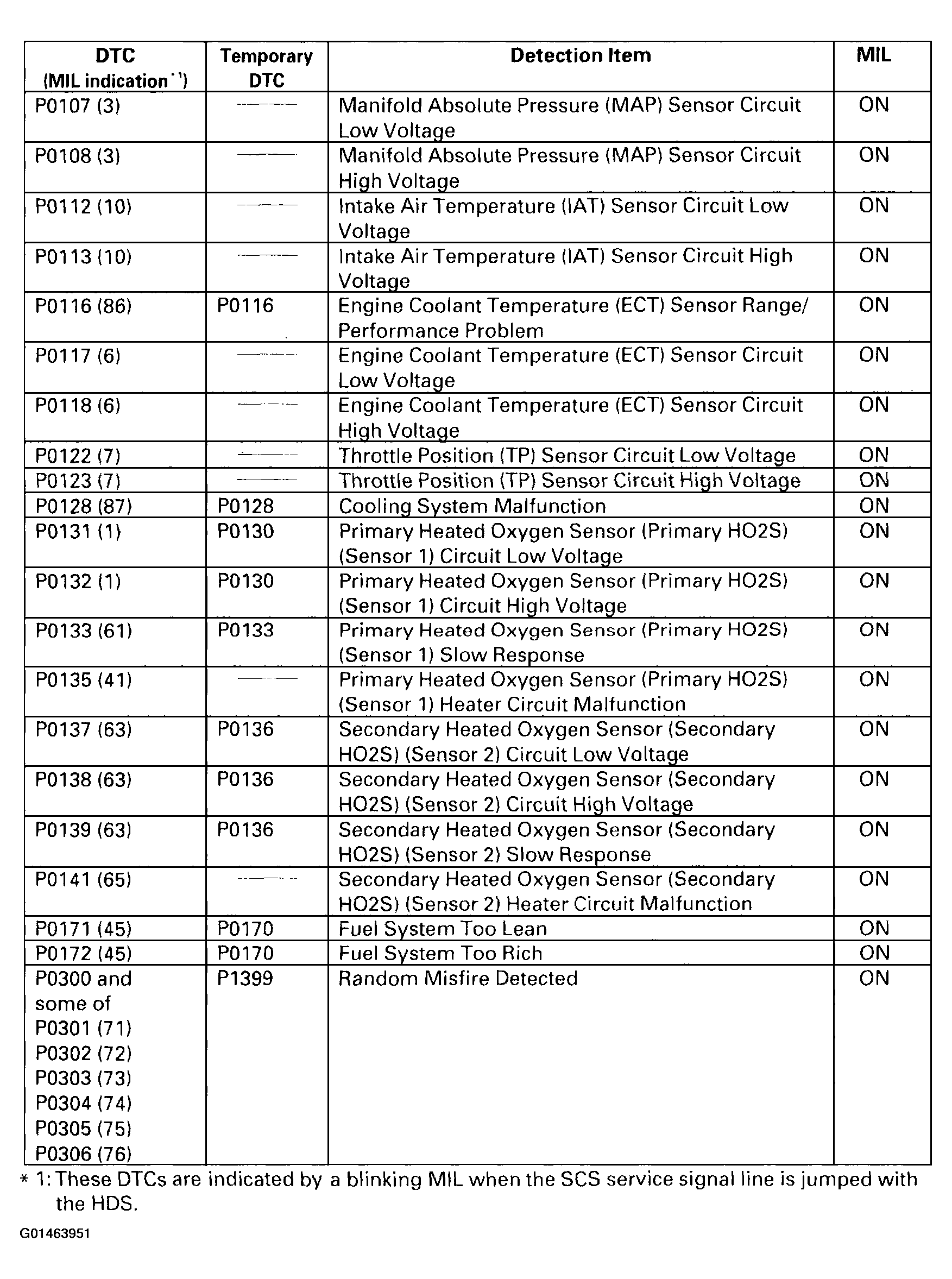

Fig 1: DTC Troubleshooting Index (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

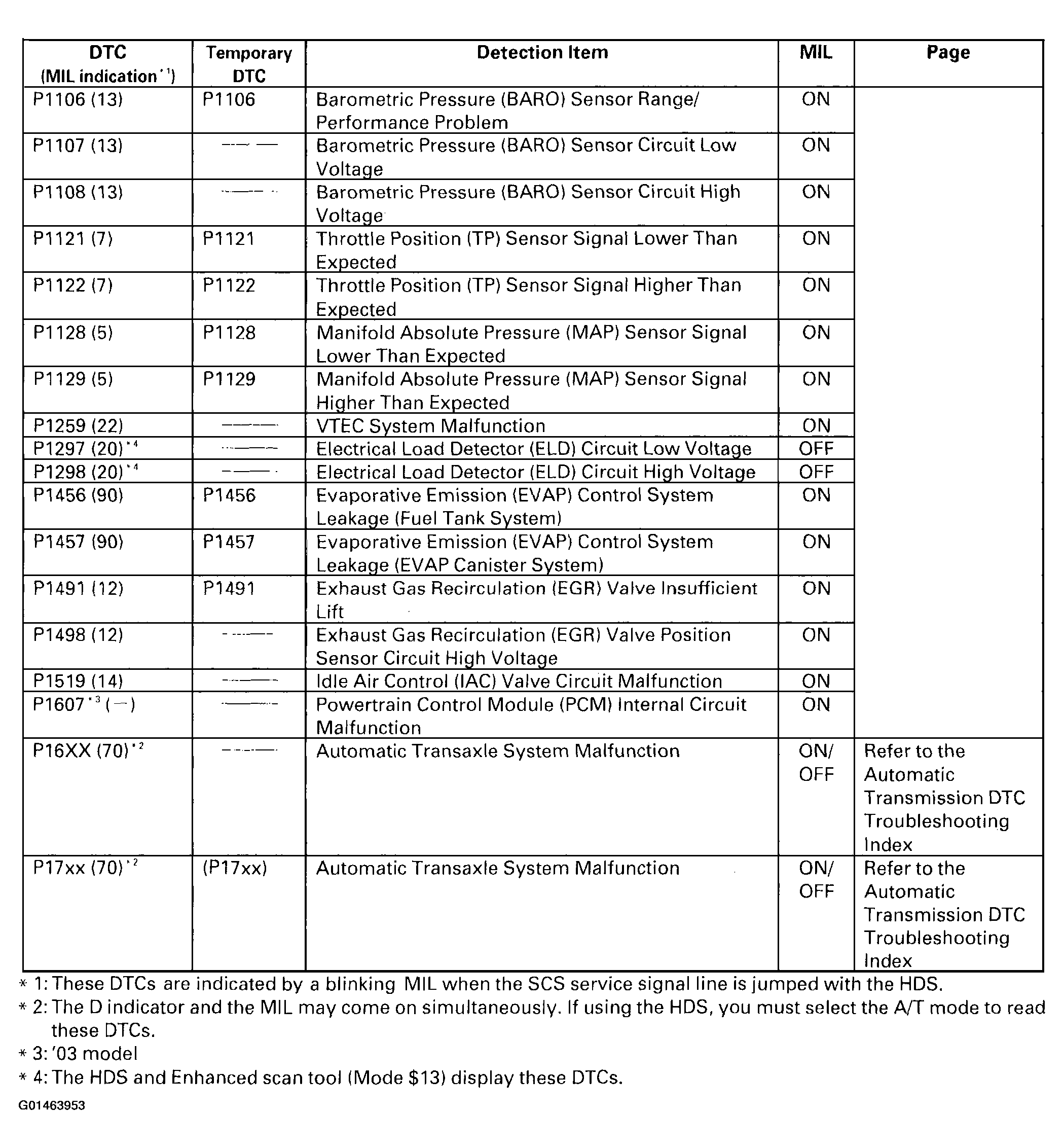

Fig 2: DTC Troubleshooting Index (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

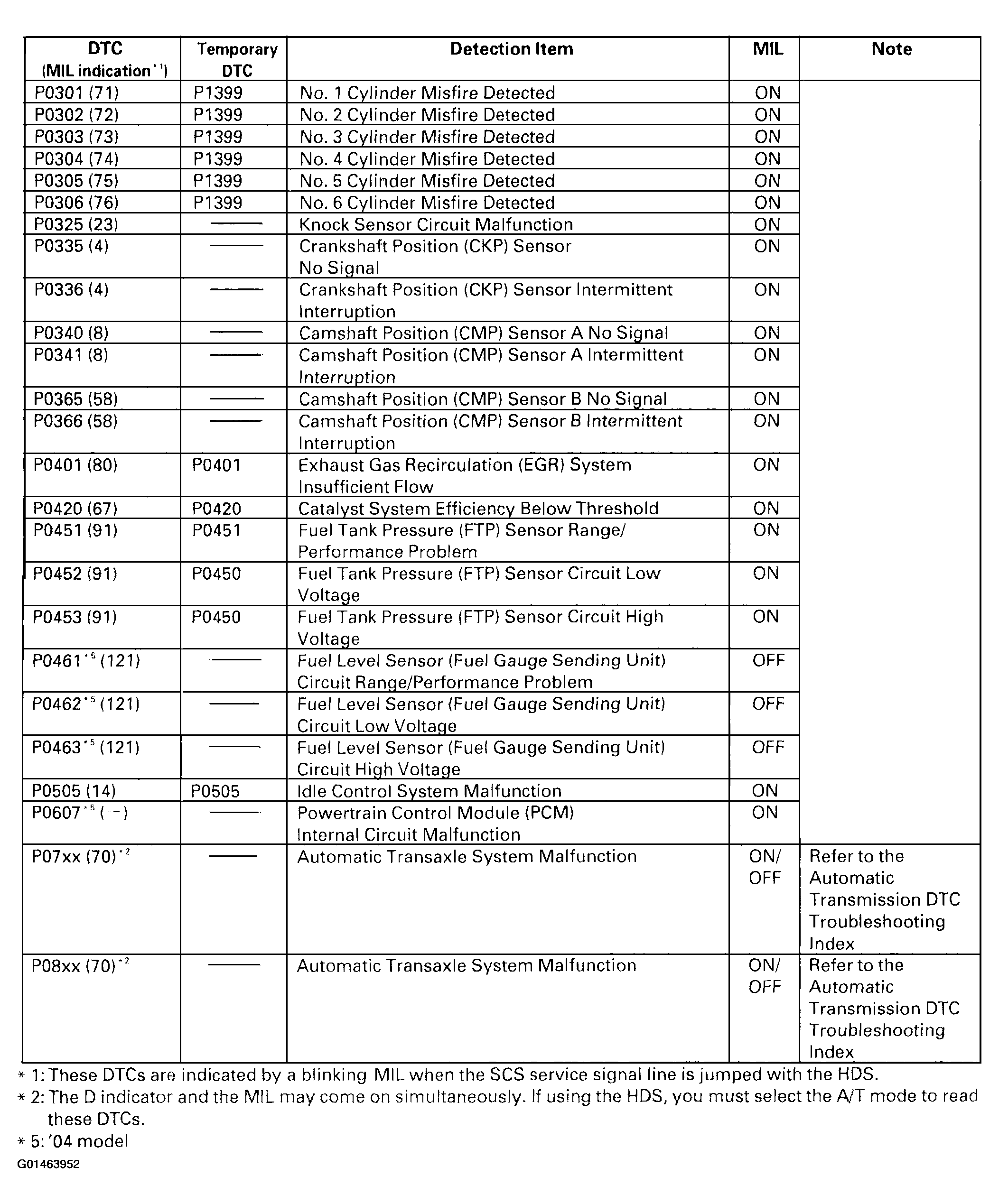

Fig 3: DTC Troubleshooting Index (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
