Positive Crankcase Ventilation (PCV) System

The PCV valve prevents blow-by gasses from escaping into the atmosphere by venting them into the intake manifold.

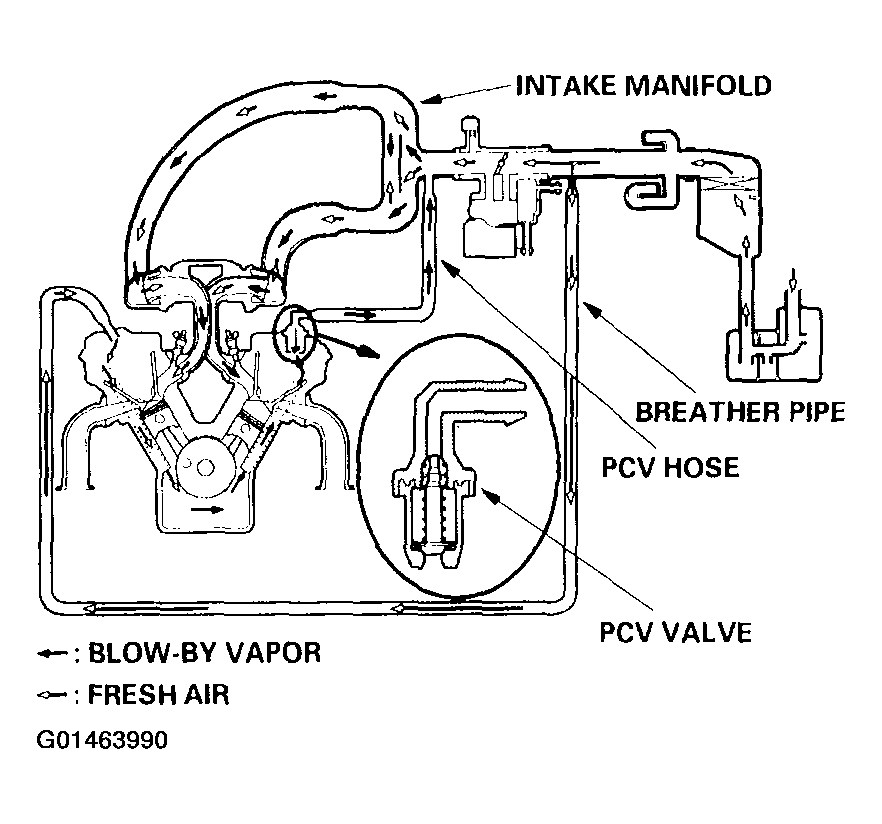

Fig 1: Identifying Positive Crankcase Ventilation System
G01463990Courtesy of AMERICAN HONDA MOTOR CO., INC.
