Component Locations

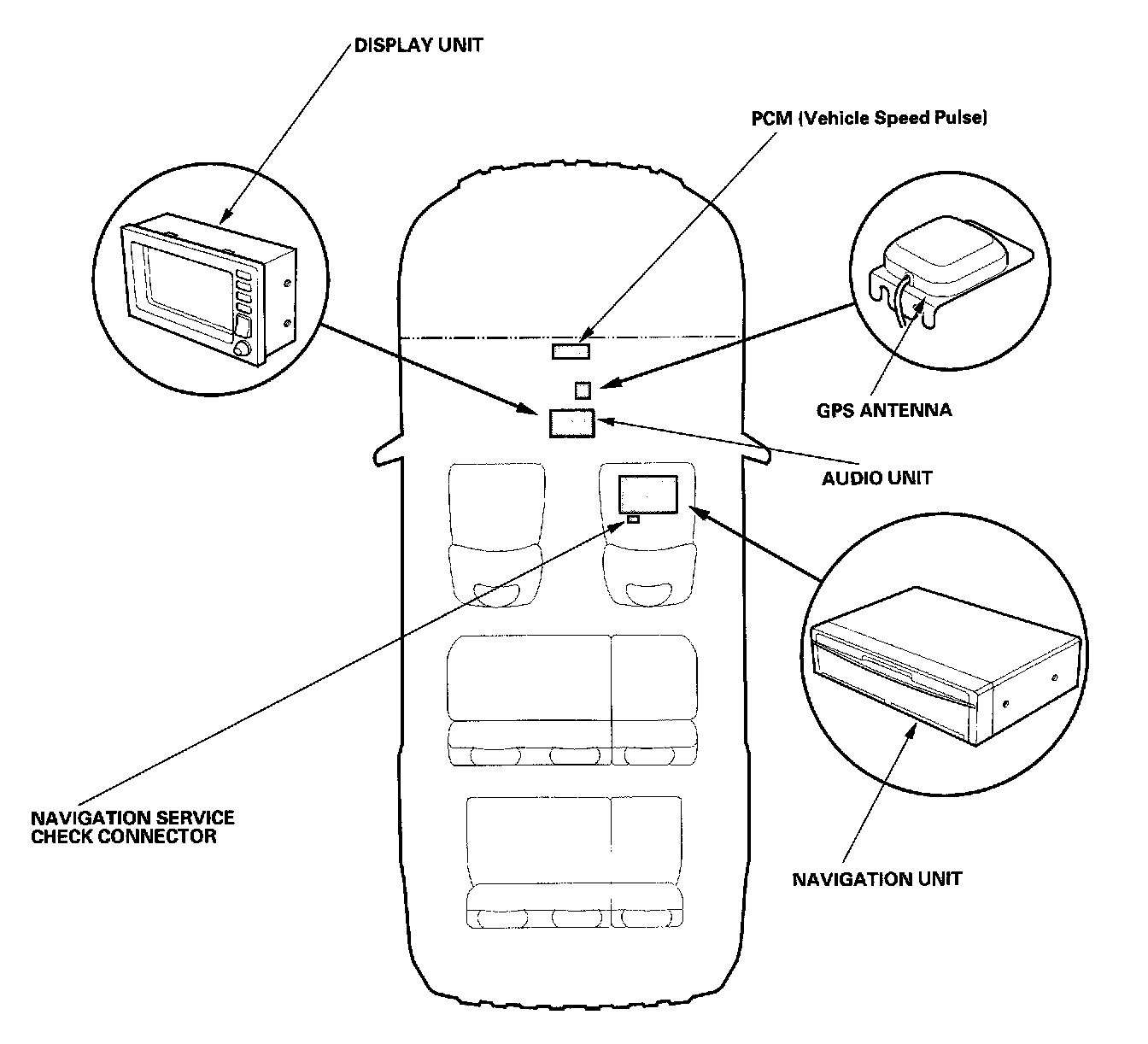

Navigation System Component Location Index:

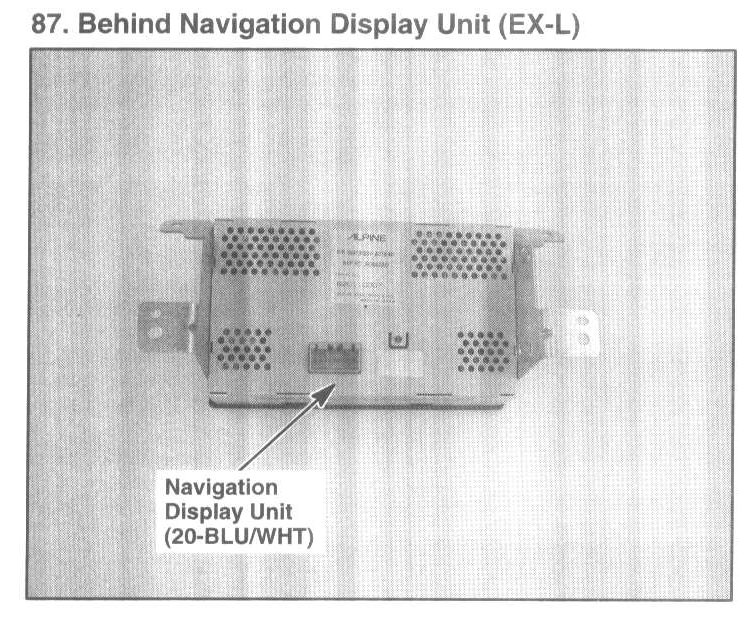

87. Behind Navigation Display Unit (EX-L):

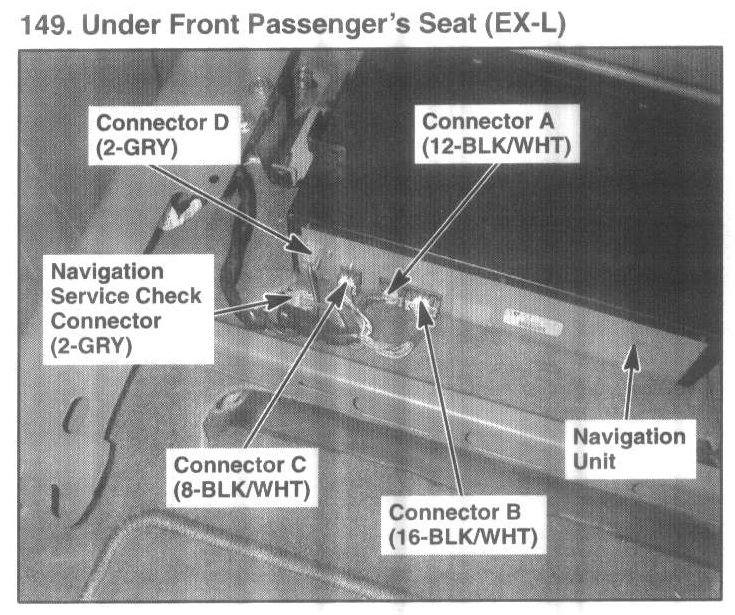

149. Under Front Passenger's Seat (EX-L):
