Frame: Service and Repair

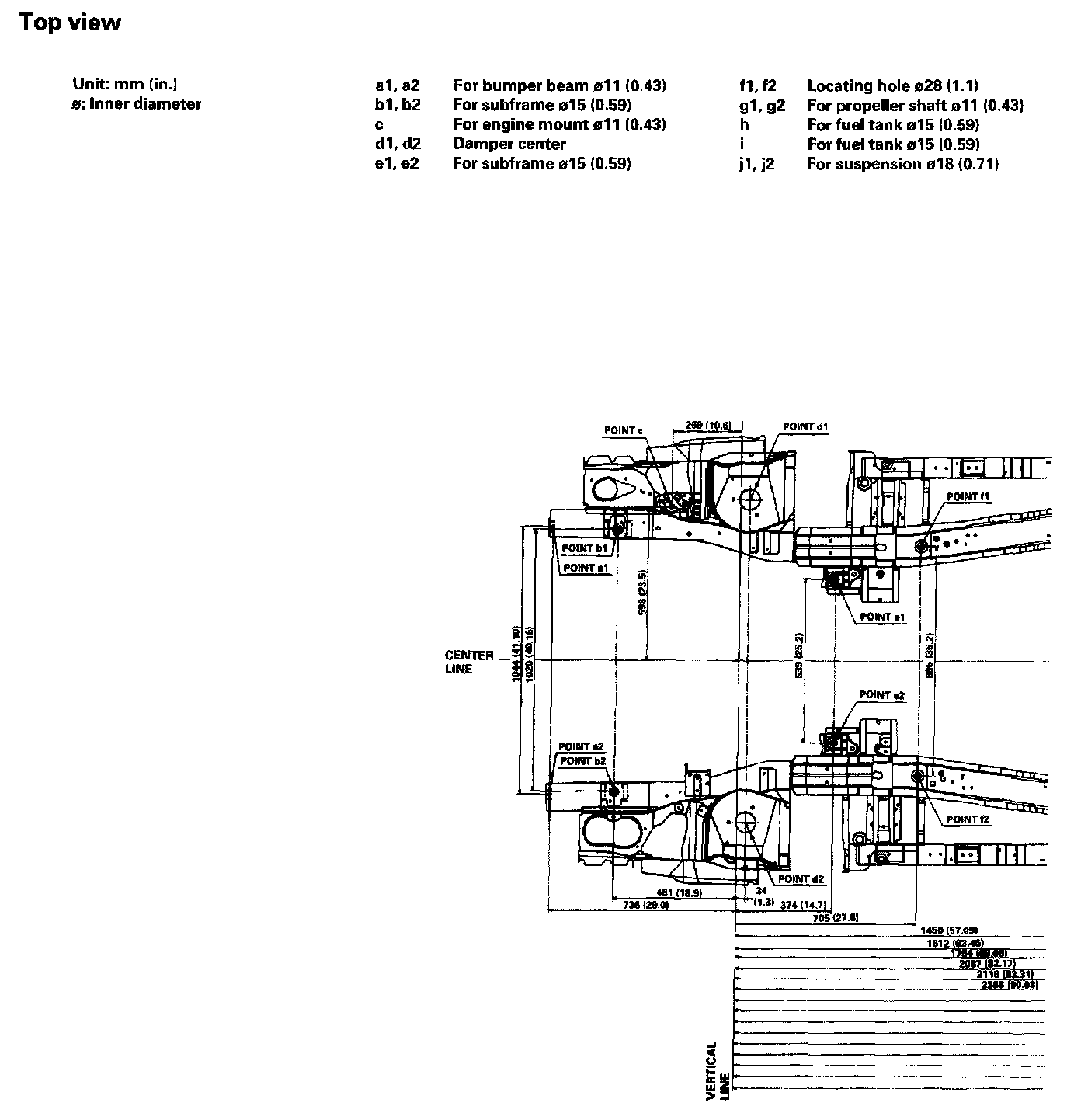

Frame Repair Chart - Top View Part 1:

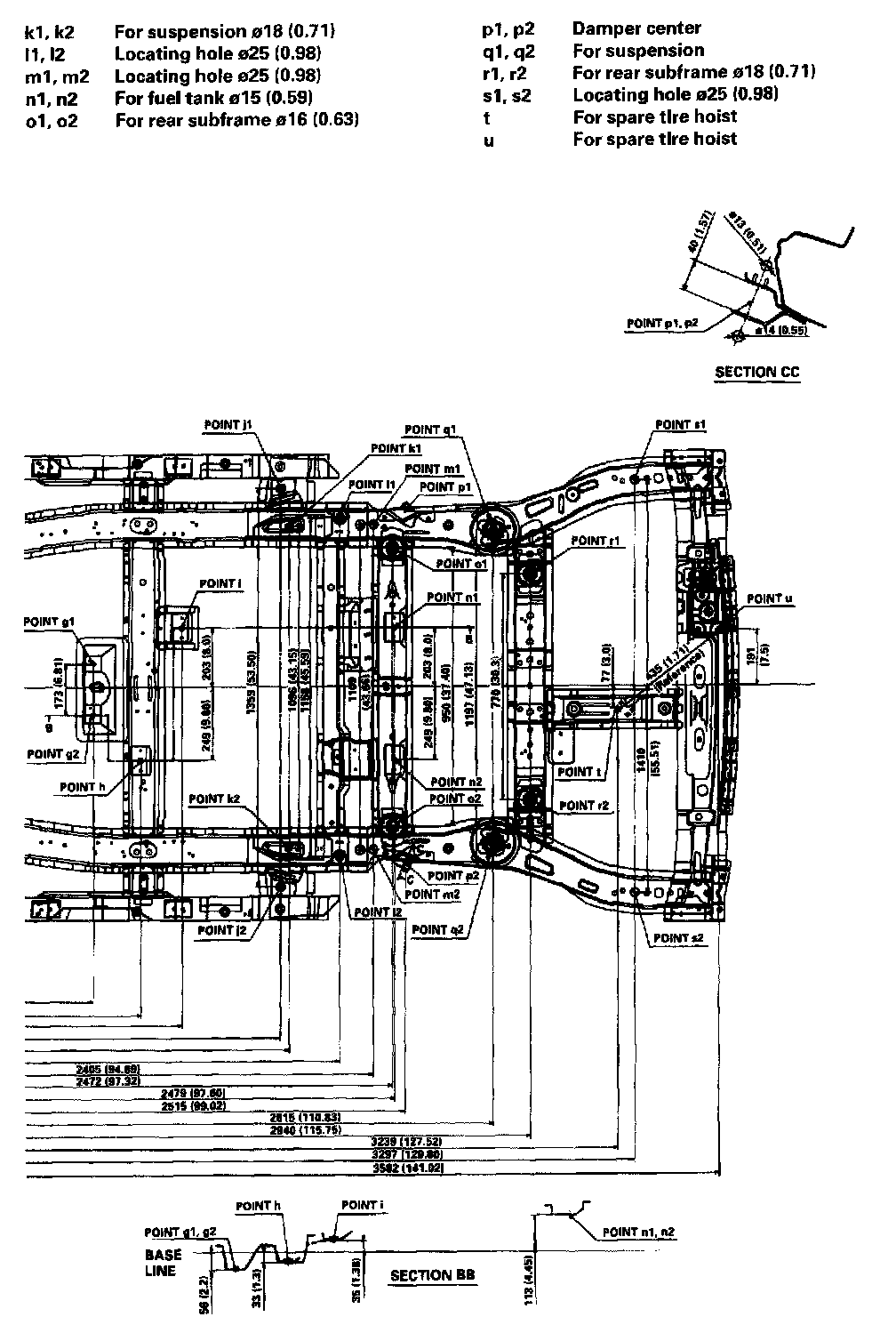

Frame Repair Chart - Top View Part 2:

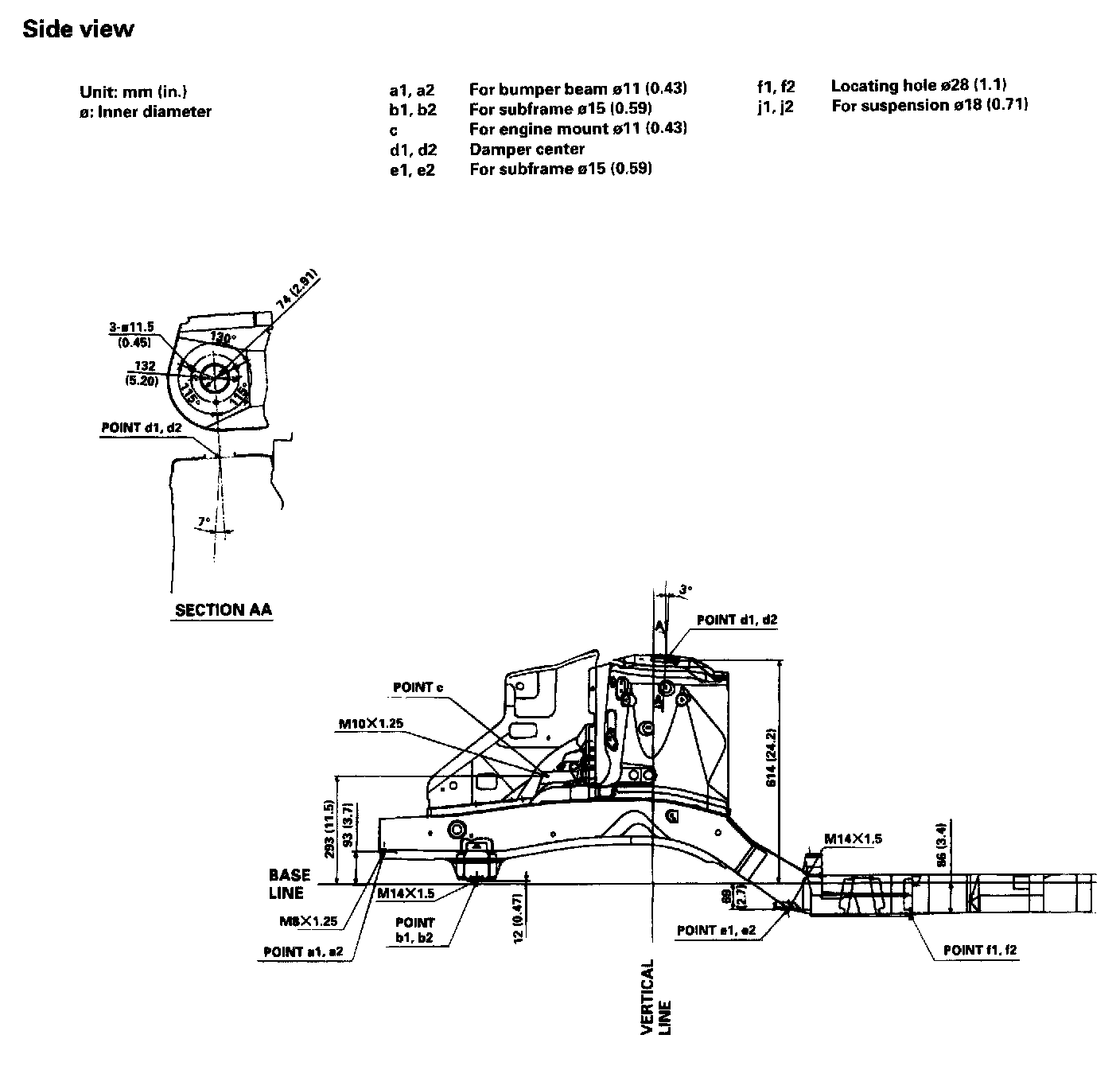

Frame Repair Chart - Side View Part 1:

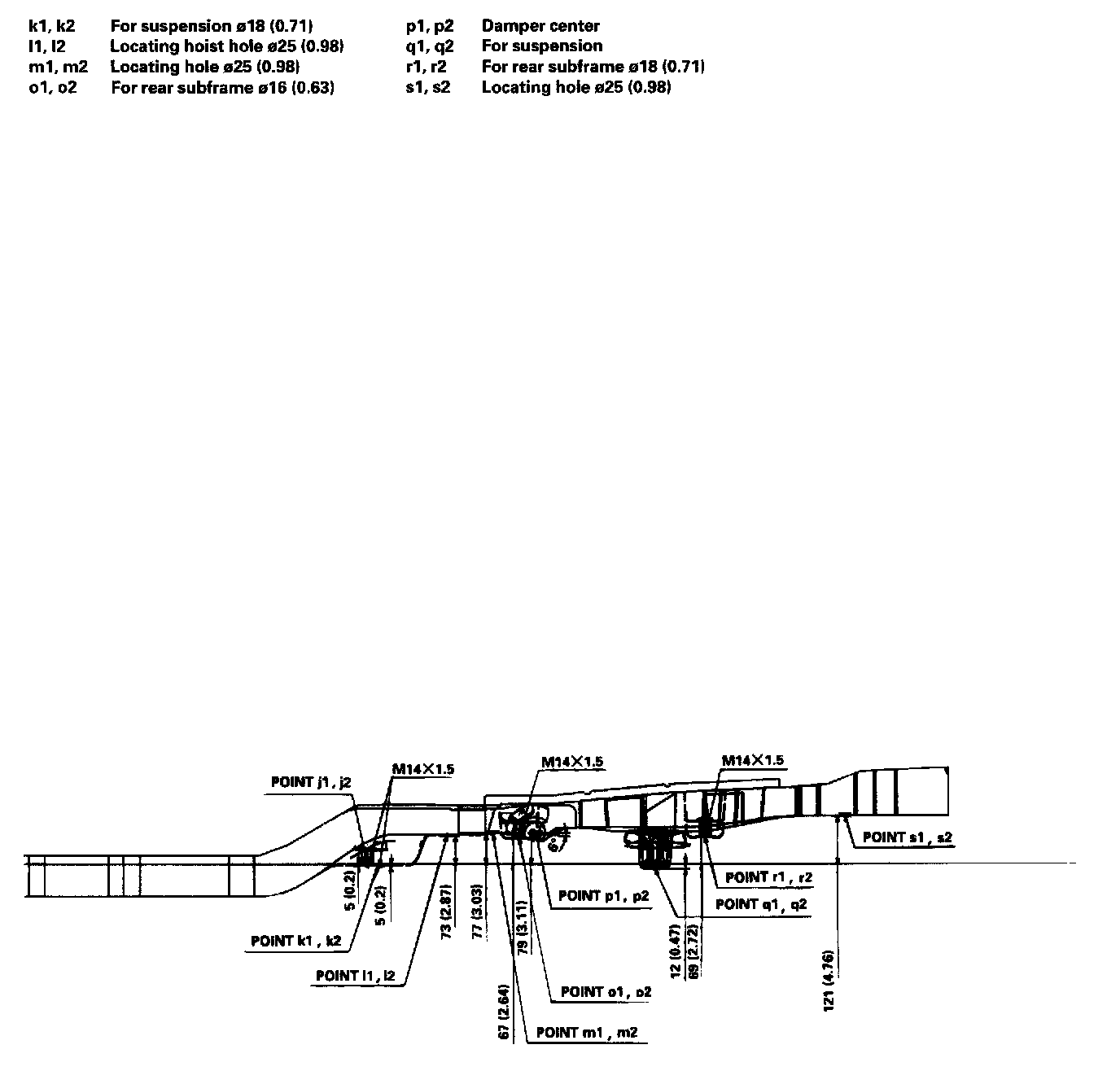

Frame Repair Chart - Side View Part 2:
