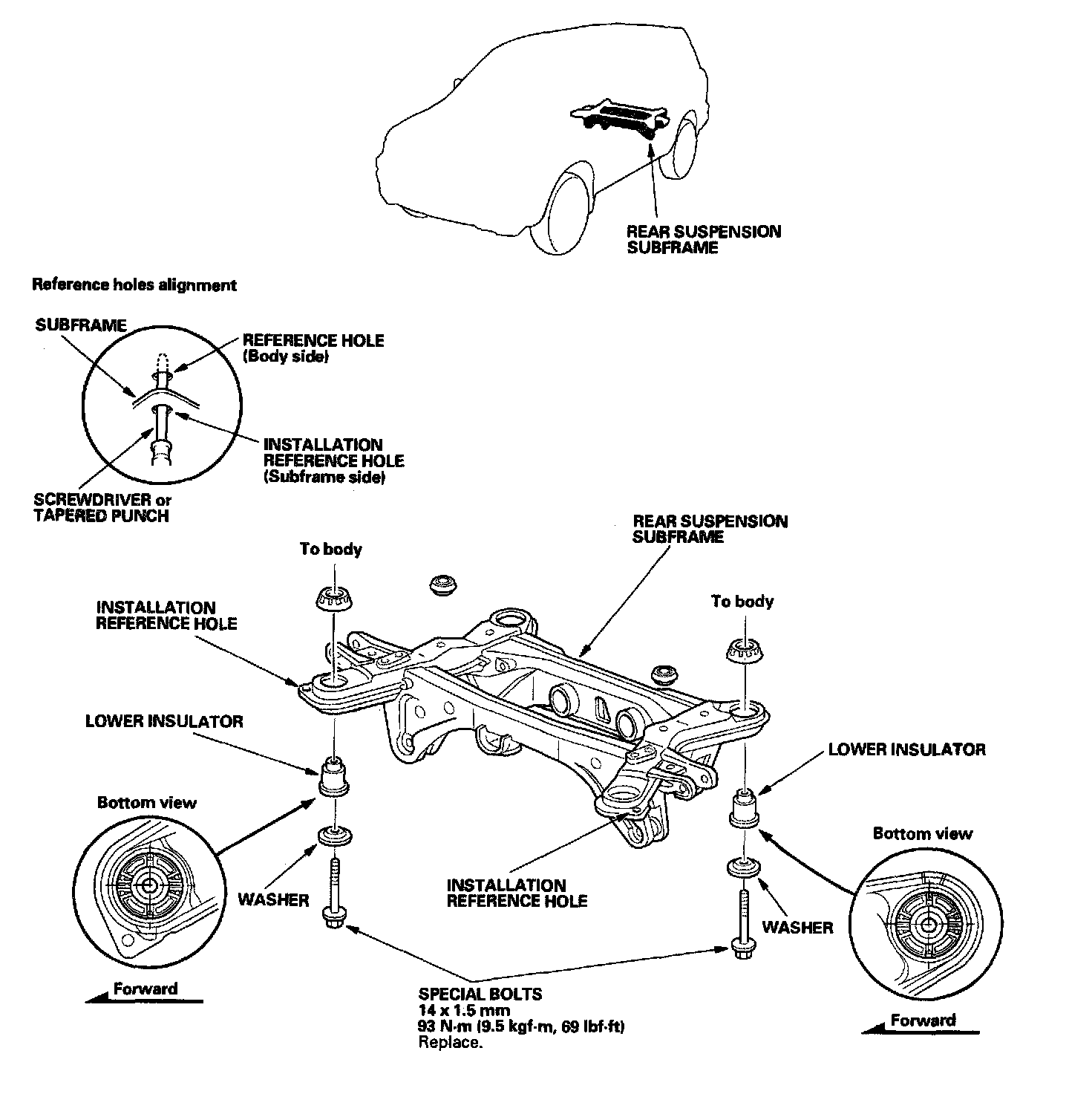

Rear Subframe: Service and Repair
Rear
Subframe
Replacement
Subframe
Torque
After removing the subframe mounting bolts, be sure to replace them with new ones.
