Main Switch

Main Switch Test/Replacement

1. Remove the switch panel.

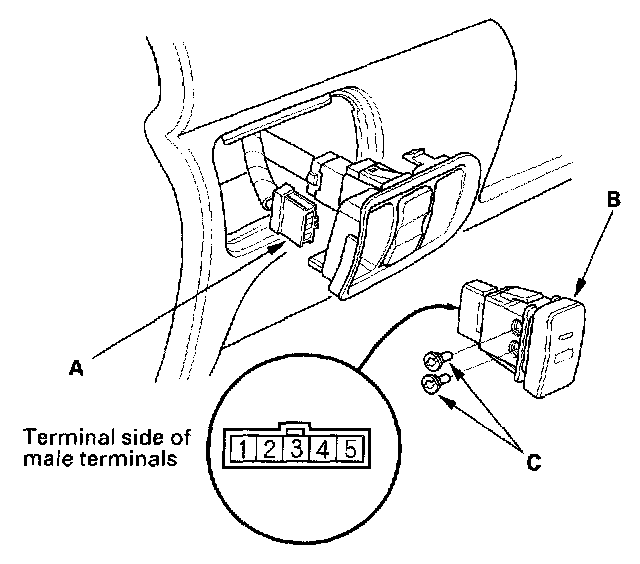

2. Disconnect the 5P connector (A), then release the clips of the main switch and push the main switch (B) out of the panel.

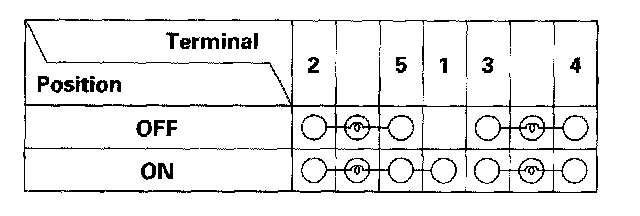

3. Check for continuity between the terminals in each switch position according to the table. If there is no continuity, replace illumination bulbs (C) or the switch.
