Symptom Related Diagnostic Procedures

Symptom Troubleshooting Index

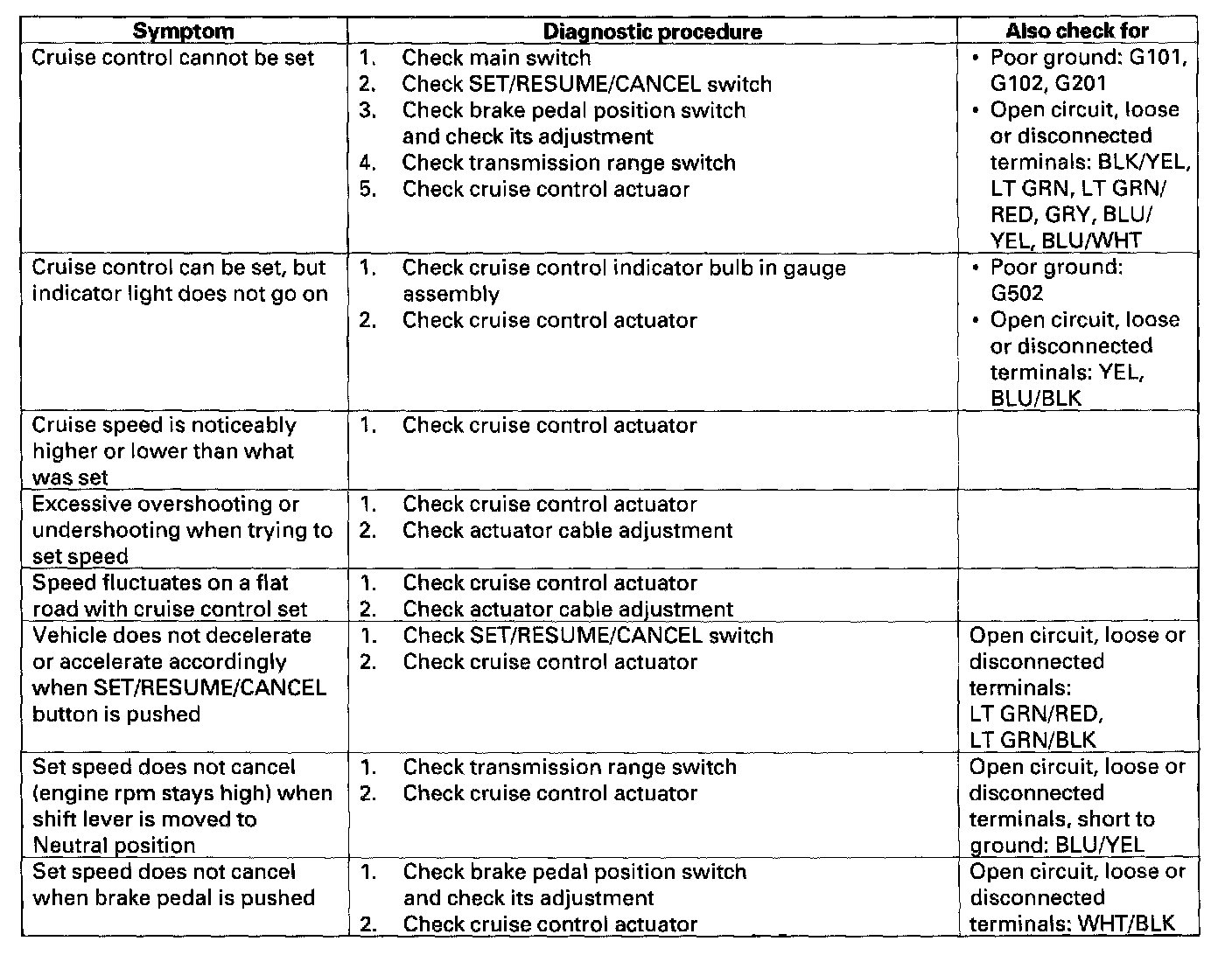

Symptom Troubleshooting Index Part 1:

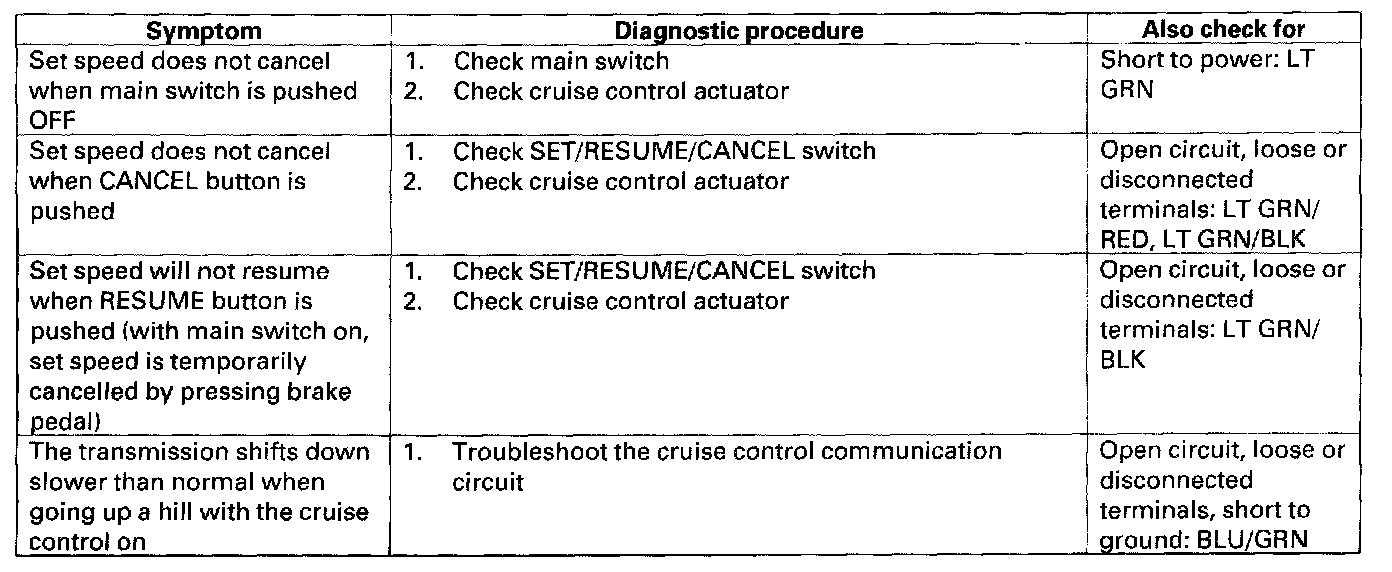

Symptom Troubleshooting Index Part 2:

NOTE:
- The numbers in the table show the troubleshooting sequence.
- Before troubleshooting,
- check that the speedometer works properly.
- check the No. 9 (10 A) and No. 6 (15 A) fuses in the driver's under-dash fuse/relay box, and No. 47 (20 A) fuse in the under-hood fuse/relay box.
- check that the horn sounds.
- check the tachometer to see if it works properly.
