Control Assembly: Locations

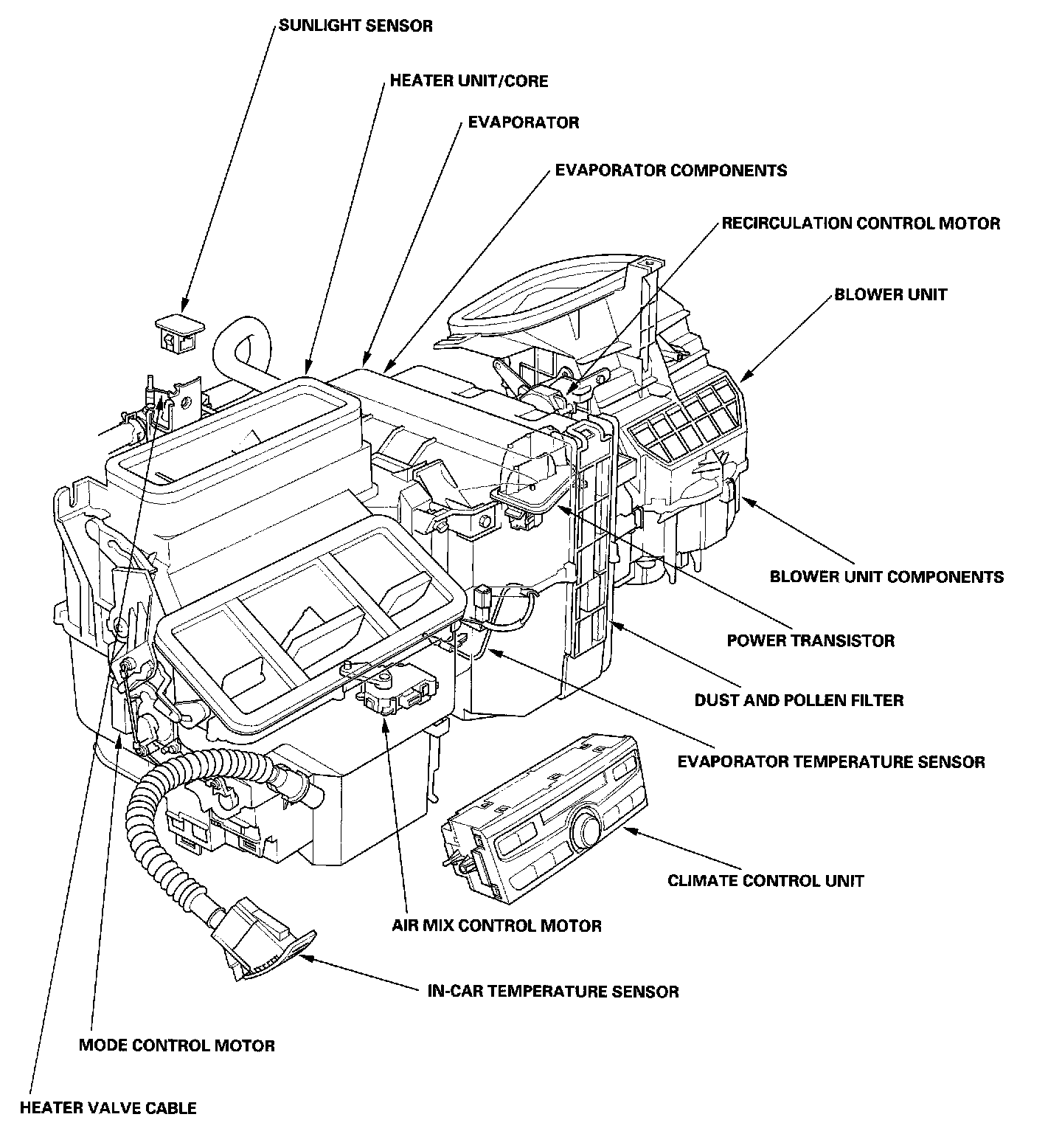

Climate Control Component Location Index:

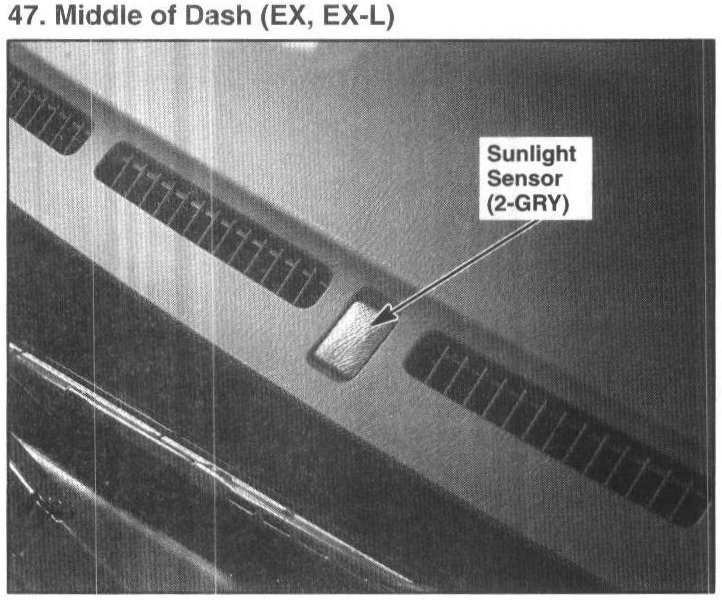

47. Middle of Dash (EX, EX-L):
