Fuel Tank Pressure Sensor: Service and Repair

FTP Sensor Replacement

1. Remove the EVAP canister cover.

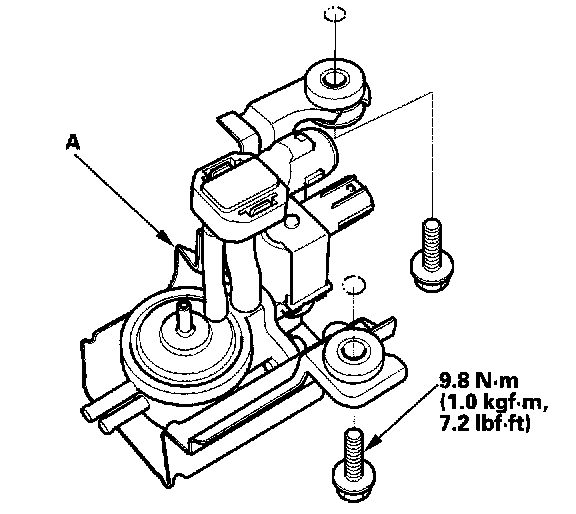

2. Remove the EVAP bypass solenoid valve/EVAP two way valve assembly.

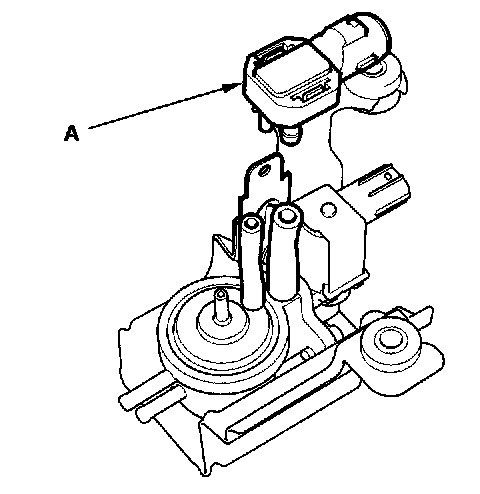

3. Remove the FTP sensor (A).
4. Install the parts in the reverse order of removal.
