Differential Oil Temperature Sensor Replacement

Differential Oil Temperature Sensor Replacement

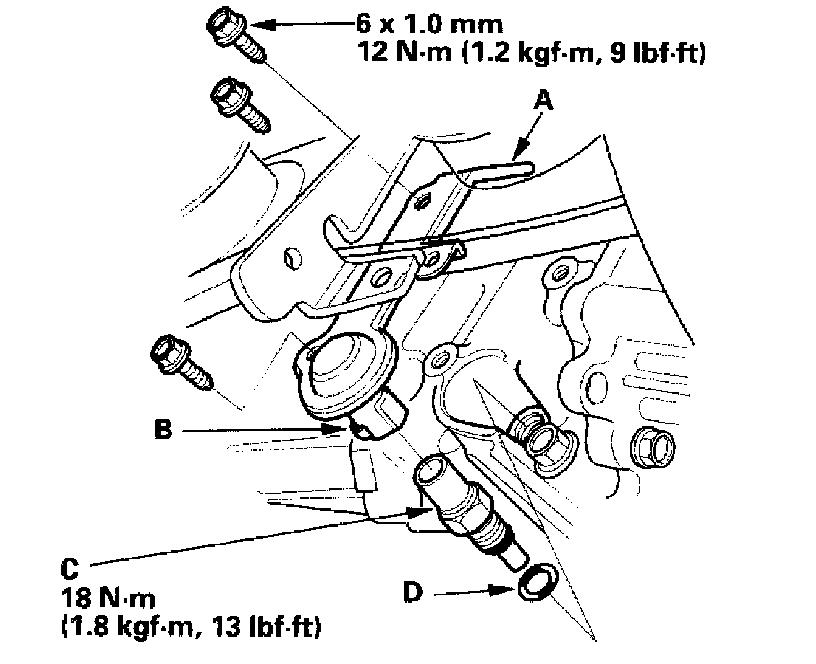

1. Remove the wire harness cover (A), then disconnect the differential oil temperature sensor 2P connector (B).
2. Remove the differential oil temperature sensor (C).
3. Install the differential oil temperature sensor (C) in the reverse order of removal, with a new O-ring (D).
