Passenger's Window Switch Test/Replacement

Remove the passenger's window switch and switch panel from the door panel.

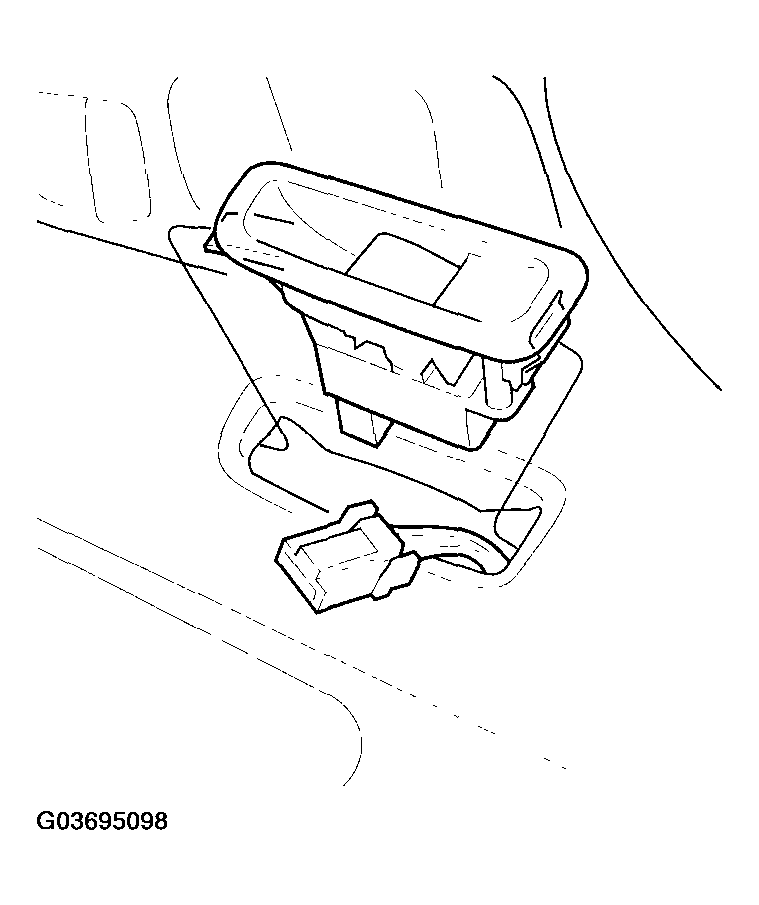

Fig 1: Identifying Passenger's Window Switch & Switch Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 6P connector from the switch.
Remove the two mounting screws from the switch panel.

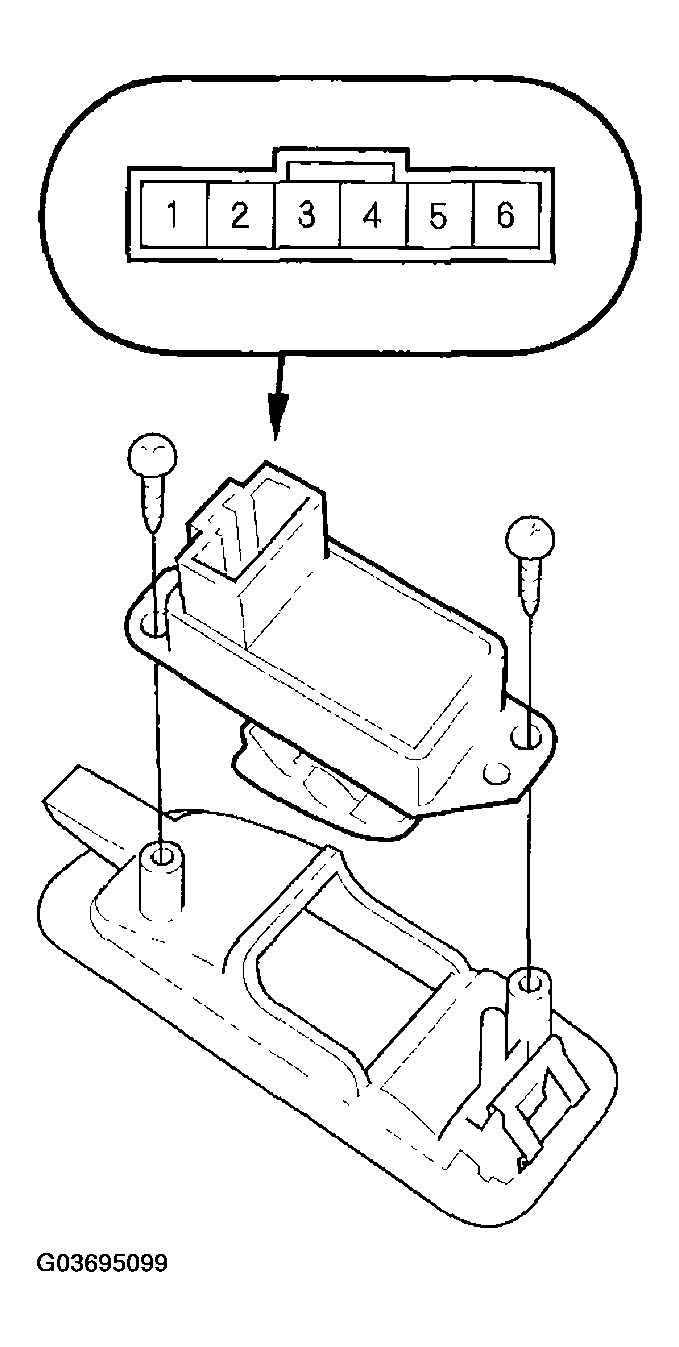

Fig 2: Identifying Switch Panel Mounting Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table below.

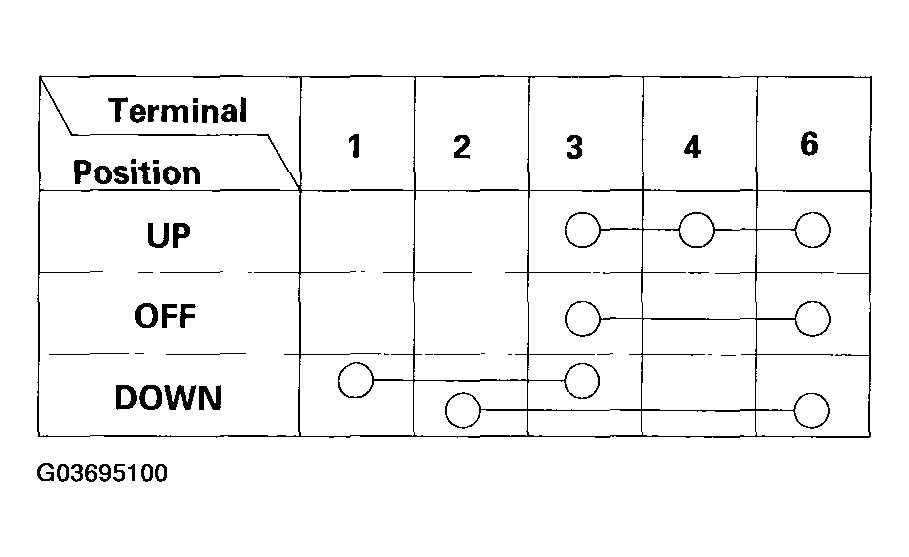

Fig 3: Identifying Passenger Window Switch Continuity Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
