Alternator Removal and Installation: Installation

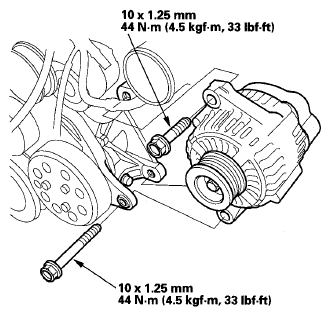

Install the alternator.

Fig 1: Alternator With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

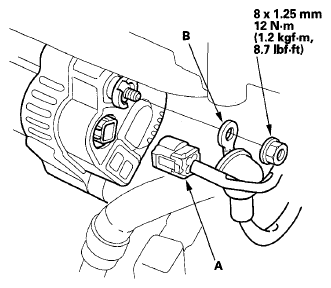

Connect the 4P connector (A) and the positive alternator cable (B) to the alternator.

Fig 2: 4P Connector And Positive Alternator Cable With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the drive belt (see DRIVE BELT INSPECTION ).
Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ).
'00-05 models: Do the engine control module (ECM) idle learn procedure (see ECM IDLE LEARN PROCEDURE ).
