Drive Belt Replacement

Special Tools Required

Belt tension release tool Snap-on YA9317 or equivalent, commercially available

Move the auto-tensioner (A) to relieve tension from the drive belt (B), then remove the drive belt.

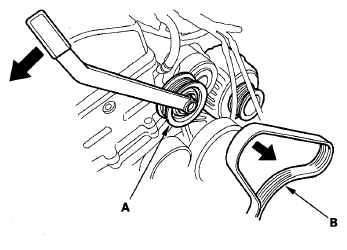

Fig 1: Removing Auto-Tensioner And Drive Belt
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the new belt in the reverse order of removal.

NOTE: For belt routing, see the charging system component location index (see COMPONENT LOCATION INDEX ).
