Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Component Location
Auxiliary Underhood Fuse Box On rear left side of engine compartment.

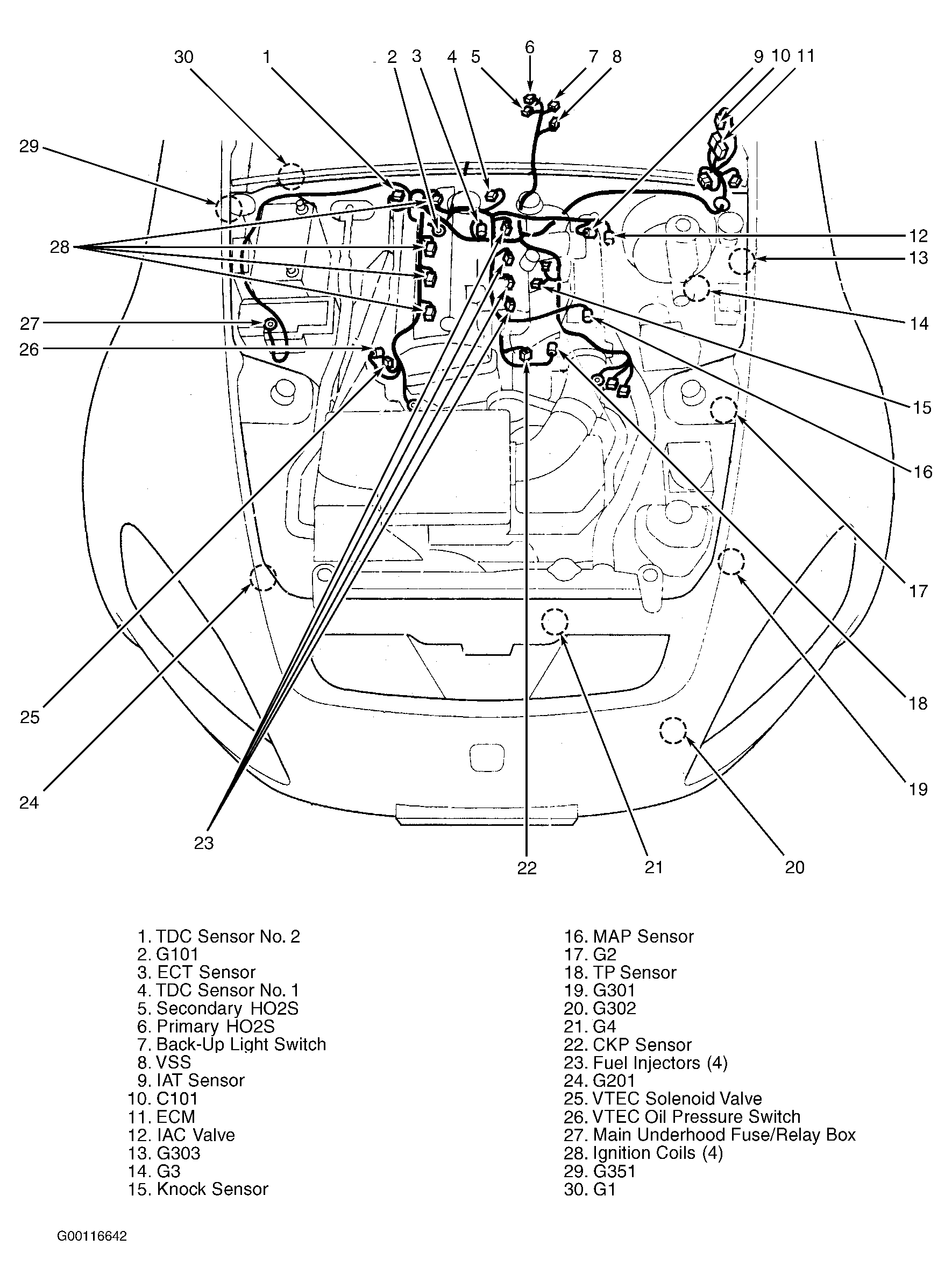

Main Underhood Fuse/Relay Box On right side of engine compartment. See Figure.
Option Fuse No. 1 Under left side of dash.
Option Fuse No. 2 Under left side of dash.

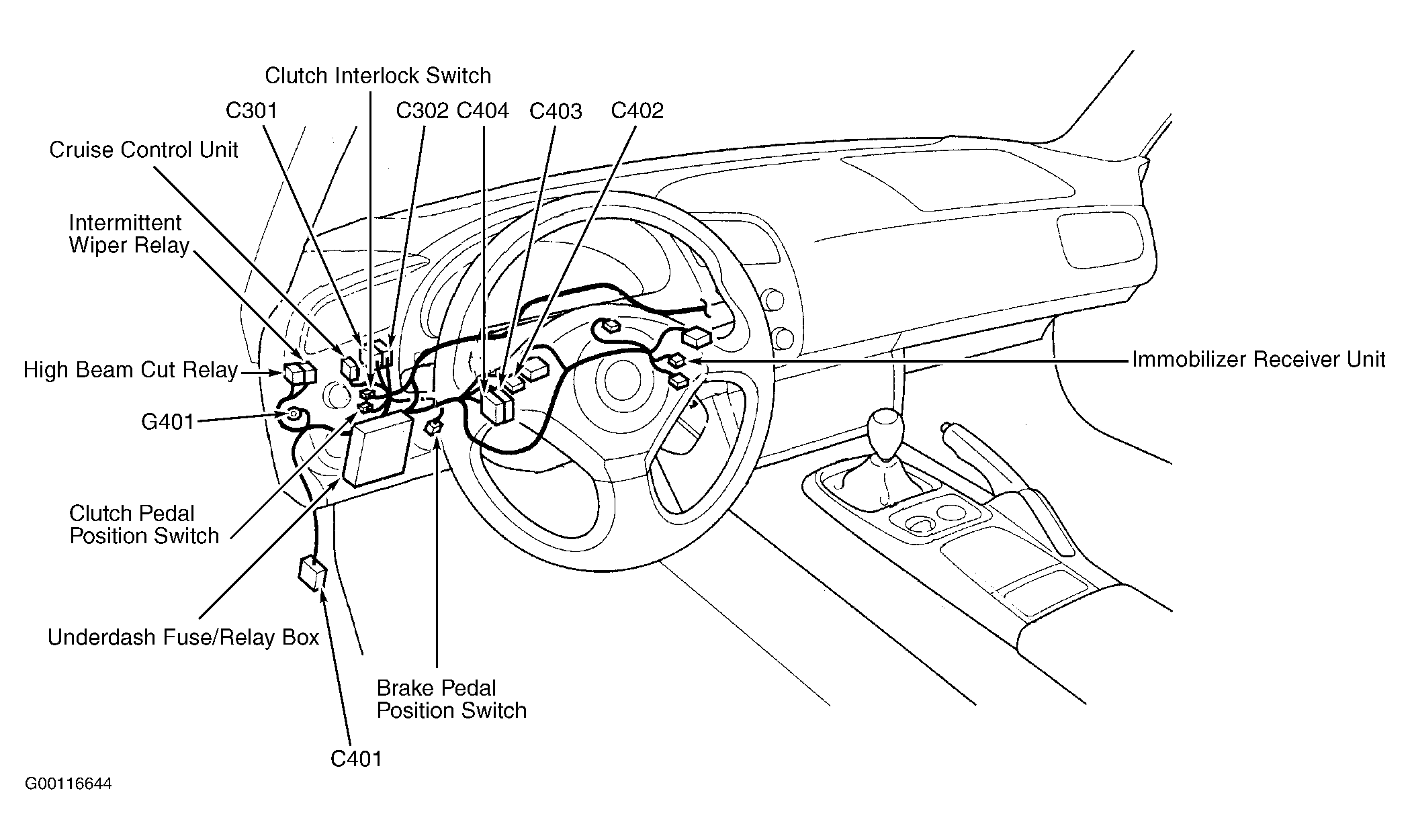

Underdash Fuse/Relay Box Under left side of dash. See Figure.
