Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

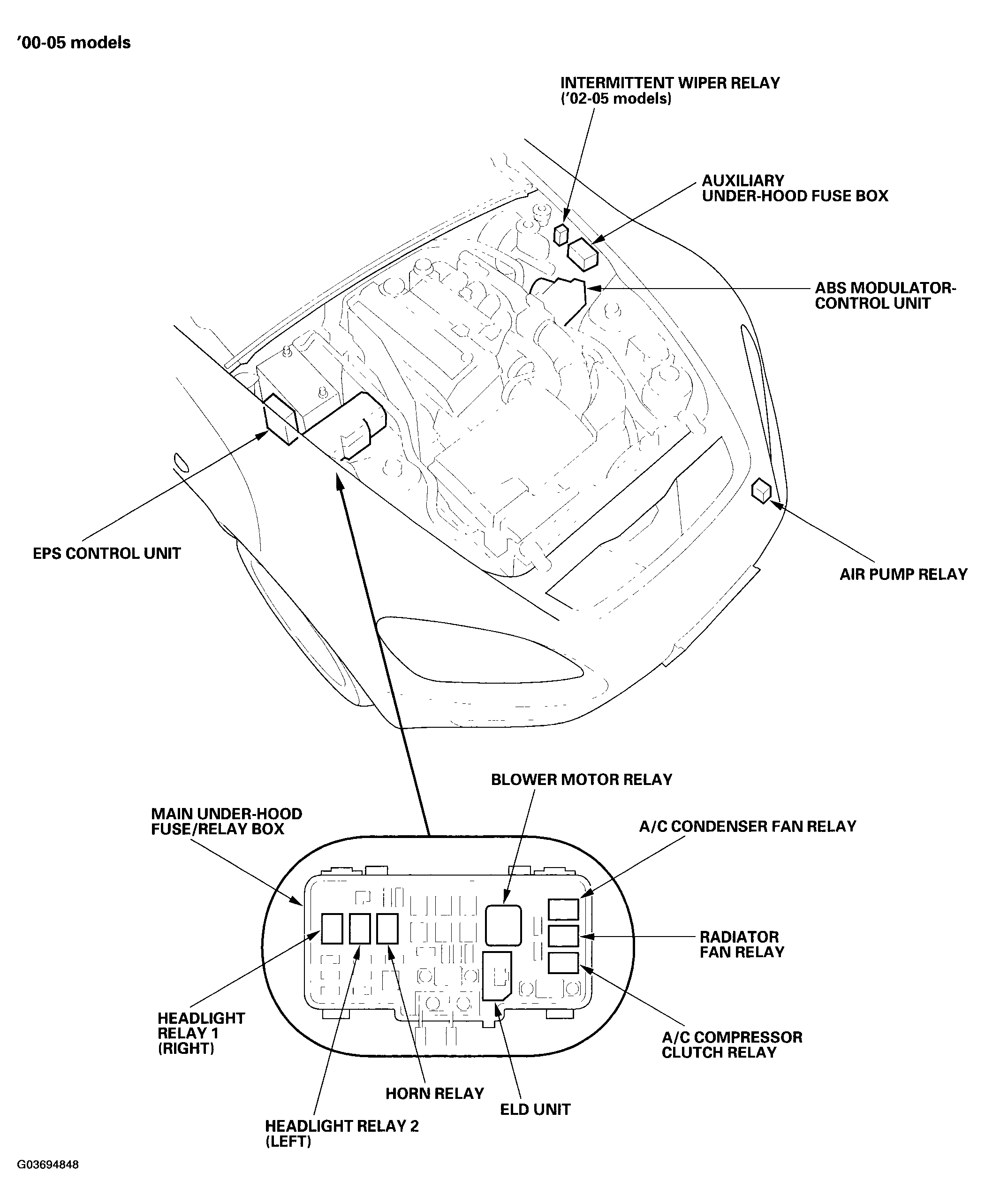

Fig 1: Engine Compartment

Courtesy of AMERICAN HONDA MOTOR CO., INC.

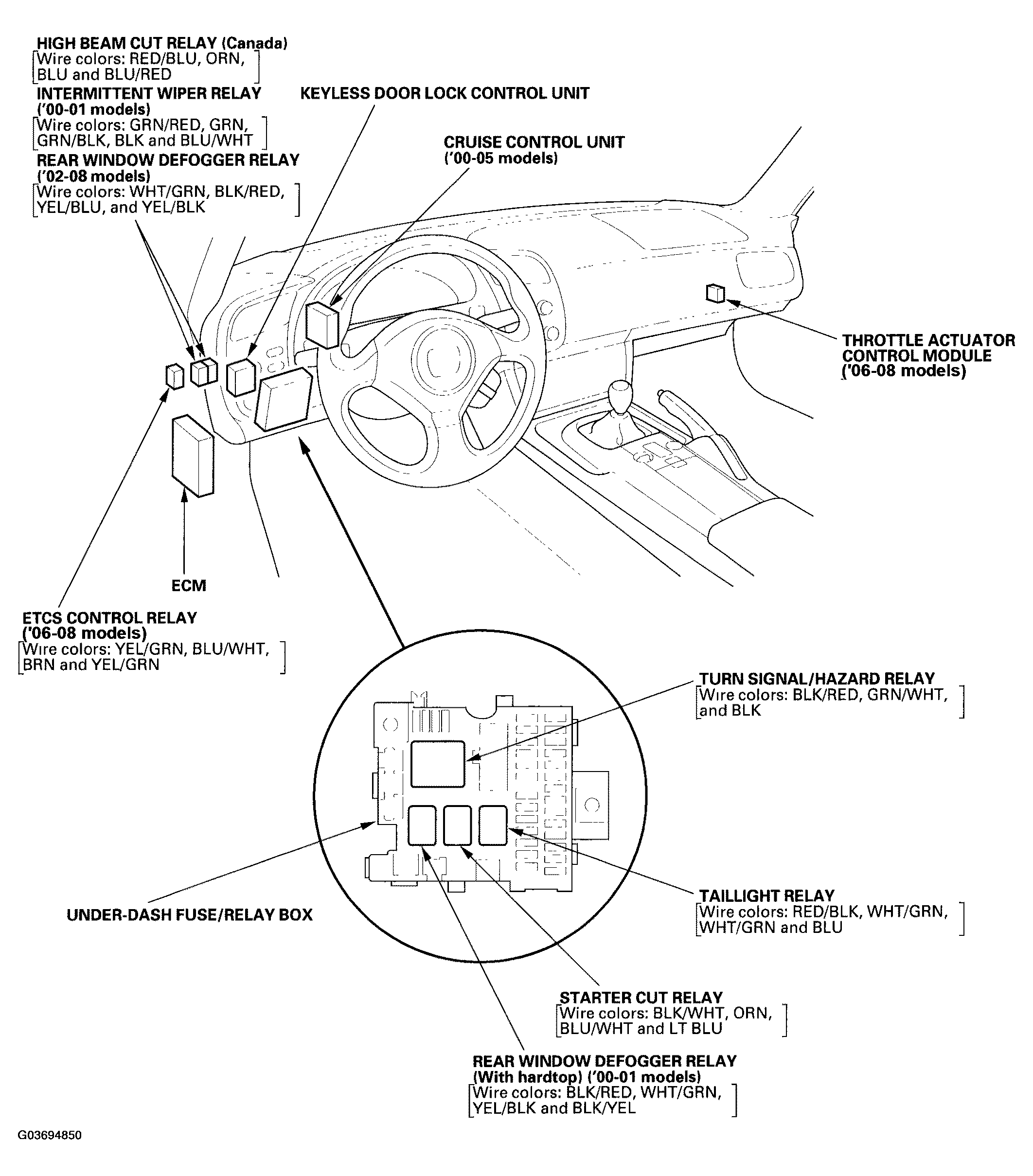

Fig 2: Left Side Of Dash

Courtesy of AMERICAN HONDA MOTOR CO., INC.

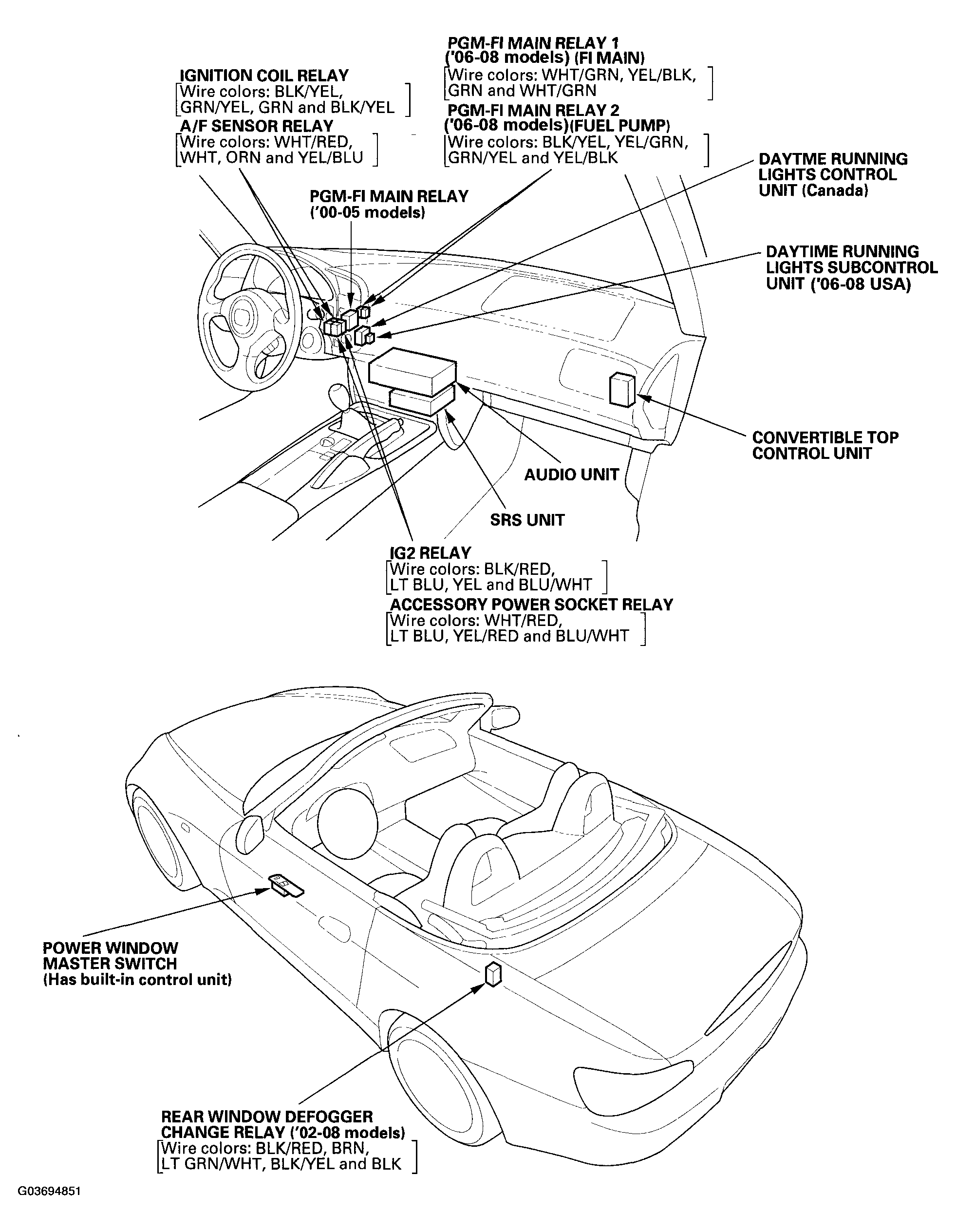

Fig 3: Right Side Of Dash

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Dashboard Control Units And Relays

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Under-Dash Fuse/Relay Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Under-Hood Fuse/Relay Box

Courtesy of AMERICAN HONDA MOTOR CO., INC.
