Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Modulator/Control Unit | Below master cylinder. |
| Antenna Amplifier | In right front of trunk. |

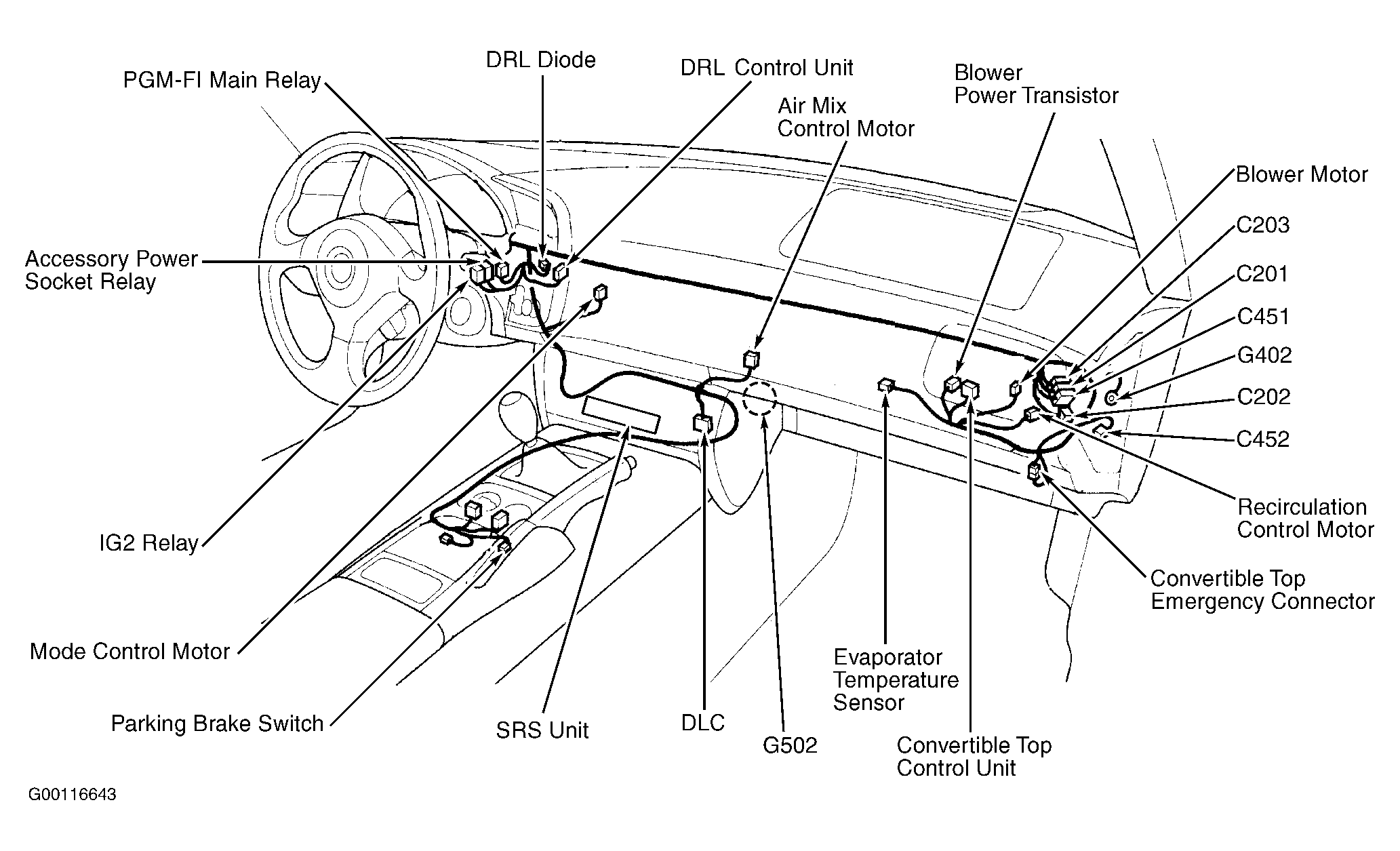

| Convertible Top Control Unit | Under right side of dash. See Figure. |

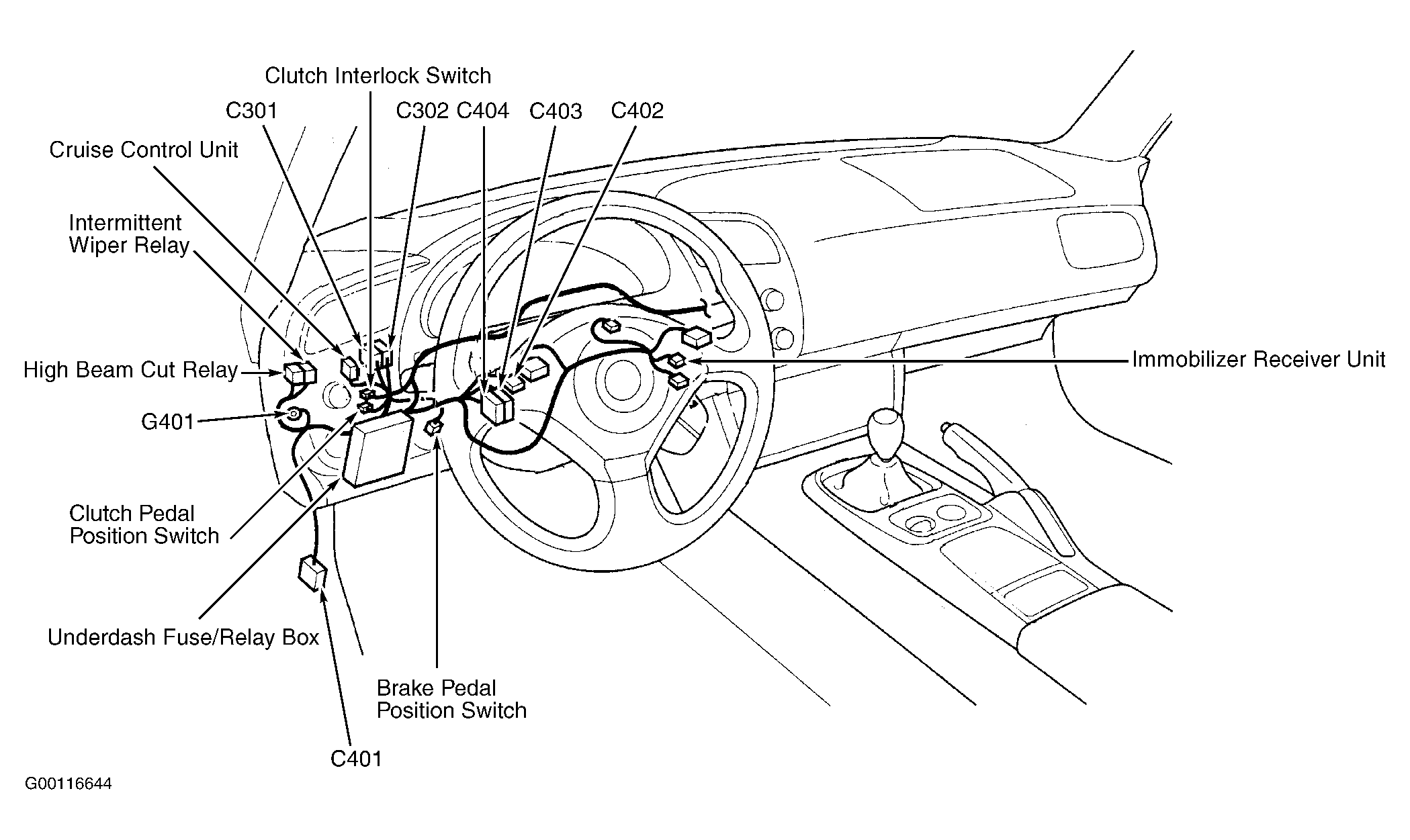

| Cruise Control Unit | Above brake pedal. See Figure. |

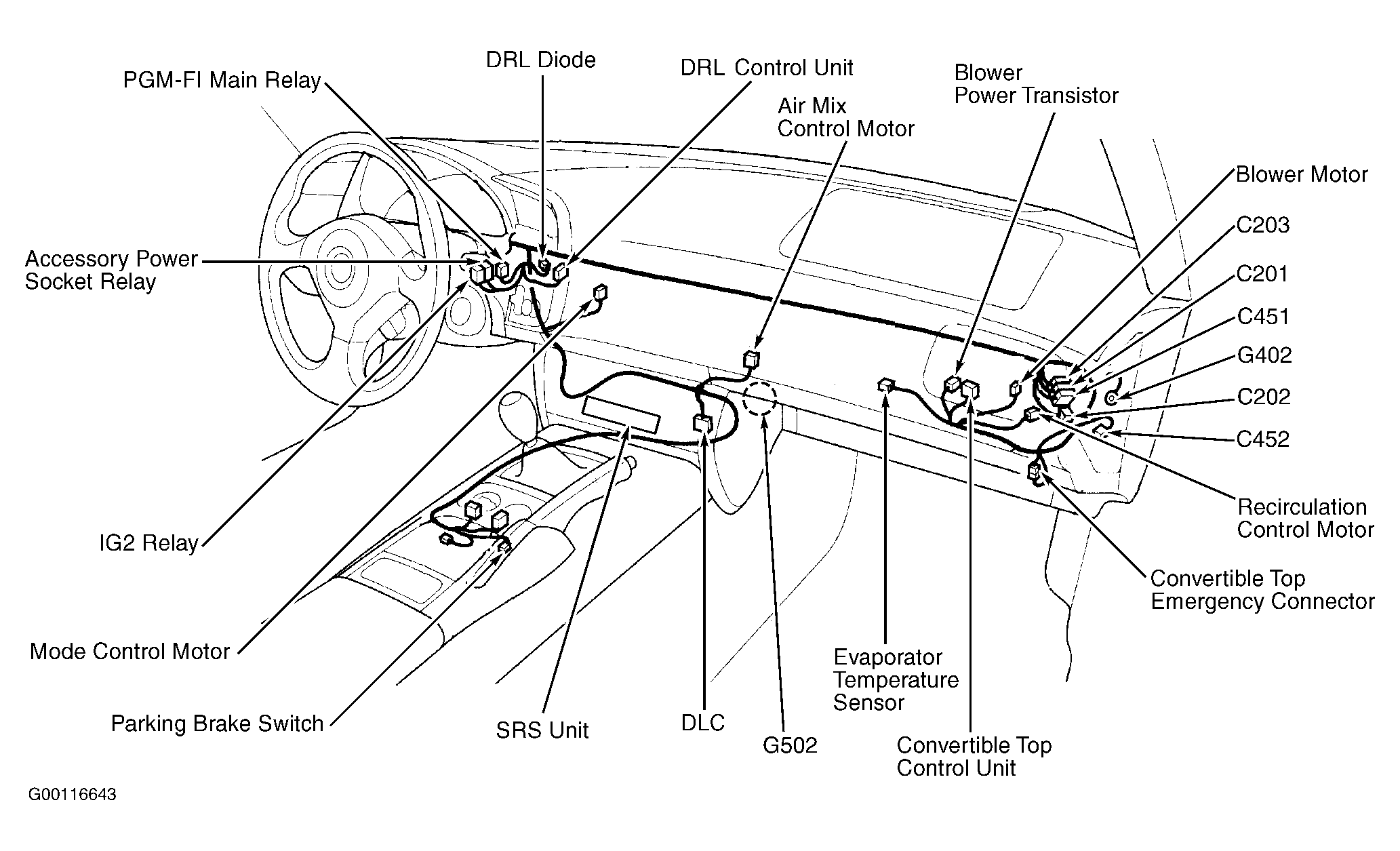

| DRL Control Unit | Behind left side of dash, right of steering column. See Figure. |

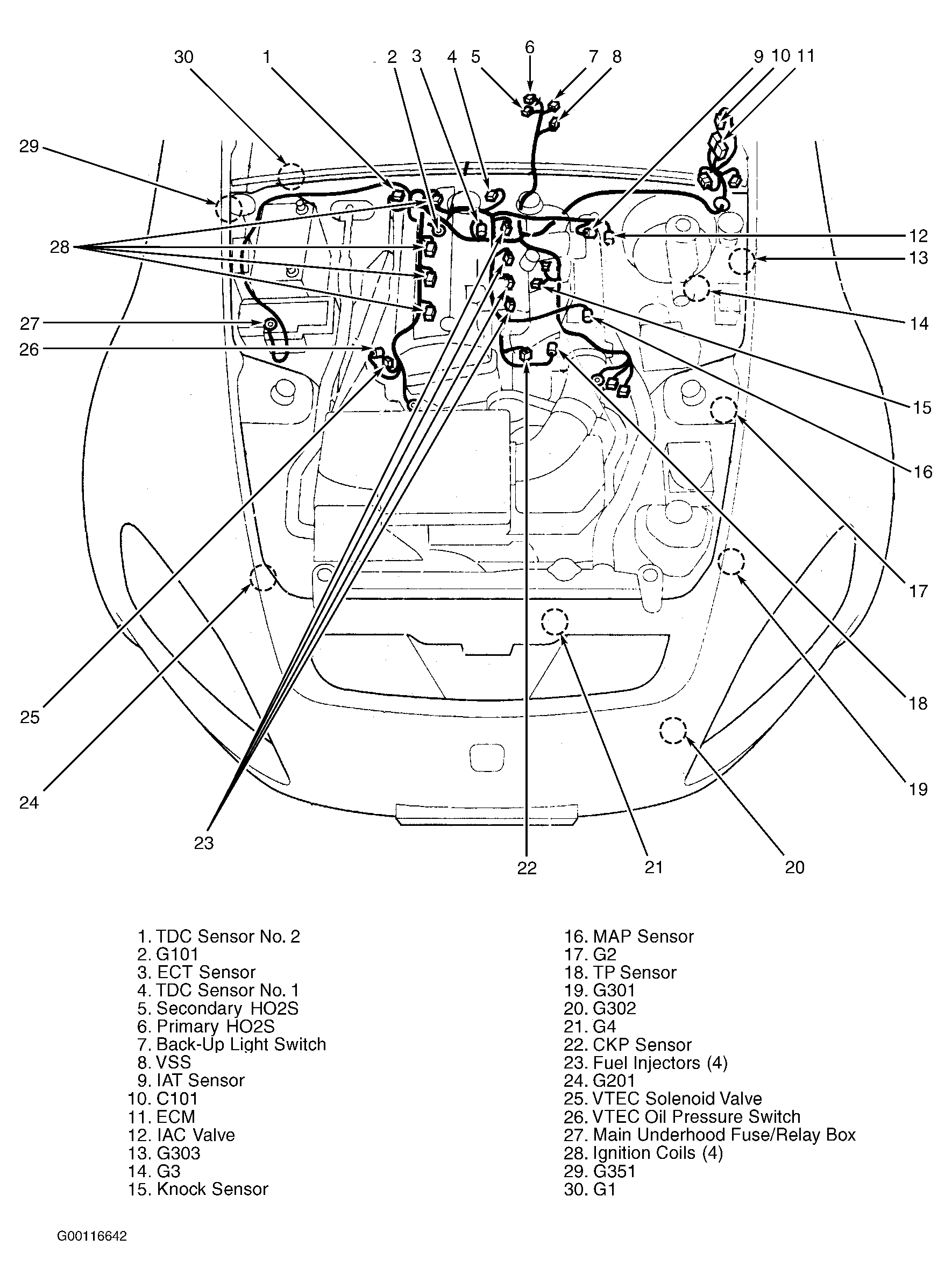

| ECM | Behind left kick panel. See Figure. |
| ELD Unit | In main underhood fuse/relay box. |
| EPS Control Unit | Right of battery. |
| Immobilizer Receiver Unit | Under left side of dash. See Figure. |
| Keyless Door Lock Control Unit | Under left side of dash. |
| Security Control Unit | Under driver's seat. |
| SRS Unit | Behind center of dash, below radio. See Figure. |
