System Diagram

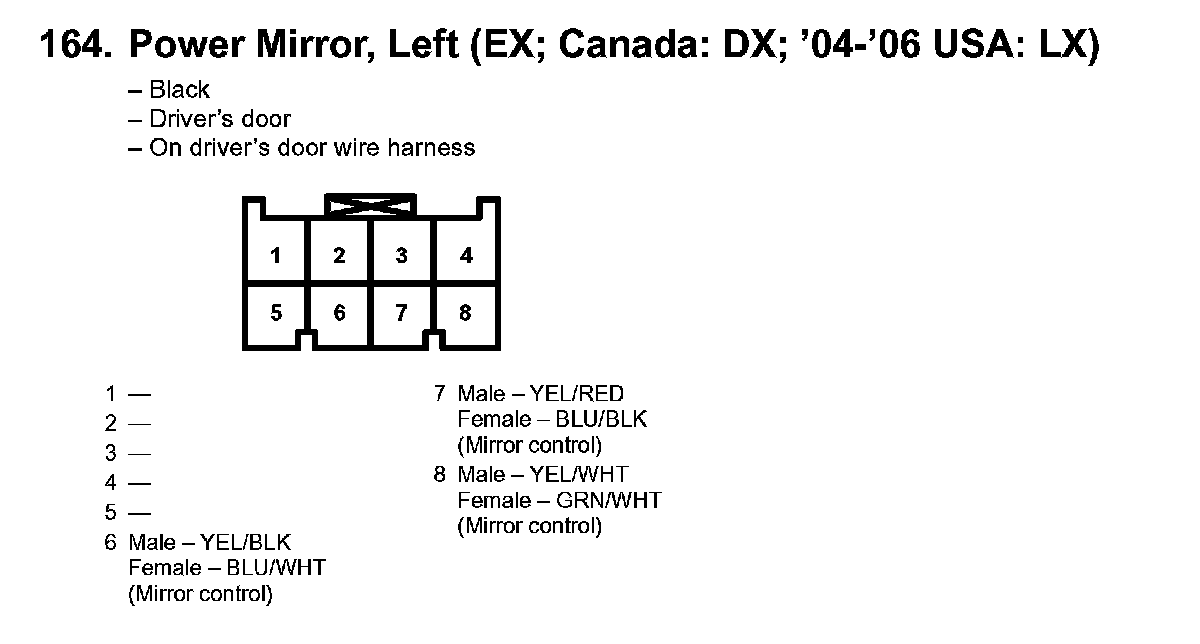

164. Power Mirror, Left (EX; Canada: DX; '04-'06 USA: LX):
164. Power Mirror, Right (EX; Canada: DX; '04-'06 USA: LX):
