Trunk / Liftgate Switch

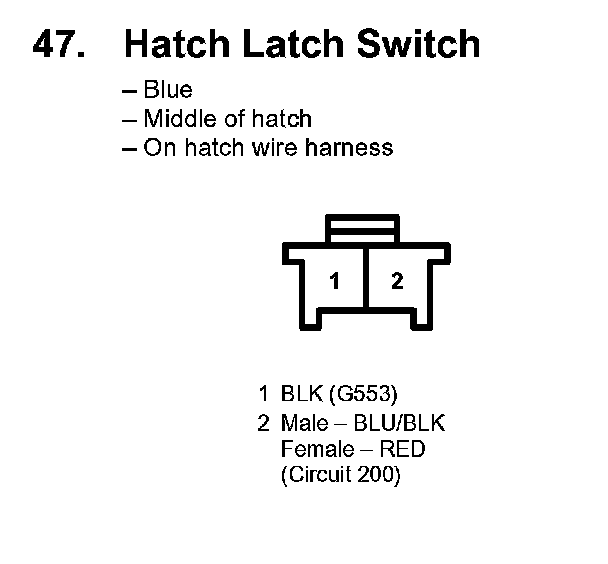

47. Hatch Latch Switch:

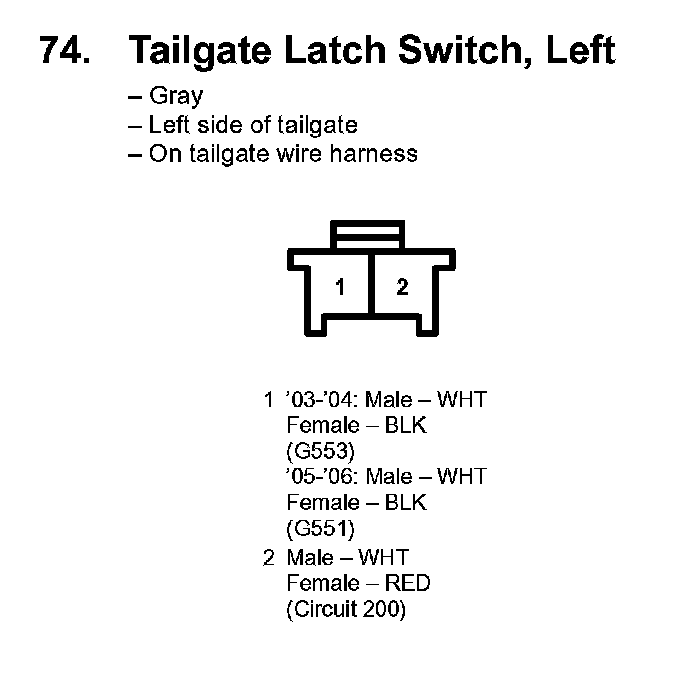

74. Tailgate Latch Switch, Left:



74. Tailgate Latch Switch, Right:
