Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

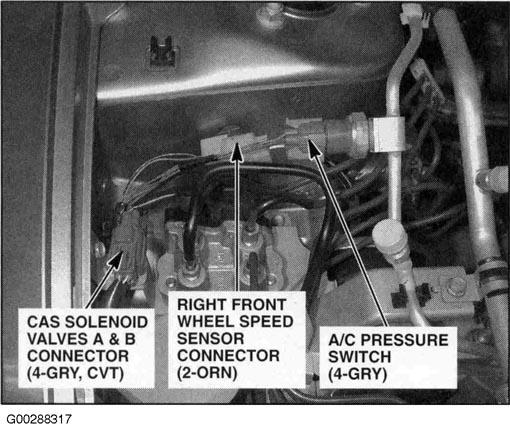

Fig 1: Right Side Of Engine Compartment

G00288317

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Right Front Side Of Engine Compartment

G00288318

Courtesy of AMERICAN HONDA MOTOR CO., INC.

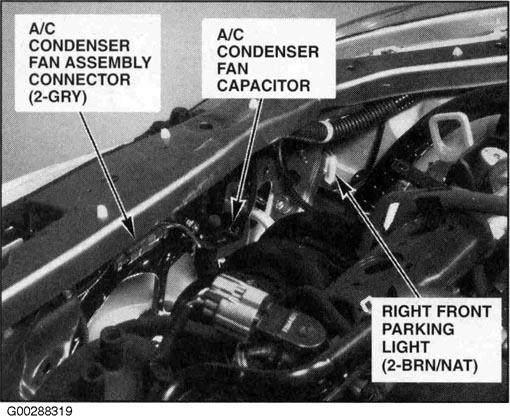

Fig 3: Right Front Of Engine Compartment

G00288319

Courtesy of AMERICAN HONDA MOTOR CO., INC.

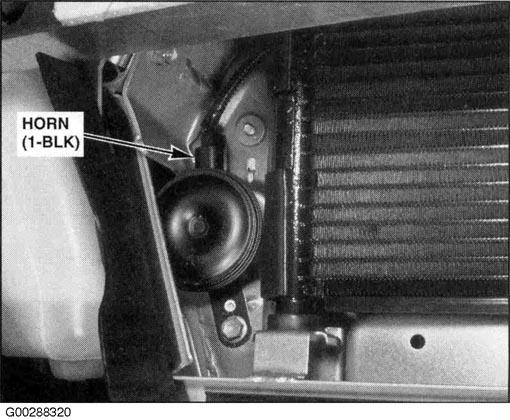

Fig 4: Behind Right Side Of Front Bumper

G00288320

Courtesy of AMERICAN HONDA MOTOR CO., INC.

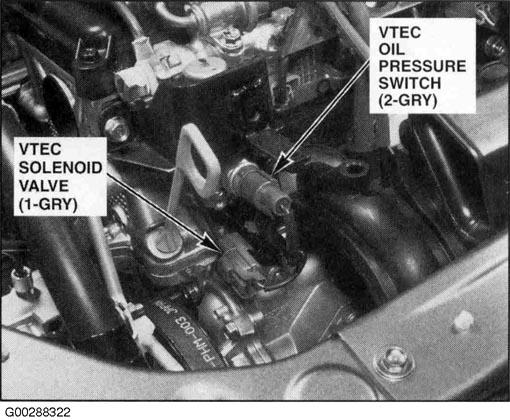

Fig 5: Front Of Engine

G00288322

Courtesy of AMERICAN HONDA MOTOR CO., INC.

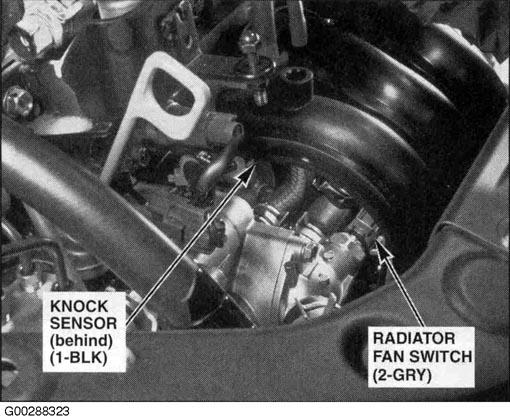

Fig 6: Front Of Engine

G00288323

Courtesy of AMERICAN HONDA MOTOR CO., INC.

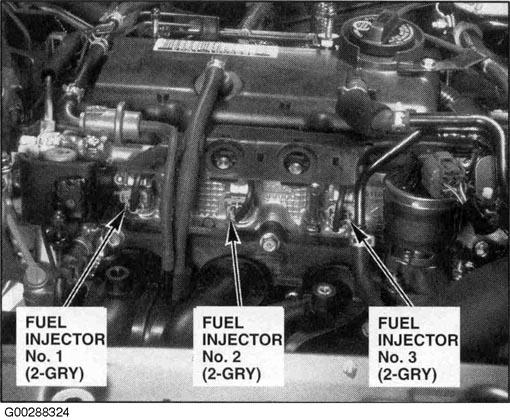

Fig 7: Front Of Engine

G00288324

Courtesy of AMERICAN HONDA MOTOR CO., INC.

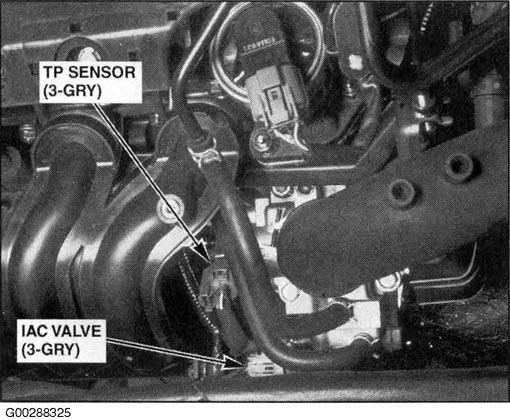

Fig 8: Front Of Engine

G00288325

Courtesy of AMERICAN HONDA MOTOR CO., INC.

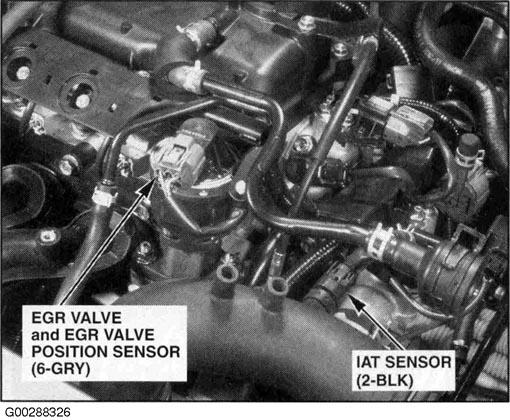

Fig 9: Middle Of Engine

G00288326

Courtesy of AMERICAN HONDA MOTOR CO., INC.

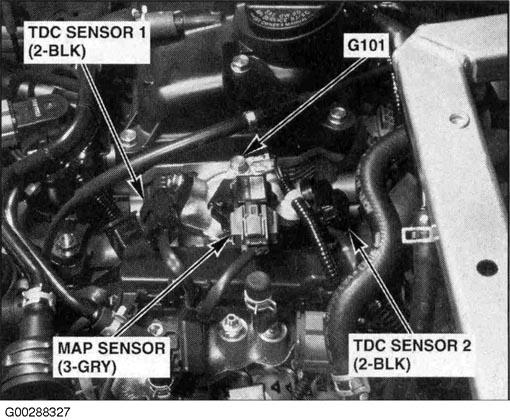

Fig 10: Middle Of Engine

G00288327

Courtesy of AMERICAN HONDA MOTOR CO., INC.

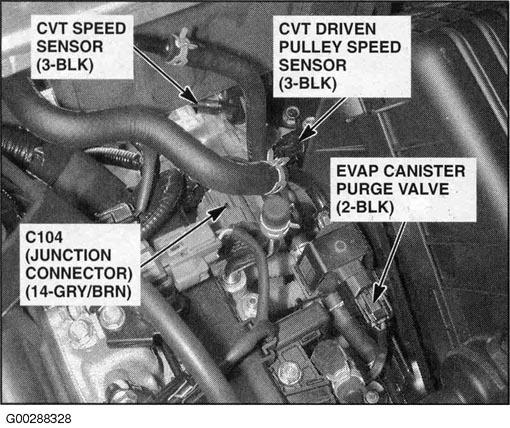

Fig 11: Middle Of Engine

G00288328

Courtesy of AMERICAN HONDA MOTOR CO., INC.

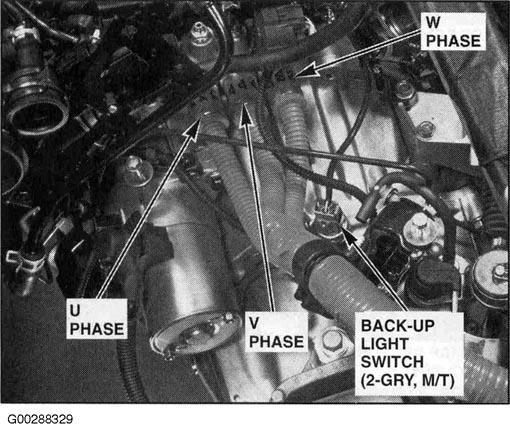

Fig 12: Top Of Transmission

G00288329

Courtesy of AMERICAN HONDA MOTOR CO., INC.

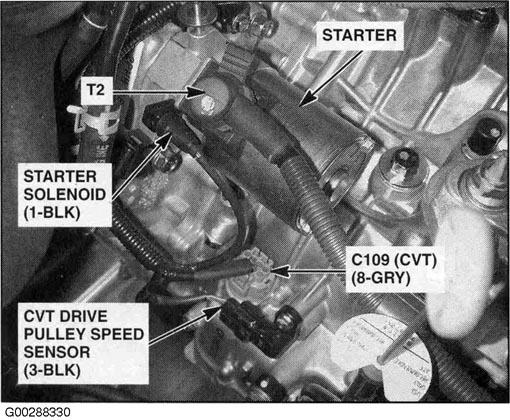

Fig 13: Top Front Of Transmission

G00288330

Courtesy of AMERICAN HONDA MOTOR CO., INC.

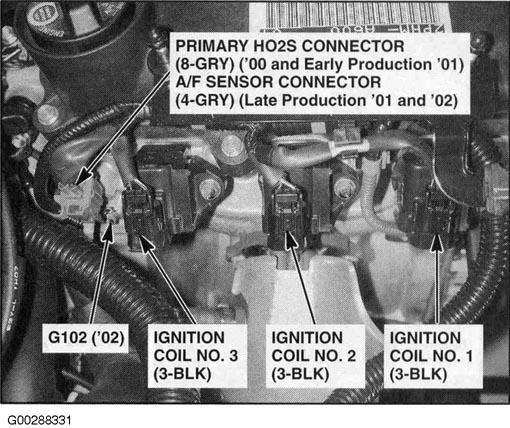

Fig 14: Rear Of Engine

G00288331

Courtesy of AMERICAN HONDA MOTOR CO., INC.

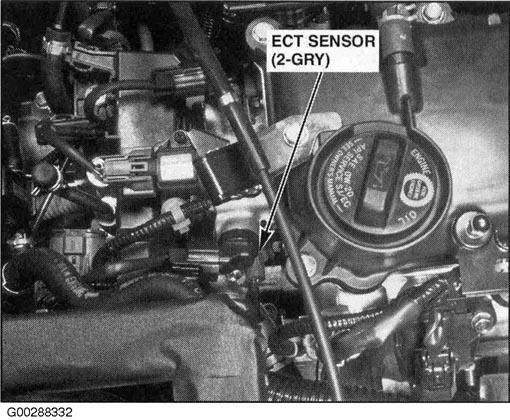

Fig 15: Rear Of Engine

G00288332

Courtesy of AMERICAN HONDA MOTOR CO., INC.

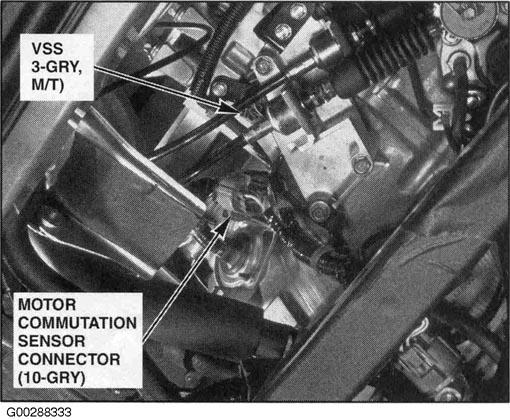

Fig 16: Middle Rear Of Engine

G00288333

Courtesy of AMERICAN HONDA MOTOR CO., INC.

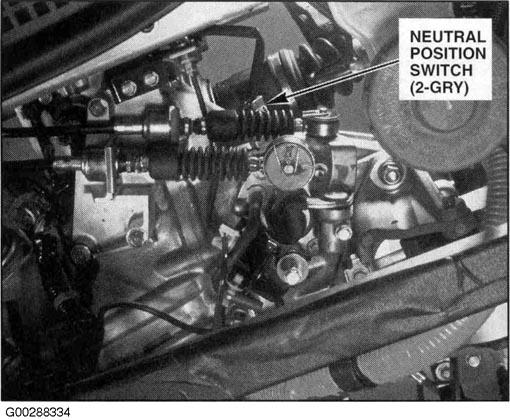

Fig 17: Rear Of Transmission (M/T)

G00288334

Courtesy of AMERICAN HONDA MOTOR CO., INC.

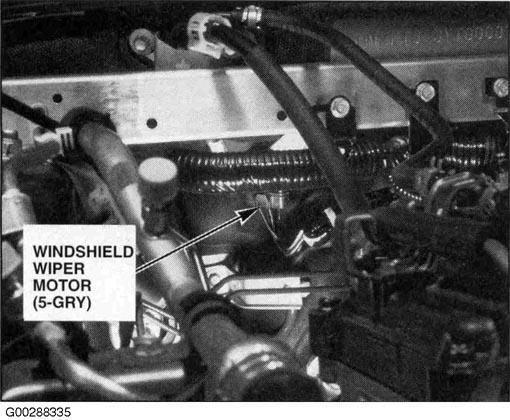

Fig 18: Right Rear Of Engine Compartment

G00288335

Courtesy of AMERICAN HONDA MOTOR CO., INC.

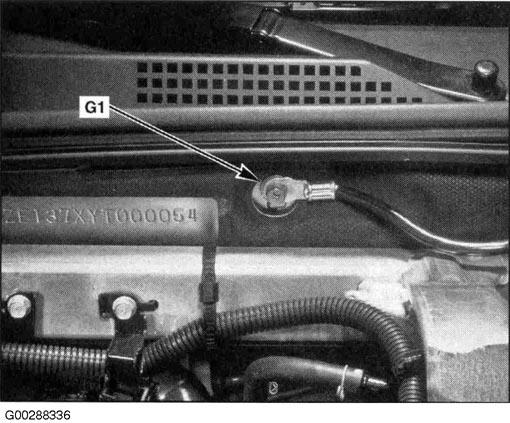

Fig 19: Middle Rear Of Engine Compartment

G00288336

Courtesy of AMERICAN HONDA MOTOR CO., INC.

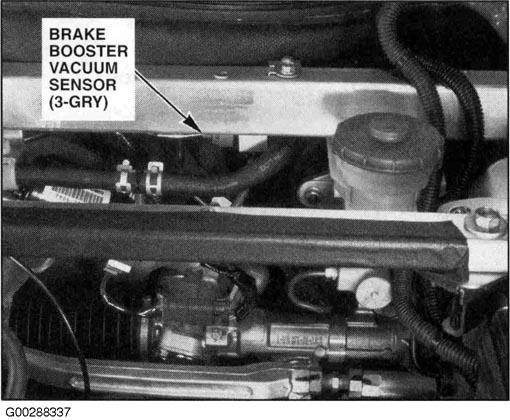

Fig 20: Left Rear Of Engine Compartment

G00288337

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 21: Left Rear Of Engine Compartment

G00288338

Courtesy of AMERICAN HONDA MOTOR CO., INC.

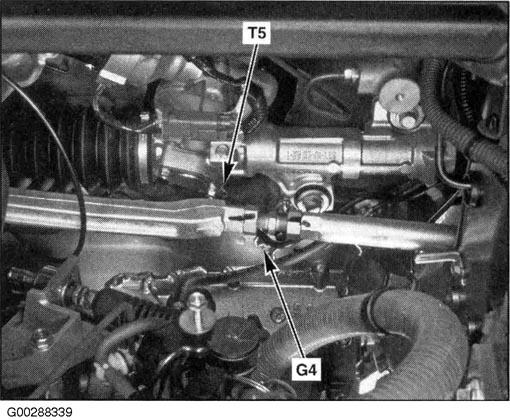

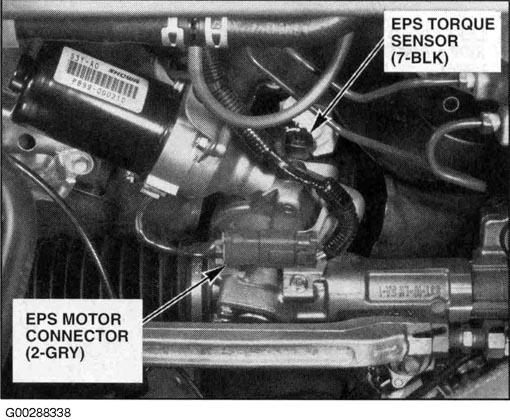

Fig 22: Left Rear Of Engine Compartment

G00288339

Courtesy of AMERICAN HONDA MOTOR CO., INC.

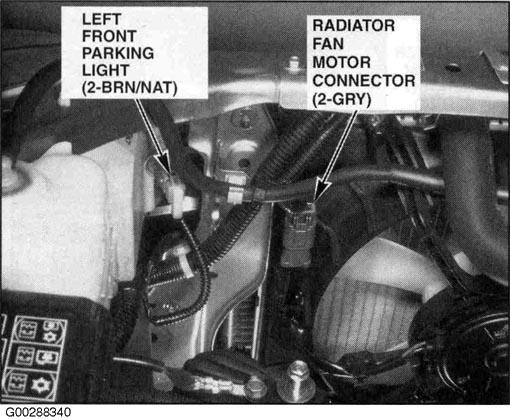

Fig 23: Left Front Of Engine Compartment

G00288340

Courtesy of AMERICAN HONDA MOTOR CO., INC.

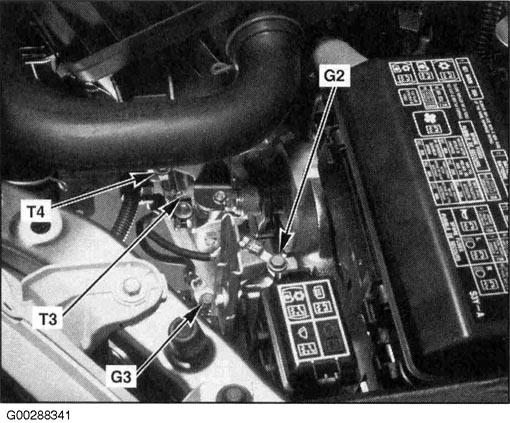

Fig 24: Left Side Of Engine Compartment (M/T)

G00288341

Courtesy of AMERICAN HONDA MOTOR CO., INC.

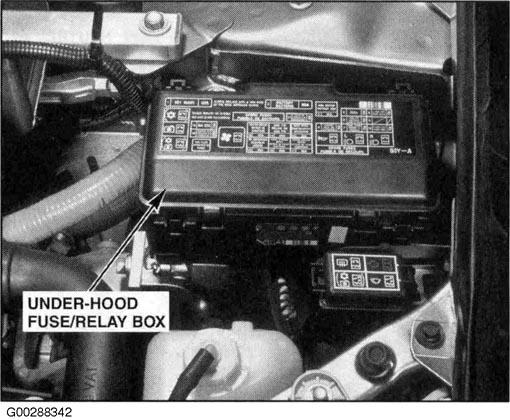

Fig 25: Left Front Side Of Engine Compartment

G00288342

Courtesy of AMERICAN HONDA MOTOR CO., INC.

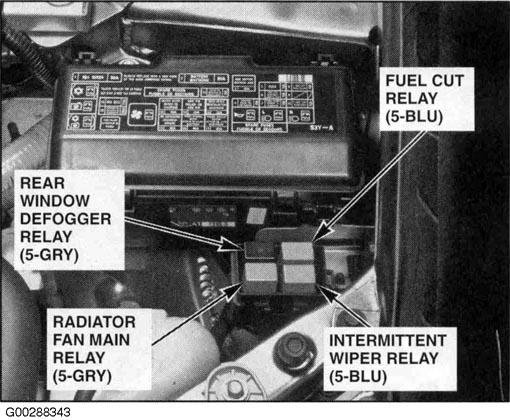

Fig 26: Left Front Side Of Engine Compartment

G00288343

Courtesy of AMERICAN HONDA MOTOR CO., INC.

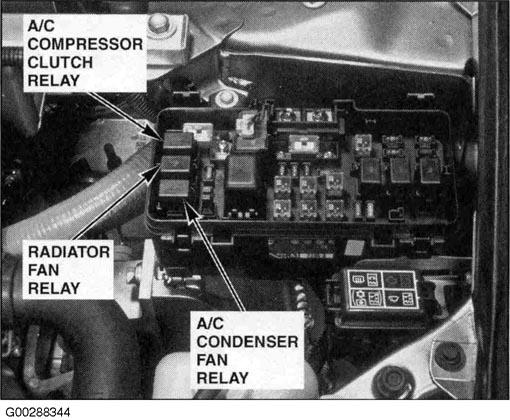

Fig 27: Left Front Side Of Engine Compartment

G00288344

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 28: Left Front Side Of Engine Compartment

G00288345

Courtesy of AMERICAN HONDA MOTOR CO., INC.

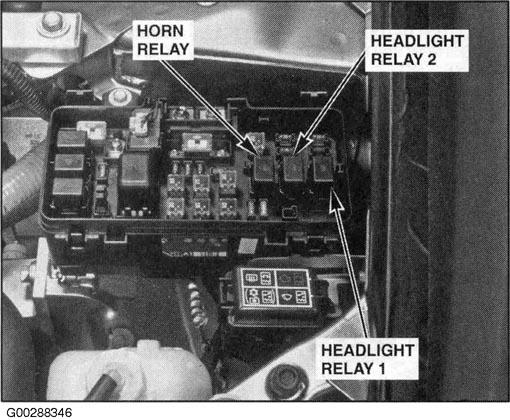

Fig 29: Left Front Side Of Engine Compartment

G00288346

Courtesy of AMERICAN HONDA MOTOR CO., INC.

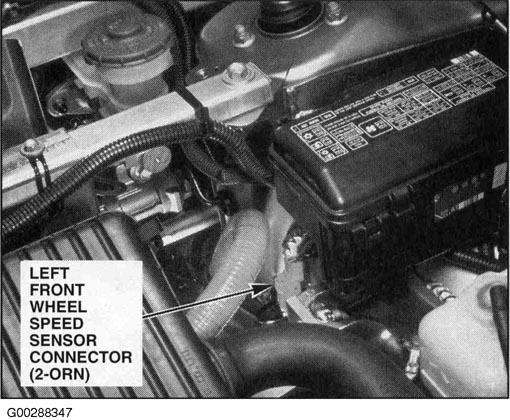

Fig 30: Left Side Of Engine Compartment

G00288347

Courtesy of AMERICAN HONDA MOTOR CO., INC.

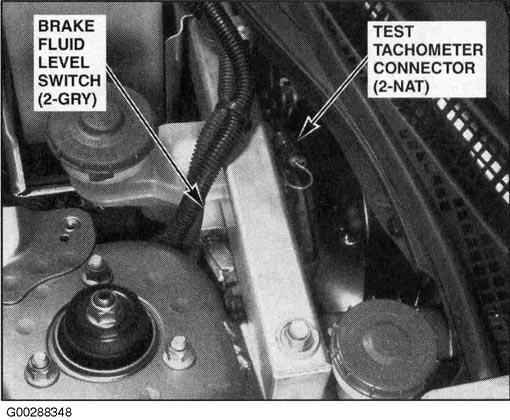

Fig 31: Left Rear Of Engine Compartment

G00288348

Courtesy of AMERICAN HONDA MOTOR CO., INC.

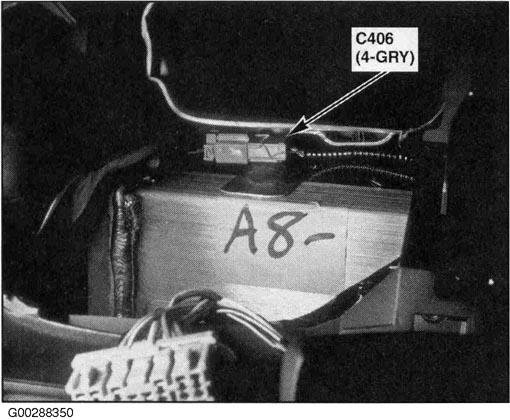

Fig 32: Left Side Of Dash

G00288350

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 33: Under Left Side Of Dash

G00288351

Courtesy of AMERICAN HONDA MOTOR CO., INC.

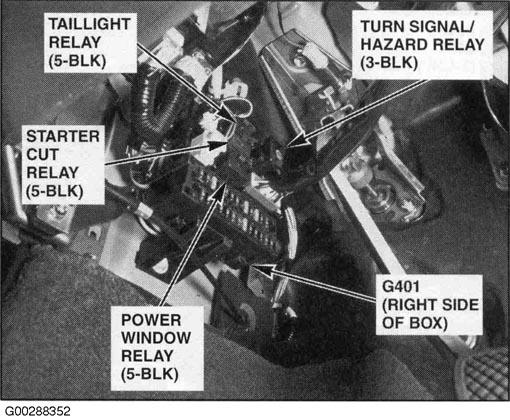

Fig 34: Upper Left Kick Panel Area

G00288352

Courtesy of AMERICAN HONDA MOTOR CO., INC.

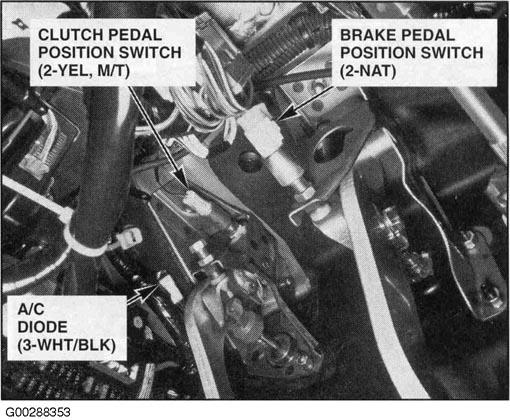

Fig 35: Under Left Side Of Dash

G00288353

Courtesy of AMERICAN HONDA MOTOR CO., INC.

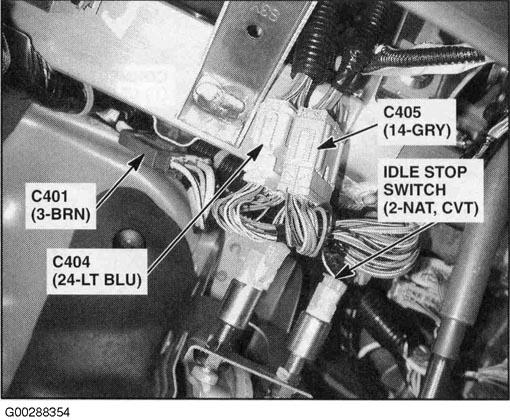

Fig 36: Under Left Side Of Dash

G00288354

Courtesy of AMERICAN HONDA MOTOR CO., INC.

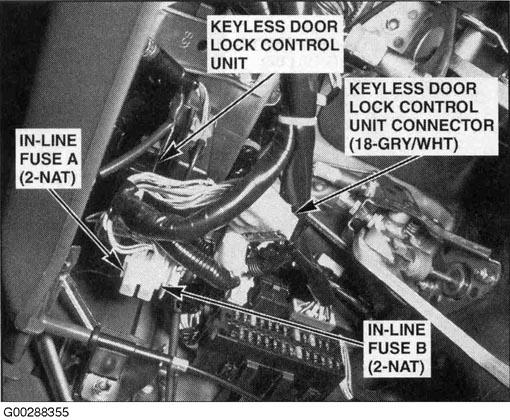

Fig 37: Under Left Side Of Dash (Honda Accessory)

G00288355

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 38: Under Left Side Of Dash

G00288356

Courtesy of AMERICAN HONDA MOTOR CO., INC.

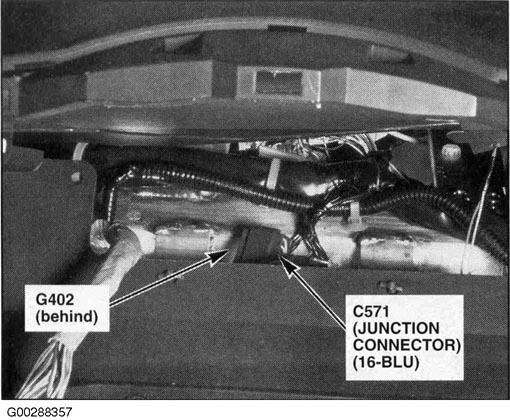

Fig 39: Left Side Of Dash

G00288357

Courtesy of AMERICAN HONDA MOTOR CO., INC.

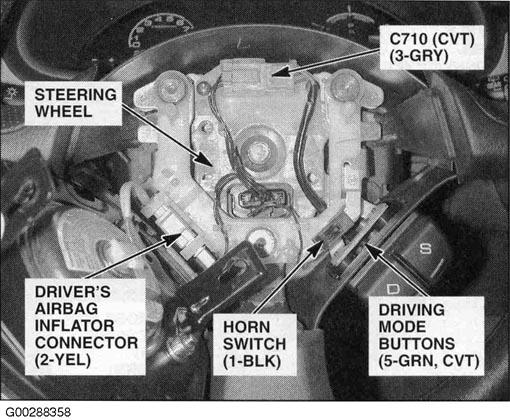

Fig 40: Steering Wheel (Airbag Removed)

G00288358

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 41: Right Side Of Steering Column

G00288360

Courtesy of AMERICAN HONDA MOTOR CO., INC.

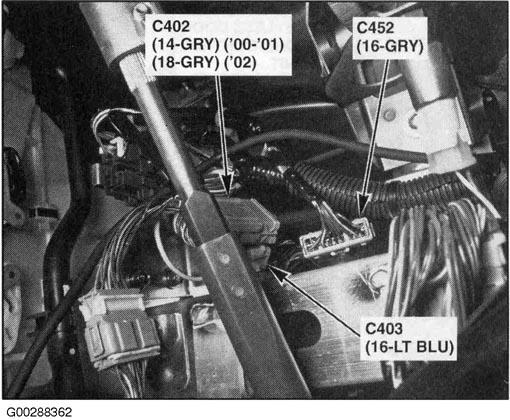

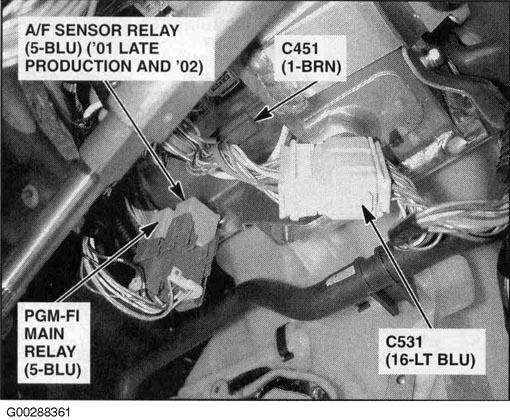

Fig 42: Under Left Side Of Dash

G00288361

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 43: Under Left Side Of Dash

G00288362

Courtesy of AMERICAN HONDA MOTOR CO., INC.

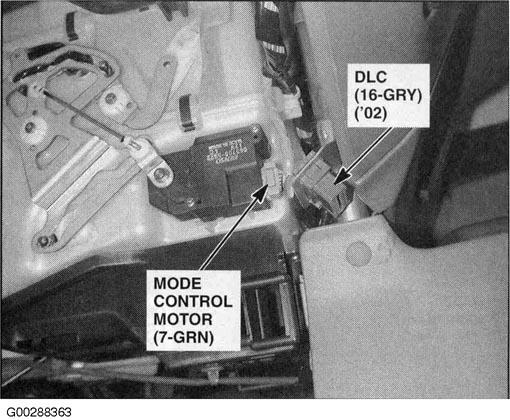

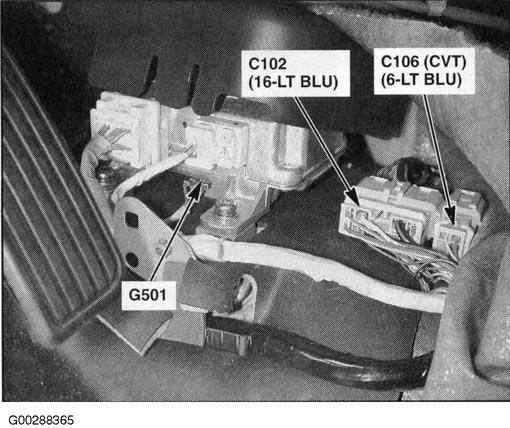

Fig 44: Under Middle Of Dash

G00288363

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 45: Under Middle Of Dash

G00288364

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 46: Under Middle Of Dash

G00288365

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 47: Middle Of Dash

G00291988

Courtesy of AMERICAN HONDA MOTOR CO., INC.

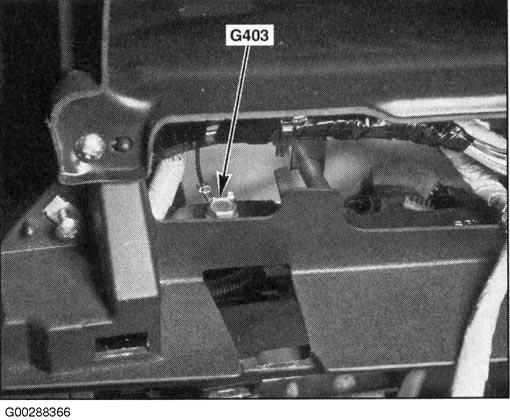

Fig 48: Middle Of Dash

G00288366

Courtesy of AMERICAN HONDA MOTOR CO., INC.

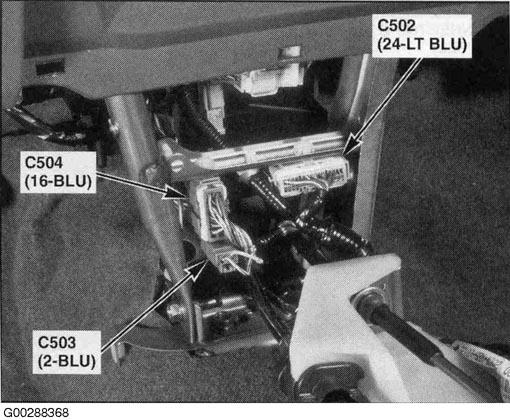

Fig 49: Behind Center Lower Cover

G00288368

Courtesy of AMERICAN HONDA MOTOR CO., INC.

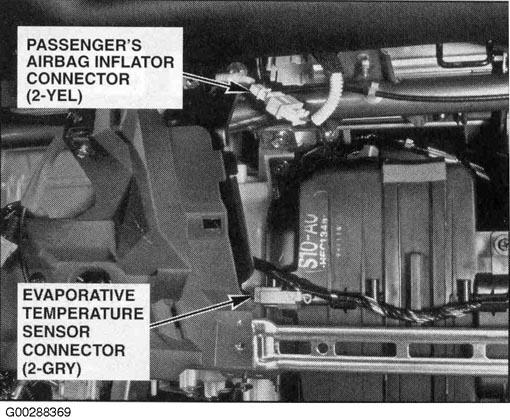

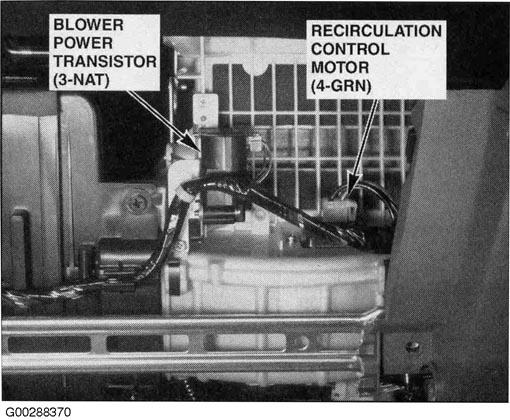

Fig 50: Behind Glove Box

G00288369

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 51: Behind Glove Box

G00288370

Courtesy of AMERICAN HONDA MOTOR CO., INC.

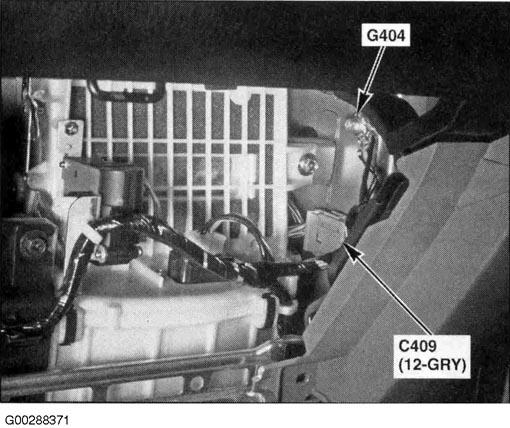

Fig 52: Right Side Of Dash

G00288371

Courtesy of AMERICAN HONDA MOTOR CO., INC.

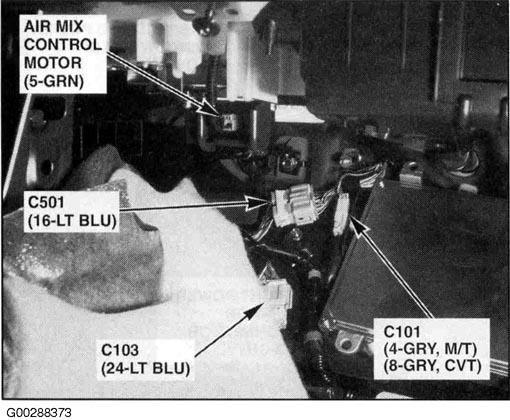

Fig 53: Under Middle Of Dash

G00288373

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 54: Right Side Of Floor

G00288374

Courtesy of AMERICAN HONDA MOTOR CO., INC.

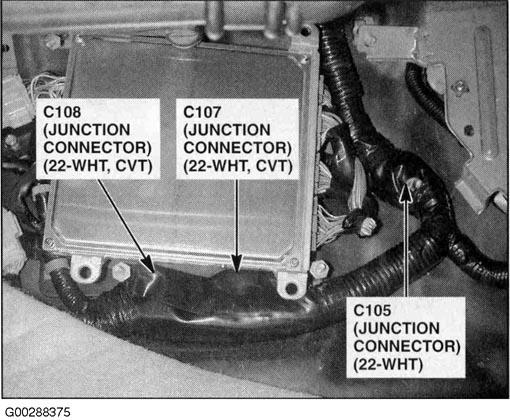

Fig 55: Right Side Of Floor

G00288375

Courtesy of AMERICAN HONDA MOTOR CO., INC.

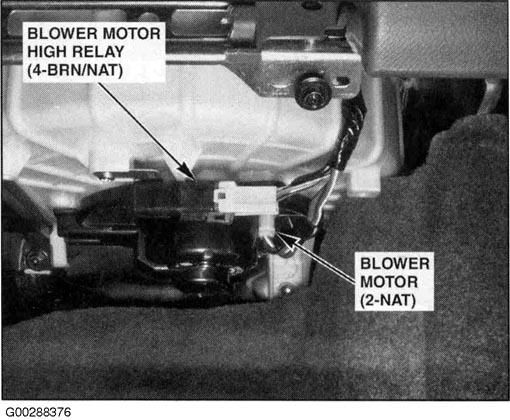

Fig 56: Under Right Side Of Dash

G00288376

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 57: Under Right Side Of Kick Panel (M/T)

G00288377

Courtesy of AMERICAN HONDA MOTOR CO., INC.

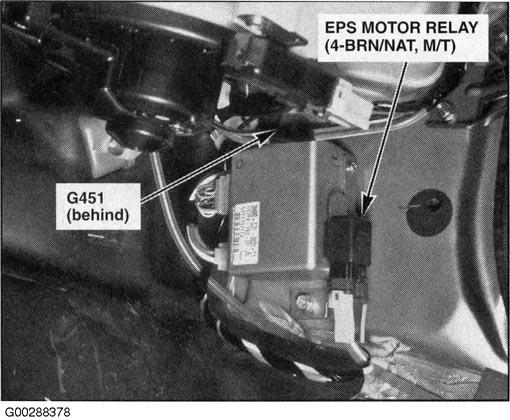

Fig 58: Under Right Side Of Kick Panel

G00288378

Courtesy of AMERICAN HONDA MOTOR CO., INC.

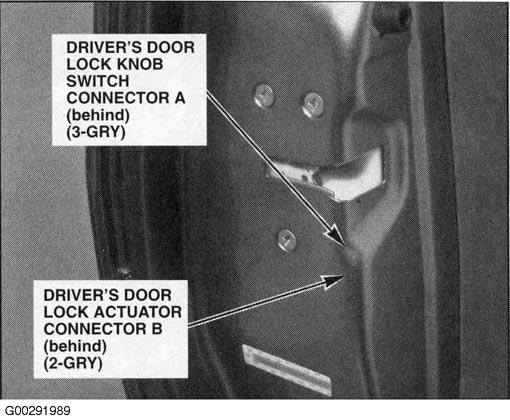

Fig 59: Rear Of Driver's Door

G00291989

Courtesy of AMERICAN HONDA MOTOR CO., INC.

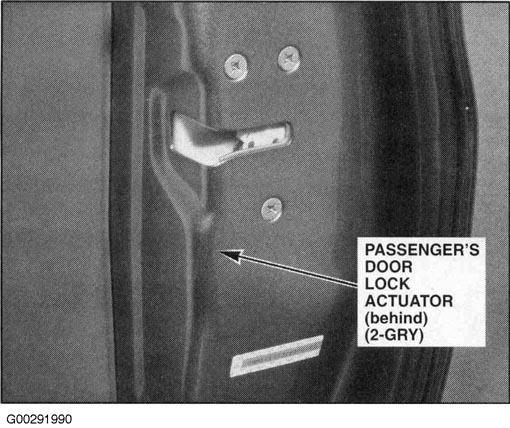

Fig 60: Rear Of Passenger's Door

G00291990

Courtesy of AMERICAN HONDA MOTOR CO., INC.

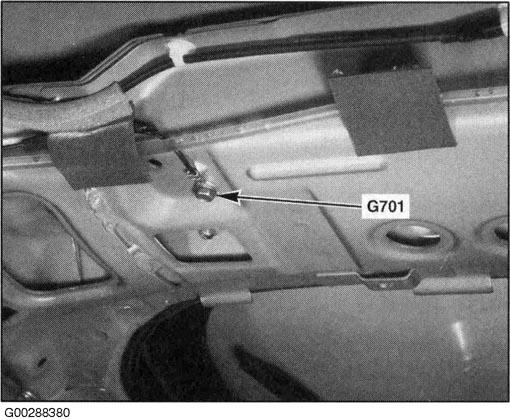

Fig 61: Middle Rear Of Roof

G00288380

Courtesy of AMERICAN HONDA MOTOR CO., INC.

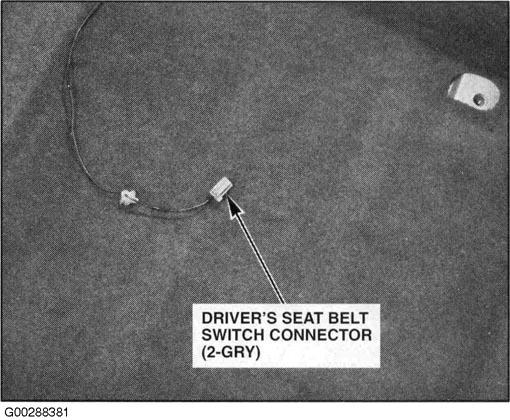

Fig 62: Under Driver's Seat

G00288381

Courtesy of AMERICAN HONDA MOTOR CO., INC.

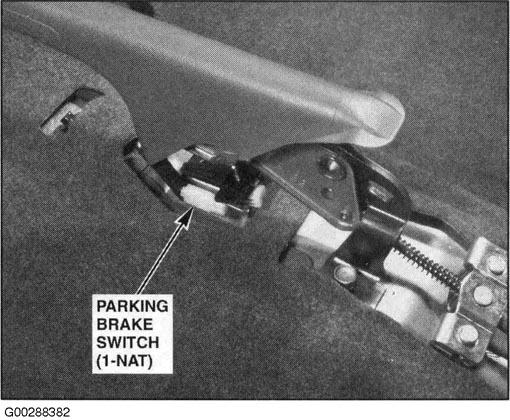

Fig 63: Middle Of Floor

G00288382

Courtesy of AMERICAN HONDA MOTOR CO., INC.

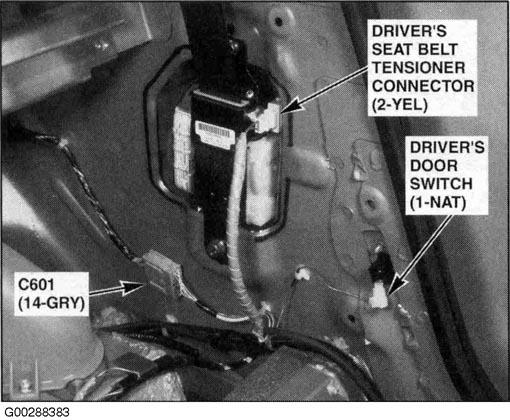

Fig 64: Left "B" Pillar

G00288383

Courtesy of AMERICAN HONDA MOTOR CO., INC.

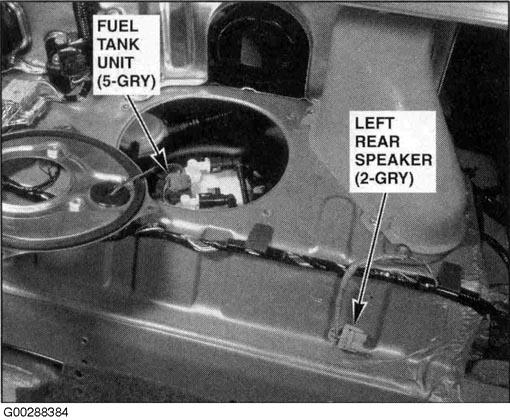

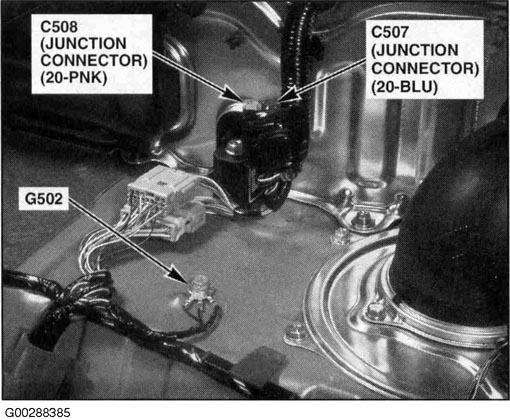

Fig 65: Behind Seat, Middle Of Floor

G00288384

Courtesy of AMERICAN HONDA MOTOR CO., INC.

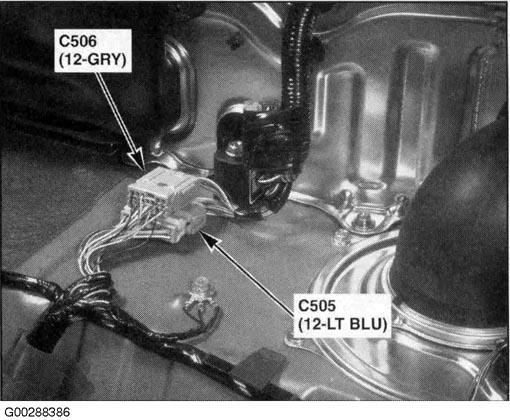

Fig 66: Behind Seat, Middle Of Floor

G00288385

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 67: Behind Seat, Middle Of Floor

G00288386

Courtesy of AMERICAN HONDA MOTOR CO., INC.

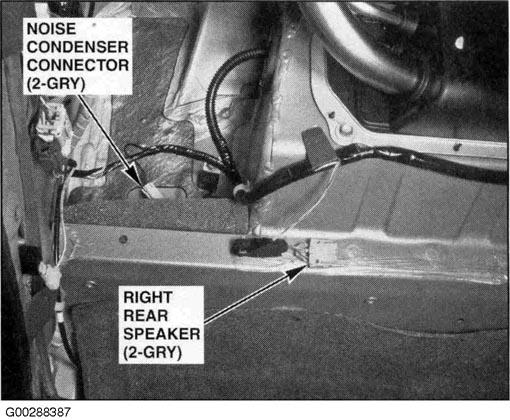

Fig 68: Behind Passenger's Seat

G00288387

Courtesy of AMERICAN HONDA MOTOR CO., INC.

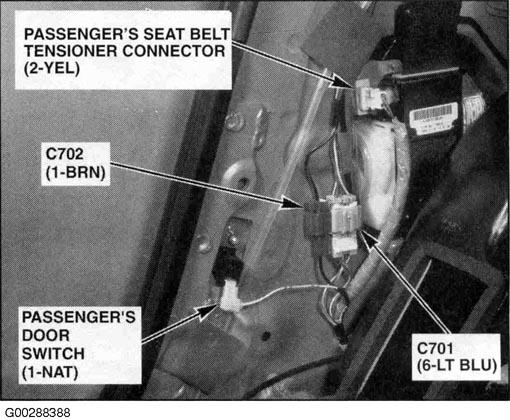

Fig 69: Right "B" Pillar

G00288388

Courtesy of AMERICAN HONDA MOTOR CO., INC.

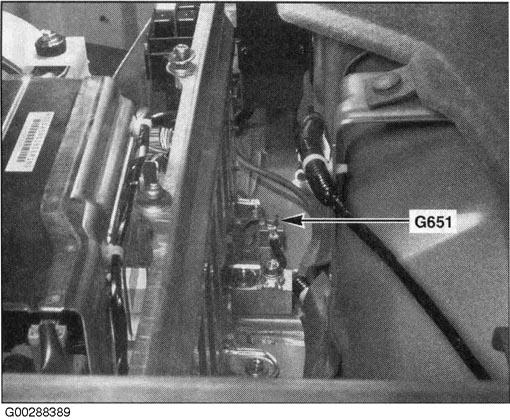

Fig 70: Left Rear Side Of Floor

G00288389

Courtesy of AMERICAN HONDA MOTOR CO., INC.

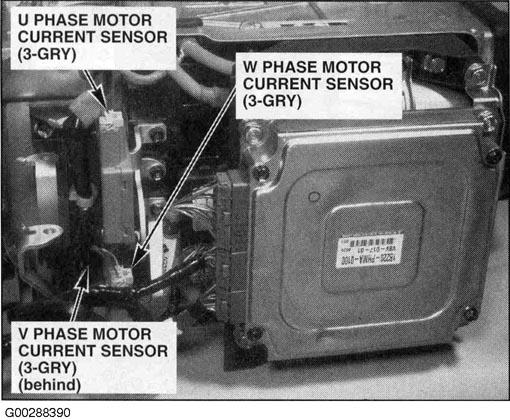

Fig 71: Left Side Of PCU (PCU Removed)

G00288390

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 72: Left Side Of PCU (PCU Removed)

G00288391

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 73: Left Side Of PCU (PCU Removed)

G00288392

Courtesy of AMERICAN HONDA MOTOR CO., INC.

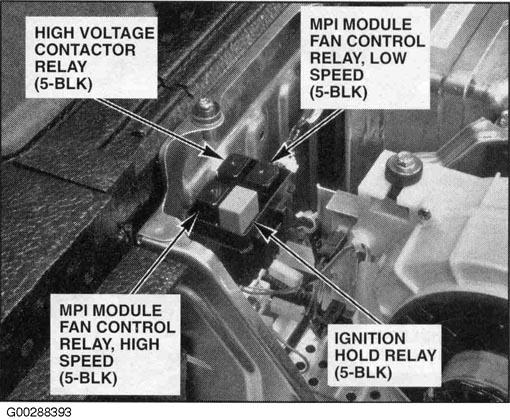

Fig 74: Left Rear Side Of PCU

G00288393

Courtesy of AMERICAN HONDA MOTOR CO., INC.

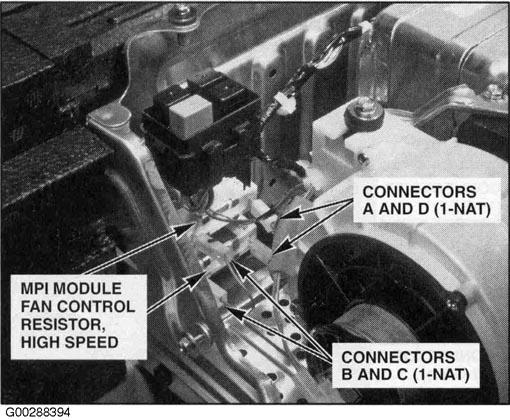

Fig 75: Left Rear Side Of PCU

G00288394

Courtesy of AMERICAN HONDA MOTOR CO., INC.

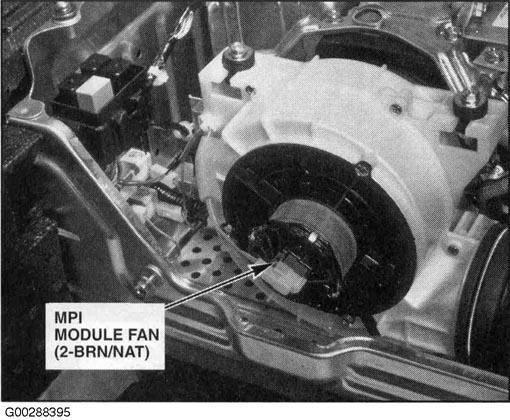

Fig 76: Left Rear Side Of PCU

G00288395

Courtesy of AMERICAN HONDA MOTOR CO., INC.

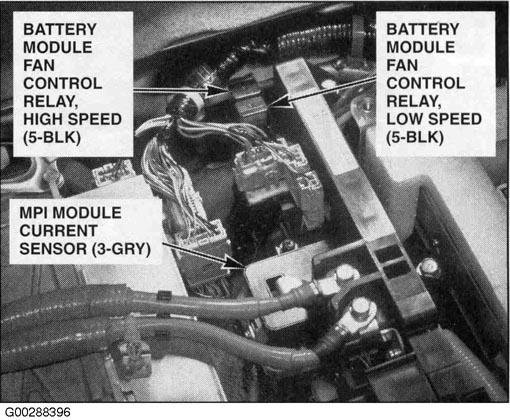

Fig 77: Left Front Side Of Battery Module

G00288396

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 78: Left Front Side Of Battery Module

G00288397

Courtesy of AMERICAN HONDA MOTOR CO., INC.

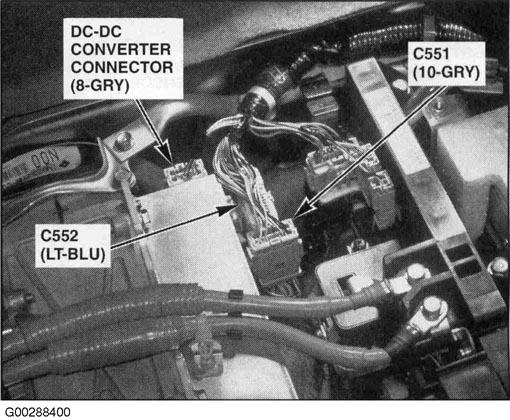

Fig 79: Right Front Side Of PCU

G00288400

Courtesy of AMERICAN HONDA MOTOR CO., INC.

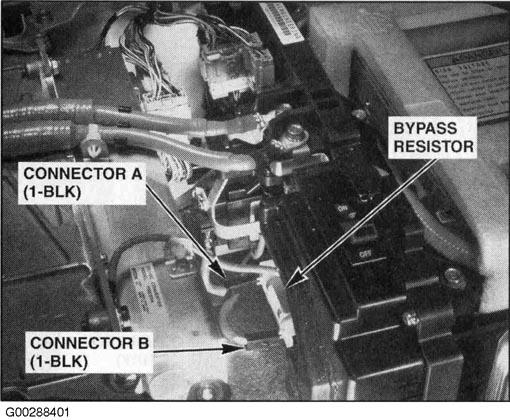

Fig 80: Below Left Side Of Battery Module

G00288401

Courtesy of AMERICAN HONDA MOTOR CO., INC.

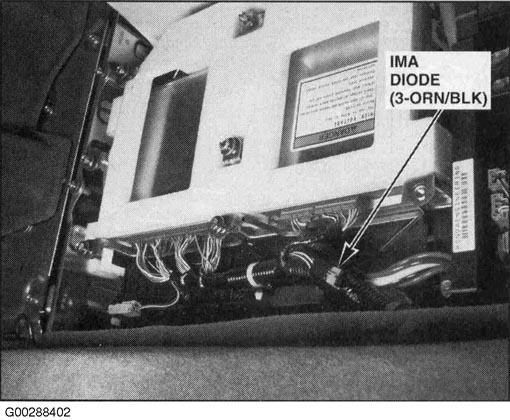

Fig 81: Top Front Of Battery Module

G00288402

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 82: Top Front Of Battery Module

G00288403

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 83: Top Front Of Battery Module

G00288405

Courtesy of AMERICAN HONDA MOTOR CO., INC.

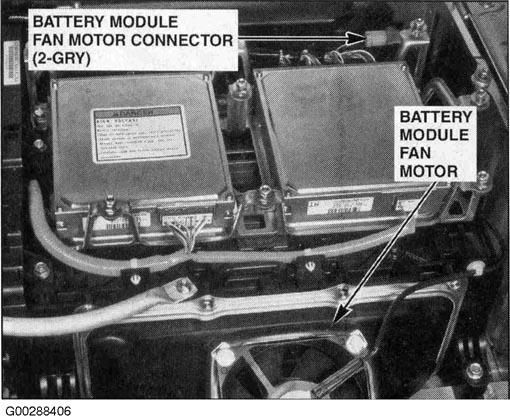

Fig 84: Top Rear Of Battery Module

G00288406

Courtesy of AMERICAN HONDA MOTOR CO., INC.

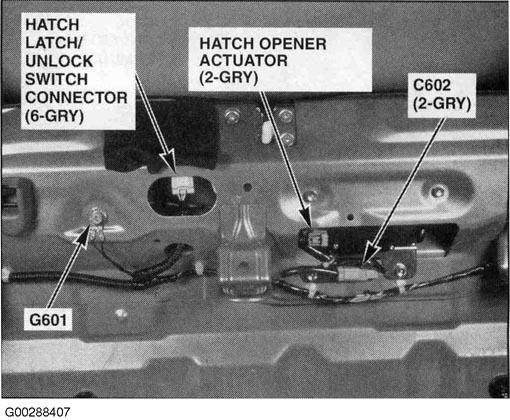

Fig 85: Middle Of Cargo Area

G00288407

Courtesy of AMERICAN HONDA MOTOR CO., INC.

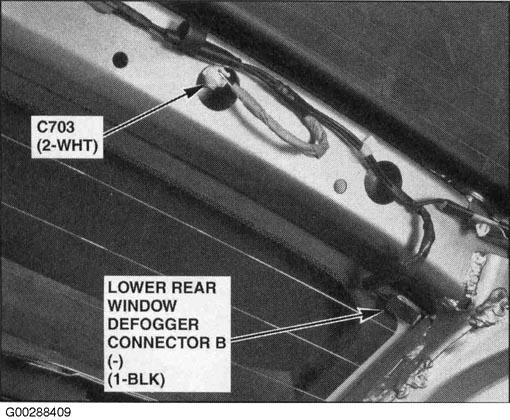

Fig 86: Left Side Of Hatch

G00288409

Courtesy of AMERICAN HONDA MOTOR CO., INC.

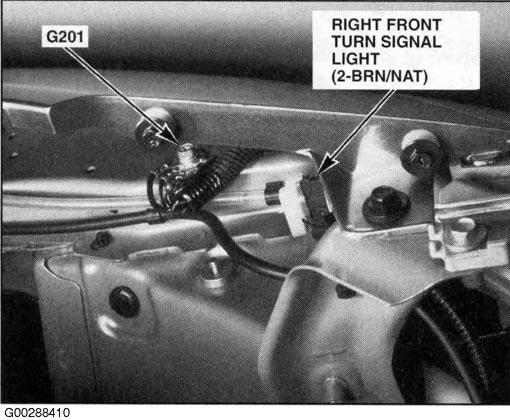

Fig 87: Above Right Front Wheelwell

G00288410

Courtesy of AMERICAN HONDA MOTOR CO., INC.

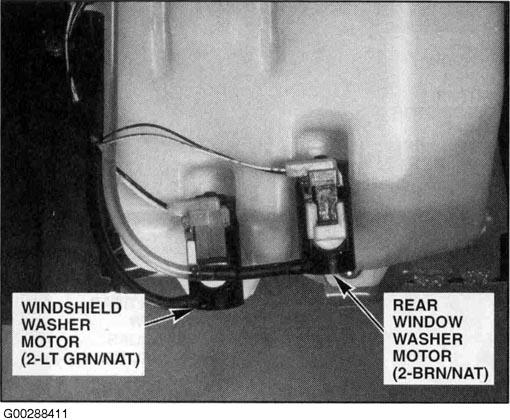

Fig 88: Below Right Front Wheelwell

G00288411

Courtesy of AMERICAN HONDA MOTOR CO., INC.

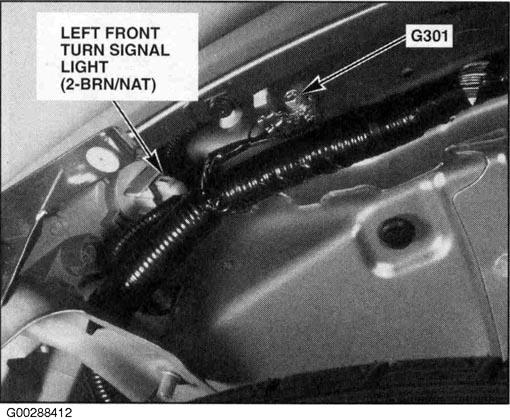

Fig 89: Above Left Front Wheelwell

G00288412

Courtesy of AMERICAN HONDA MOTOR CO., INC.

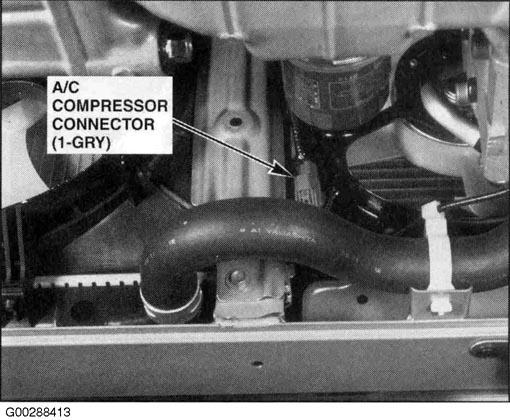

Fig 90: Below Right Front Of Engine Compartment

G00288413

Courtesy of AMERICAN HONDA MOTOR CO., INC.

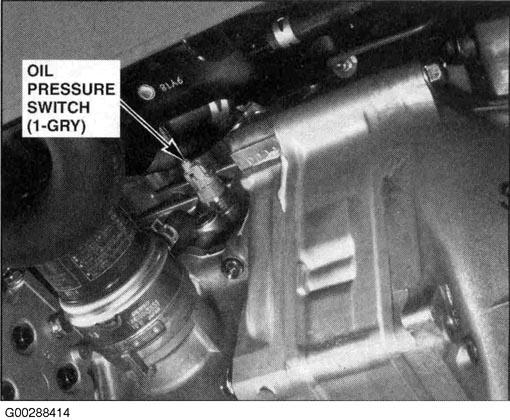

Fig 91: Below Front Of Engine

G00288414

Courtesy of AMERICAN HONDA MOTOR CO., INC.

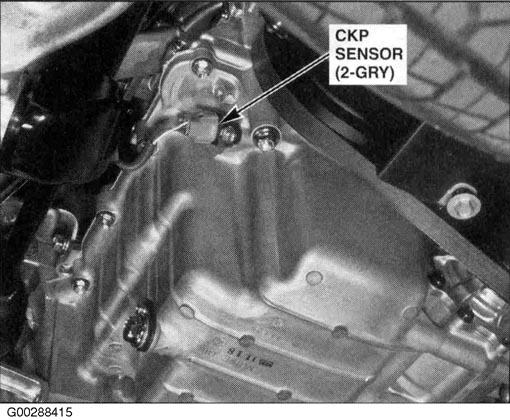

Fig 92: Below Right Side Of Engine

G00288415

Courtesy of AMERICAN HONDA MOTOR CO., INC.

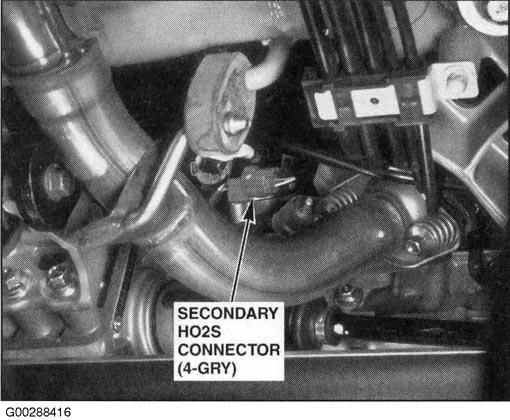

Fig 93: Below Rear Of Engine

G00288416

Courtesy of AMERICAN HONDA MOTOR CO., INC.

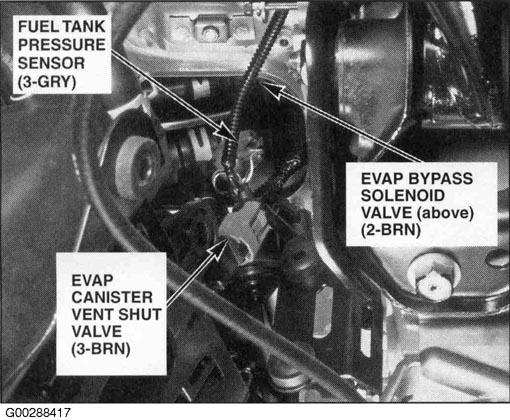

Fig 94: Right Side Of Fuel Tank

G00288417

Courtesy of AMERICAN HONDA MOTOR CO., INC.

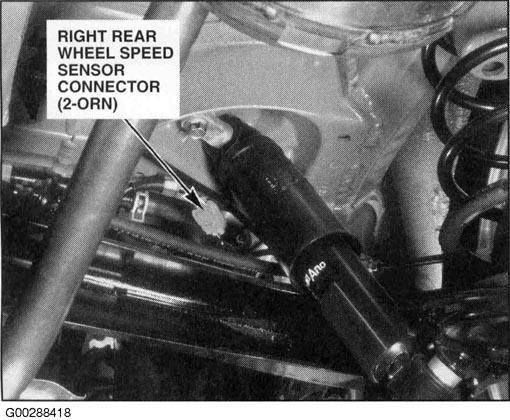

Fig 95: Right Rear Underside Of Vehicle (Left Similar)

G00288418

Courtesy of AMERICAN HONDA MOTOR CO., INC.

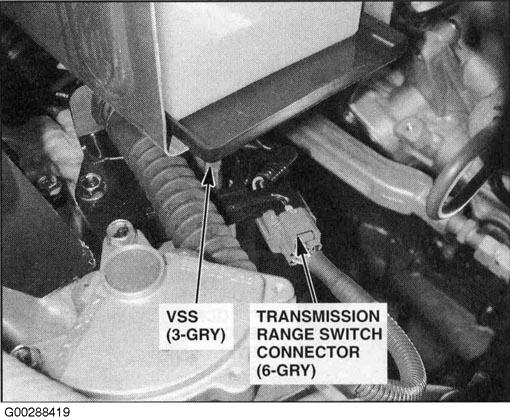

Fig 96: Transmission Housing (CVT)

G00288419

Courtesy of AMERICAN HONDA MOTOR CO., INC.

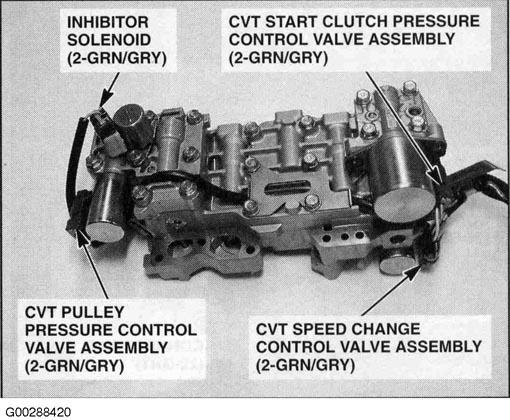

Fig 97: Valve Body (CVT)

G00288420

Courtesy of AMERICAN HONDA MOTOR CO., INC.

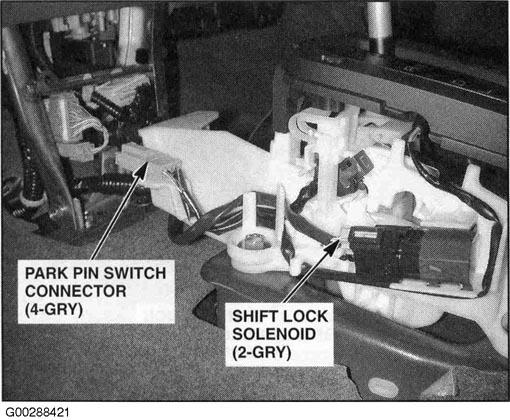

Fig 98: Middle Of Floor (CVT)

G00288421

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 99: Under Right Side Of Kick Panel (CVT)

G00288422

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 100: Under Right Side Of Kick Panel (CVT)

G00288423

Courtesy of AMERICAN HONDA MOTOR CO., INC.

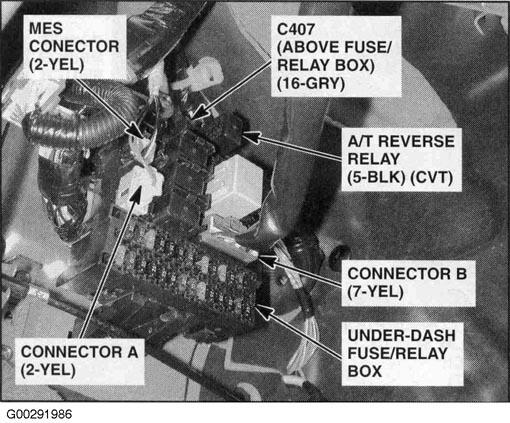

Fig 101: Upper Left Kick Panel Area

G00291986

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 102: Right Of Steering Column

G00291987

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 103: Left Rear Side Of PCU

G00291991

Courtesy of AMERICAN HONDA MOTOR CO., INC.

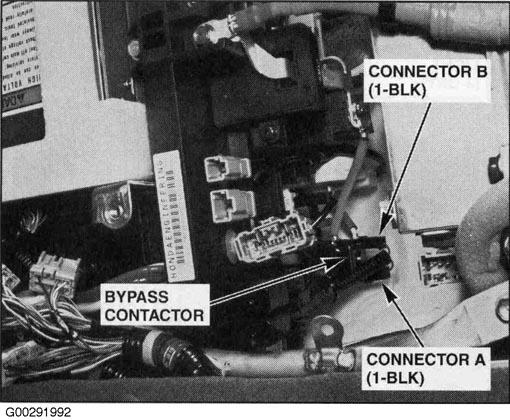

Fig 104: Left Front Side Of Battery Module (Connectors Disconnected)

G00291992

Courtesy of AMERICAN HONDA MOTOR CO., INC.

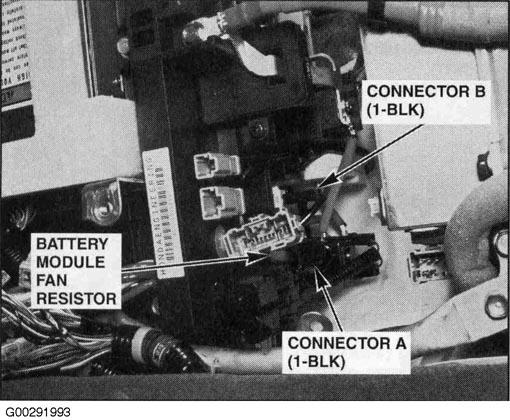

Fig 105: Left Front Of Battery Module (Connectors Disconnected)

G00291993

Courtesy of AMERICAN HONDA MOTOR CO., INC.

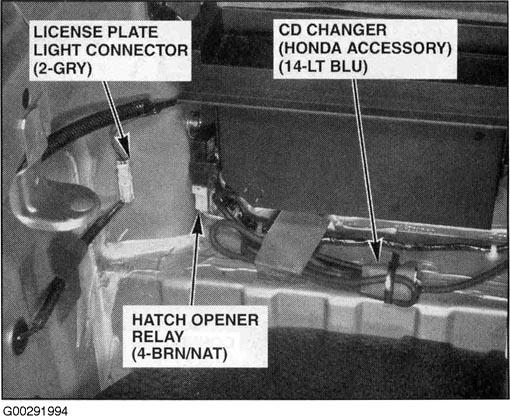

Fig 106: Below Left Side Of Cargo Area

G00291994

Courtesy of AMERICAN HONDA MOTOR CO., INC.

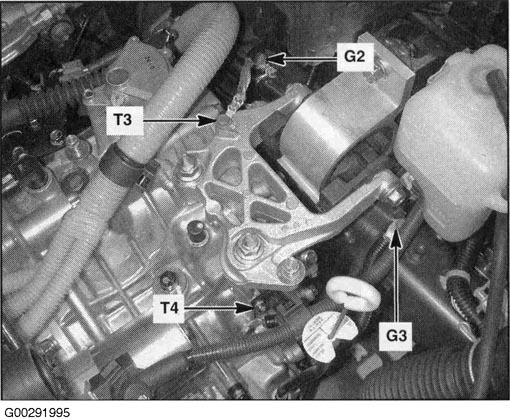

Fig 107: Left Side Of Engine Compartment (CVT)

G00291995

Courtesy of AMERICAN HONDA MOTOR CO., INC.

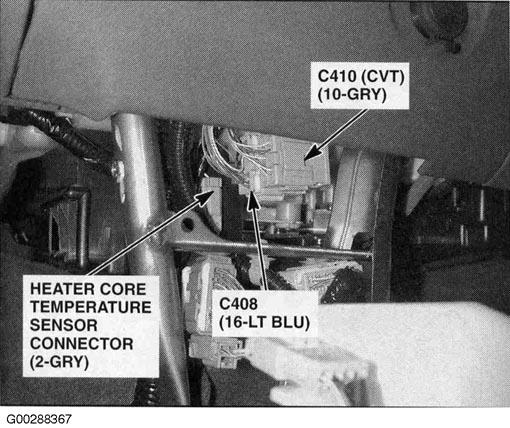

Fig 108: Behind Center Lower Cover

G00288367

Courtesy of AMERICAN HONDA MOTOR CO., INC.
