Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

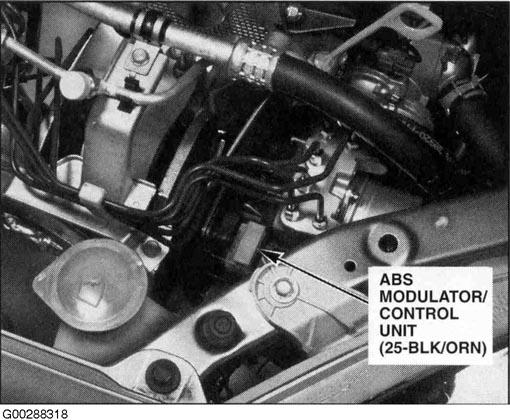

| ABS Modulator/Control Unit | At right front of engine compartment. See Figure . |

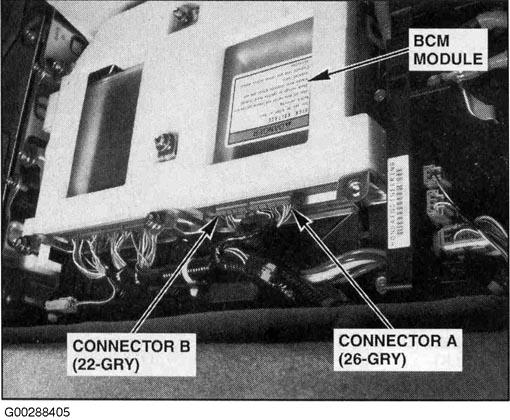

| BCM Module | On top front of battery module. See Figure . |

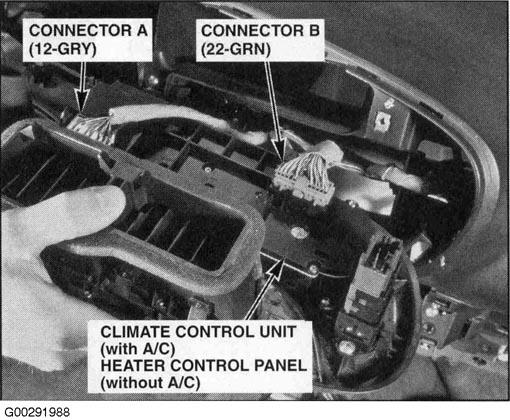

| Climate Control Unit | Behind middle of dash. See Figure . |

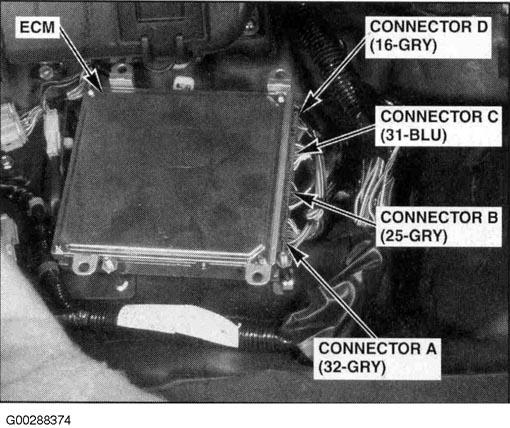

| ECM | On right side of front floor. See Figure . |

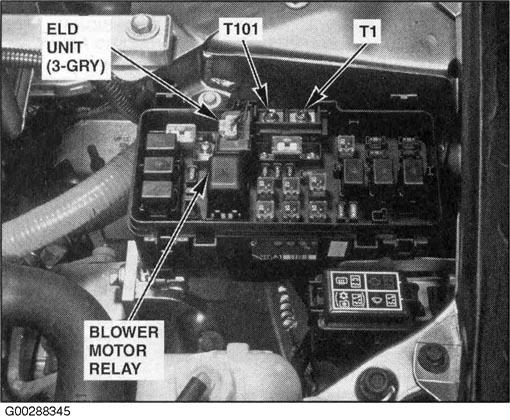

| ELD Unit | In under-hood fuse/relay box. See Figure . |

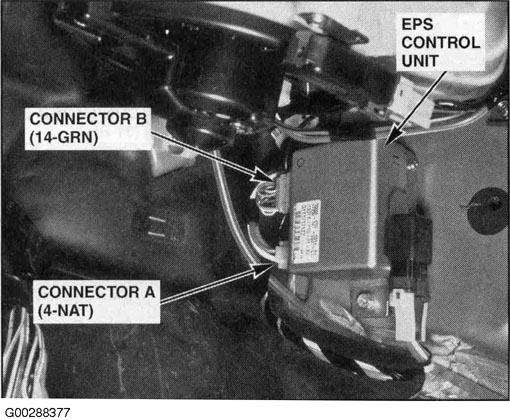

| EPS Control Unit (CVT) | Under right side kick panel. See Figure . |

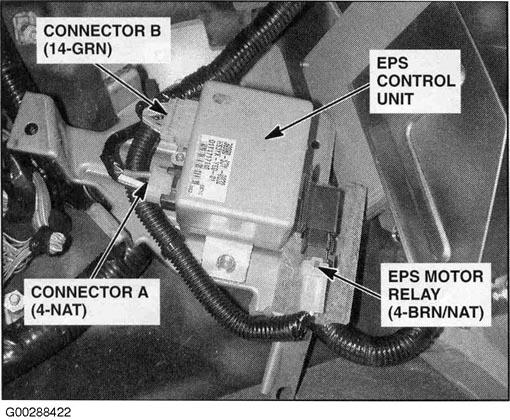

| EPS Control Unit (M/T) | Under right side kick panel. See Figure . |

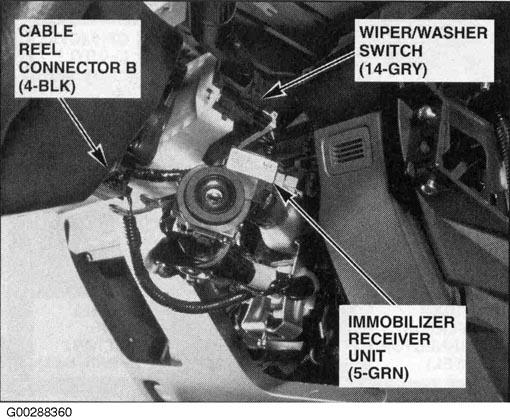

| Immobilizer Receiver Unit | Under left side of dash, right of steering column. See Figure . |

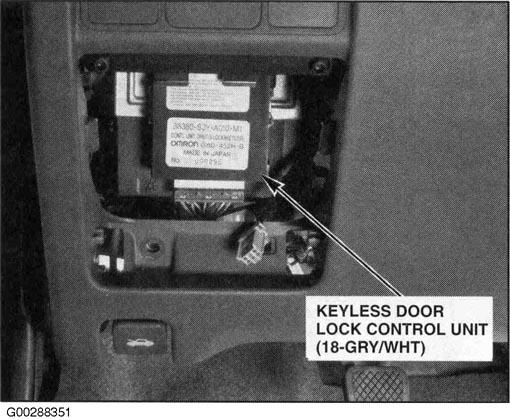

| Keyless Door Lock Control Unit | Under left side of dash. See Figure . |

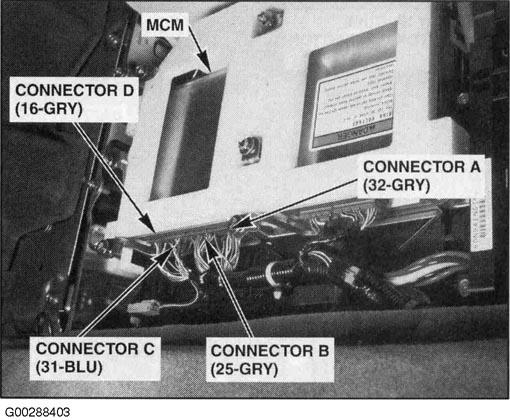

| MCM | On top front of battery module. See Figure . |

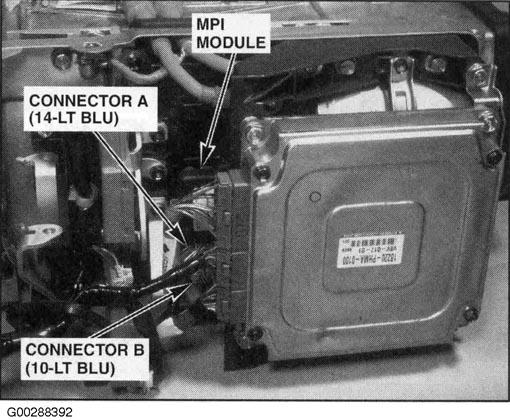

| MPI Module | In power control unit. See Figure . |

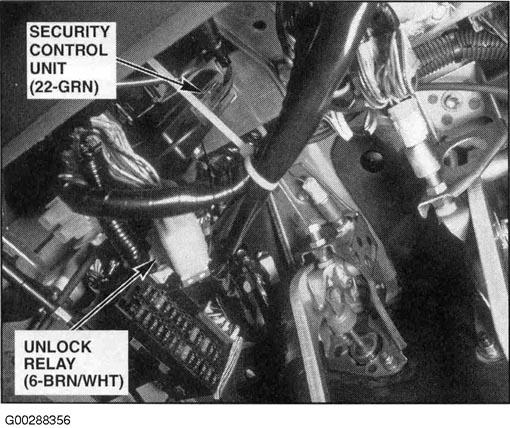

| Security Control Unit | Left side of dash. See Figure . |

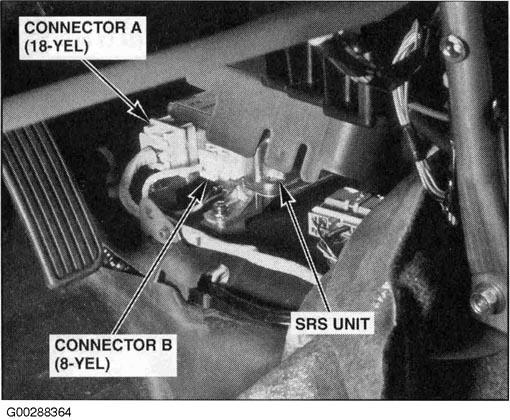

| SRS Unit | Under center of dash. See Figure . |

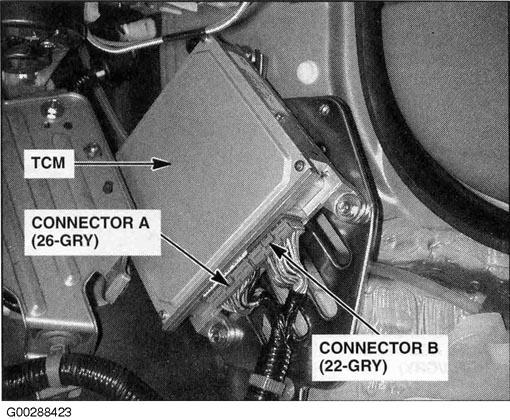

| Transmission Control Module (CVT) | Behind right side of dash. See Figure . |

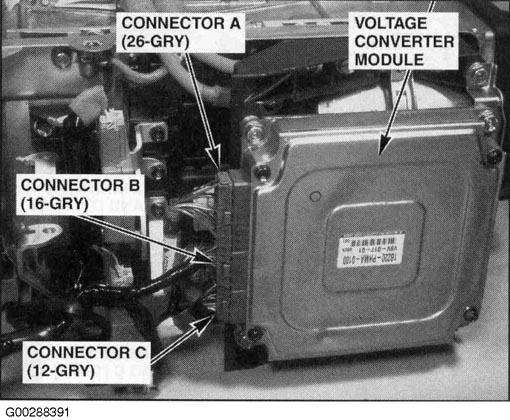

| Voltage Converter Module | In power control unit. See Figure . |
