Power Window Control Unit Input Test
- Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION
), but leave the driver's door sub-harness connector connected to the driver's door wire harness.

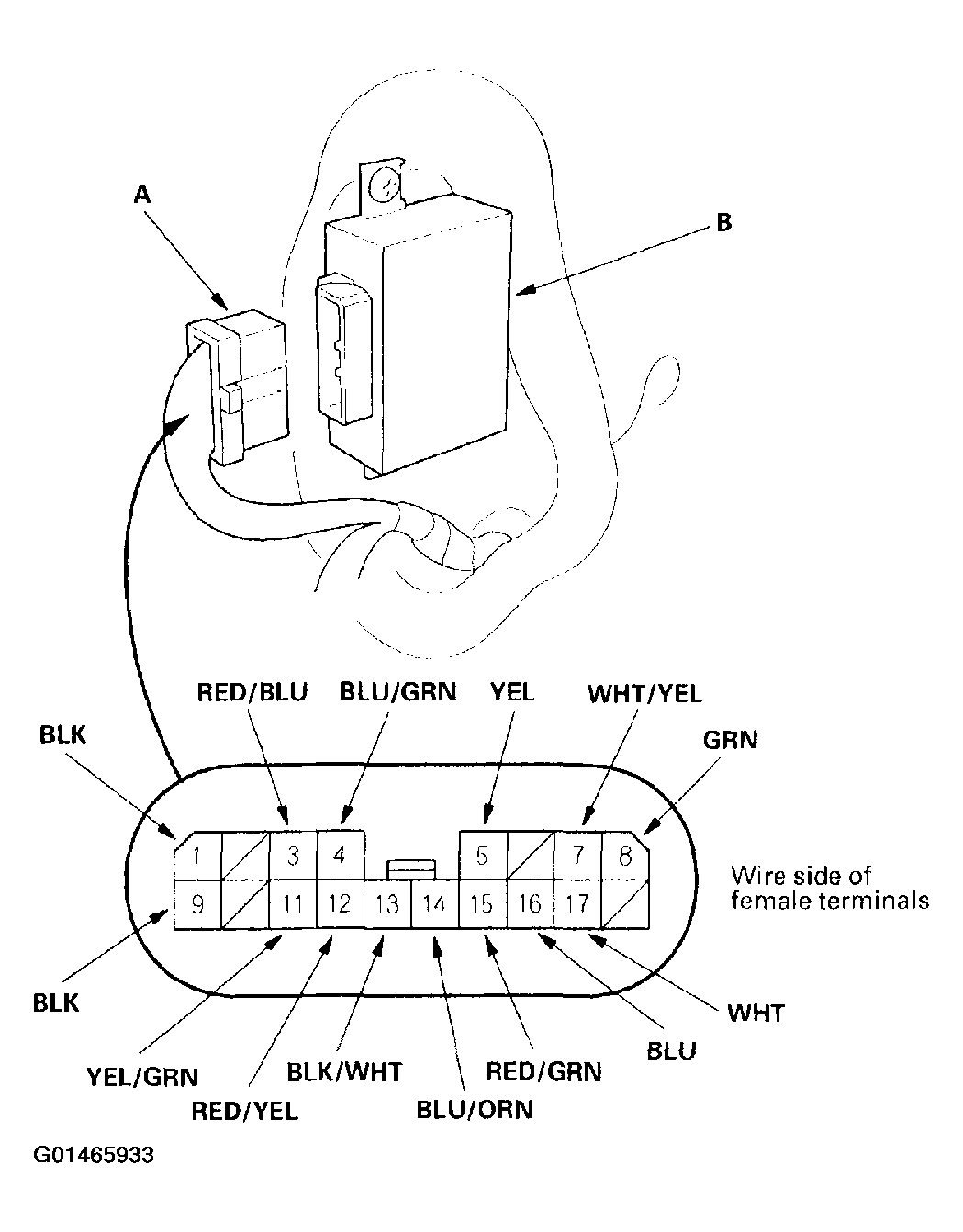

- Disconnect the 18P connector (A) from the power window control unit (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 4.

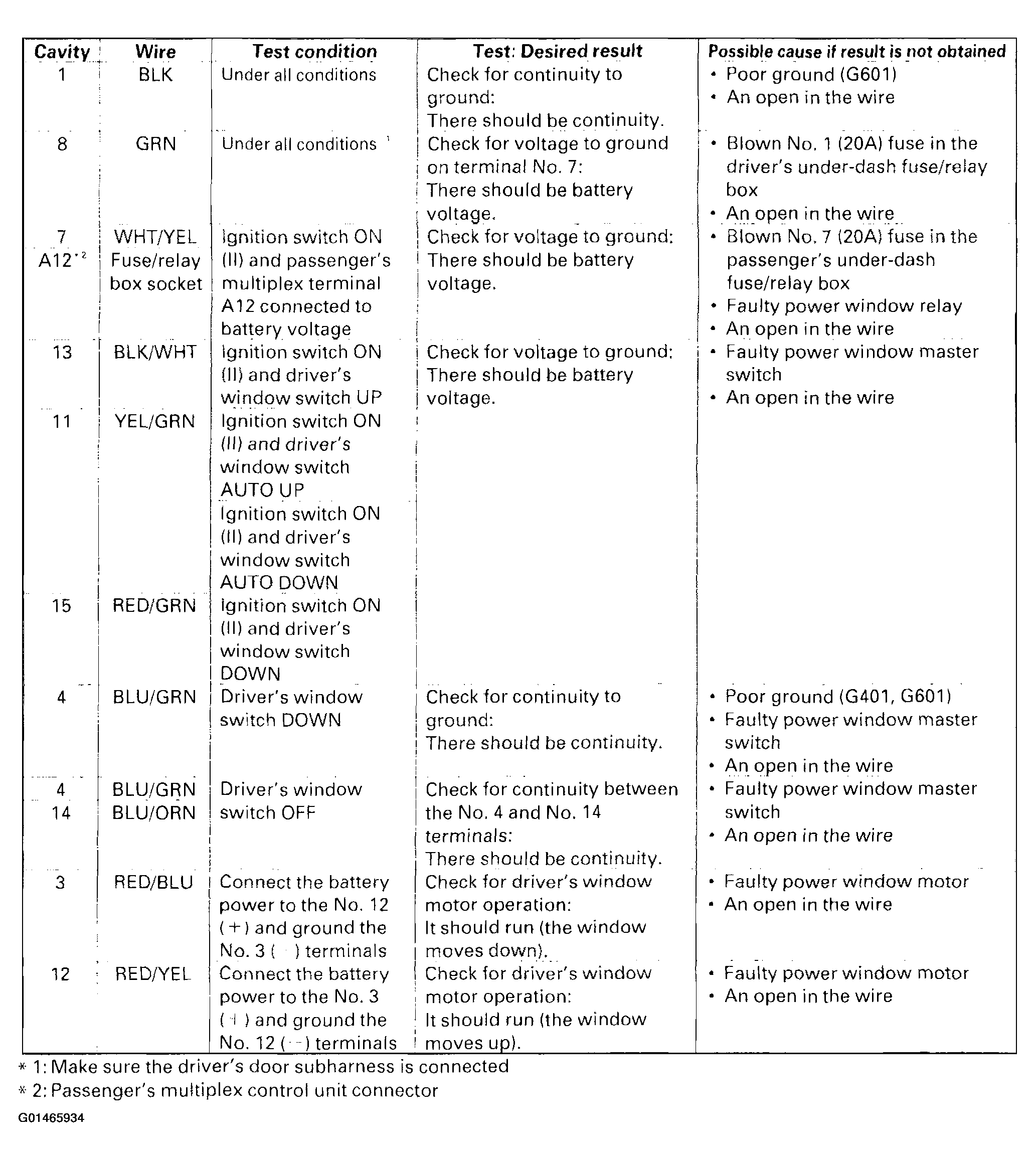

- With the connector still disconnected, make these input tests at the connectors.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 5.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

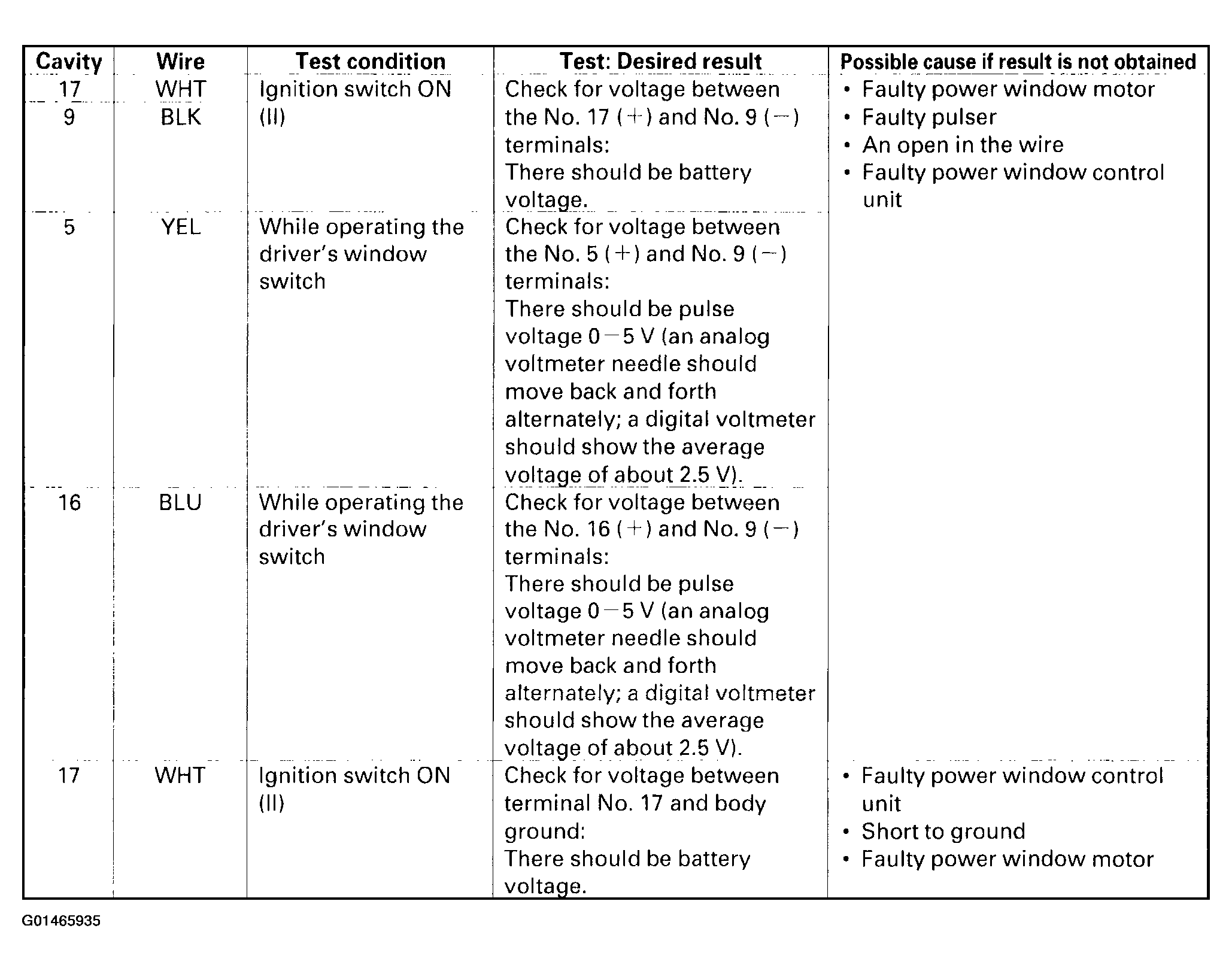

- Reconnect the 18P connector to the power window control unit and reconnect the passenger's multiplex control unit, then make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the control unit must be faulty; replace it.
