Alternator Control System Test

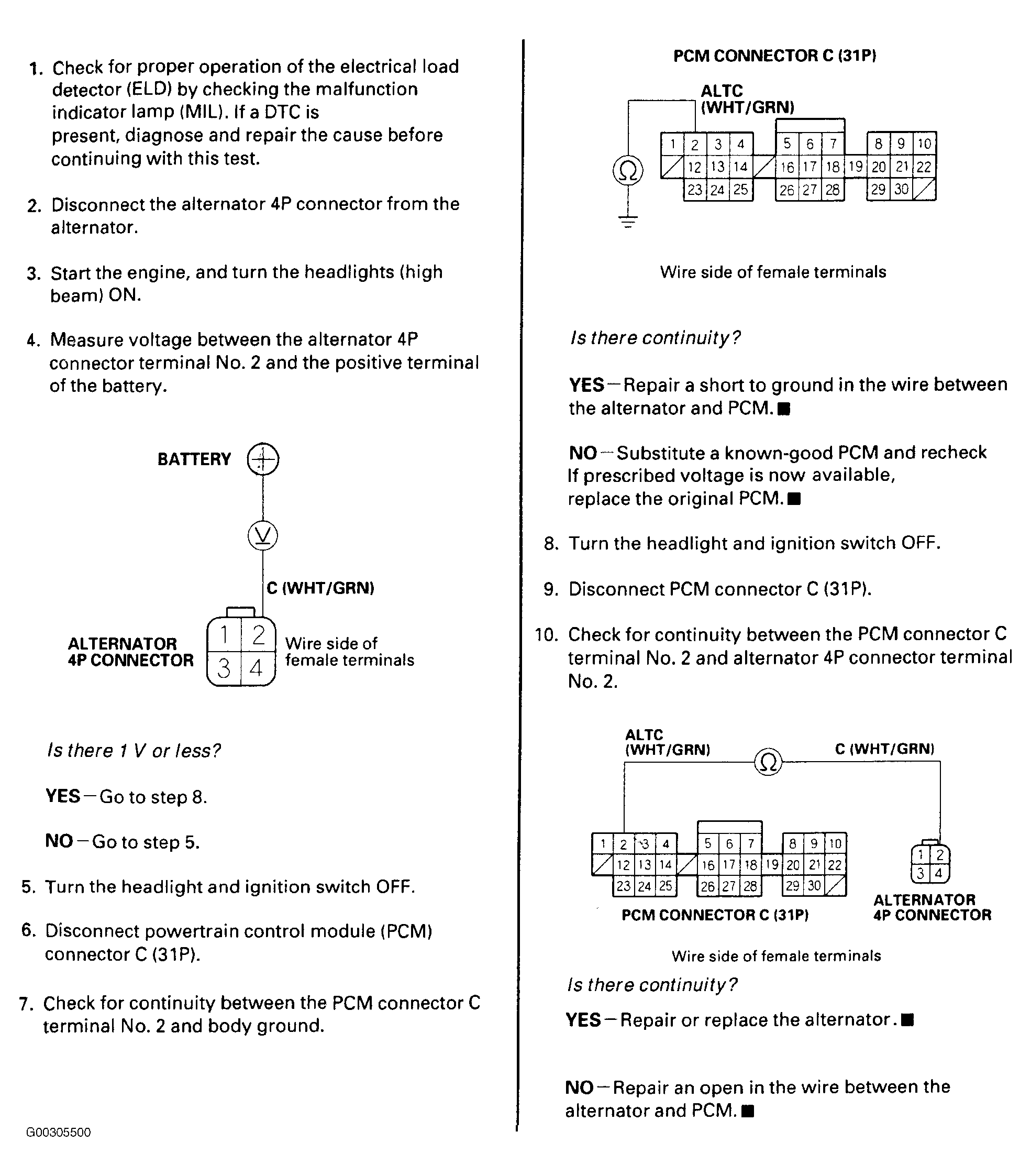

For alternator control system test, see Fig 1.

Fig 1: Alternator Control System Test
G00305500Courtesy of AMERICAN HONDA MOTOR CO., INC.
