Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Right Side Of Engine Compartment

G00263944

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Right Side Of Engine Compartment

G00263945

Courtesy of AMERICAN HONDA MOTOR CO., INC.

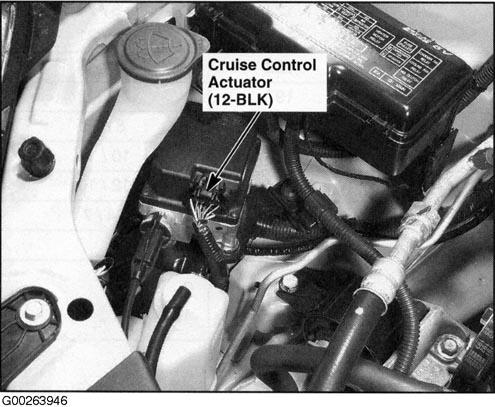

Fig 3: Right Side Of Engine Compartment

G00263946

Courtesy of AMERICAN HONDA MOTOR CO., INC.

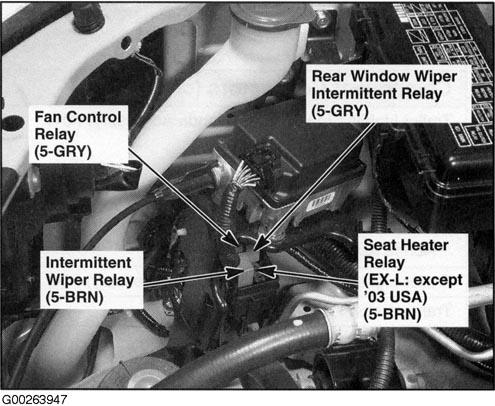

Fig 4: Right Side Of Engine Compartment

G00263947

Courtesy of AMERICAN HONDA MOTOR CO., INC.

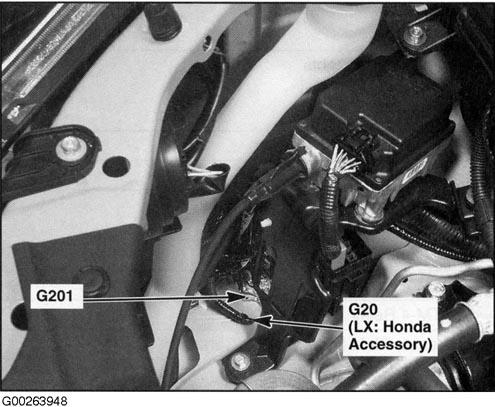

Fig 5: Right Side Of Engine Compartment

G00263948

Courtesy of AMERICAN HONDA MOTOR CO., INC.

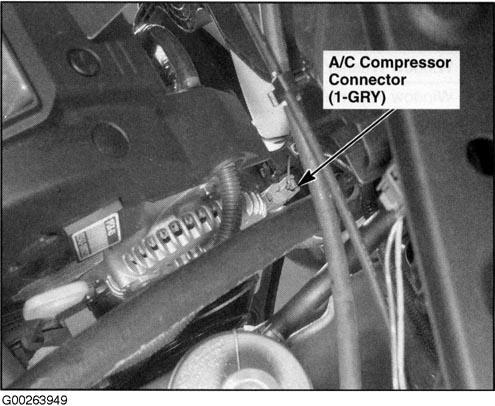

Fig 6: Middle Of Engine Compartment

G00263949

Courtesy of AMERICAN HONDA MOTOR CO., INC.

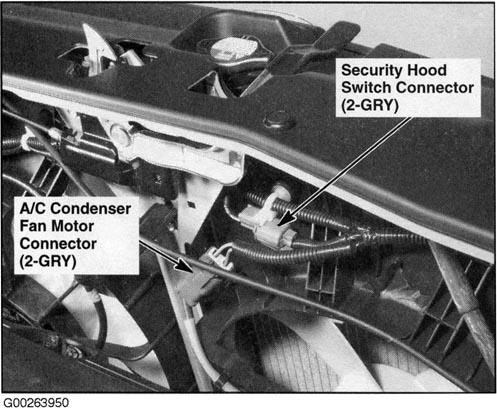

Fig 7: Middle Of Engine Compartment

G00263950

Courtesy of AMERICAN HONDA MOTOR CO., INC.

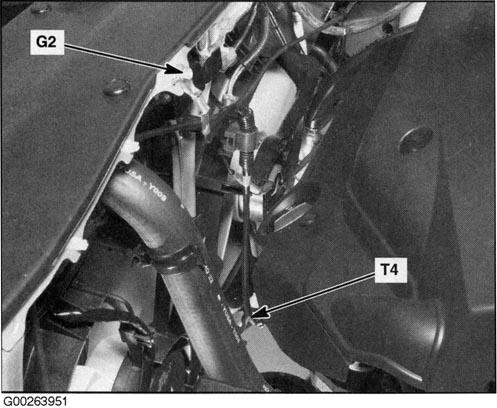

Fig 8: Middle Of Engine Compartment

G00263951

Courtesy of AMERICAN HONDA MOTOR CO., INC.

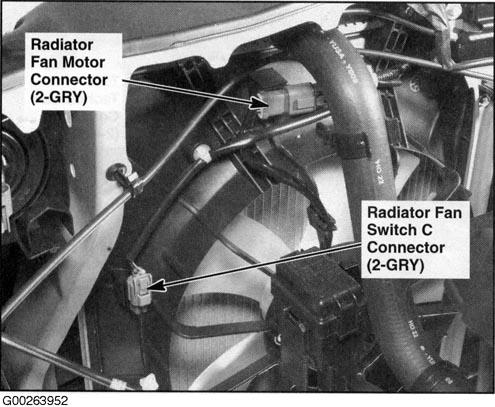

Fig 9: Middle Of Engine Compartment

G00263952

Courtesy of AMERICAN HONDA MOTOR CO., INC.

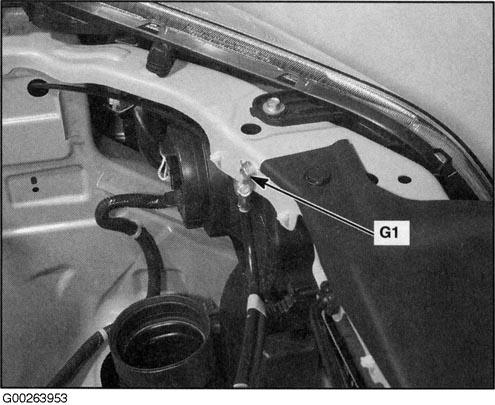

Fig 10: Left Side Of Engine Compartment

G00263953

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 11: Left Side Of Engine Compartment

G00263954

Courtesy of AMERICAN HONDA MOTOR CO., INC.

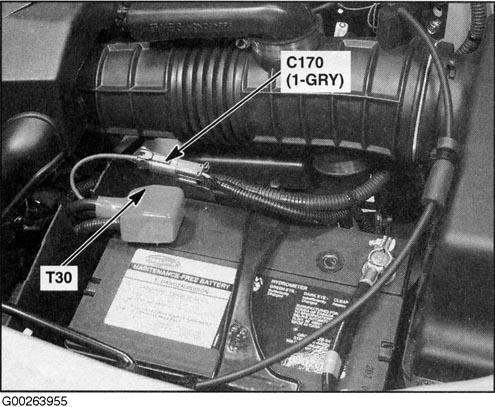

Fig 12: Left Side Of Engine Compartment (Honda Accessory)

G00263955

Courtesy of AMERICAN HONDA MOTOR CO., INC.

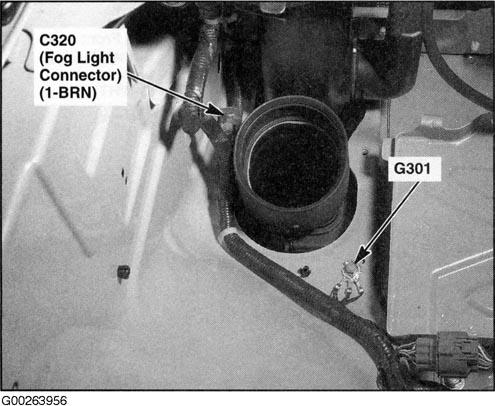

Fig 13: Left Side Of Engine Compartment

G00263956

Courtesy of AMERICAN HONDA MOTOR CO., INC.

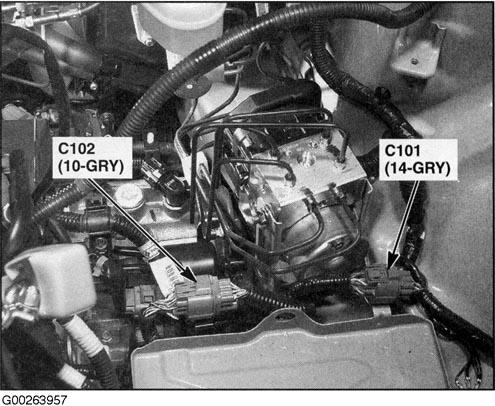

Fig 14: Left Side Of Engine Compartment

G00263957

Courtesy of AMERICAN HONDA MOTOR CO., INC.

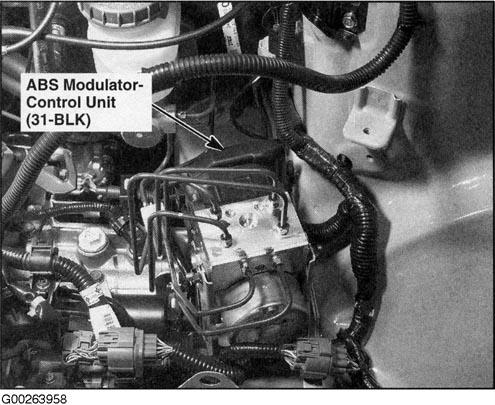

Fig 15: Left Side Of Engine Compartment

G00263958

Courtesy of AMERICAN HONDA MOTOR CO., INC.

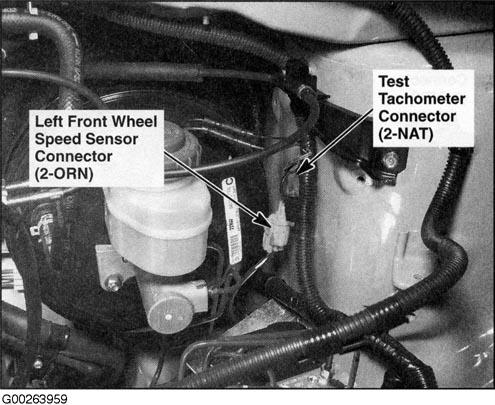

Fig 16: Left Side Of Engine Compartment

G00263959

Courtesy of AMERICAN HONDA MOTOR CO., INC.

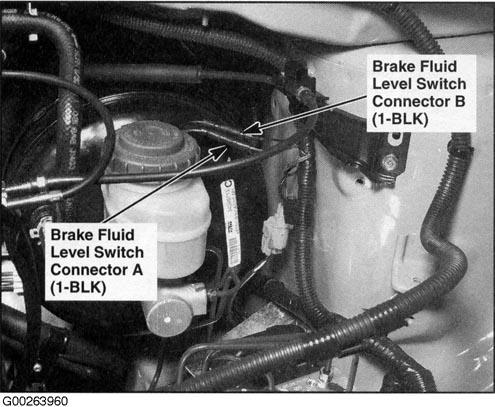

Fig 17: Left Side Of Engine Compartment

G00263960

Courtesy of AMERICAN HONDA MOTOR CO., INC.

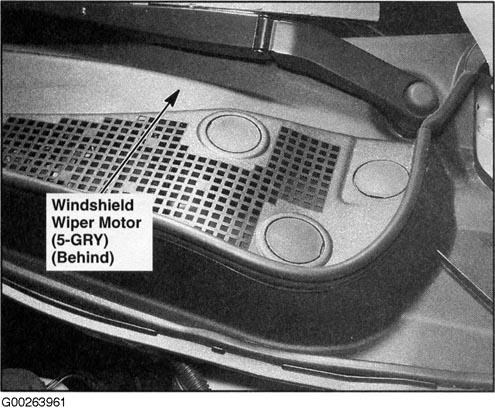

Fig 18: Under Left Side Of Cowl Cover

G00263961

Courtesy of AMERICAN HONDA MOTOR CO., INC.

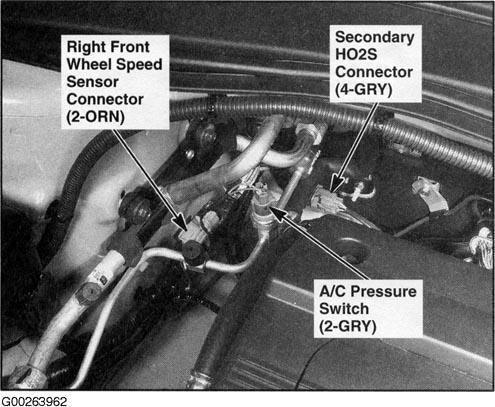

Fig 19: Right Side Of Engine Compartment

G00263962

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 20: Right Side Of Engine Compartment

G00263963

Courtesy of AMERICAN HONDA MOTOR CO., INC.

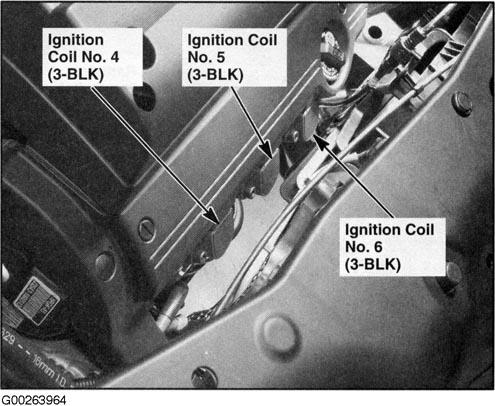

Fig 21: Middle Of Engine Compartment

G00263964

Courtesy of AMERICAN HONDA MOTOR CO., INC.

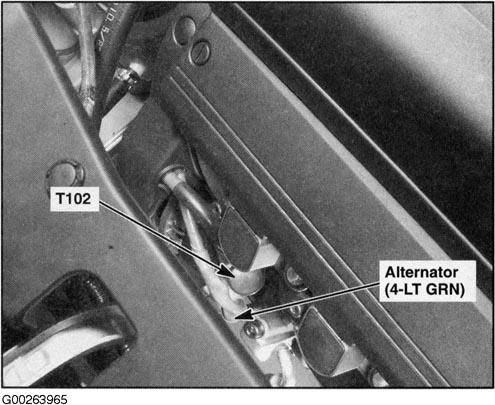

Fig 22: Middle Of Engine Compartment

G00263965

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 23: Middle Of Engine Compartment

G00263966

Courtesy of AMERICAN HONDA MOTOR CO., INC.

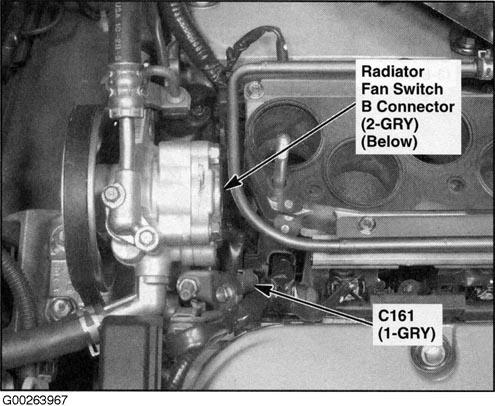

Fig 24: Right Side Of Engine Compartment

G00263967

Courtesy of AMERICAN HONDA MOTOR CO., INC.

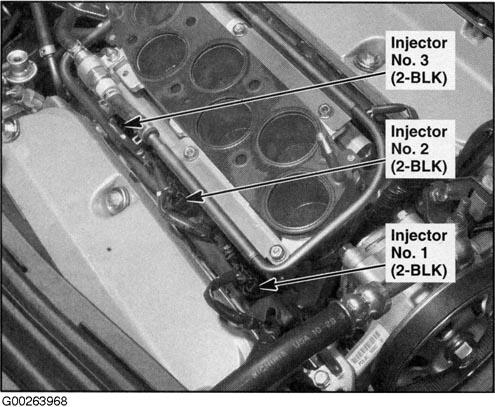

Fig 25: Middle Of Engine Compartment

G00263968

Courtesy of AMERICAN HONDA MOTOR CO., INC.

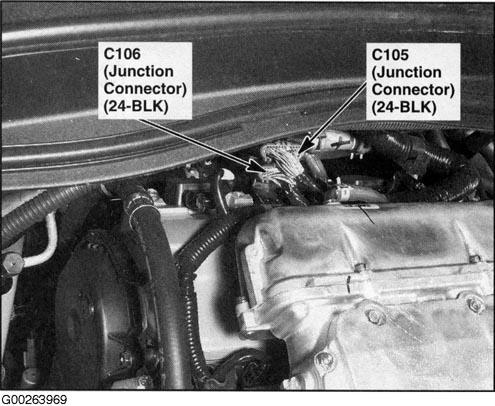

Fig 26: Middle Of Engine Compartment

G00263969

Courtesy of AMERICAN HONDA MOTOR CO., INC.

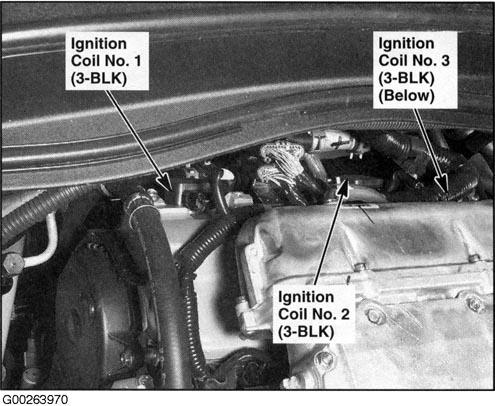

Fig 27: Middle Of Engine Compartment

G00263970

Courtesy of AMERICAN HONDA MOTOR CO., INC.

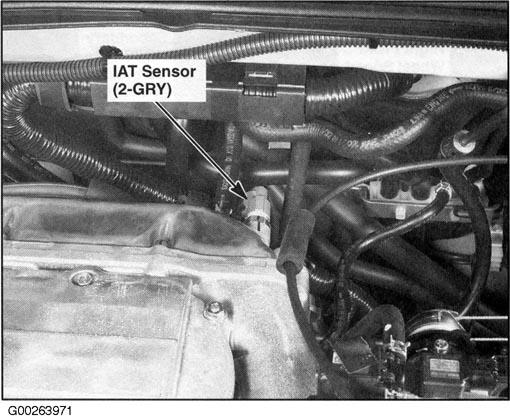

Fig 28: Middle Of Engine Compartment

G00263971

Courtesy of AMERICAN HONDA MOTOR CO., INC.

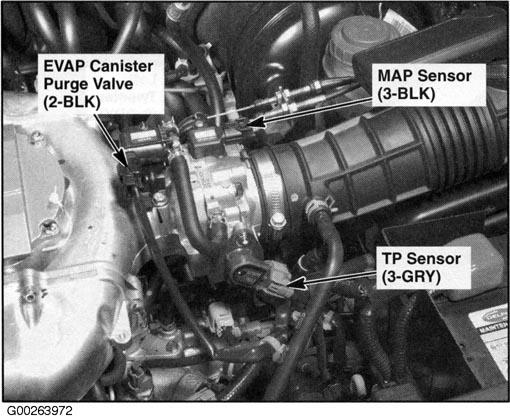

Fig 29: Left Side Of Engine Compartment

G00263972

Courtesy of AMERICAN HONDA MOTOR CO., INC.

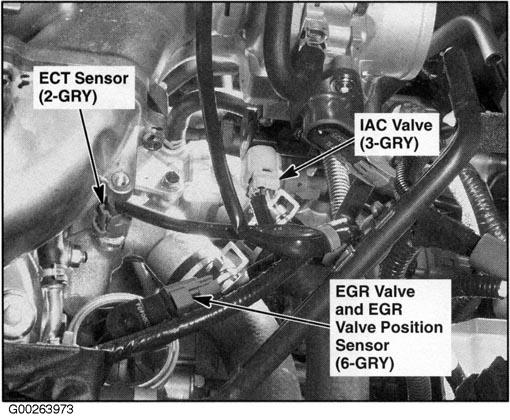

Fig 30: Left Side Of Engine Compartment

G00263973

Courtesy of AMERICAN HONDA MOTOR CO., INC.

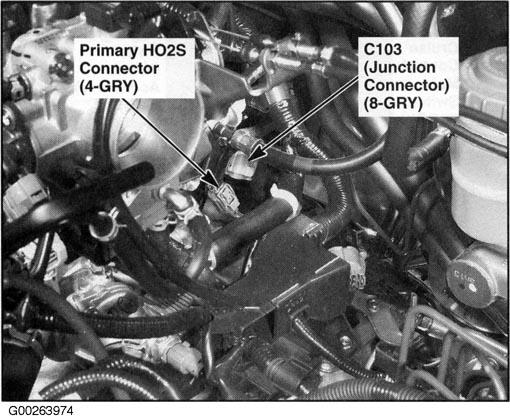

Fig 31: Left Side Of Engine Compartment

G00263974

Courtesy of AMERICAN HONDA MOTOR CO., INC.

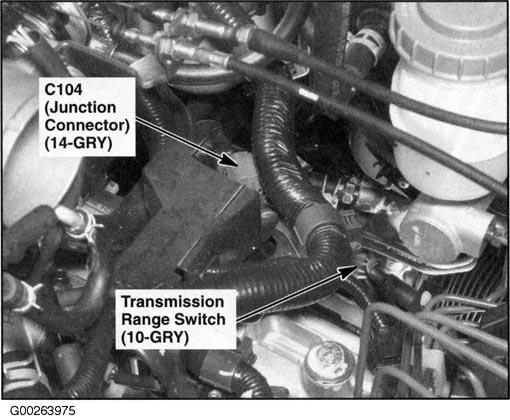

Fig 32: Left Side Of Engine Compartment

G00263975

Courtesy of AMERICAN HONDA MOTOR CO., INC.

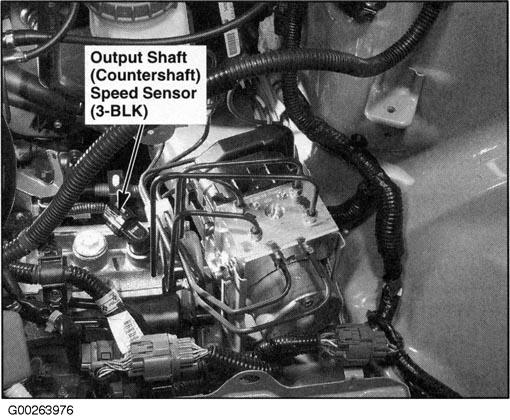

Fig 33: Transmission Housing

G00263976

Courtesy of AMERICAN HONDA MOTOR CO., INC.

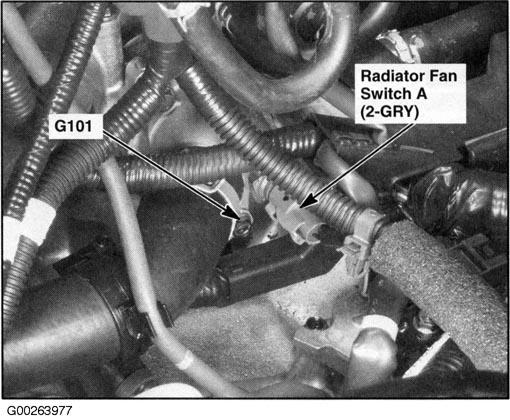

Fig 34: Left Side Of Engine Compartment

G00263977

Courtesy of AMERICAN HONDA MOTOR CO., INC.

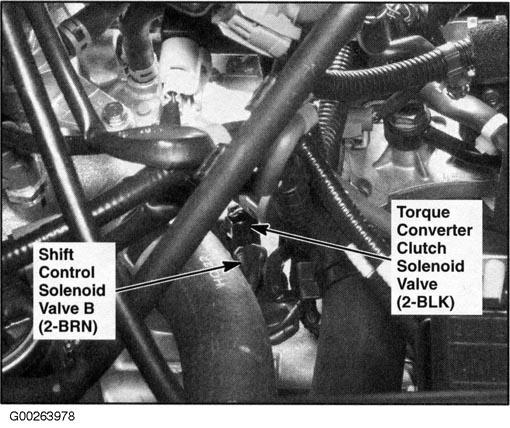

Fig 35: Left Side Of Engine Compartment

G00263978

Courtesy of AMERICAN HONDA MOTOR CO., INC.

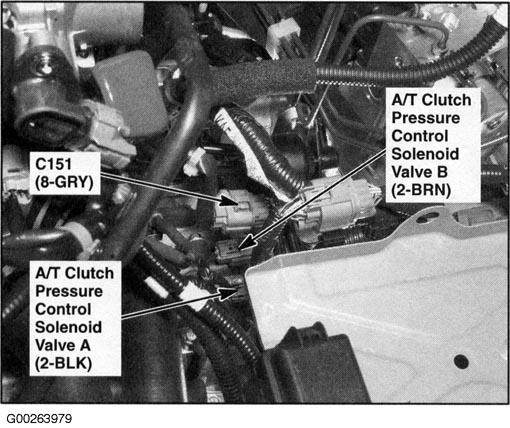

Fig 36: Left Side Of Engine Compartment

G00263979

Courtesy of AMERICAN HONDA MOTOR CO., INC.

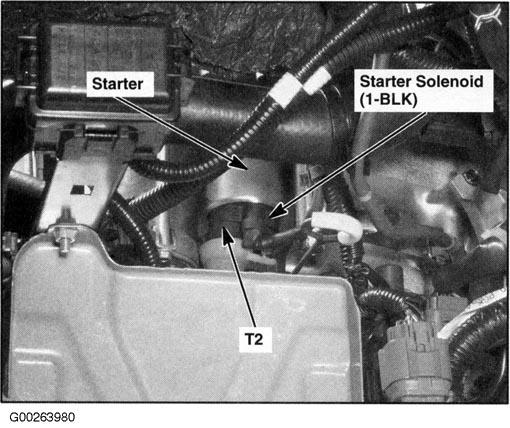

Fig 37: Left Side Of Engine Compartment

G00263980

Courtesy of AMERICAN HONDA MOTOR CO., INC.

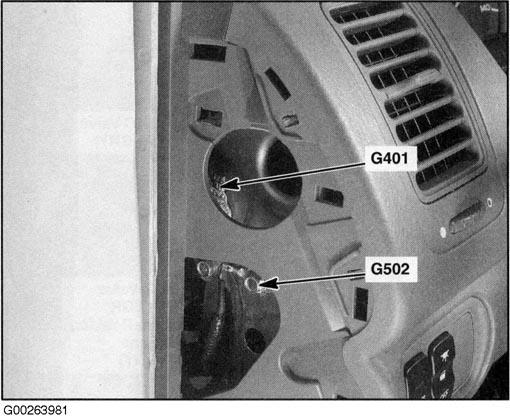

Fig 38: Left Side Of Dash

G00263981

Courtesy of AMERICAN HONDA MOTOR CO., INC.

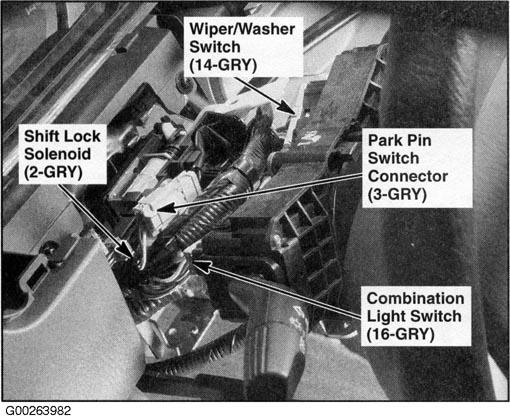

Fig 39: In Steering Column Cover

G00263982

Courtesy of AMERICAN HONDA MOTOR CO., INC.

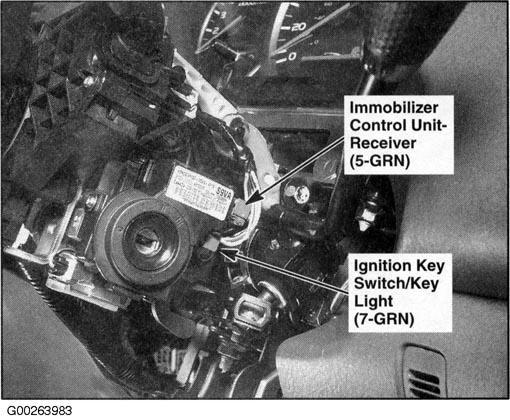

Fig 40: In Steering Column Cover

G00263983

Courtesy of AMERICAN HONDA MOTOR CO., INC.

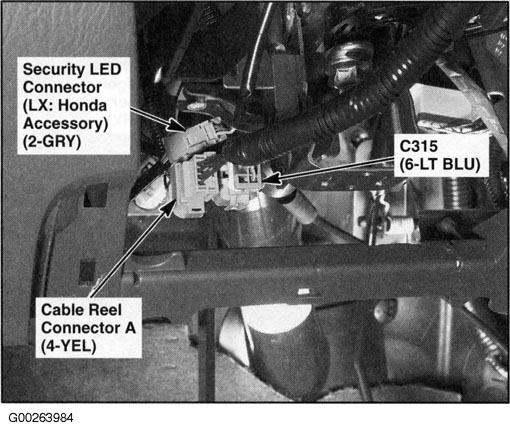

Fig 41: In Steering Column Cover

G00263984

Courtesy of AMERICAN HONDA MOTOR CO., INC.

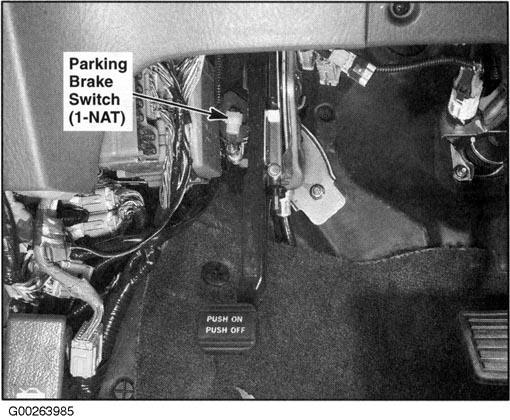

Fig 42: Under Left Side Of Dash

G00263985

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 43: Under Left Side Of Dash

G00263986

Courtesy of AMERICAN HONDA MOTOR CO., INC.

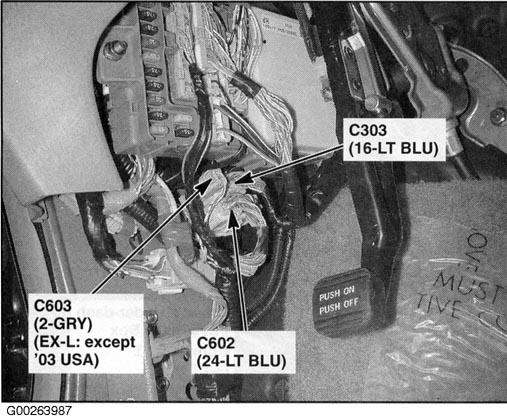

Fig 44: Behind Left Kick Panel

G00263987

Courtesy of AMERICAN HONDA MOTOR CO., INC.

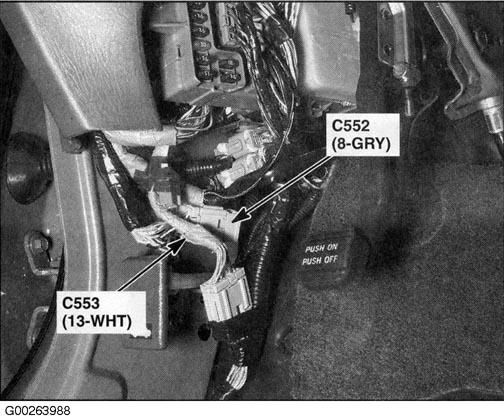

Fig 45: Behind Left Kick Panel (EX-L, RES (DVD))

G00263988

Courtesy of AMERICAN HONDA MOTOR CO., INC.

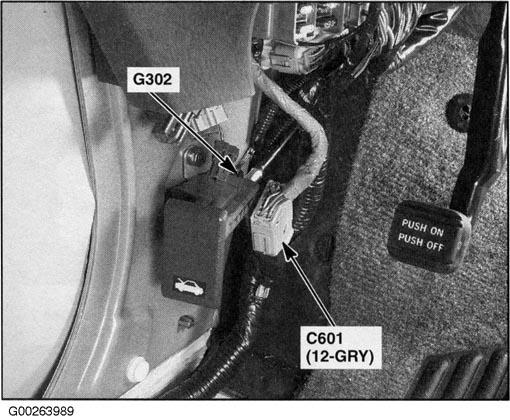

Fig 46: Behind Left Kick Panel

G00263989

Courtesy of AMERICAN HONDA MOTOR CO., INC.

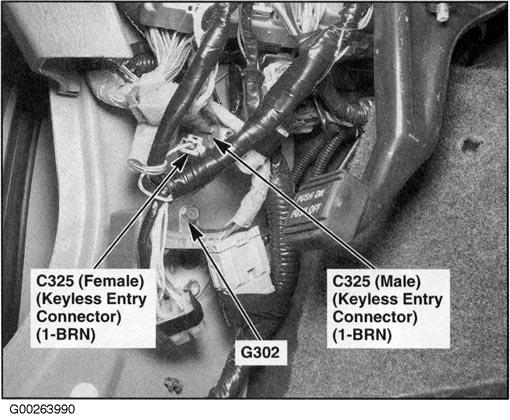

Fig 47: Behind Left Kick Panel (LX, Honda Accessory)

G00263990

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 48: Behind Left Kick Panel (LX, Honda Accessory)

G00263992

Courtesy of AMERICAN HONDA MOTOR CO., INC.

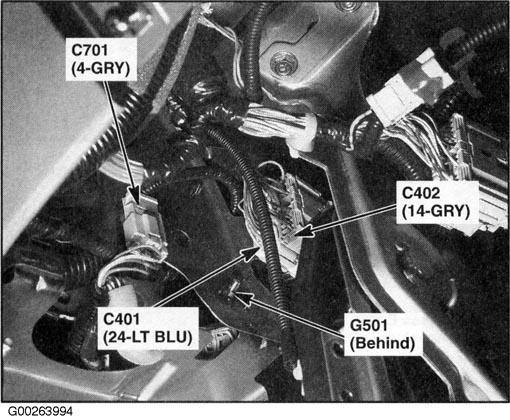

Fig 49: Under Left Side Of Dash

G00263994

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 50: Under Left Side Of Dash (Honda Accessory)

G00263995

Courtesy of AMERICAN HONDA MOTOR CO., INC.

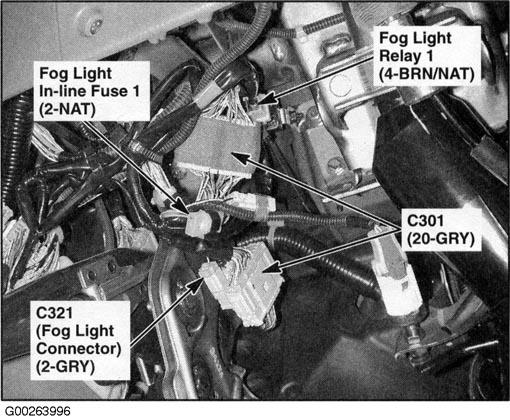

Fig 51: Under Left Side Of Dash (Honda Accessory)

G00263996

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 52: Under Left Side Of Dash (LX, Honda Accessory)

G00263997

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 53: Under Left Side Of Dash (LX, Honda Accessory)

G00263998

Courtesy of AMERICAN HONDA MOTOR CO., INC.

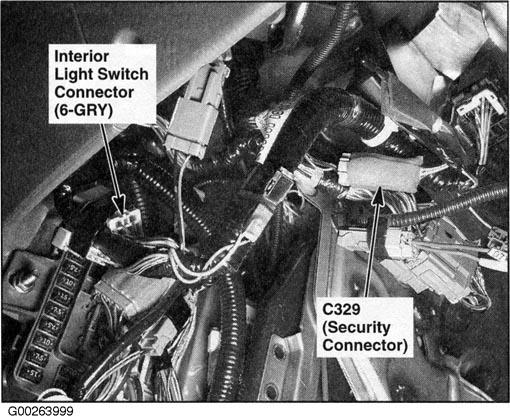

Fig 54: Under Left Side Of Dash (LX, Honda Accessory)

G00263999

Courtesy of AMERICAN HONDA MOTOR CO., INC.

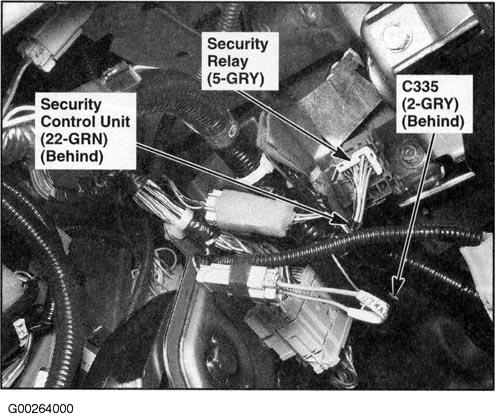

Fig 55: Under Left Side Of Dash (LX, Honda Accessory)

G00264000

Courtesy of AMERICAN HONDA MOTOR CO., INC.

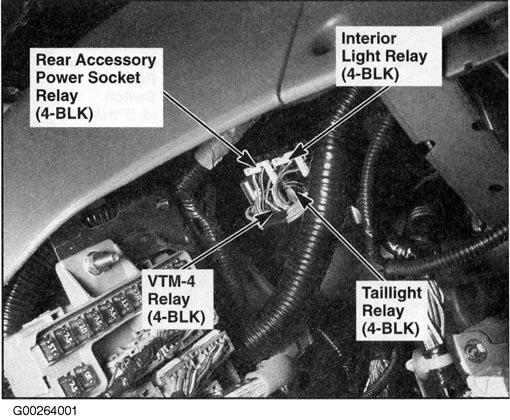

Fig 56: Under Left Side Of Dash

G00264001

Courtesy of AMERICAN HONDA MOTOR CO., INC.

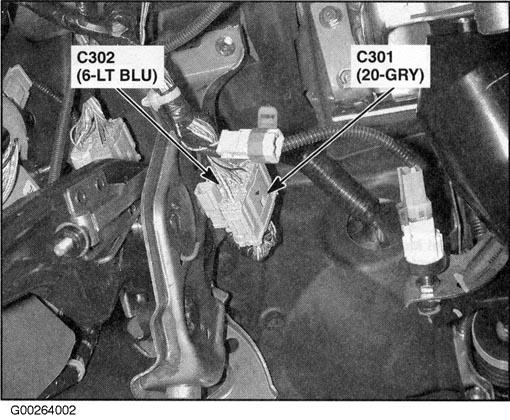

Fig 57: Under Left Side Of Dash

G00264002

Courtesy of AMERICAN HONDA MOTOR CO., INC.

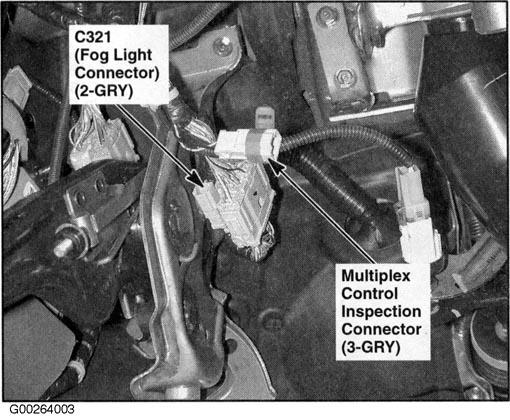

Fig 58: Under Left Side Of Dash

G00264003

Courtesy of AMERICAN HONDA MOTOR CO., INC.

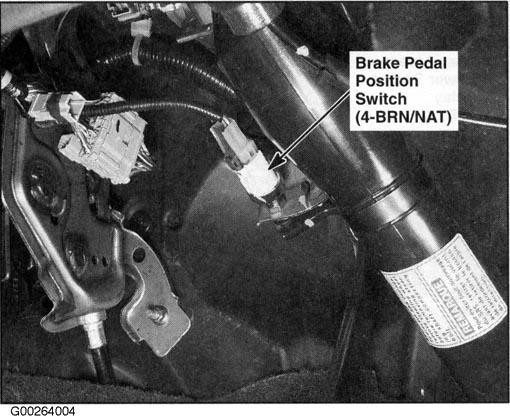

Fig 59: Under Left Side Of Dash

G00264004

Courtesy of AMERICAN HONDA MOTOR CO., INC.

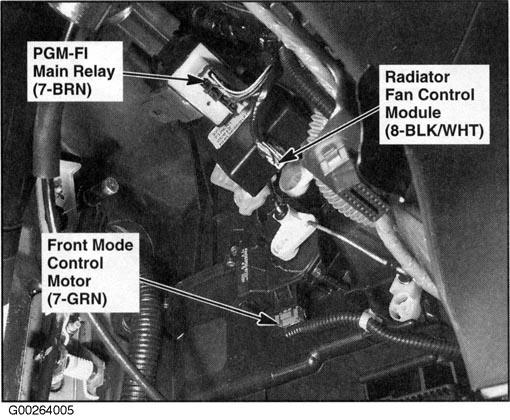

Fig 60: Under Left Side Of Dash

G00264005

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 61: Under Left Side Of Dash

G00264006

Courtesy of AMERICAN HONDA MOTOR CO., INC.

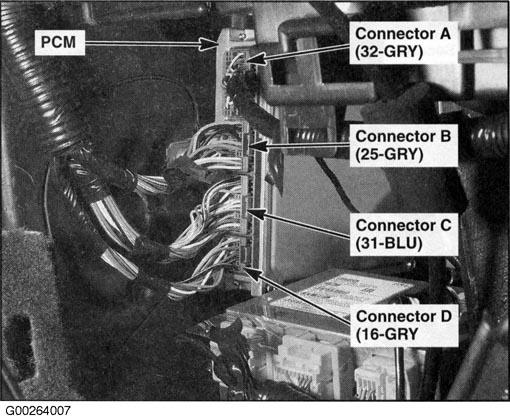

Fig 62: Under Middle Of Dash

G00264007

Courtesy of AMERICAN HONDA MOTOR CO., INC.

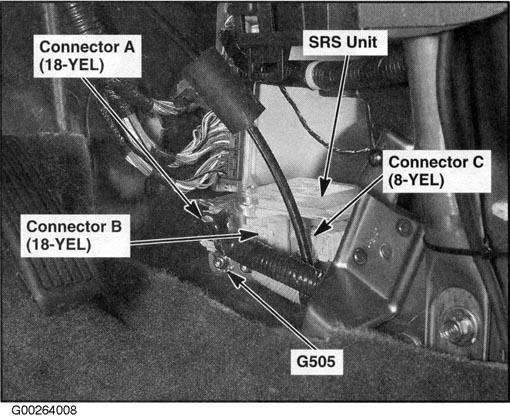

Fig 63: Under Middle Of Dash

G00264008

Courtesy of AMERICAN HONDA MOTOR CO., INC.

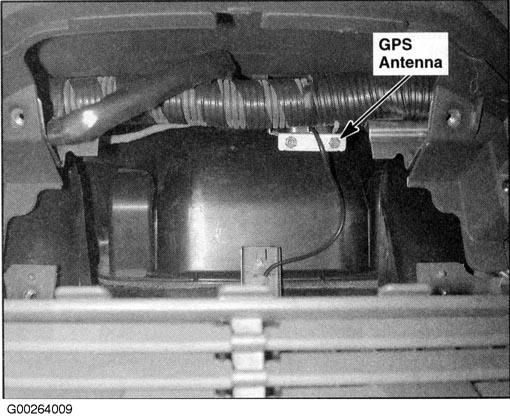

Fig 64: Behind Middle Of Dash (EX-L, W/Navigation)

G00264009

Courtesy of AMERICAN HONDA MOTOR CO., INC.

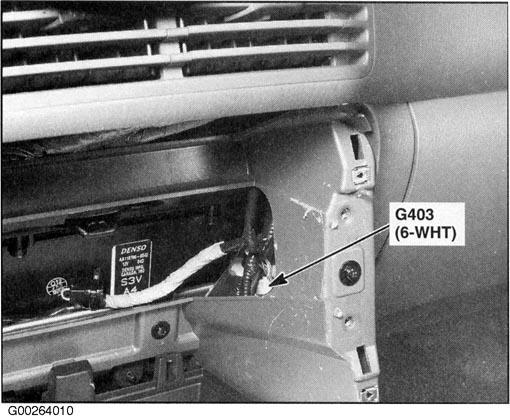

Fig 65: Behind Center Of Dash (EX, EX-L)

G00264010

Courtesy of AMERICAN HONDA MOTOR CO., INC.

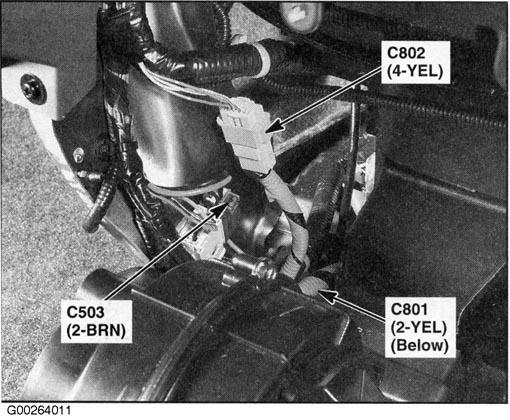

Fig 66: Under Middle Of Dash

G00264011

Courtesy of AMERICAN HONDA MOTOR CO., INC.

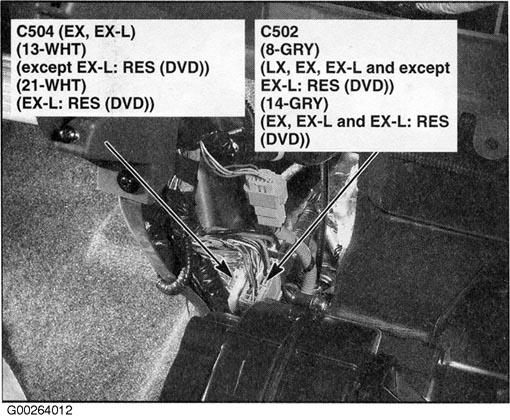

Fig 67: Under Middle Of Dash

G00264012

Courtesy of AMERICAN HONDA MOTOR CO., INC.

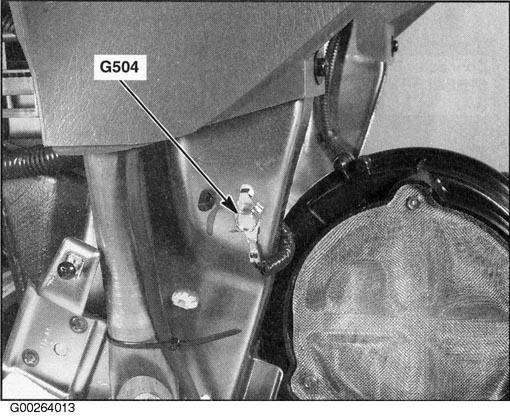

Fig 68: Under Middle Of Dash

G00264013

Courtesy of AMERICAN HONDA MOTOR CO., INC.

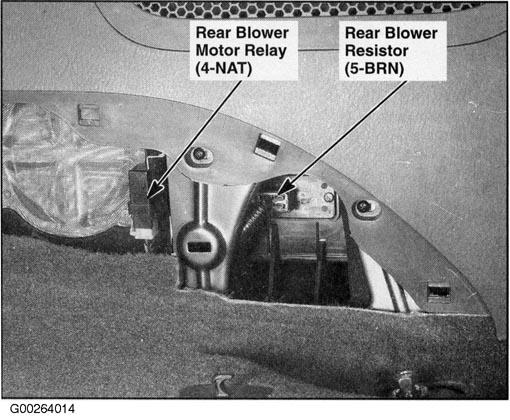

Fig 69: Left Side Of Center Console (LX)

G00264014

Courtesy of AMERICAN HONDA MOTOR CO., INC.

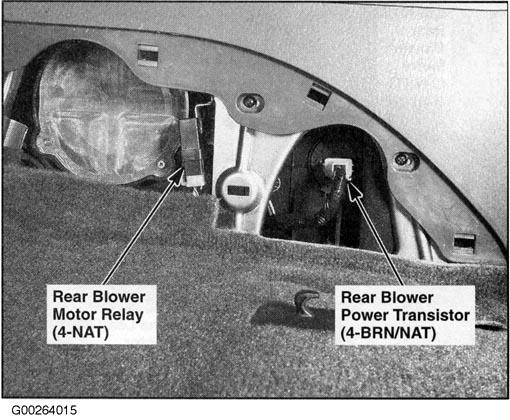

Fig 70: Left Side Of Center Console (EX, EX-L)

G00264015

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 71: Right Side Of Center Console

G00264017

Courtesy of AMERICAN HONDA MOTOR CO., INC.

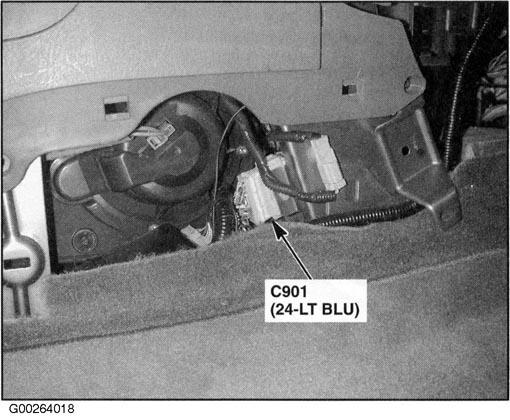

Fig 72: Right Side Of Center Console (EX-L, W/Navigation)

G00264018

Courtesy of AMERICAN HONDA MOTOR CO., INC.

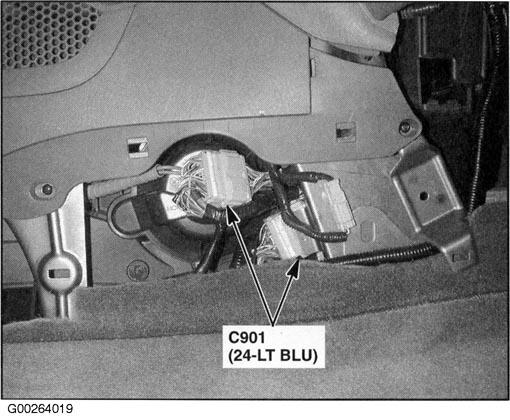

Fig 73: Right Side Of Center Console (EX-L, Honda Accessory)

G00264019

Courtesy of AMERICAN HONDA MOTOR CO., INC.

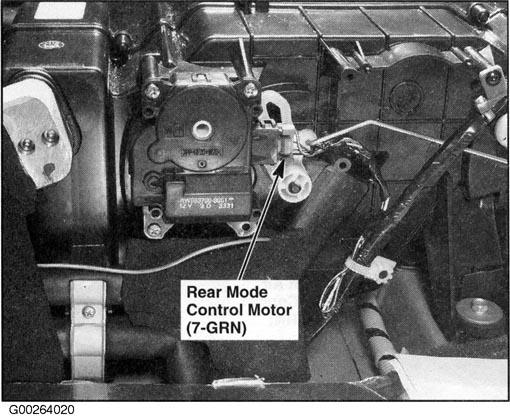

Fig 74: Under Center Console (LX)

G00264020

Courtesy of AMERICAN HONDA MOTOR CO., INC.

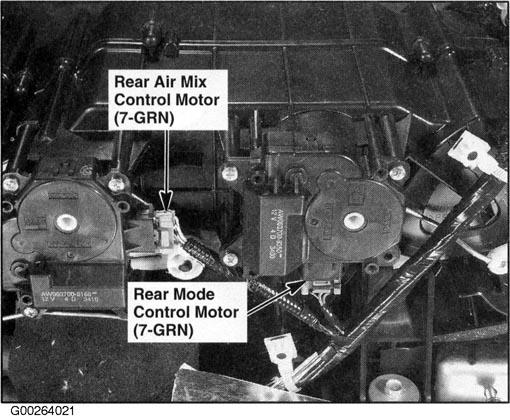

Fig 75: Under Center Console (EX, EX-L)

G00264021

Courtesy of AMERICAN HONDA MOTOR CO., INC.

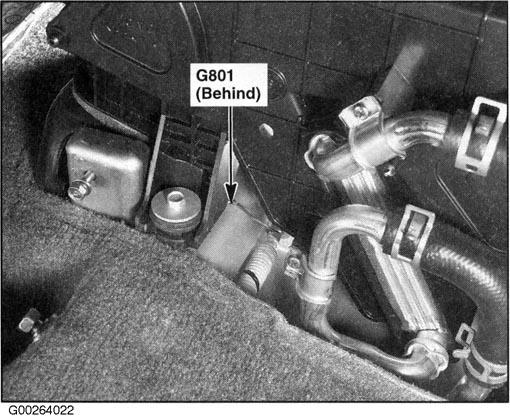

Fig 76: Under Middle Of Center Console

G00264022

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 77: Under Middle Of Dash

G00264023

Courtesy of AMERICAN HONDA MOTOR CO., INC.

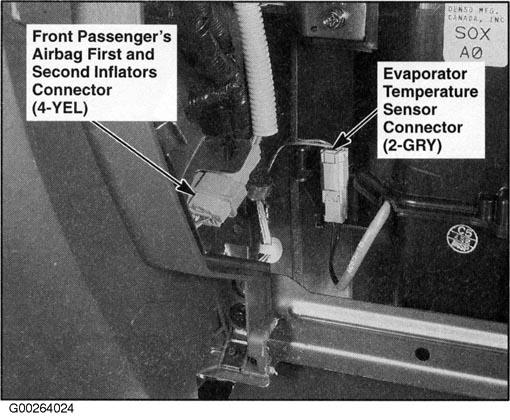

Fig 78: Behind Glove Box

G00264024

Courtesy of AMERICAN HONDA MOTOR CO., INC.

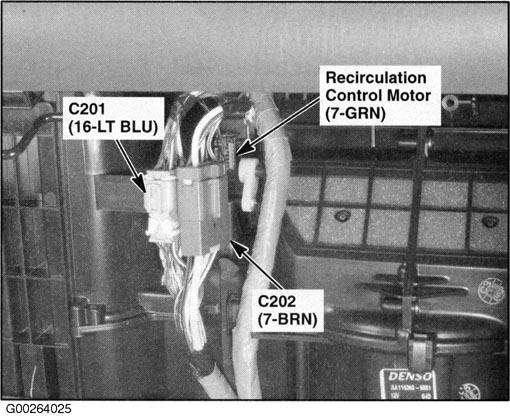

Fig 79: Behind Glove Box

G00264025

Courtesy of AMERICAN HONDA MOTOR CO., INC.

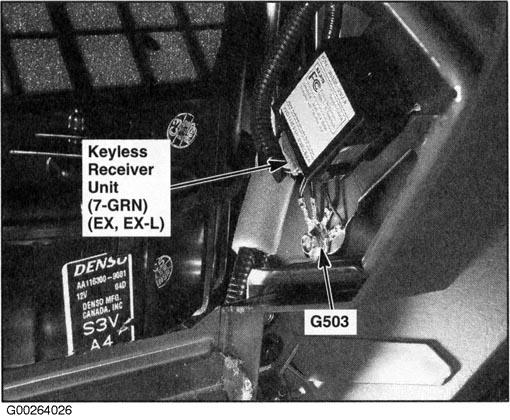

Fig 80: Behind Glove Box

G00264026

Courtesy of AMERICAN HONDA MOTOR CO., INC.

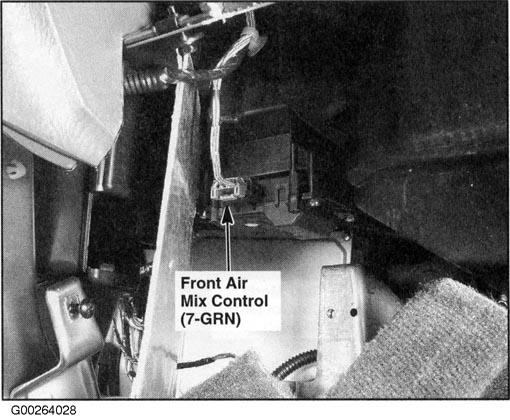

Fig 81: Under Right Side Of Dash

G00264028

Courtesy of AMERICAN HONDA MOTOR CO., INC.

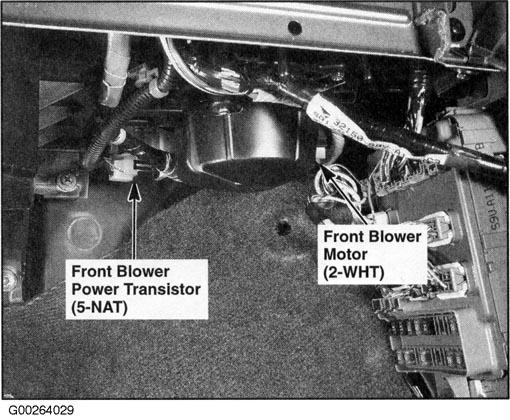

Fig 82: Under Right Side Of Dash

G00264029

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 83: Under Right Side Of Dash

G00264030

Courtesy of AMERICAN HONDA MOTOR CO., INC.

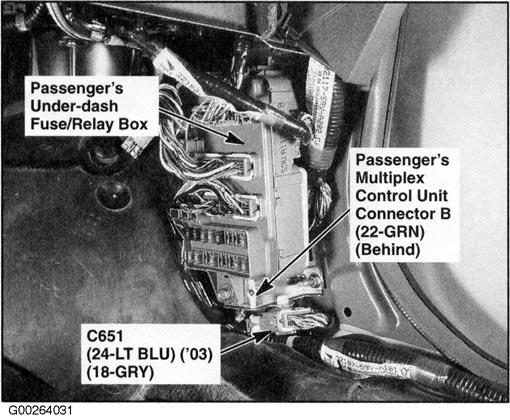

Fig 84: Behind Right Kick Panel

G00264031

Courtesy of AMERICAN HONDA MOTOR CO., INC.

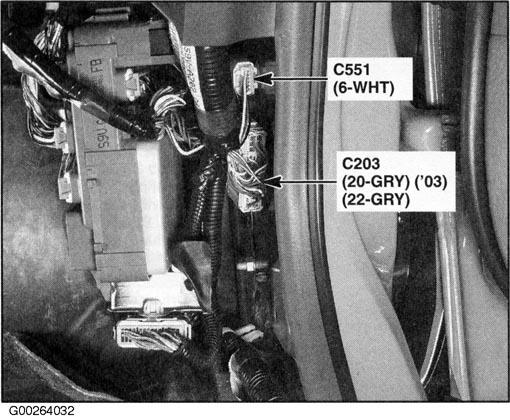

Fig 85: Behind Right Kick Panel

G00264032

Courtesy of AMERICAN HONDA MOTOR CO., INC.

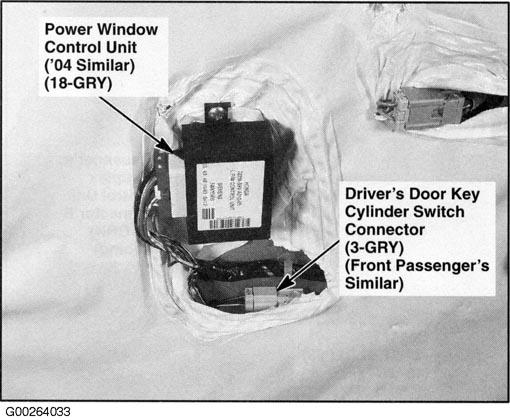

Fig 86: Driver's Door (Front Passenger's Similar)

G00264033

Courtesy of AMERICAN HONDA MOTOR CO., INC.

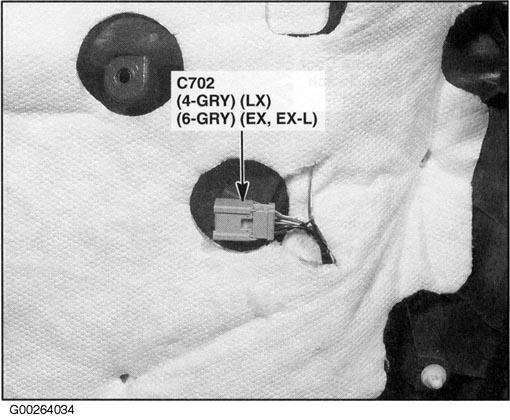

Fig 87: Driver's Door

G00264034

Courtesy of AMERICAN HONDA MOTOR CO., INC.

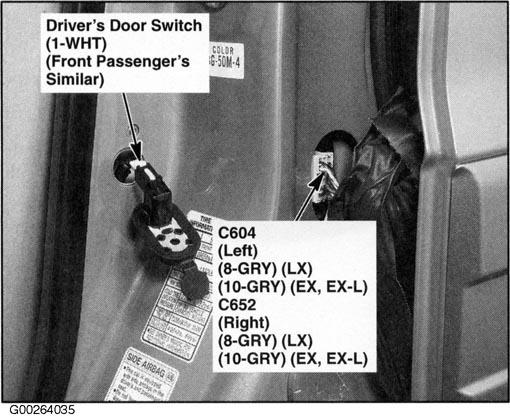

Fig 88: Left "B" Pillar (Right Similar)

G00264035

Courtesy of AMERICAN HONDA MOTOR CO., INC.

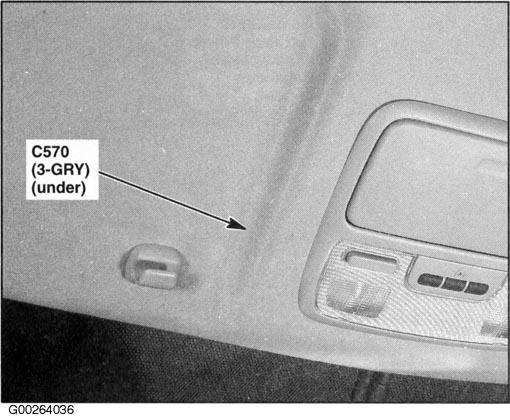

Fig 89: Front Middle Of Roof (Honda Accessory)

G00264036

Courtesy of AMERICAN HONDA MOTOR CO., INC.

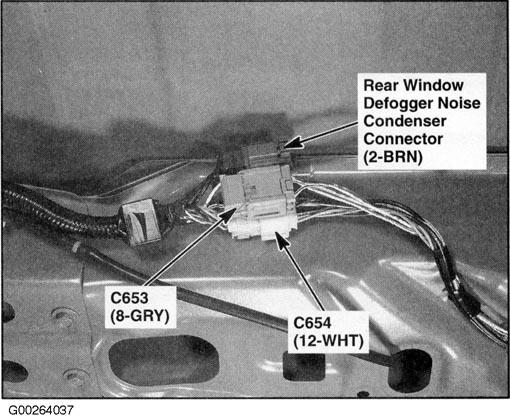

Fig 90: Behind Tailgate Upper Trim

G00264037

Courtesy of AMERICAN HONDA MOTOR CO., INC.

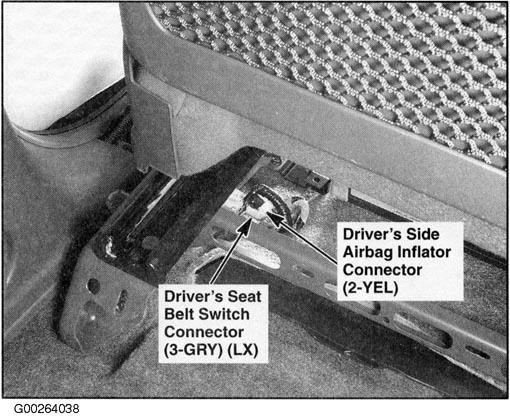

Fig 91: Under Driver's Seat

G00264038

Courtesy of AMERICAN HONDA MOTOR CO., INC.

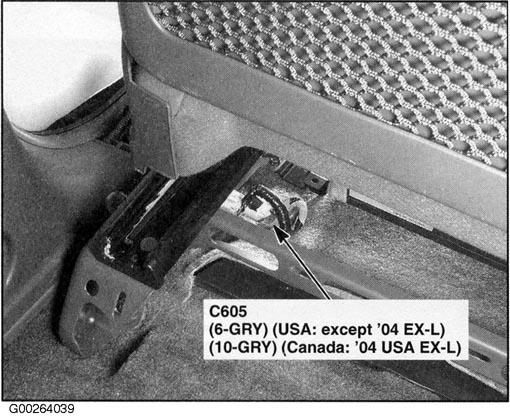

Fig 92: Under Driver's Seat (EX, EX-L)

G00264039

Courtesy of AMERICAN HONDA MOTOR CO., INC.

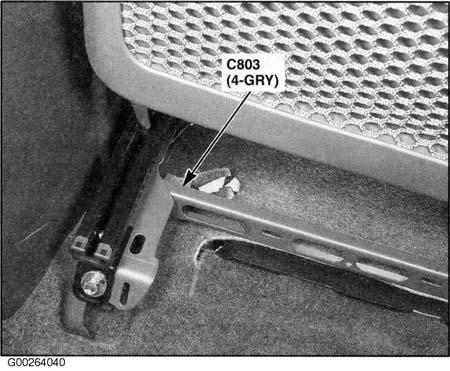

Fig 93: Under Front Passenger's Seat

G00264040

Courtesy of AMERICAN HONDA MOTOR CO., INC.

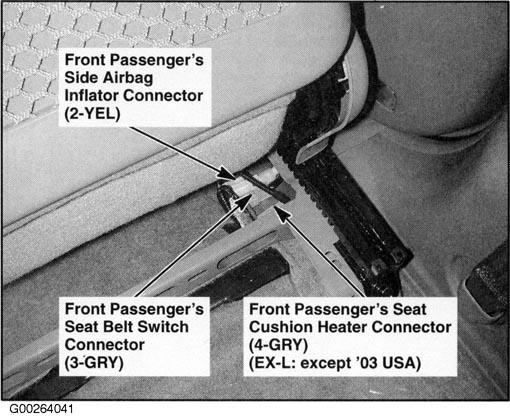

Fig 94: Under Front Passenger's Seat

G00264041

Courtesy of AMERICAN HONDA MOTOR CO., INC.

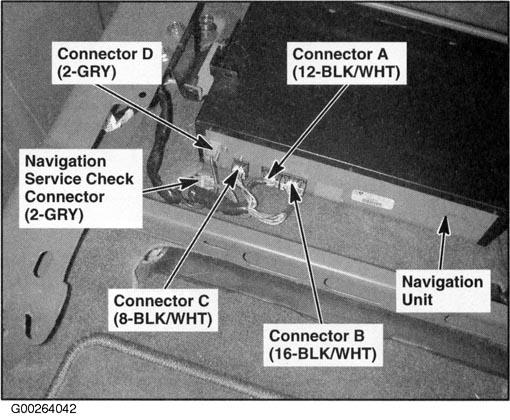

Fig 95: Under Front Passenger's Seat (EX-L)

G00264042

Courtesy of AMERICAN HONDA MOTOR CO., INC.

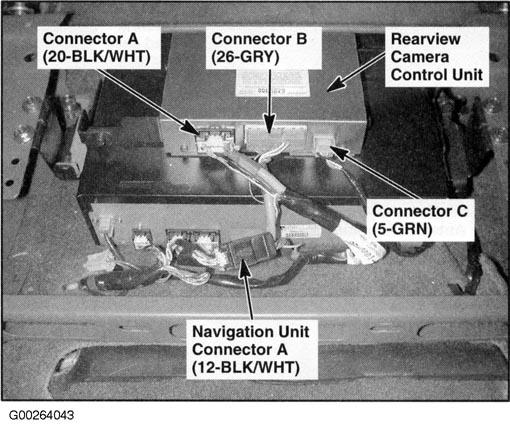

Fig 96: Under Front Passenger's Seat (EX-L, Honda Accessory)

G00264043

Courtesy of AMERICAN HONDA MOTOR CO., INC.

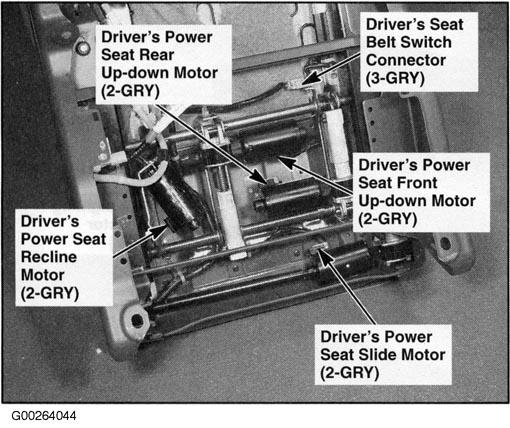

Fig 97: Under Driver's Seat (EX, EX-L)

G00264044

Courtesy of AMERICAN HONDA MOTOR CO., INC.

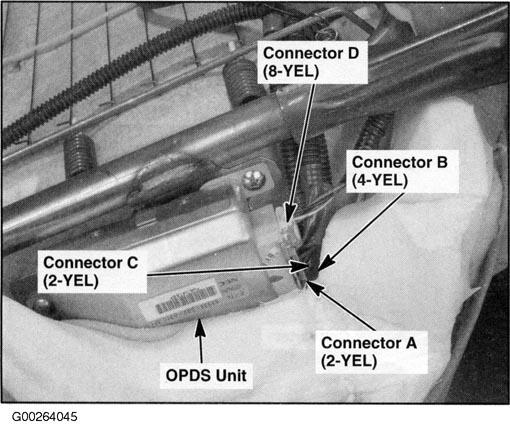

Fig 98: In Front Passenger's Seat

G00264045

Courtesy of AMERICAN HONDA MOTOR CO., INC.

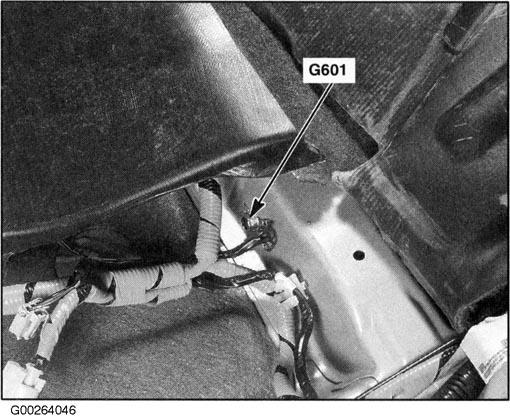

Fig 99: Left Side Of Floor

G00264046

Courtesy of AMERICAN HONDA MOTOR CO., INC.

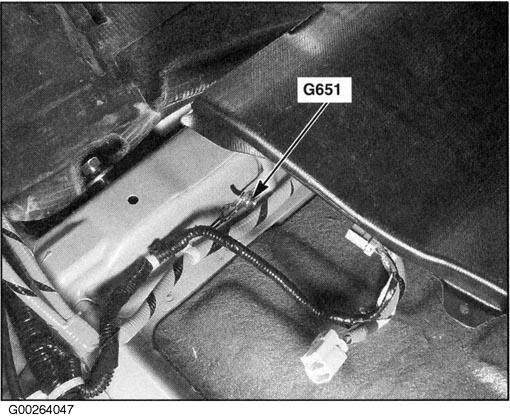

Fig 100: Right Side Of Floor

G00264047

Courtesy of AMERICAN HONDA MOTOR CO., INC.

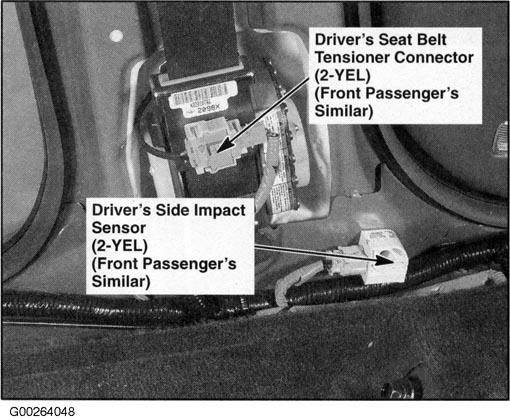

Fig 101: Left "B" Pillar (Right Similar)

G00264048

Courtesy of AMERICAN HONDA MOTOR CO., INC.

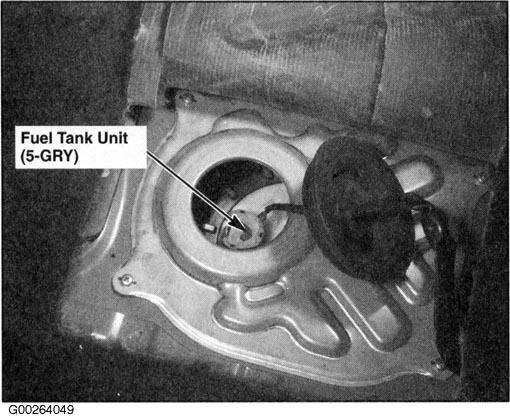

Fig 102: Middle Of Floor

G00264049

Courtesy of AMERICAN HONDA MOTOR CO., INC.

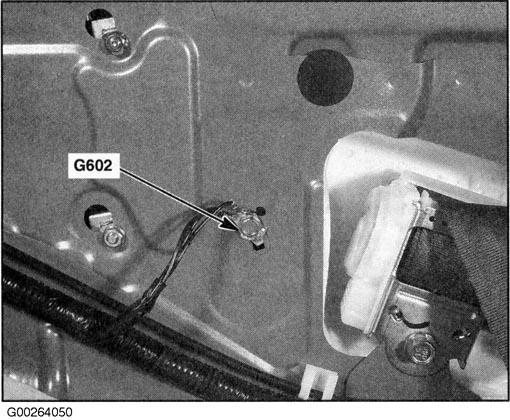

Fig 103: Left Side Of Cargo Area

G00264050

Courtesy of AMERICAN HONDA MOTOR CO., INC.

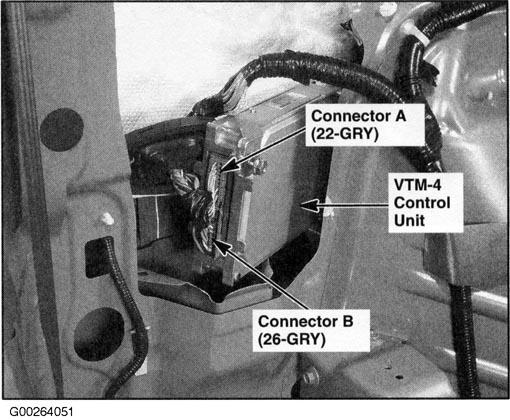

Fig 104: Left Side Of Cargo Area

G00264051

Courtesy of AMERICAN HONDA MOTOR CO., INC.

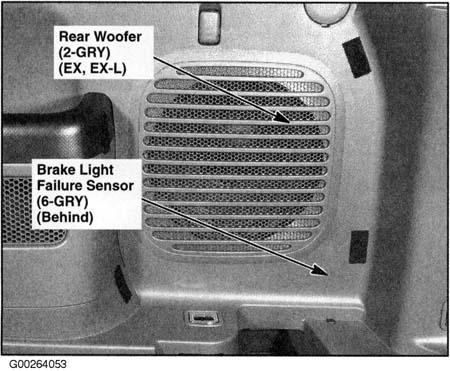

Fig 105: Right Side Of Cargo Area

G00264053

Courtesy of AMERICAN HONDA MOTOR CO., INC.

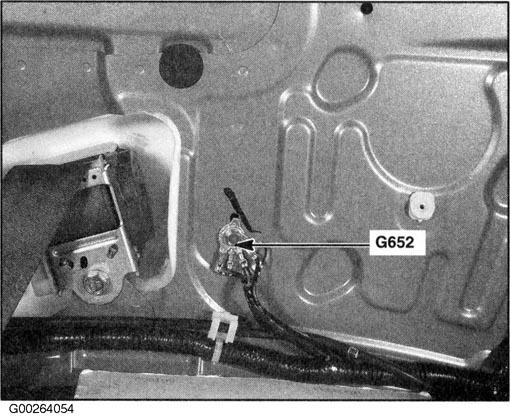

Fig 106: Right Side Of Cargo Area

G00264054

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 107: Right Rear Of Cargo Area (Honda Accessory)

G00264056

Courtesy of AMERICAN HONDA MOTOR CO., INC.

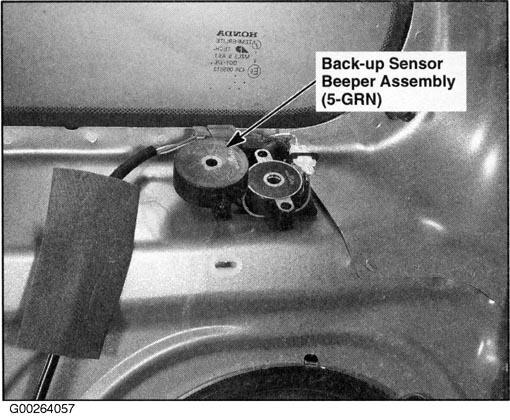

Fig 108: Right Side Of Cargo Area (Honda Accessory)

G00264057

Courtesy of AMERICAN HONDA MOTOR CO., INC.

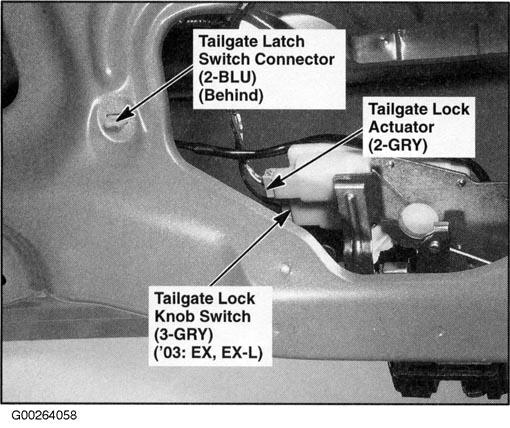

Fig 109: Behind Tailgate Trim Panel

G00264058

Courtesy of AMERICAN HONDA MOTOR CO., INC.

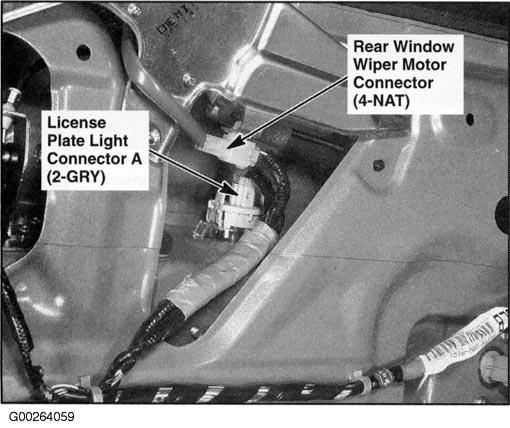

Fig 110: Behind Tailgate Trim Panel

G00264059

Courtesy of AMERICAN HONDA MOTOR CO., INC.

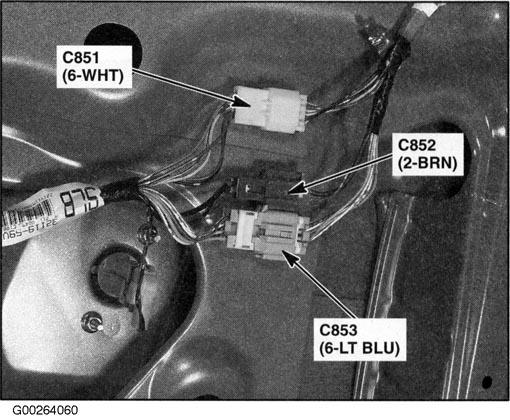

Fig 111: Behind Tailgate Trim Panel

G00264060

Courtesy of AMERICAN HONDA MOTOR CO., INC.

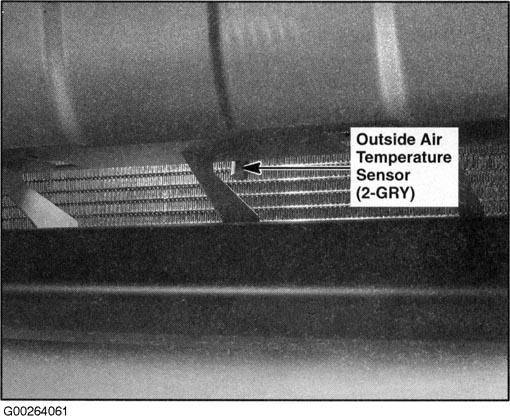

Fig 112: Behind Middle Of Front Bumper (EX, EX-L)

G00264061

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 113: Behind Left Side Of Front Bumper (Honda Accessory)

G00264063

Courtesy of AMERICAN HONDA MOTOR CO., INC.

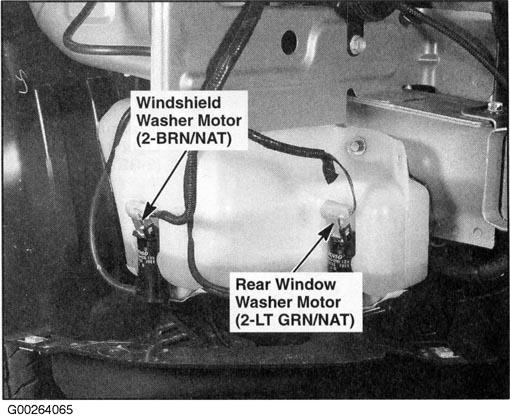

Fig 114: Behind Right Side Of Front Bumper

G00264065

Courtesy of AMERICAN HONDA MOTOR CO., INC.

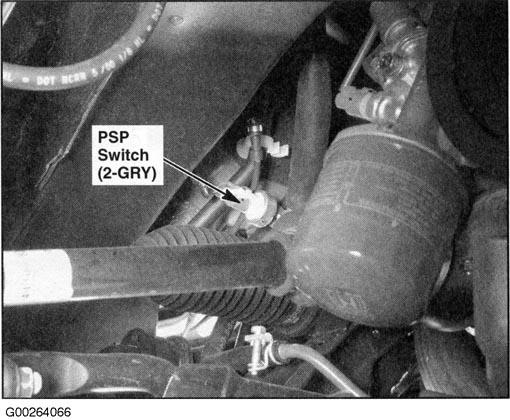

Fig 115: Right Side Of Engine Compartment

G00264066

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 116: Right Side Of Engine Compartment

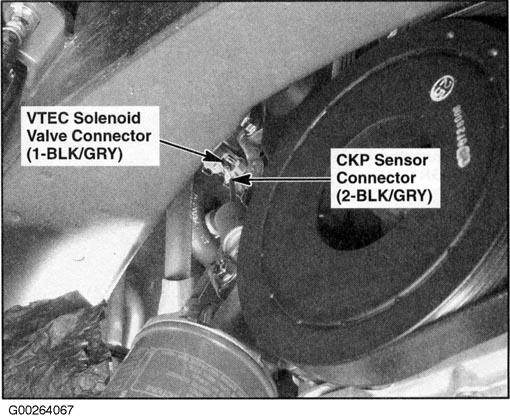

G00264067

Courtesy of AMERICAN HONDA MOTOR CO., INC.

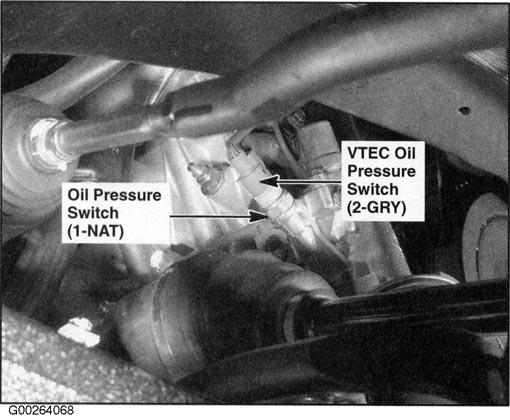

Fig 117: Right Side Of Engine Compartment

G00264068

Courtesy of AMERICAN HONDA MOTOR CO., INC.

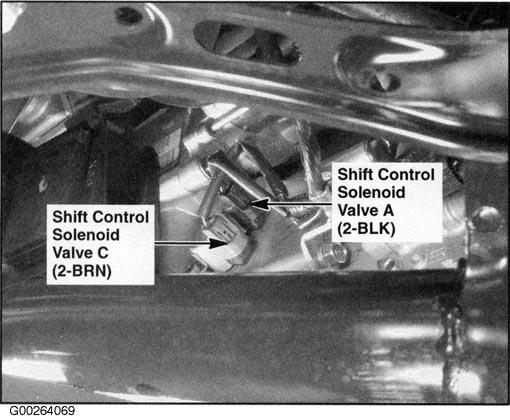

Fig 118: Left Side Of Engine Compartment

G00264069

Courtesy of AMERICAN HONDA MOTOR CO., INC.

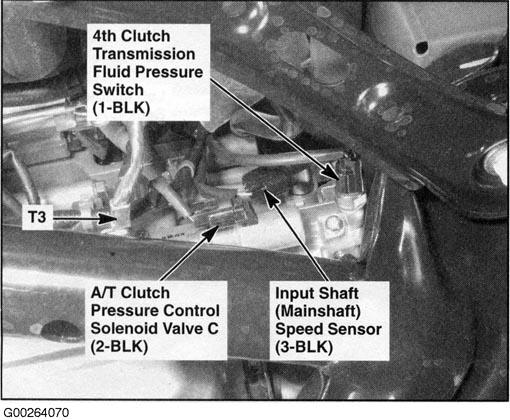

Fig 119: Left Side Of Engine Compartment

G00264070

Courtesy of AMERICAN HONDA MOTOR CO., INC.

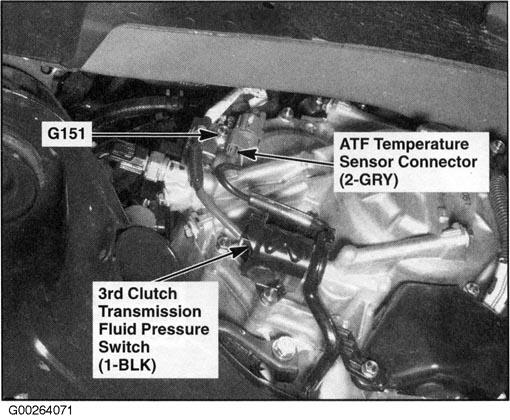

Fig 120: Transmission Housing

G00264071

Courtesy of AMERICAN HONDA MOTOR CO., INC.

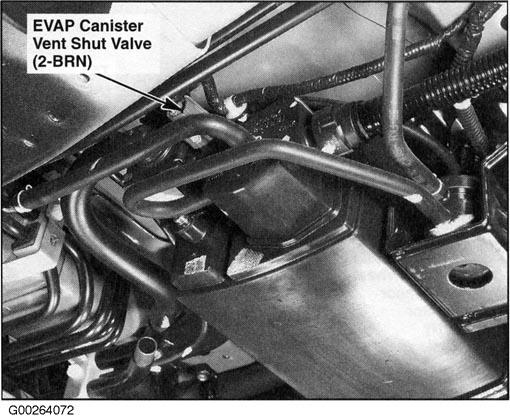

Fig 121: Under Left Side Of Floor

G00264072

Courtesy of AMERICAN HONDA MOTOR CO., INC.

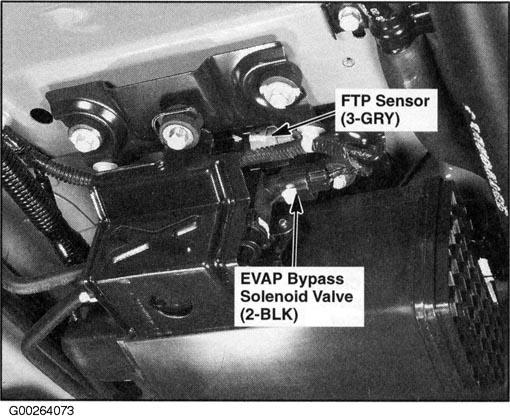

Fig 122: Under Left Side Of Floor

G00264073

Courtesy of AMERICAN HONDA MOTOR CO., INC.

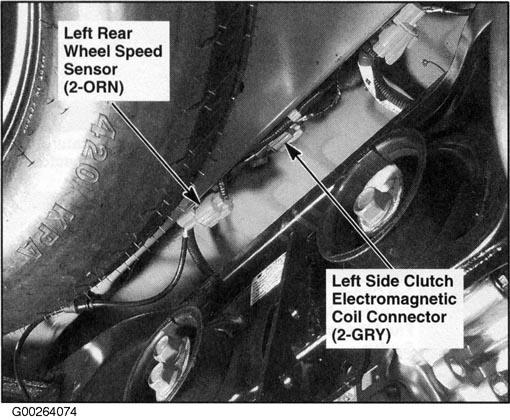

Fig 123: Under Rear Floor

G00264074

Courtesy of AMERICAN HONDA MOTOR CO., INC.

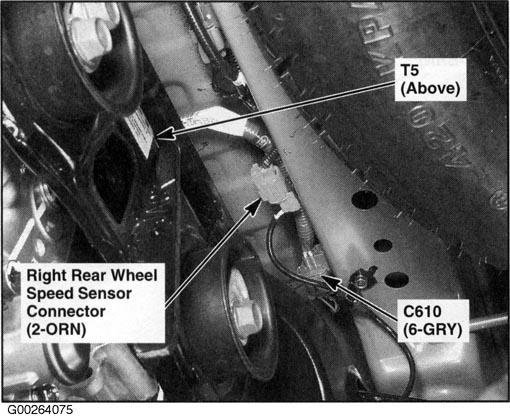

Fig 124: Under Rear Floor

G00264075

Courtesy of AMERICAN HONDA MOTOR CO., INC.

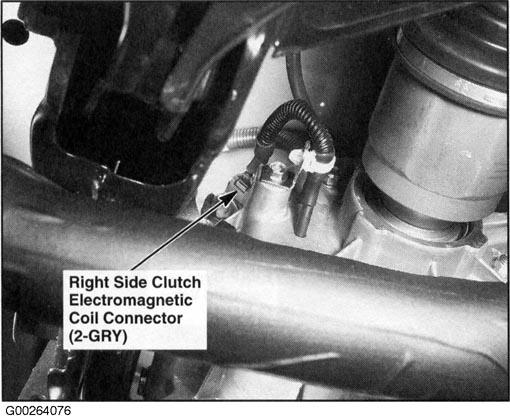

Fig 125: Rear Differential

G00264076

Courtesy of AMERICAN HONDA MOTOR CO., INC.

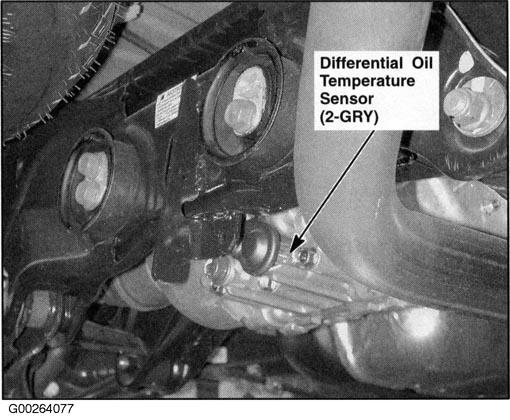

Fig 126: Rear Differential

G00264077

Courtesy of AMERICAN HONDA MOTOR CO., INC.

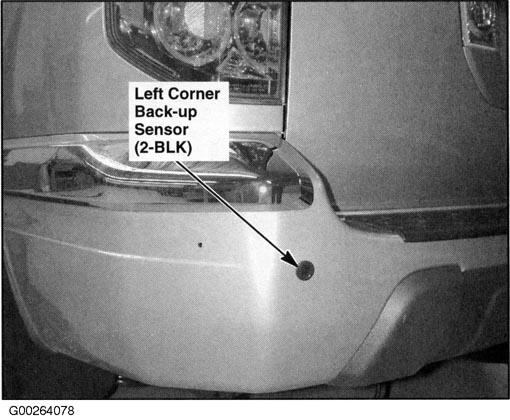

Fig 127: Left Side Of Rear Bumper (Honda Accessory) (Right Similar)

G00264078

Courtesy of AMERICAN HONDA MOTOR CO., INC.

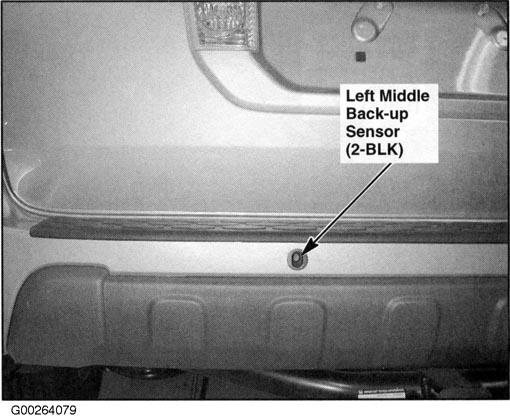

Fig 128: Left Side Of Rear Bumper (Honda Accessory) (Right Similar)

G00264079

Courtesy of AMERICAN HONDA MOTOR CO., INC.

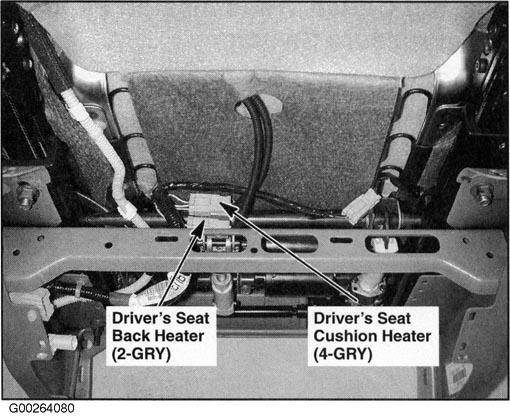

Fig 129: Under Driver's Seat (EX-L)

G00264080

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 130: Behind Left Side Of Front Bumper

G00264081

Courtesy of AMERICAN HONDA MOTOR CO., INC.

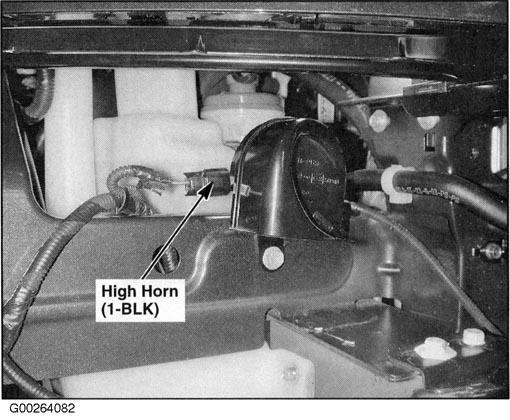

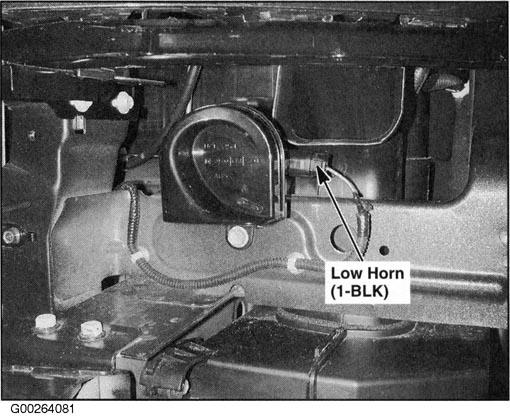

Fig 131: Behind Right Side Of Front Bumper

G00264082

Courtesy of AMERICAN HONDA MOTOR CO., INC.

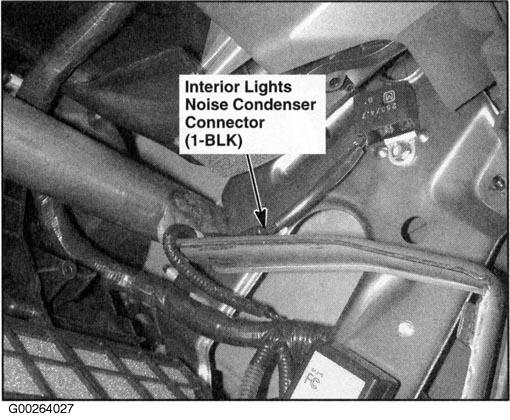

Fig 132: Behind Glove Box

G00264027

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 133: Driver's Underdash Fuse/Relay Box

G00292075

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 134: Passenger's Underdash Fuse/Relay Box

G00292076

Courtesy of AMERICAN HONDA MOTOR CO., INC.

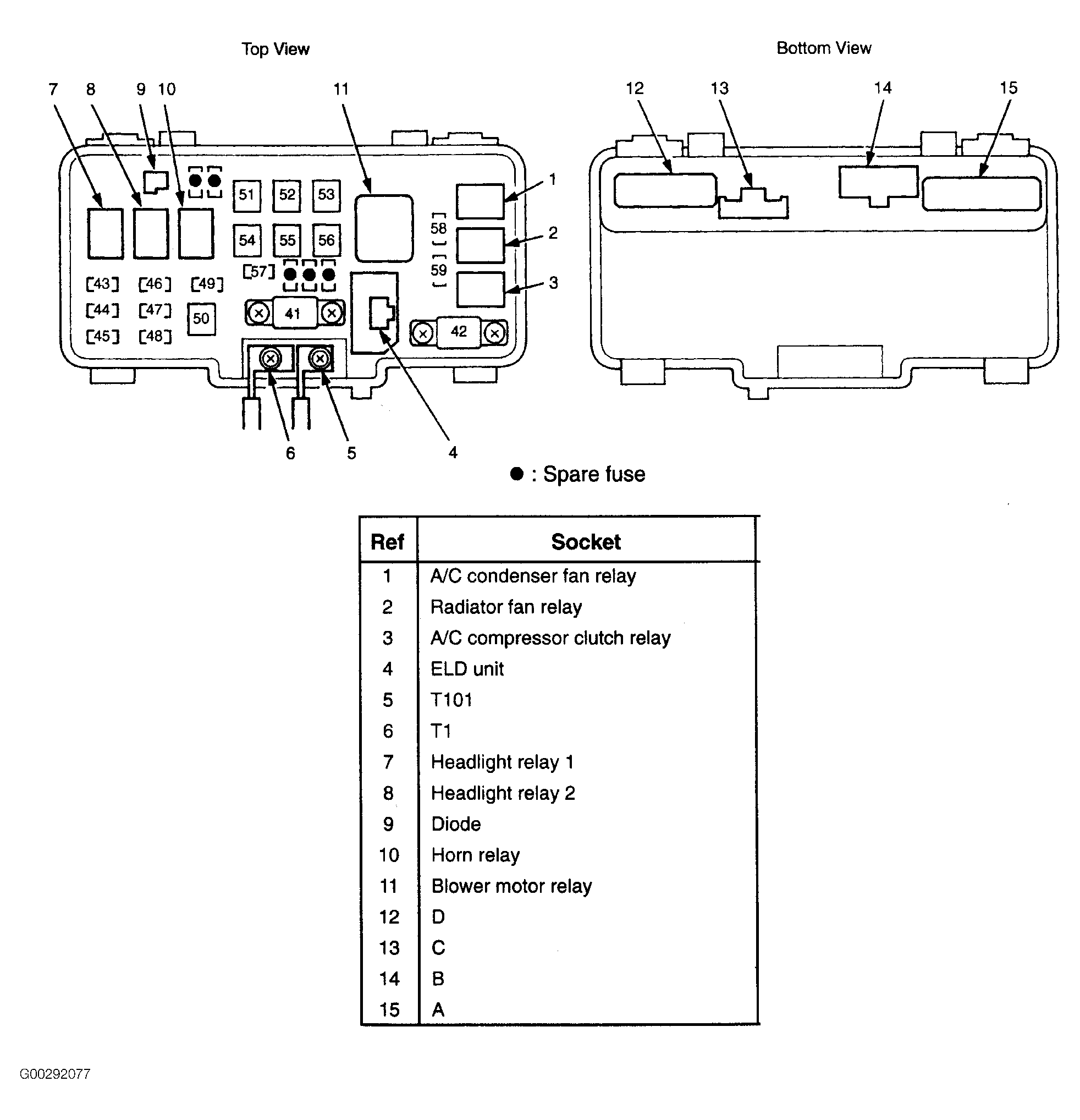

Fig 135: Underhood Fuse/Relay Box

G00292077

Courtesy of AMERICAN HONDA MOTOR CO., INC.

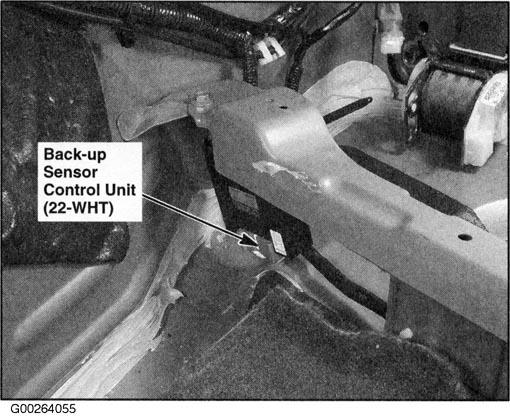

Fig 136: Right Side Of Cargo Area

G00264055

Courtesy of AMERICAN HONDA MOTOR CO., INC.
