Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Location |
|---|---|
| G1 | On left side of engine compartment, near battery. See Figure . |
| G2 | At front of engine compartment. See Figure . |

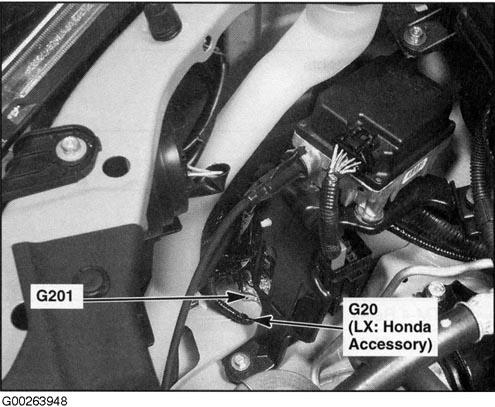

| G20 | Behind right headlight. See Figure . |
| G101 | At left rear of engine. See Figure . |
| G102 | At right front of engine, near power steering pump. See Figure . |

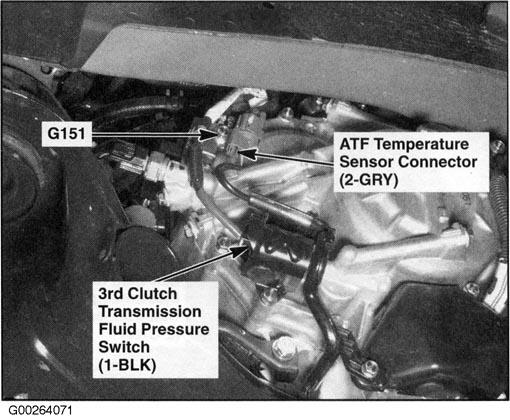

| G151 | At rear of transaxle. See Figure . |
| G201 | Behind right headlight. See Figure . |
| G301 | At left front side of engine compartment, behind headlight. See Figure . |

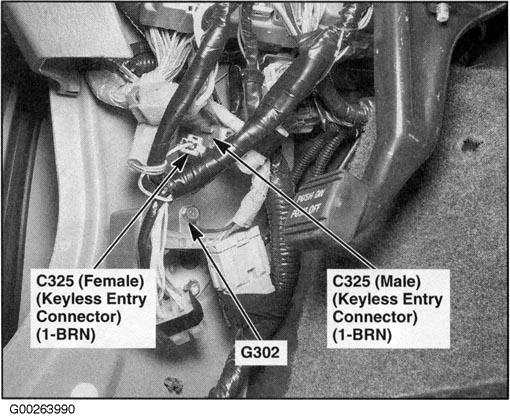

| G302 | Below driver underdash fuse/relay box. See Figure . |
| G401 | Behind upper left end of dash. See Figure . |
| G501 | Behind left end of dash. See Figure . |
| G502 | Behind left side of dash. See Figure . |
| G503 | Behind right end of dash. See Figure . |
| G504 | Behind center of dash. See Figure . |
| G505 | Behind lower center of dash. See Figure . |
| G601 | Below left front seat. See Figure . |
| G602 | Above left rear fender. See Figure . |

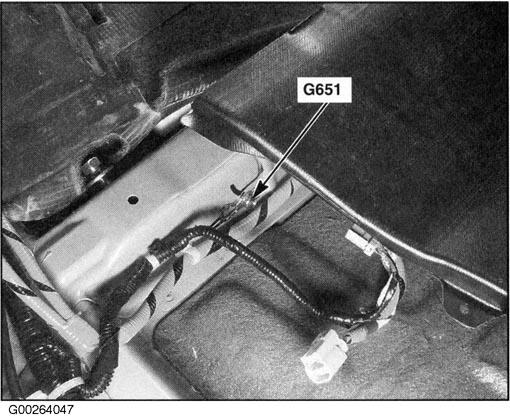

| G651 | Below right front seat. See Figure . |
| G652 | Above right rear fender. See Figure . |
| G801 | Below center console. See Figure . |
