Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| Alternator | Middle of engine compartment. See Figure . |
| Data Link (DLC) Connector | Lower left side of dash. See Figure . |
| Driver's Seat Back Heater | In driver's seat. See Figure . |
| Driver's Seat Belt Tensioner | Base of left "B" pillar. See Figure . |
| Driver's Seat Cushion Heater | In driver's seat. See Figure . |
| Driver's Side Airbag Inflator | In driver's seat. See Figure . |
| Front Blower Power Transistor | On bottom of blower unit, next to front blower motor. See Figure . |
| Front Passenger's Airbag | Behind right side of dash. See Figure . |
| Front Passenger's Side Airbag | In front passenger's seat. See Figure . |
| GPS Antenna | Behind upper center of dash, behind center panel. See Figure . |

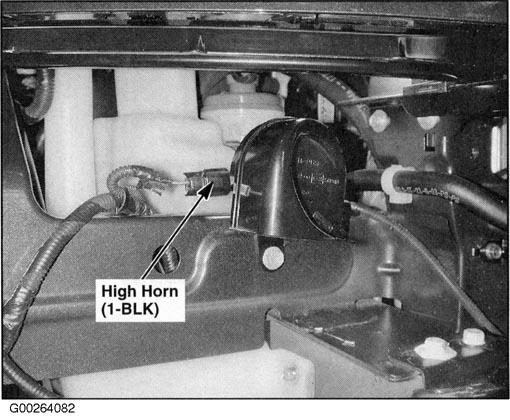

| Horn (High) | Behind front bumper. See Figure . |
| Horn (Low) | Behind front bumper. See Figure . |
| Ignition Coil No. 1 | Middle of engine compartment. See Figure . |
| Ignition Coil No. 2 | Middle of engine compartment. See Figure . |
| Ignition Coil No. 3 | Middle of engine compartment. See Figure . |
| Ignition Coil No. 4 | Middle of engine compartment. See Figure . |
| Ignition Coil No. 5 | Middle of engine compartment. See Figure . |
| Ignition Coil No. 6 | Middle of engine compartment. See Figure . |
| Interior Lights Noise Condenser | Behind right side of dash. See Figure . |
| Junction Connector C103 | At left side of engine compartment. See Figure . |
| Junction Connector C104 | At left side of engine compartment. See Figure . |

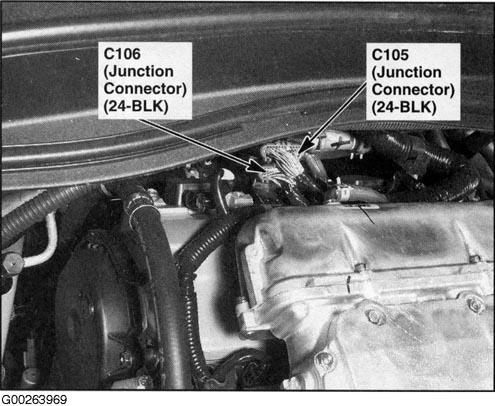

| Junction Connector C105 | At center of engine compartment. See Figure . |
| Junction Connector C106 | At center of engine compartment. See Figure . |
| MES Connector | Under left side of dash. See Figure . |
| Multiplex Control Inspection Connector | Behind left side of dash. See Figure . |
| Navigation Service Check Connector | Under right front seat. See Figure . |

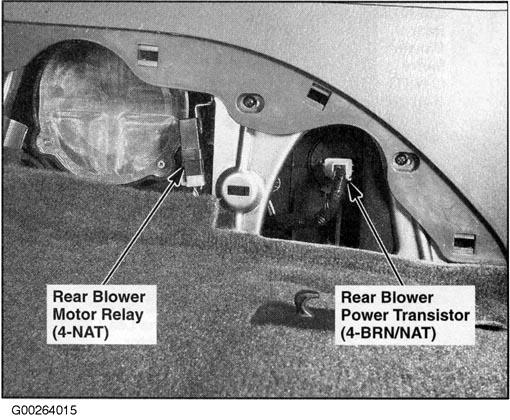

| Rear Blower Power Transistor | Under center console. See Figure . |
| Rear Blower Resistor | Under center console. See Figure . |
| Rear Window Defogger Noise Condenser | Behind liftgate upper trim. See Figure . |
| Test Tachometer Connector | At left side of engine compartment. See Figure . |
