Electrical Component Locator: Motors
MOTORS LOCATION
| Component | Location |
|---|---|
| A/C Condenser Fan Motor | Behind right side of radiator. See Figure . |

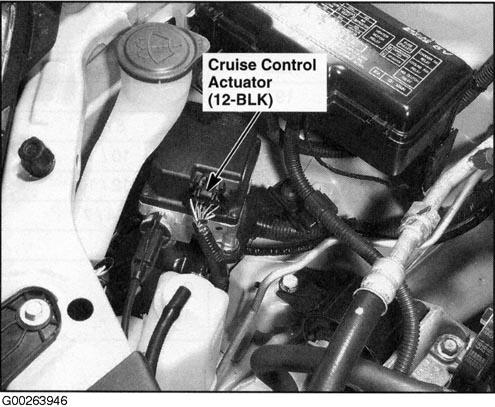

| Cruise Control Actuator | At right side of engine compartment, in front of underhood fuse/relay box. See Figure . |
| Driver's Power Seat Front Up-Down Motor | Under driver's seat. See Figure . |
| Driver's Power Seat Rear Up-Down Motor | Under driver's seat. See Figure . |
| Driver's Power Seat Recline Motor | Under driver's seat. See Figure . |
| Driver's Power Seat Slide Motor | Under driver's seat. See Figure . |

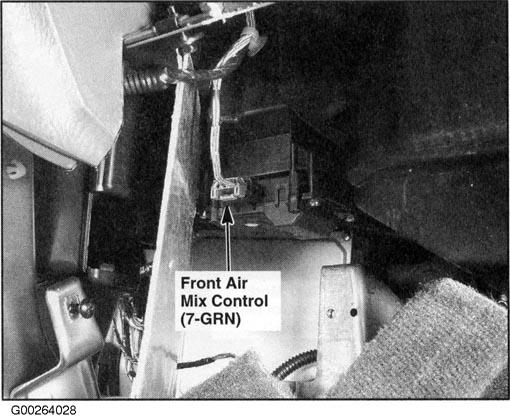

| Front Air Mix Control Motor | On bottom of HVAC assembly. See Figure . |

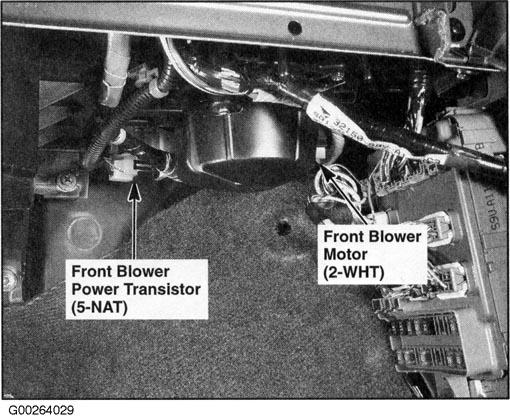

| Front Blower Motor | Under right side of dash, on bottom of blower unit. See Figure . |
| Front Mode Control Motor | On left end of HVAC assembly. See Figure . |

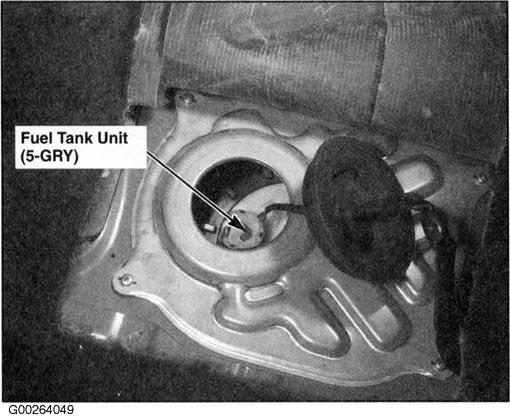

| Fuel Tank Unit | Under second row seat, below floor access panel. See Figure . |

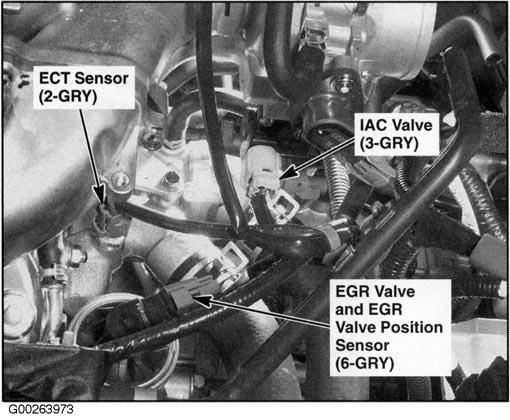

| IAC Valve | Under throttle body assembly. See Figure . |
| Radiator Fan Motor | Behind left side of radiator. See Figure . |

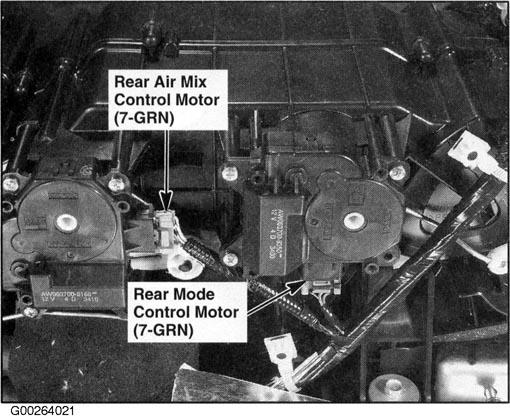

| Rear Air Mix Control Motor | Under center console panel. See Figure . |
| Rear Blower Motor | Under center console. See Figure . |
| Rear Mode Control Motor (EX, EX-L) | Under center console panel. See Figure . |

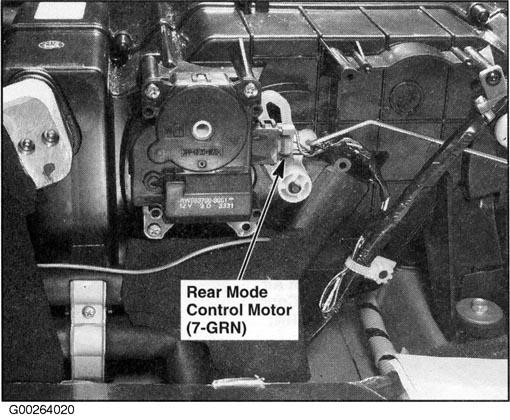

| Rear Mode Control Motor (LX) | Under center console panel. See Figure . |
| Rear Window Washer Motor | Behind right side of front bumper, on washer reservoir. See Figure . |

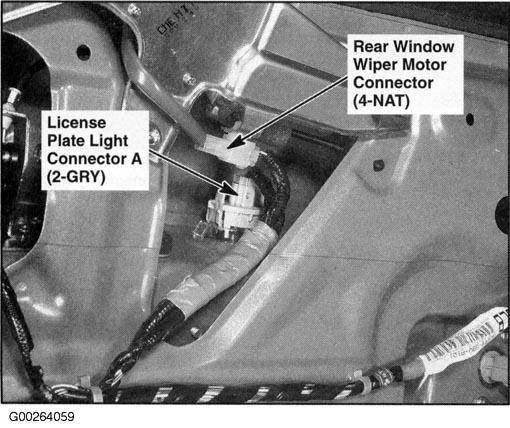

| Rear Window Wiper Motor | Behind liftgate trim panel. See Figure . |
| Recirculation Control Motor | Behind glove box, on left side of blower unit. See Figure . |

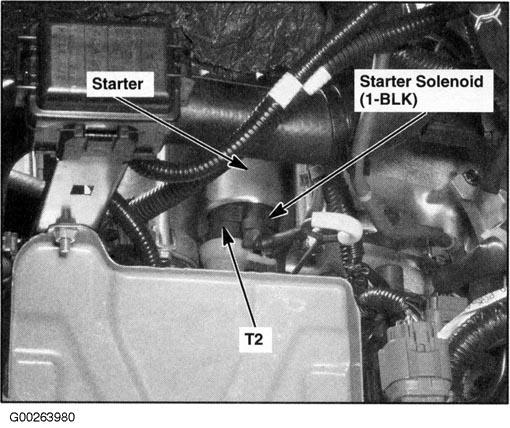

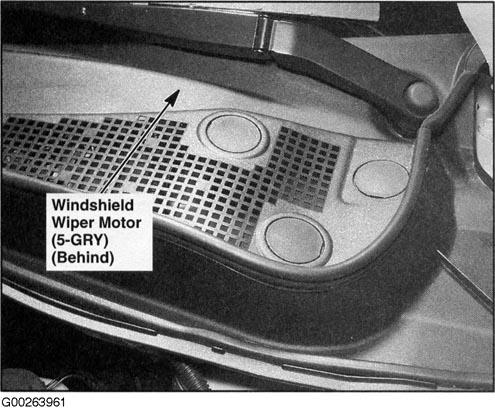

| Starter | Left side of engine compartment. See Figure . |
| Windshield Washer Motor | Behind right side of front bumper, on washer reservoir. See Figure . |
| Windshield Wiper Motor | Left side of engine compartment. See Figure . |
