FTP Sensor Replacement

Remove the EVAP canister cover (see step 1 on EVAP Canister Replacement ).
Remove the EVAP bypass solenoid valve/EVAP two way valve assembly.

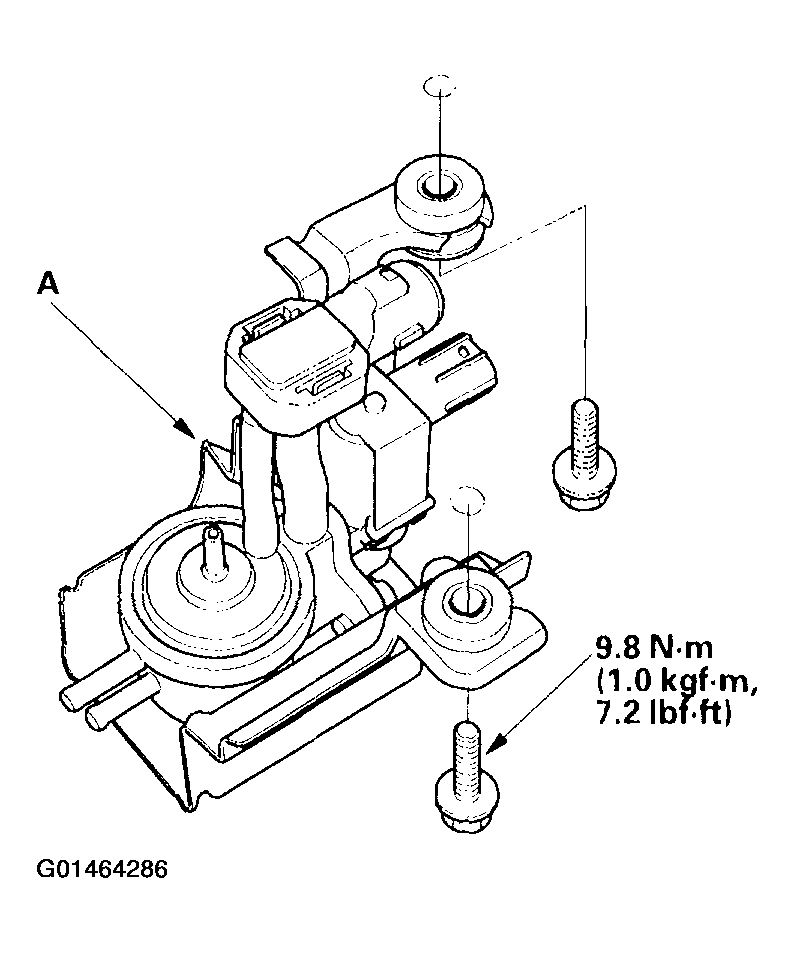

Fig 1: Removing The EVAP Bypass Solenoid Valve/EVAP Two Way Valve Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the FTP sensor (A).

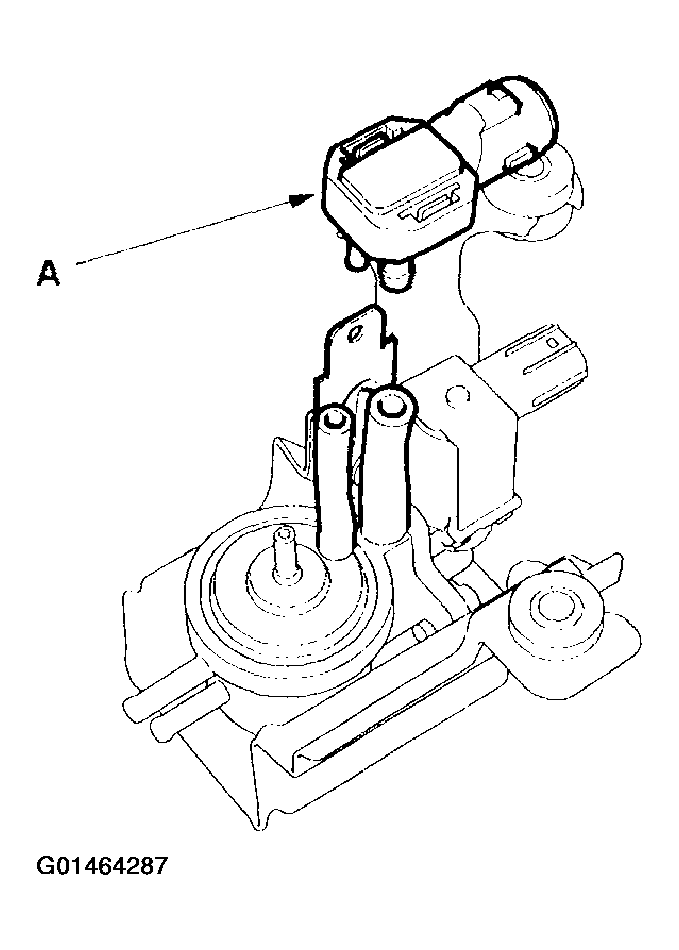

Fig 2: Removing The FTP Sensor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the parts in the reverse order of removal.
