PSP Switch Signal Circuit Troubleshooting
- Turn the ignition switch ON (II).

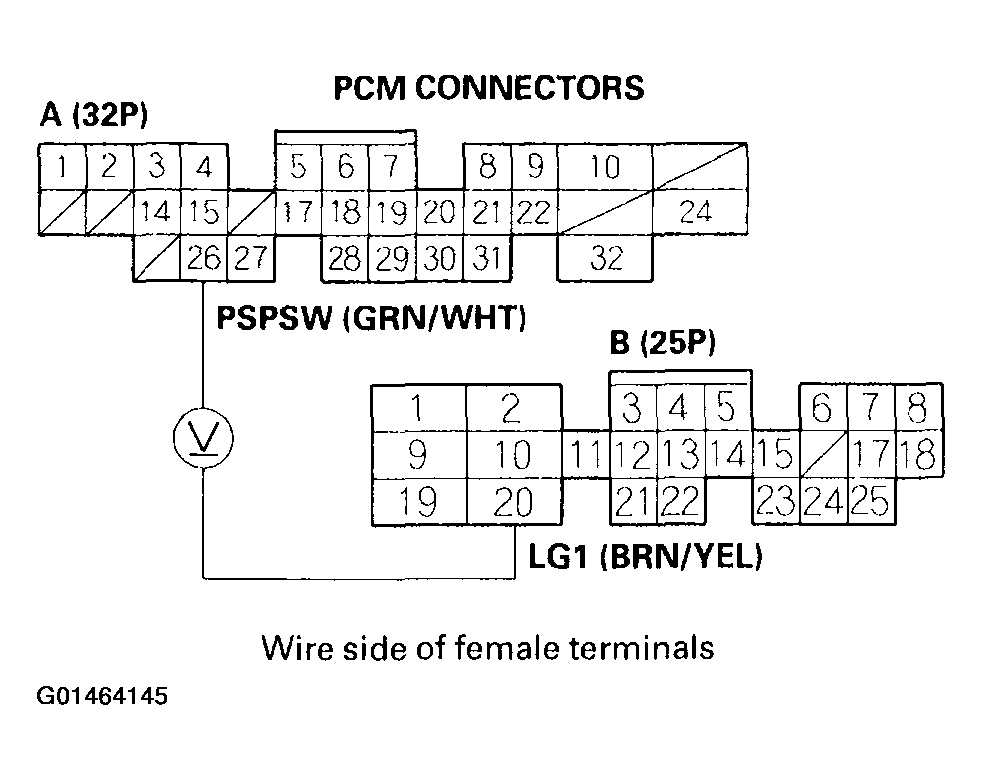

- Measure voltage between PCM connector terminals A26 and B20.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there less than 1.0 V?
- YES -Go to step 3.
- NO -Go to step 6.
- Start the engine.
- Turn the steering wheel to the full lock position.

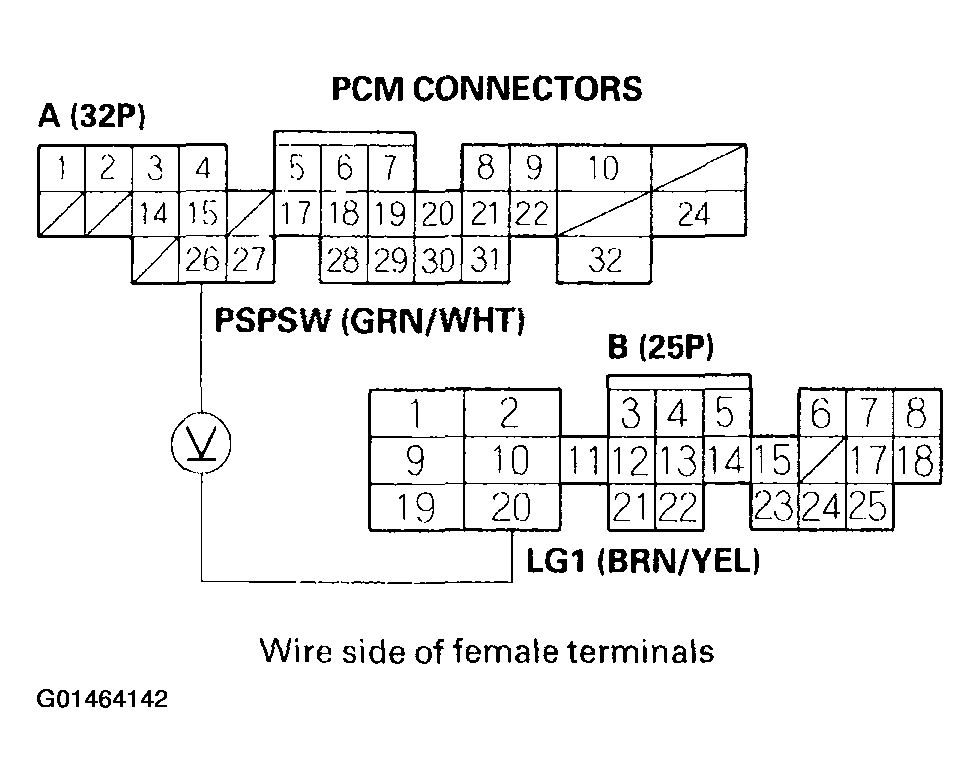

- Measure voltage between PCM connector terminals A26 and B20.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there battery voltage?
- YES -The PSP switch signal is OK.
- NO -Go to step 11.
- Turn the ignition switch OFF.
- Disconnect the PSP switch 2P connector.
- Turn the ignition switch ON (II).

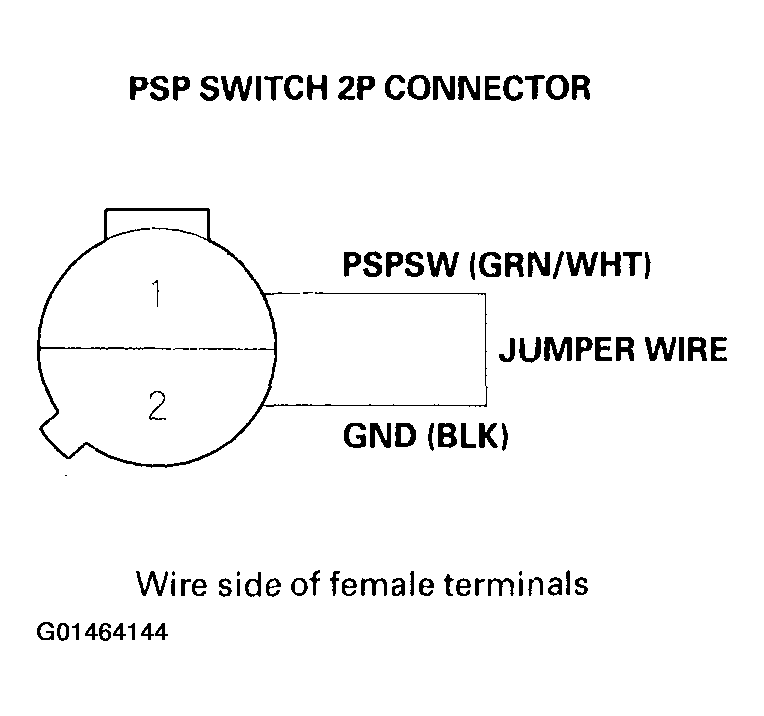

- At the harness side, connect PSP switch 2P connector terminals No. 1 and No. 2 with a jumper wire.

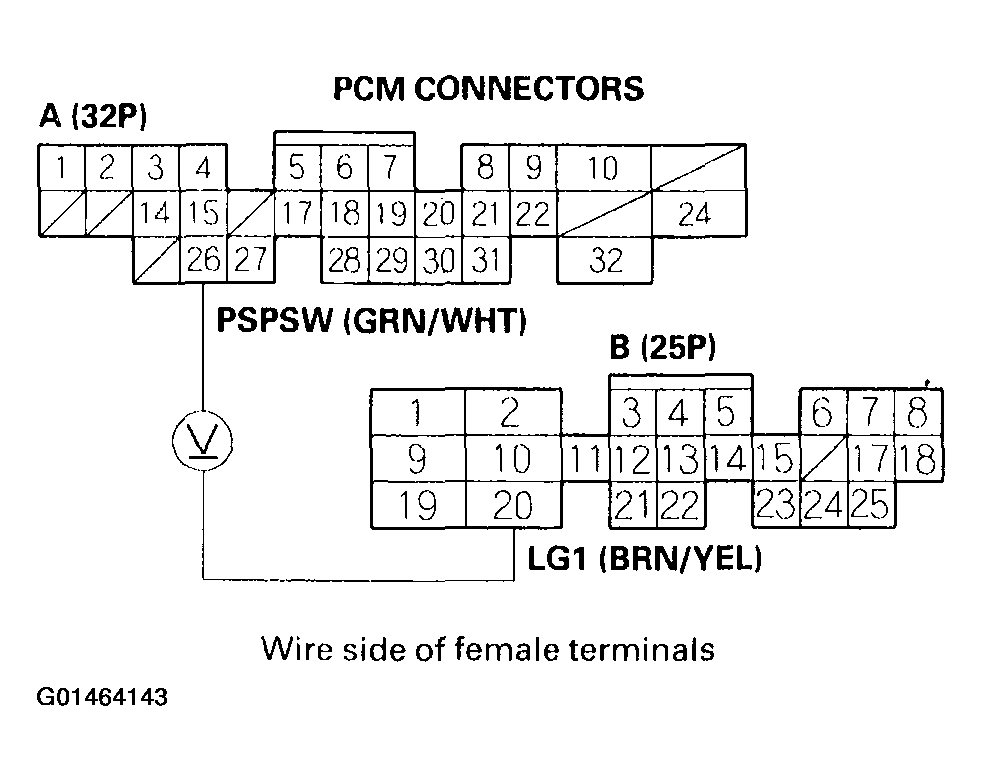

- Measure voltage between PCM connector terminals A26 and B20.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there less than 1.0 V?
- YES -Replace the PSP switch.
- NO -Check for an open in the wire between the PCM (A26) and the PSP switch or, an open in wire between the PSP switch and G201.
- Turn the ignition switch OFF.
- Disconnect the PSP switch 2P connector.
- Turn the ignition switch ON (II).

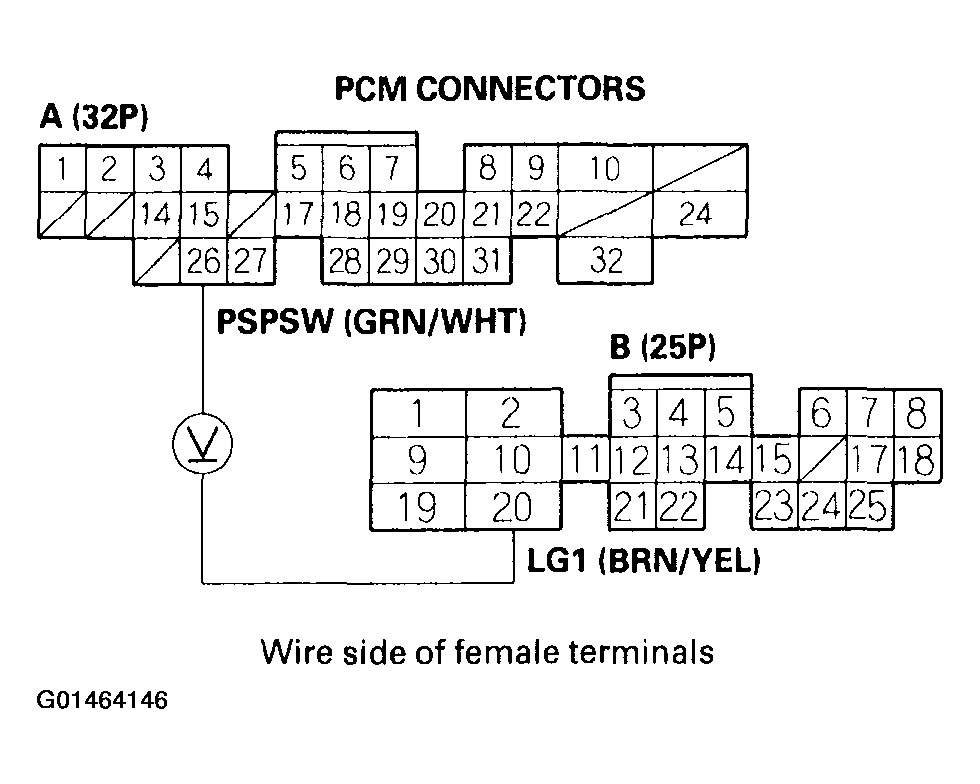

- Measure voltage between PCM connector terminals A26 and B20.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there battery voltage?
- YES -Replace the PSP switch.
- NO -Go to step 15.
- Turn the ignition switch OFF.
- Disconnect the PCM connector A (32P).

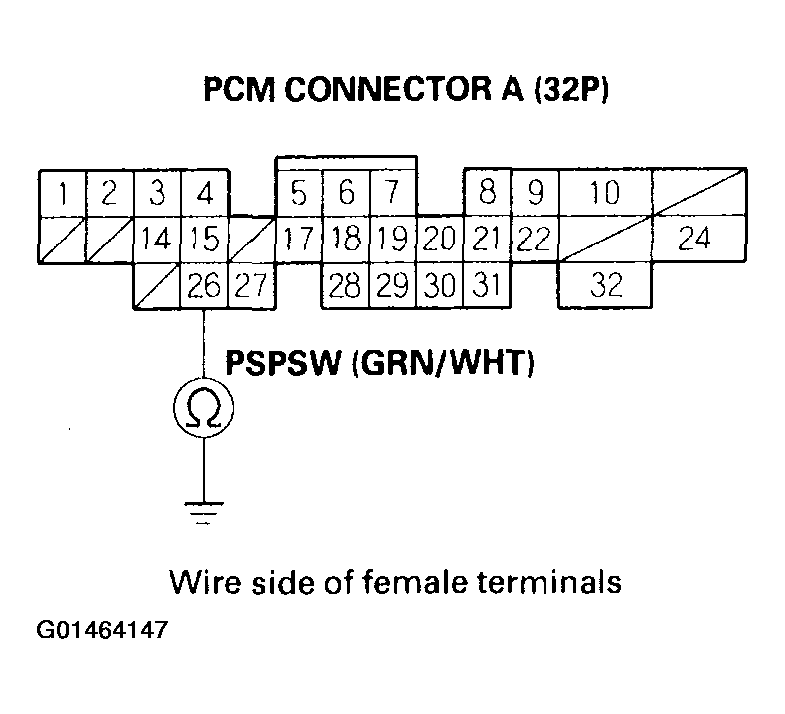

- Check for continuity between body ground and PCM connector terminal A26.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Is there continuity?
- YES -Repair short in the wire between the PCM (A26) and the PSP switch.
- NO -Substitute a known-good PCM and recheck (see HOW TO SUBSTITUTE THE PCM FOR TESTING ). If voltage is normal, replace the original PCM.
