Air Cleaner Element Replacement

  1. Remove the cable clamp (A).

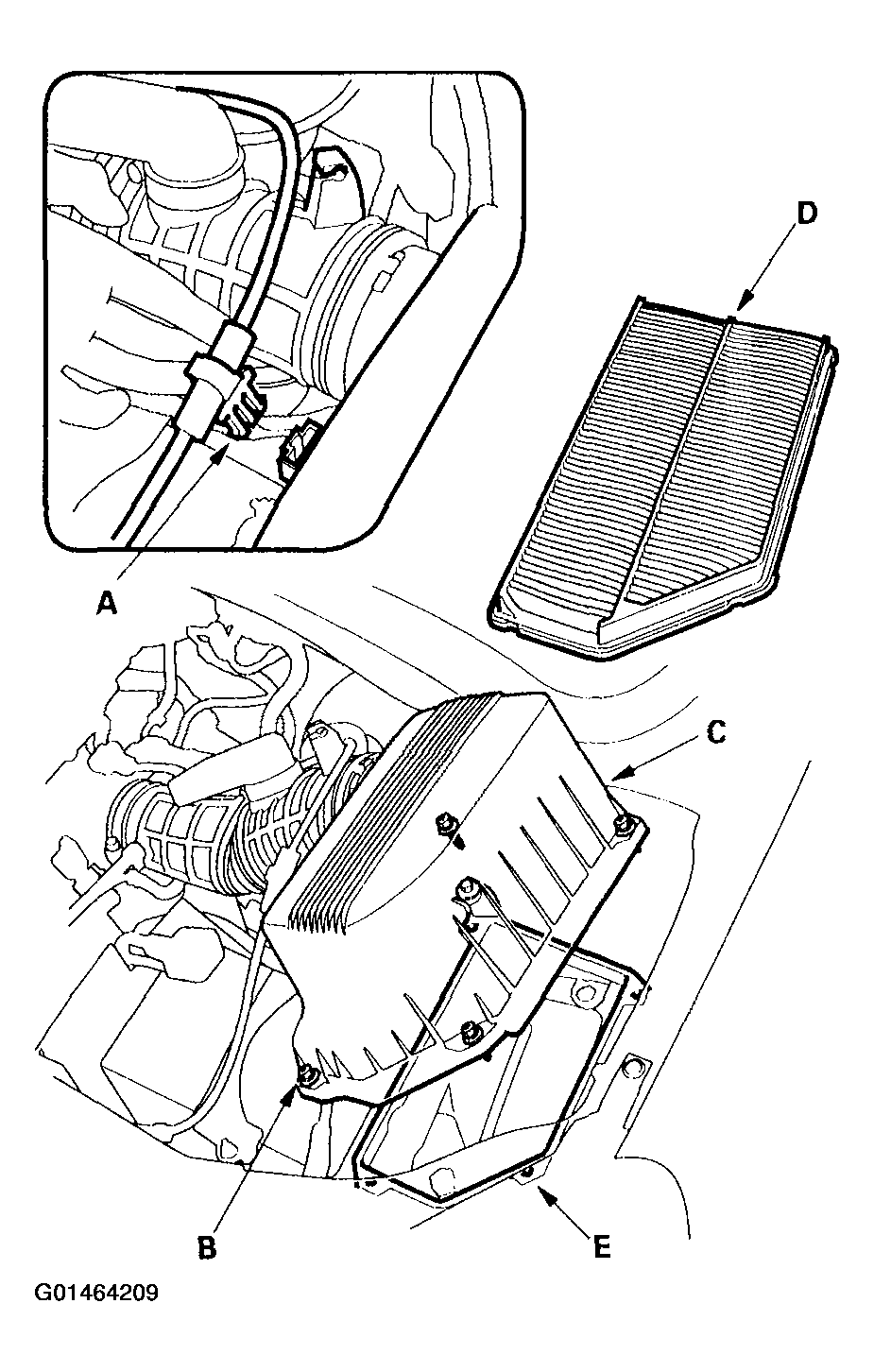

    Fig 1: Removing The Cable Clamp
    G01464209Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the air cleaner housing screws (B) and the cover (C).
  3. Remove the air cleaner element (D) from the air cleaner housing (E).
  4. Install the parts in the reverse order of removal.
